Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD175ID

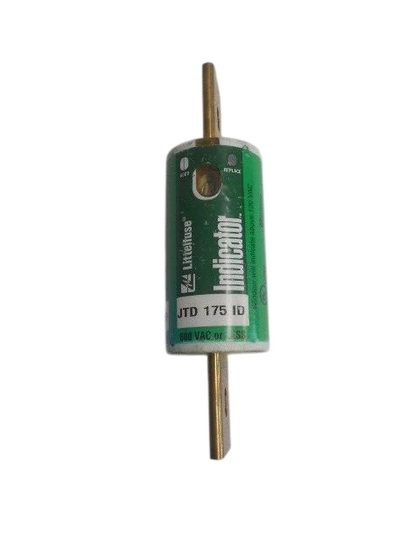

JTD175ID is a Littelfuse POWR-PRO Class J time delay fuse rated for 175 amps at 600 volts AC with visual blown fuse indication and current-limiting protection. This indicator fuse features a patented dual-element design ideal for circuits with high inrush currents, reducing nuisance fuse openings while providing IEC Type 2 no-damage protection to motor starters and control equipment. Key Specifications
- Amperage Rating: 175 Amps
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class J
- Response Time: Time Delay (Slo-Blo)
- Interrupting Rating: 200 kA @ 600 VAC / 20 kA @ 500 VDC
- Mounting: Knife-Blade
- Physical Size: 1-1/2 inch diameter x 5-3/4 inch length
- Protection Type: IEC Type 2 (No Damage)
- Indicating: Yes - visual blown fuse indication
- Certifications: UL 248-8, CSA Listed
- Applications: Motor control centers, fused combination motor controllers, transformers, general purpose circuits
Specifications
- Part Number: JTD175ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031843
- GTIN : 00079458031843
- Country of Origin : Mexico
- Weight : 0.68
- Certification : Standard 248-8 UL Listed/CSA
