JTD150ID - Littelfuse 150A 600VAC Class J Time Delay Indicator Fuse

JTD150ID

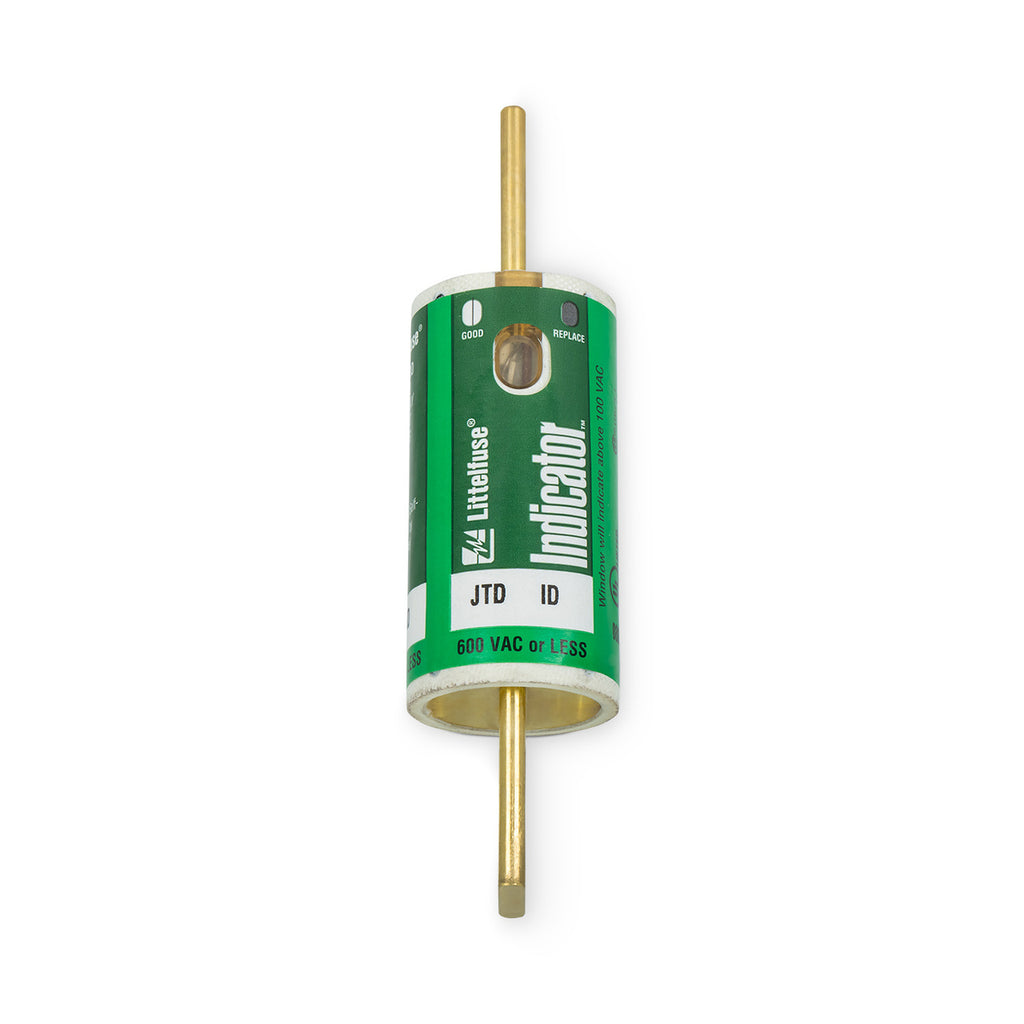

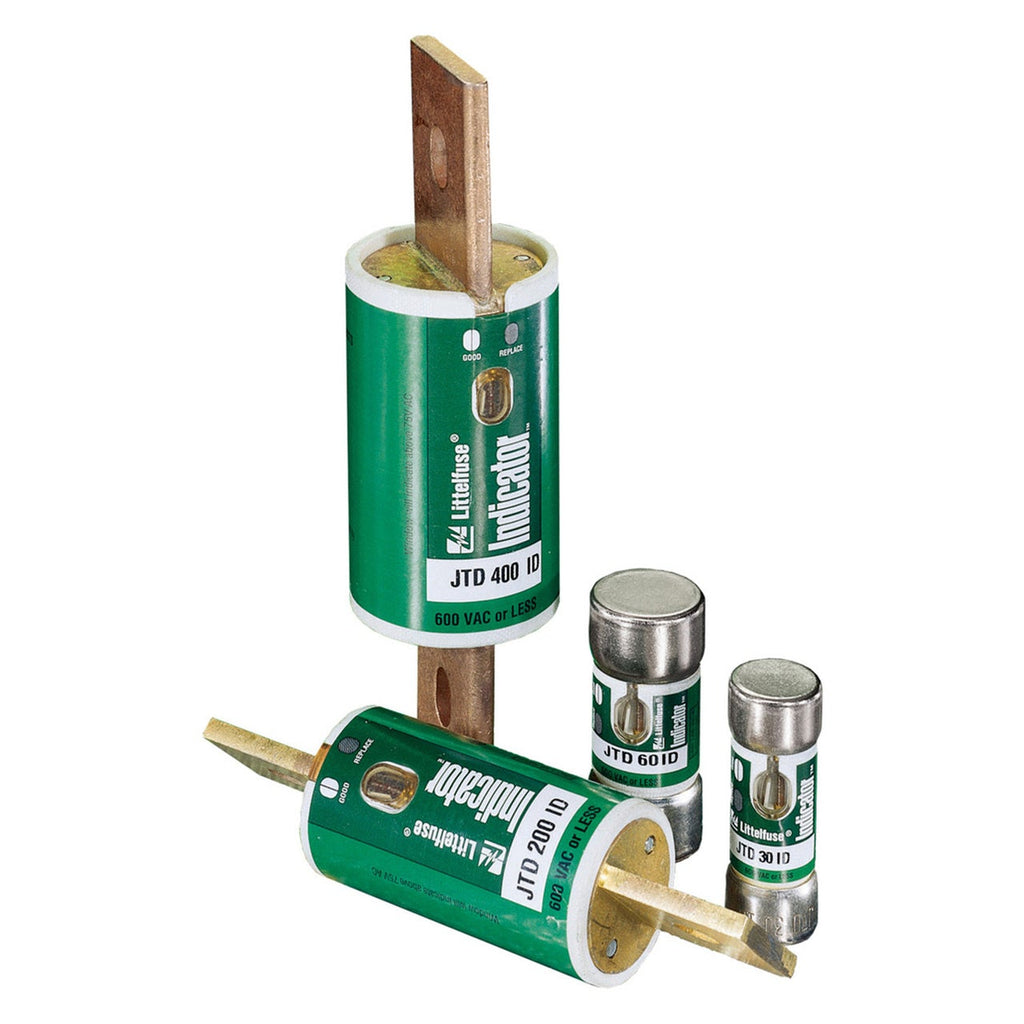

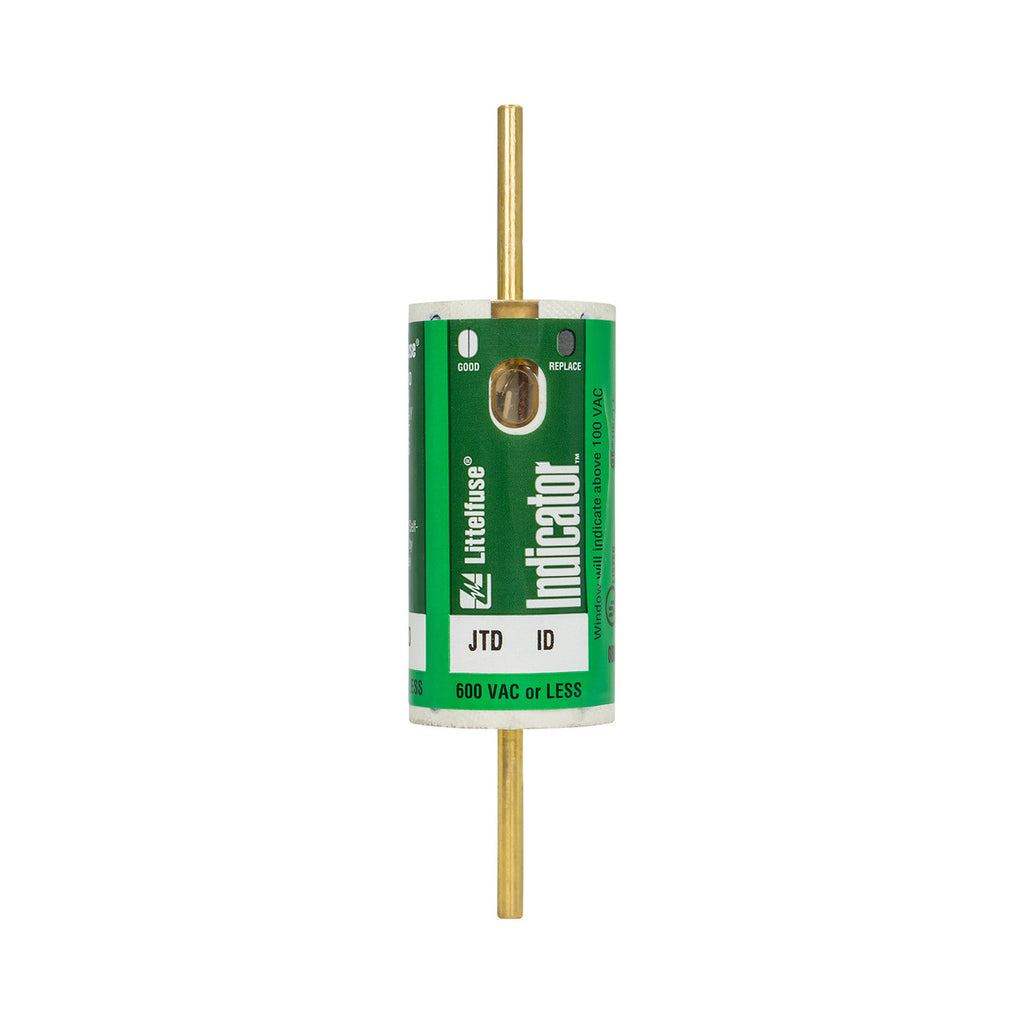

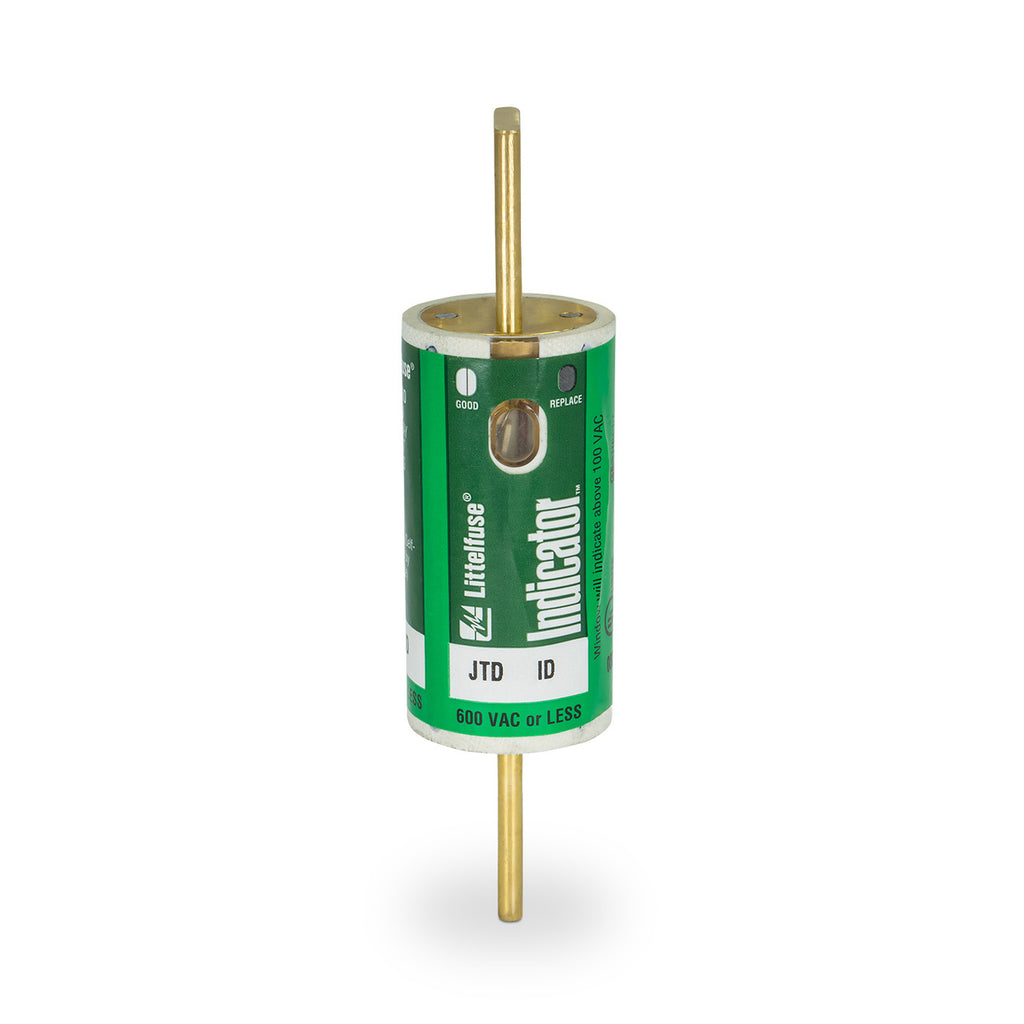

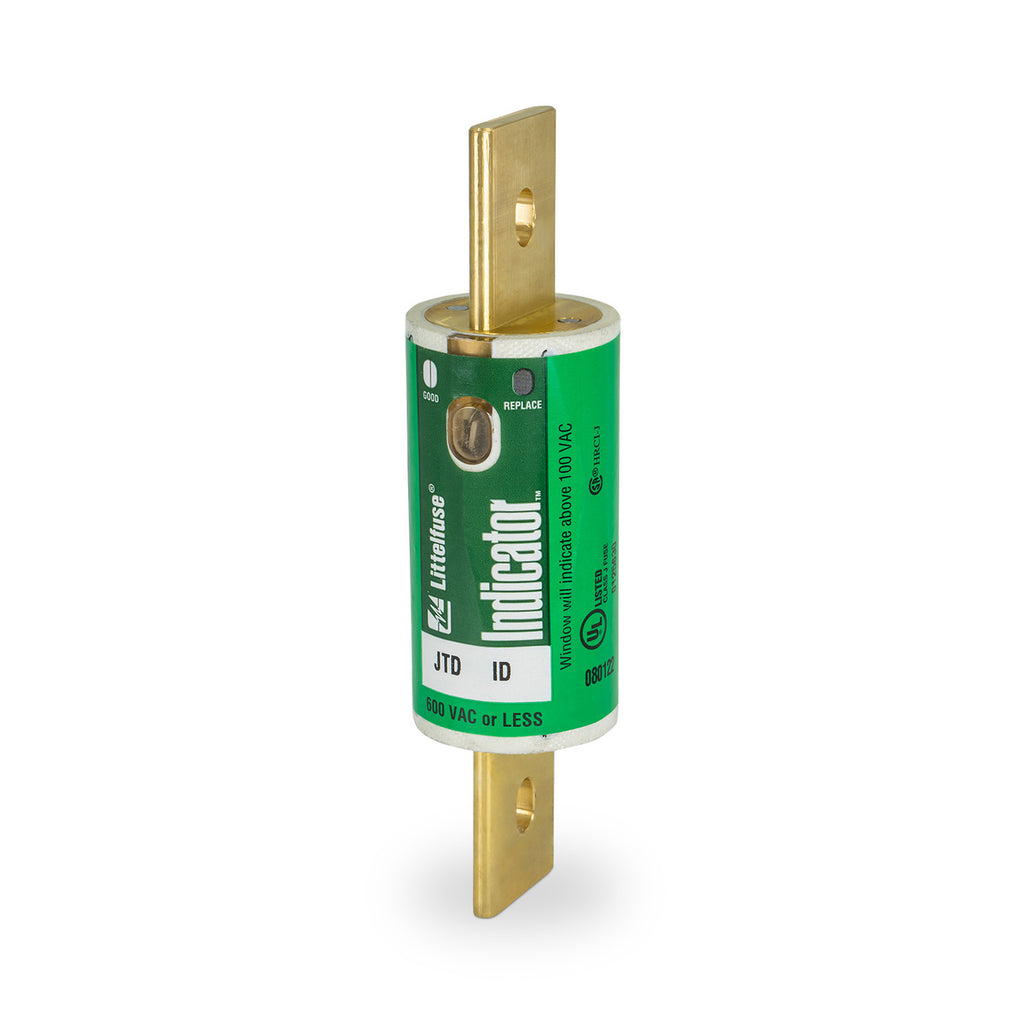

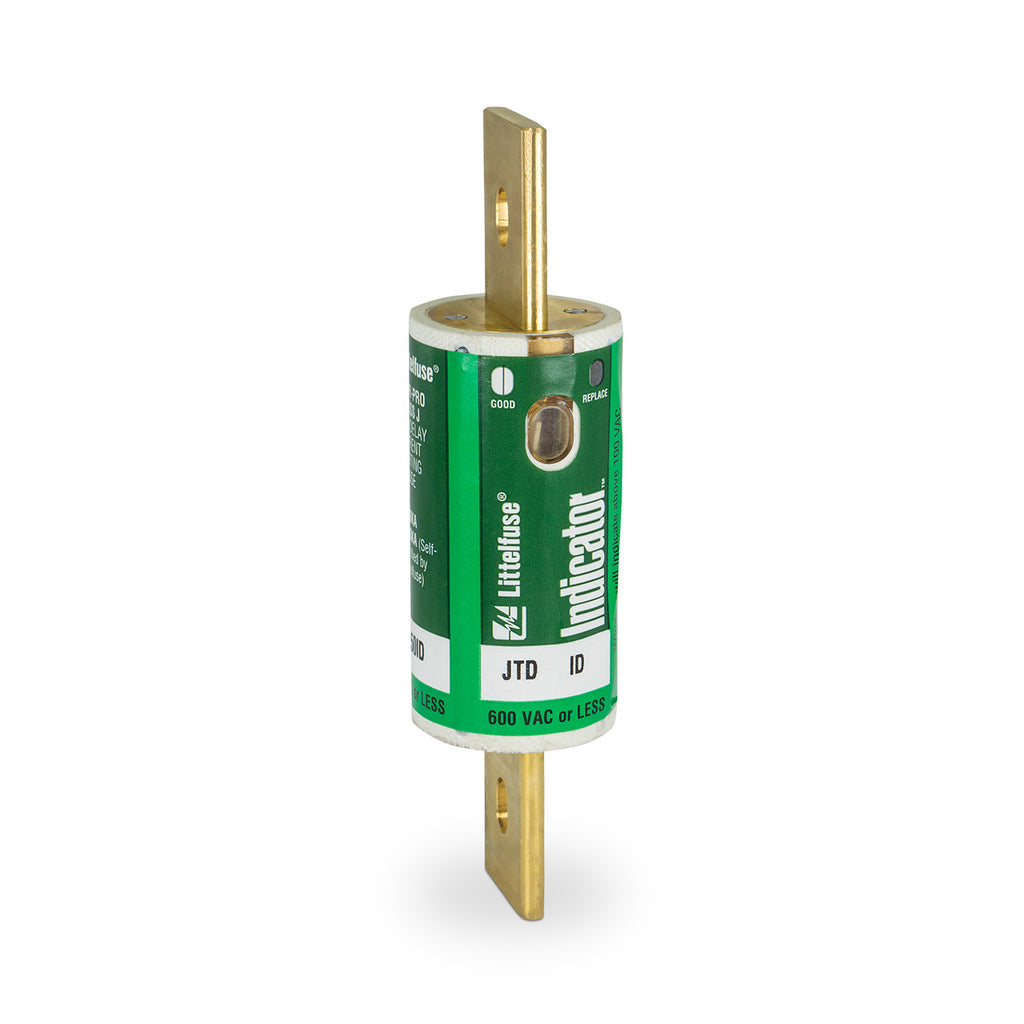

JTD150ID is a Class J time delay fuse with visual blown fuse indication, designed for maximum protection in compact applications. This Littelfuse POWR-PRO series fuse is ideal for circuits with high inrush currents and offers reliable performance in motor control centers, transformers, and general purpose circuits. The JTD150ID features a patented dual-element design for reduced nuisance openings and Type 2 "No Damage" protection. It is current limiting and provides visual indication when blown, reducing downtime and increasing safety. The fuse is constructed with a melamine body and brass cap with copper blade, suitable for use in systems requiring 600 VAC or 500 VDC.

• Amperage: 150A
• Voltage Rating: 600 VAC, 500 VDC
• Class: J
• Mounting Type: Knife-Blade
• Interrupting Rating: 200 kA AC, 20 kA DC
• Series: POWR-PRO
• Response Time: Time Delay (Slow Blow)
• Protection Type: IEC Type 2
• Indicator: Yes
• Standards: UL 248-8, CSA, CE
• Physical Size: 1 1/2 in diameter x 5 3/4 in length
• Material: Melamine body, brass cap with copper blade

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD150ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
• Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 150
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.5
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 079458031836
• GTIN : 00079458031836
• Country of Origin : Mexico
• Weight : 0.68
• Certification : Standard 248-8 UL Listed/CSA
