Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

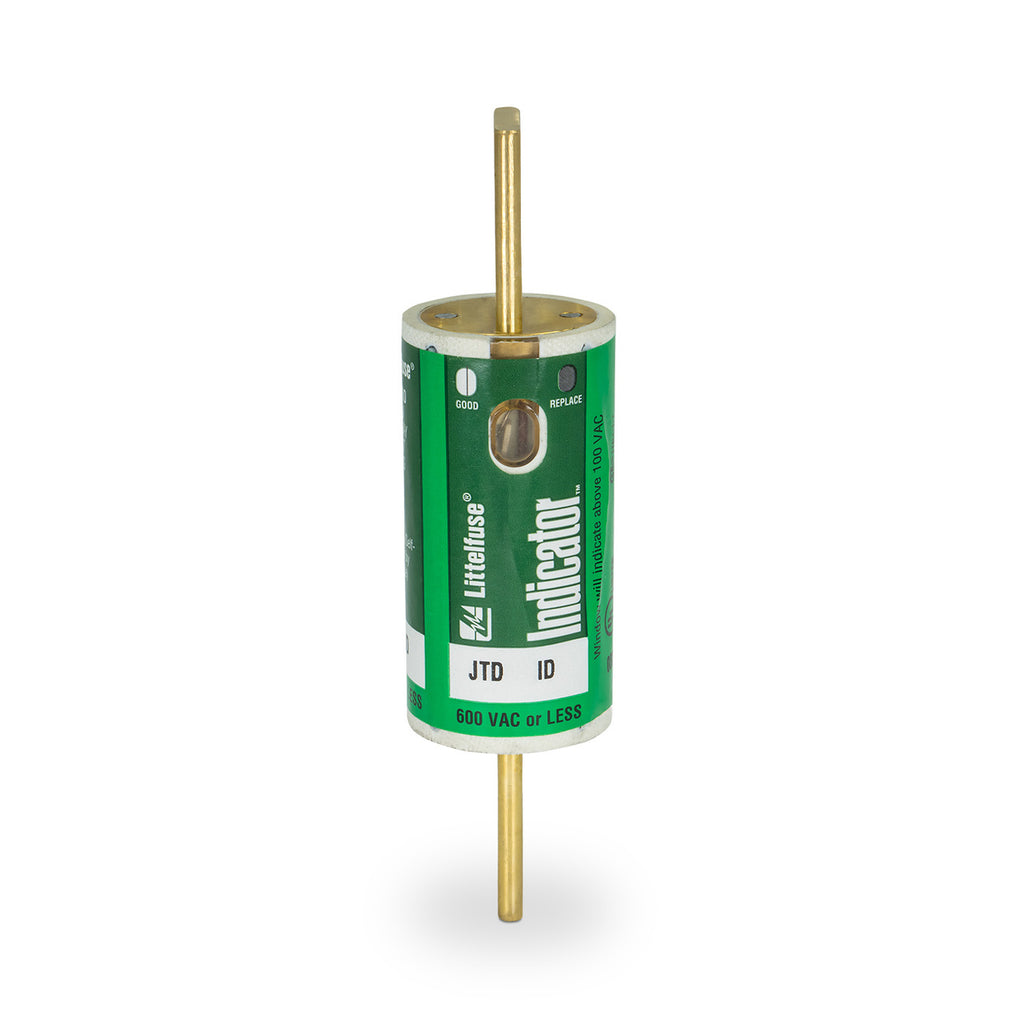

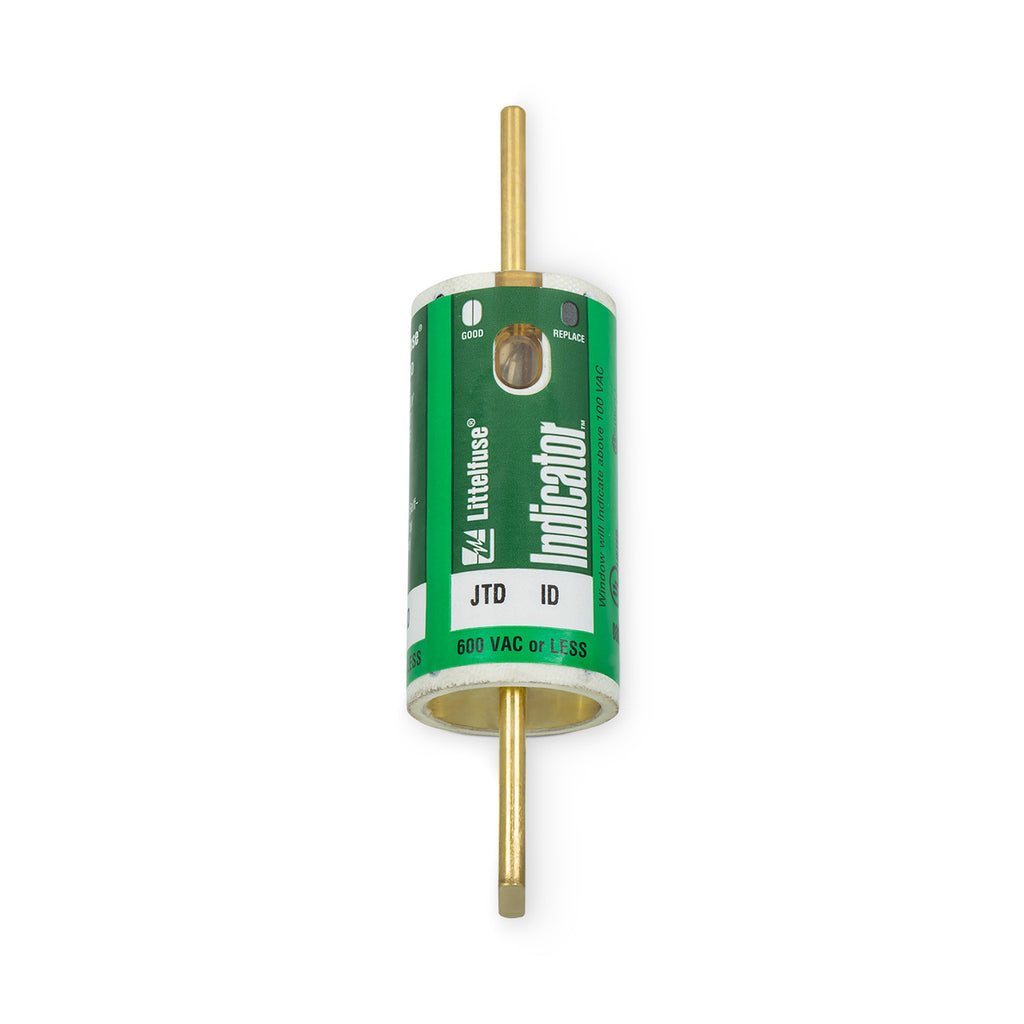

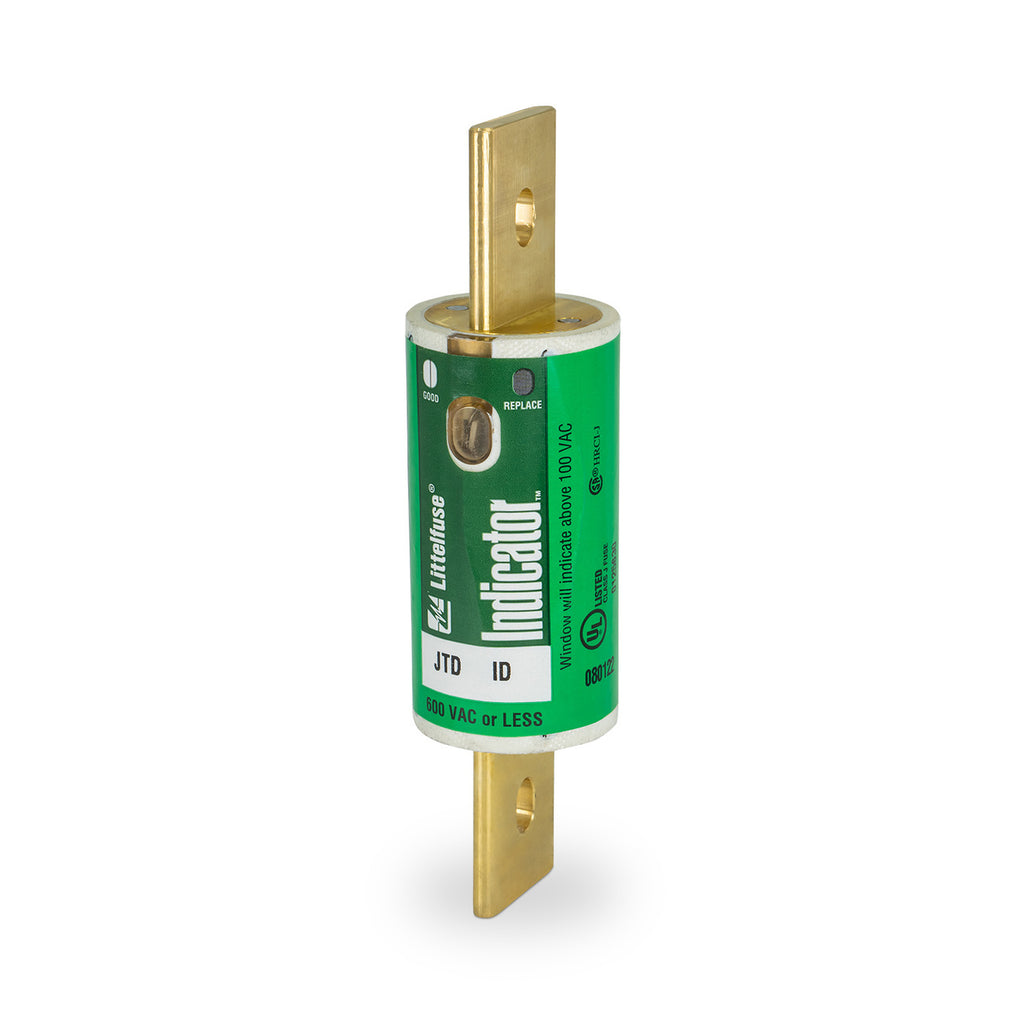

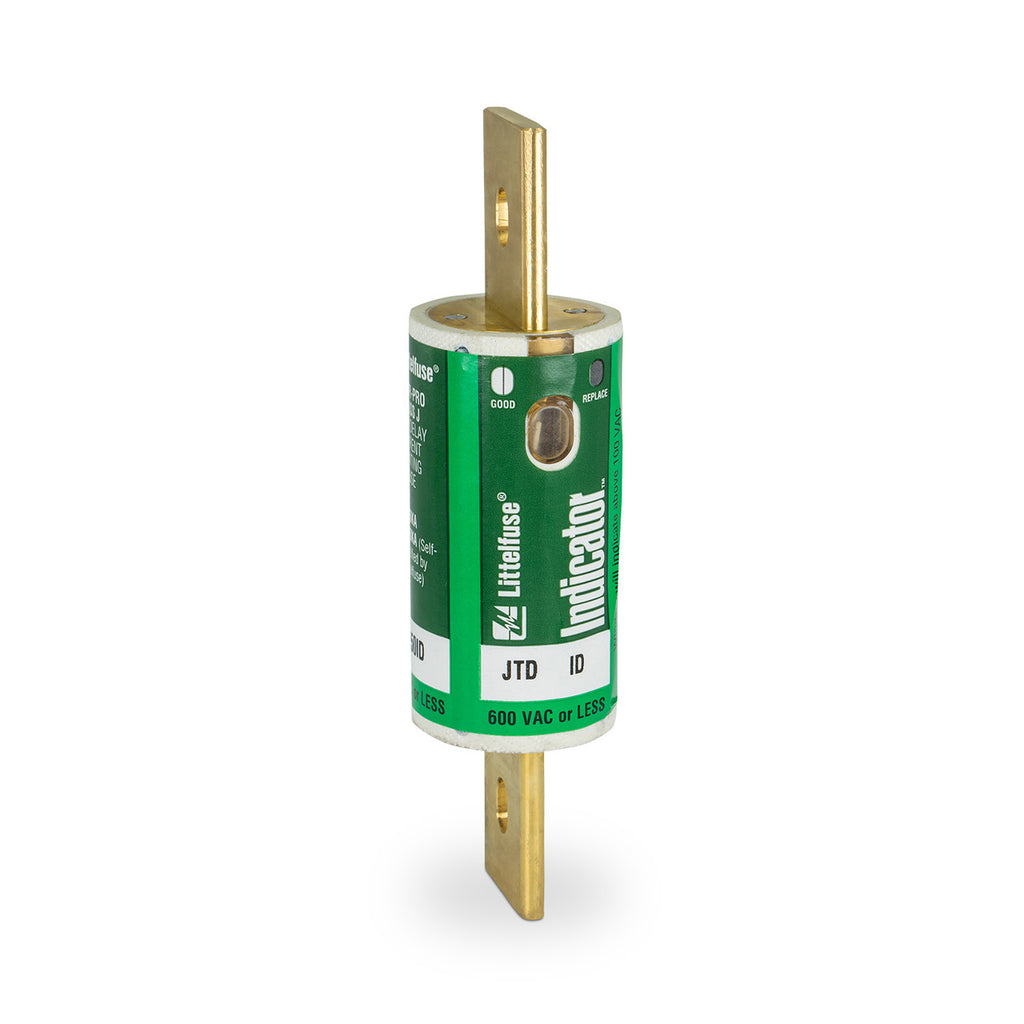

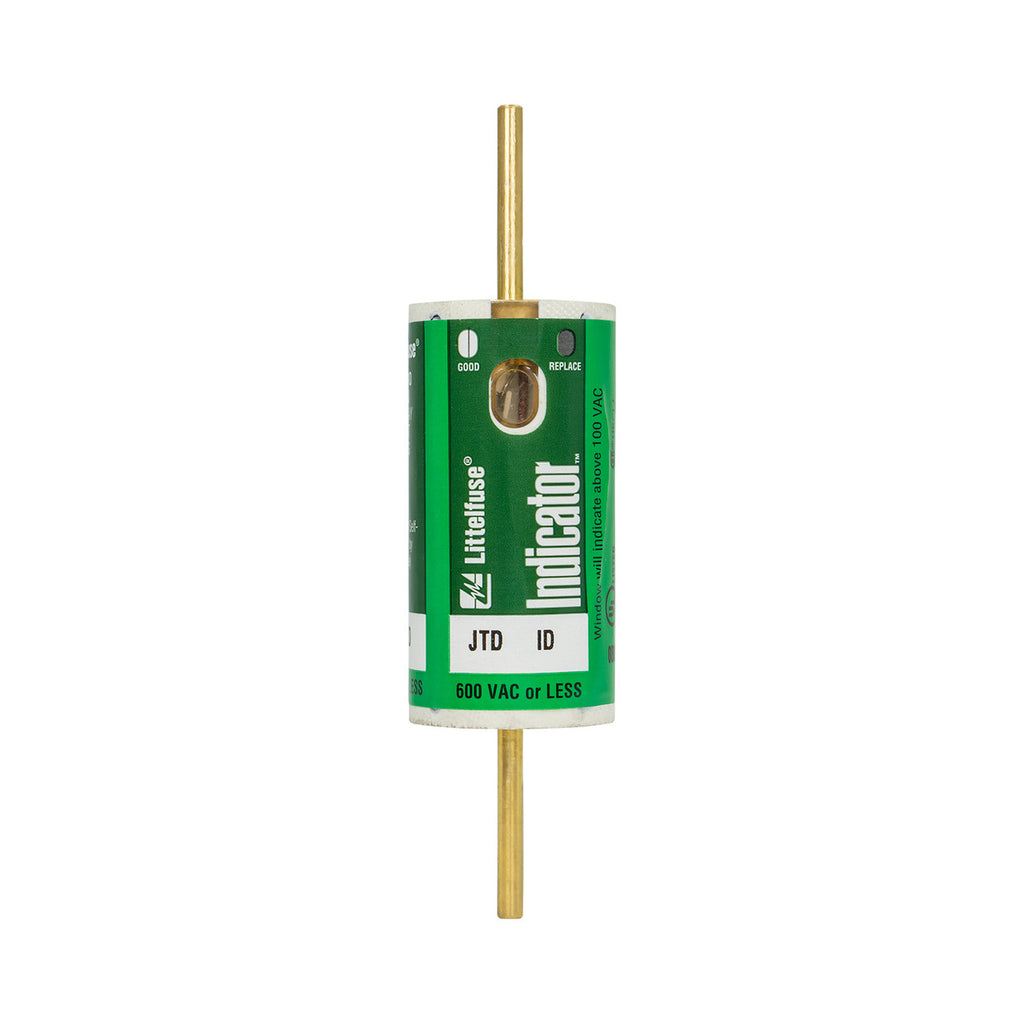

JTD110ID
JTD110ID is a Class J time delay fuse with visual blown fuse indication, designed for high inrush current circuits and maximum protection in compact spaces.The Littelfuse JTD110ID fuse features a patented dual-element design for reliable performance and reduced nuisance openings. It offers current limiting protection and is suitable for motor control centers, transformers, and general purpose circuits where space is limited. The visual indicator helps reduce downtime and increases safety.
- Amperage: 110A
- AC Voltage Rating: 600V
- DC Voltage Rating: 500V
- Interrupting Rating: 200,000A AC, 20,000A DC
- Mounting Type: Knife-Blade
- Series: POWR-PRO
- Class: Class J
- Indicator: Yes
- Speed: Time Delay (Slow Blow)
- Physical Size: 1.5" x 5.75"
- Standards: UL 248-8, CSA, CE
Specifications
- Part Number: JTD110ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031812
- GTIN : 00079458031812
- Country of Origin : Mexico
- Weight : 0.68
- Certification : Standard 248-8 UL Listed/CSA
