Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD100ID

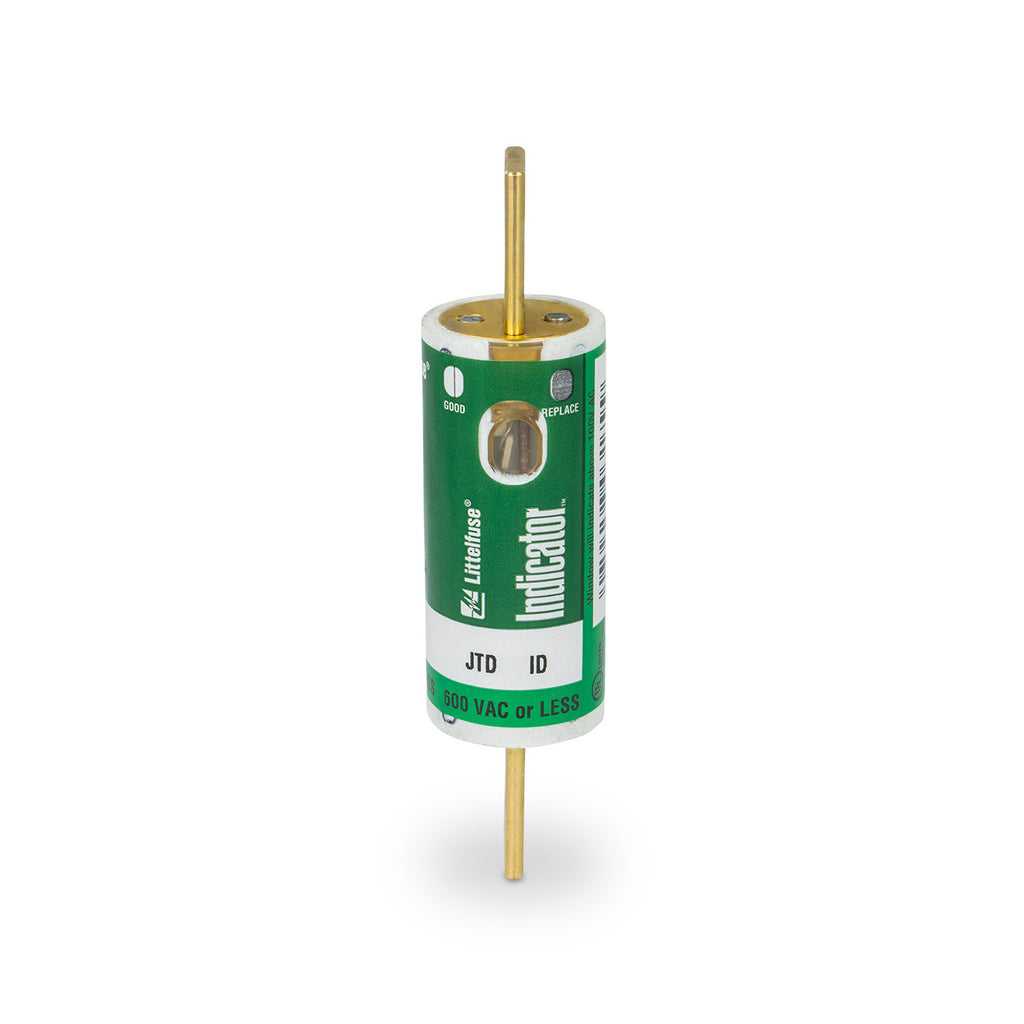

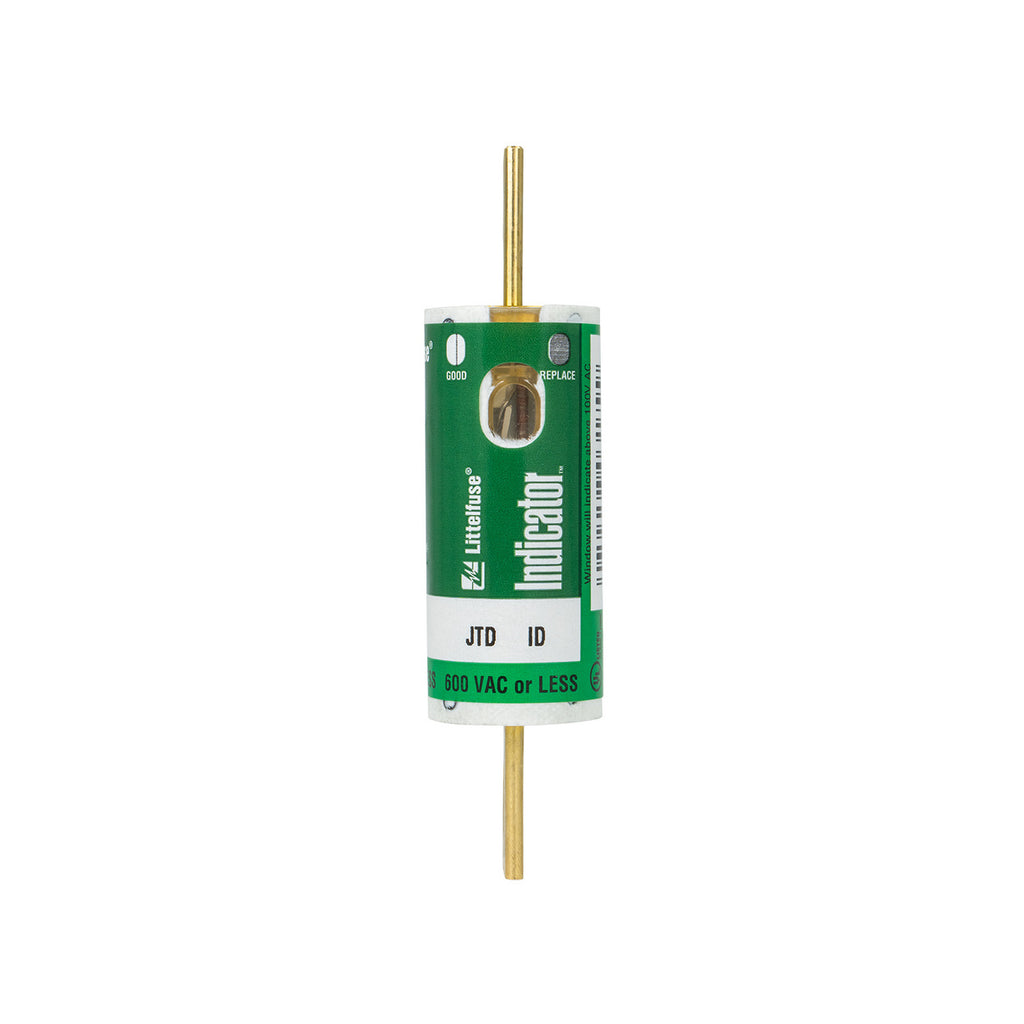

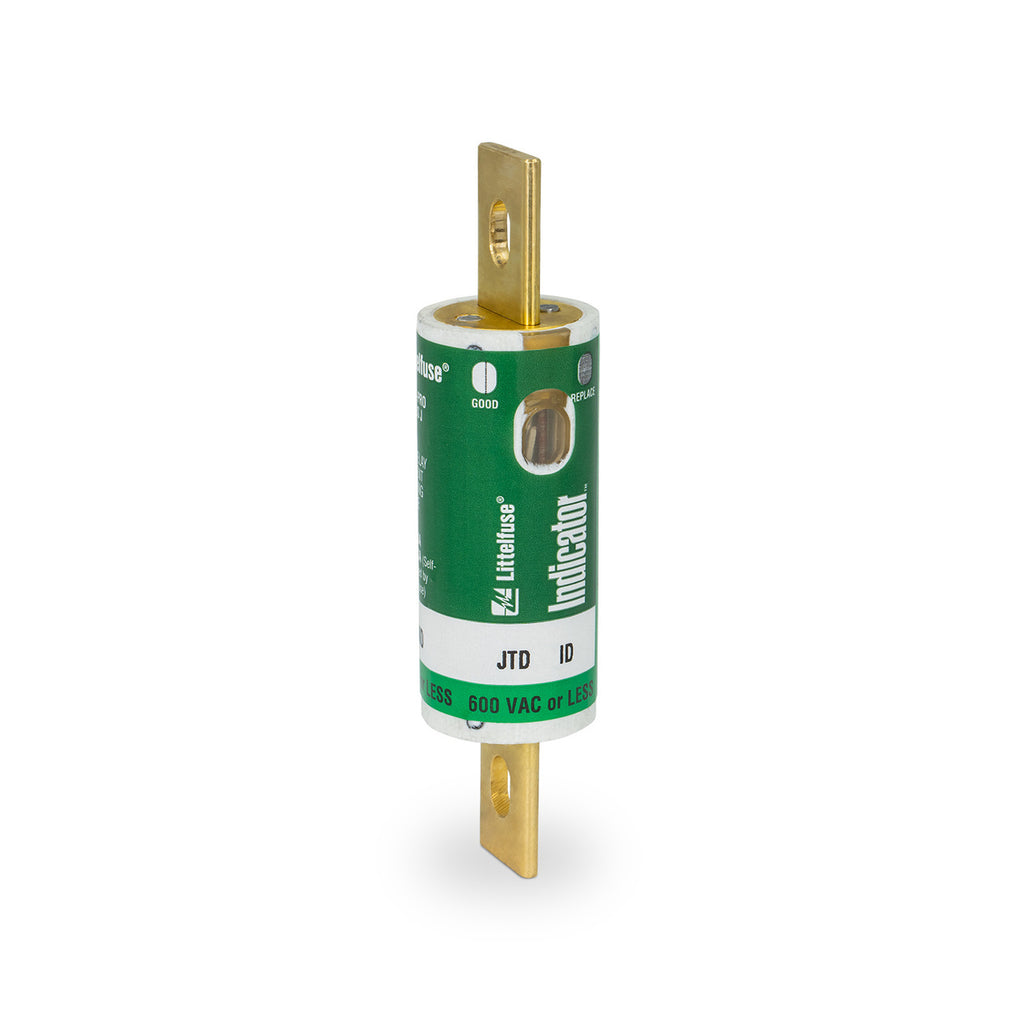

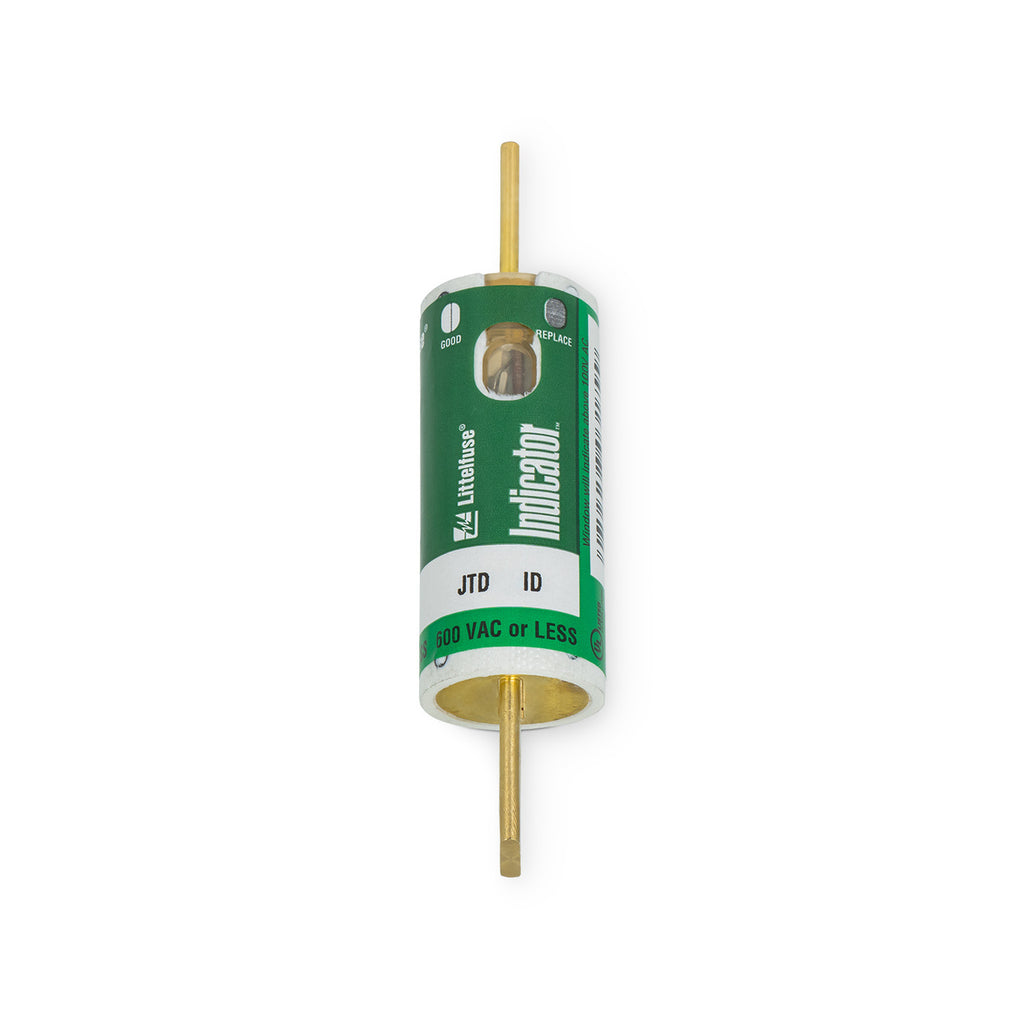

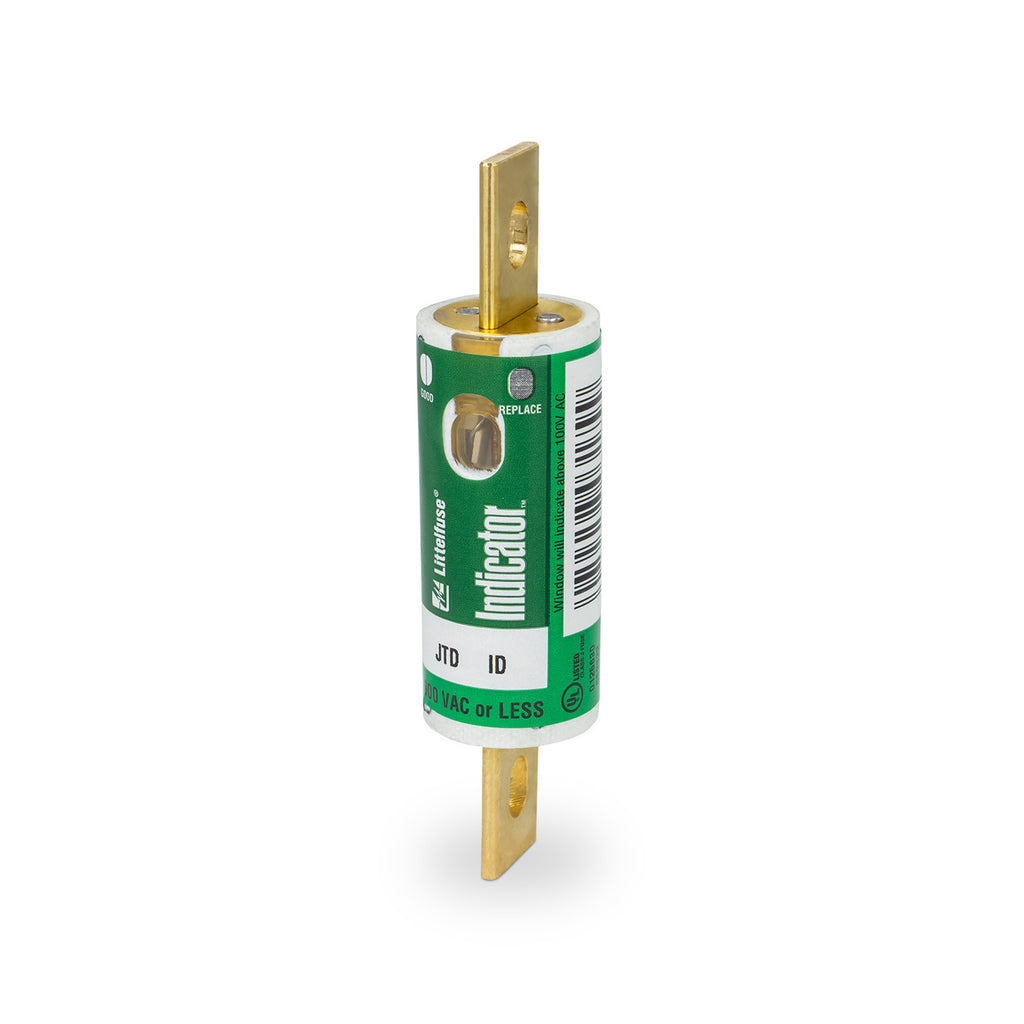

JTD100ID is a Class J, 100A, 600VAC time delay fuse with indicating blade, designed for reliable circuit protection in demanding electrical environments.Engineered with Littelfuse POWR-PRO technology, the JTD100ID fuse provides visual blown indication and maximum protection in a compact size. This time-delay, dual-element fuse is ideal for circuits with high in-rush currents and offers superior current-limiting capability to reduce damage from short-circuit events. The knife-blade-style construction ensures secure mounting and easy replacement, while the patented design helps minimize nuisance openings and downtime.
- Amperage Rating: 100A
- AC Voltage Rating: 600V
- DC Voltage Rating: 300V
- Interrupting Rating: 200,000A symmetrical @ 600VAC
- Interrupting Rating: 20,000A symmetrical @ 300VDC
- Fuse Class: Class J
- Mounting Type: Knife-Blade
- Series: POWR-PRO
- Response Time: Time Delay
- Indicating: Yes
- Standards: UL 248-8, CSA Certified
- Body Material: Melamine
Specifications
- Part Number: JTD100ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031799
- GTIN : 00079458031799
- Country of Origin : Mexico
- Weight : 0.33
- Certification : Standard 248-8 UL Listed/CSA
