Product Info
- Manufacturer:Littelfuse
Description
JTD-500ID

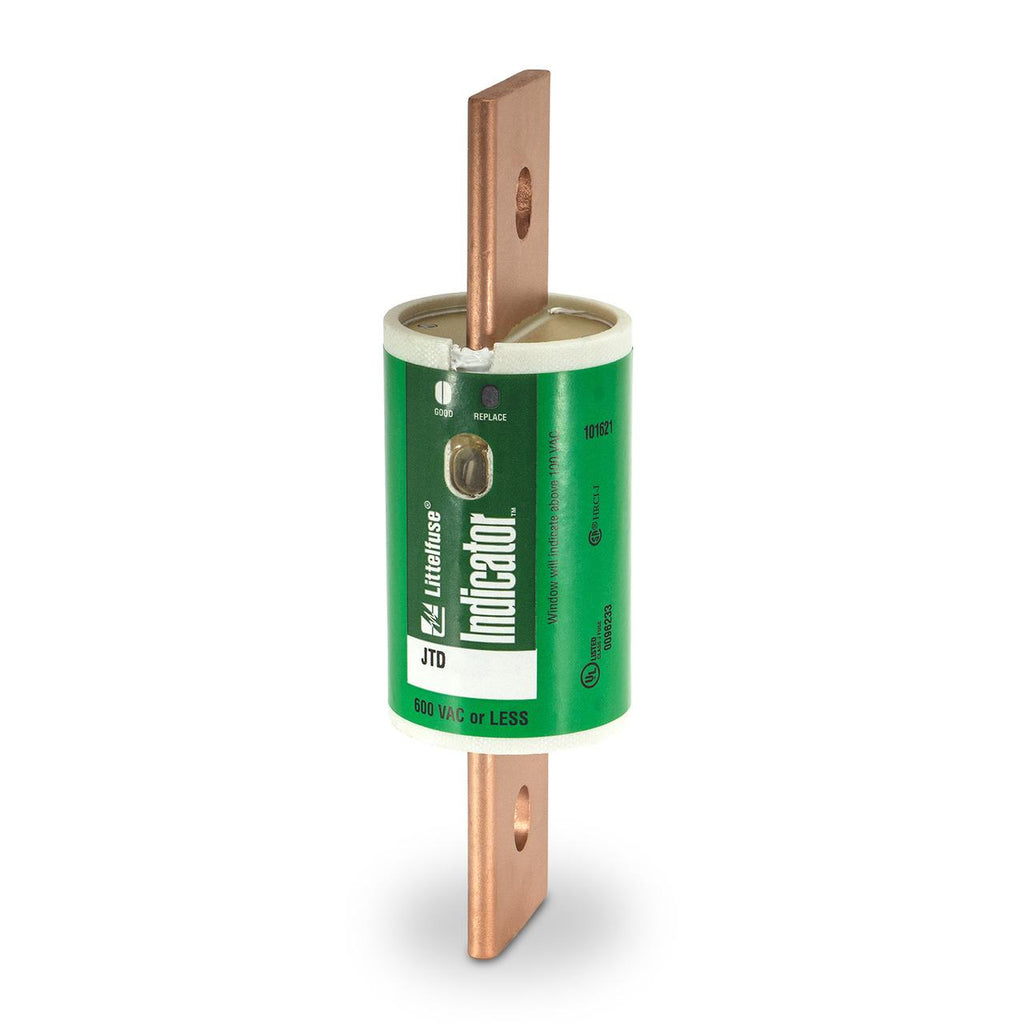

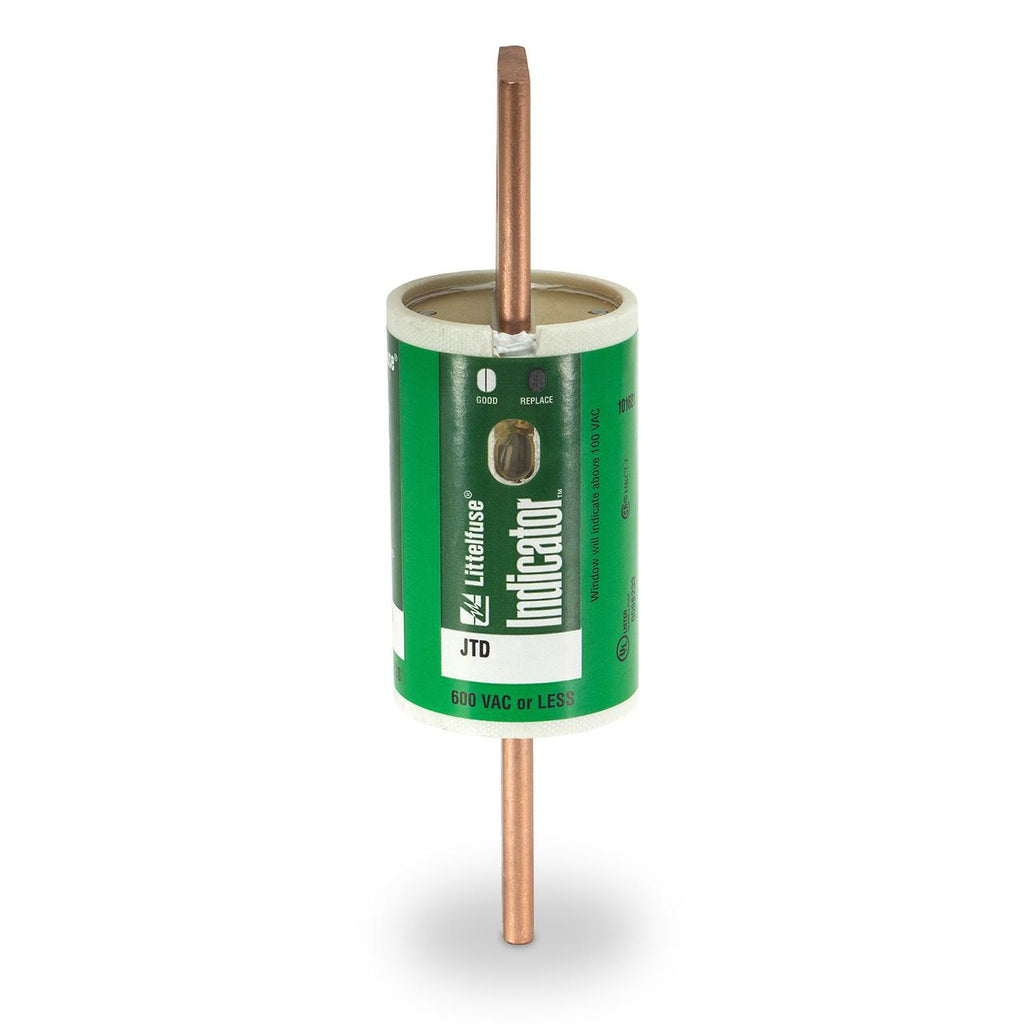

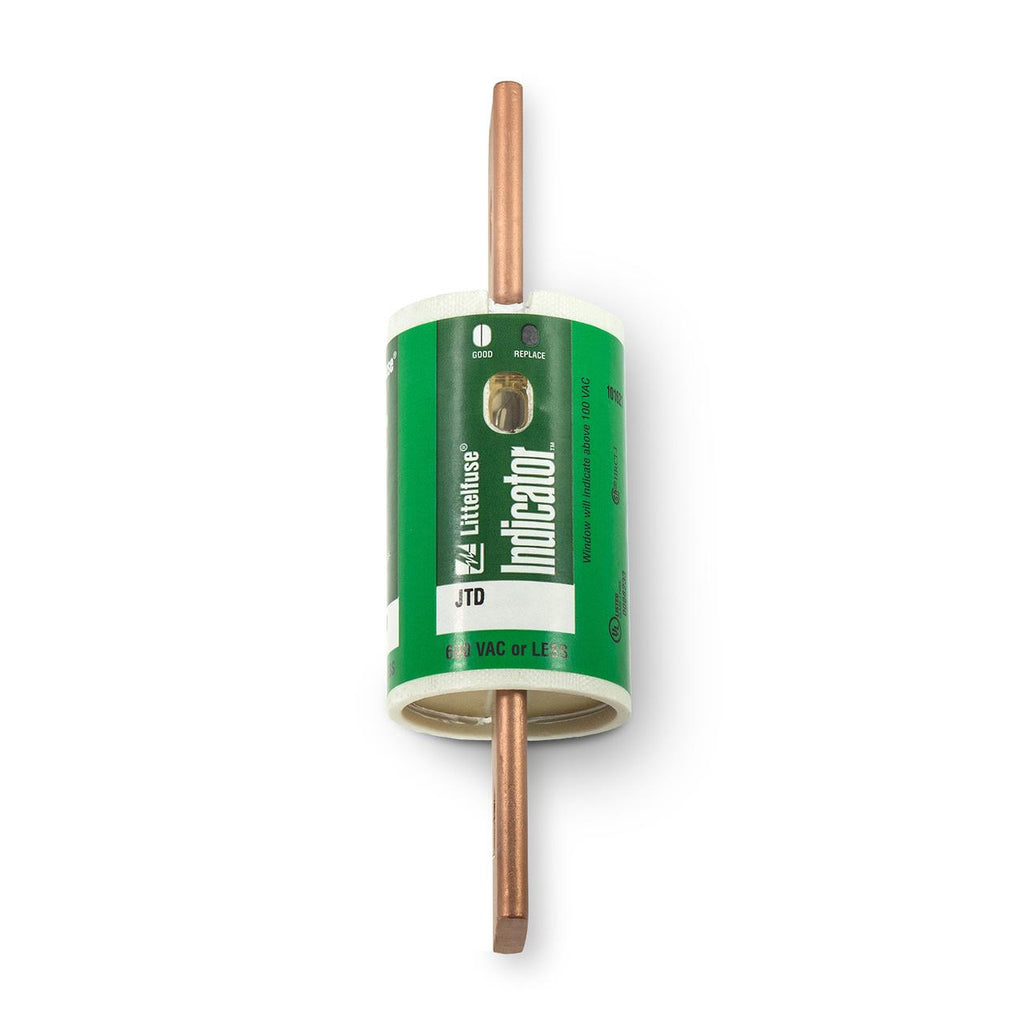

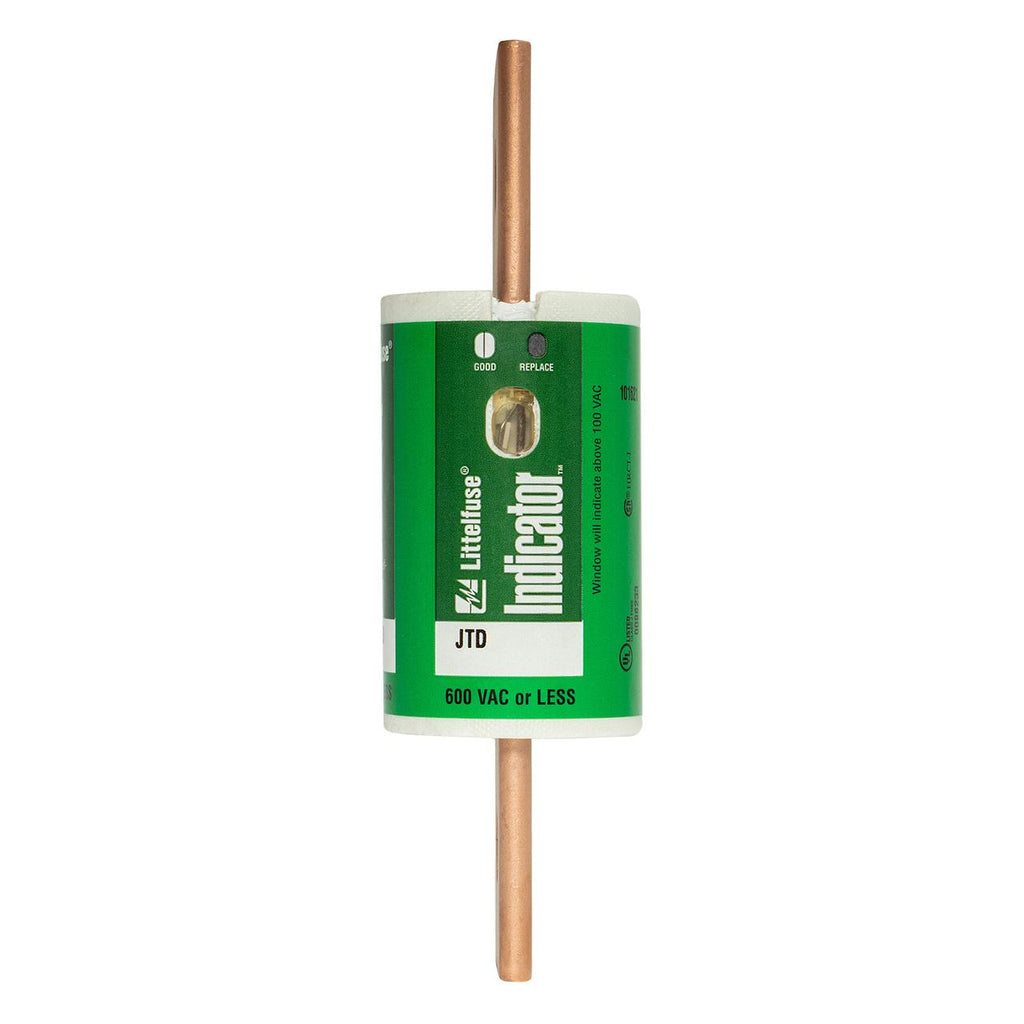

JTD-500ID is a Littelfuse Class J time delay fuse designed for reliable overcurrent protection in demanding electrical applications.
This current-limiting, dual-element fuse features a bolt-in mounting style, a visible blown fuse indicator, and is engineered for Type 2 "No Damage" protection per IEC standards. It is suitable for both AC and DC circuits, offering high interrupting capacity and robust construction for industrial power distribution.
-
Key Specifications
- Amperage: 500A
- Voltage: 600VAC / 500VDC
- Poles: 1
- Mounting Type: Bolt-in
- Interrupt Rating: 200kA (AC RMS symmetrical), 20kA (DC)
- Series/Frame: JTD_ID, Class J
- Trip Unit: Time delay, dual element
- Certifications: UL Listed (UL 248-8), CSA Certified
- Protection Type: IEC Type 2, current limiting
- Indicator: Visible blown fuse indicator
- Body Material: Melamine
- Terminal Material: Brass cap with copper blade
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-500ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Voltage : 600
- Amperage : 500
- AIC rating : 200kA@600V
- Connection : Bolt-In
Product Data
- UPC : 007945803192
- GTIN : 00079458031928
- Weight : 5.19
