Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

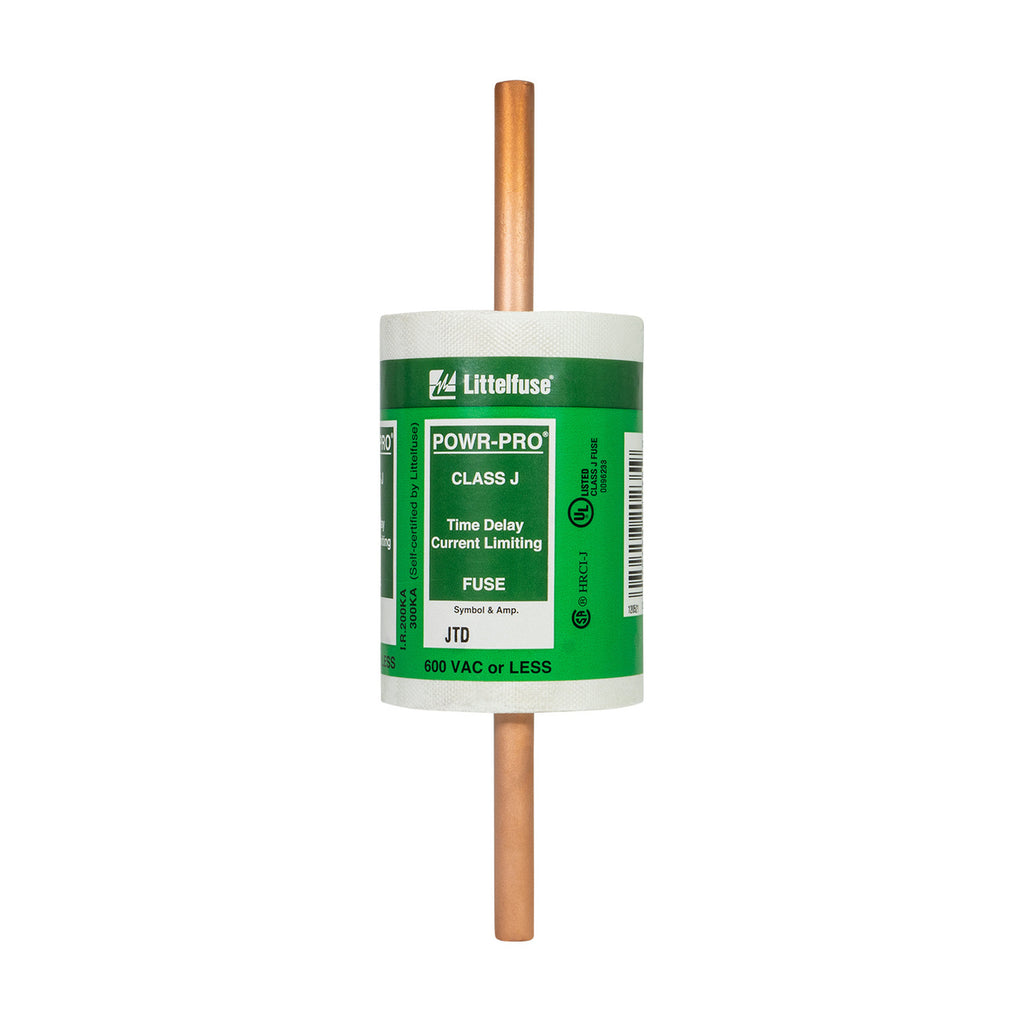

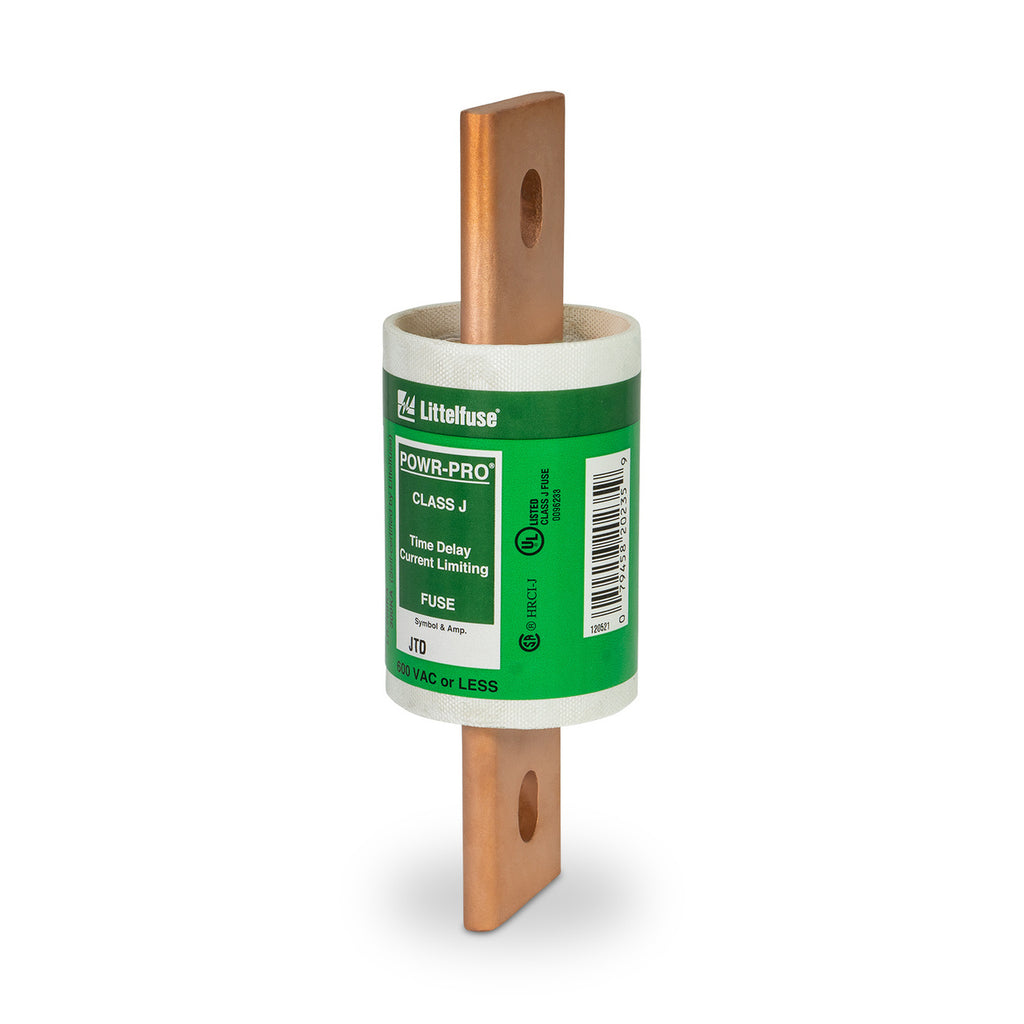

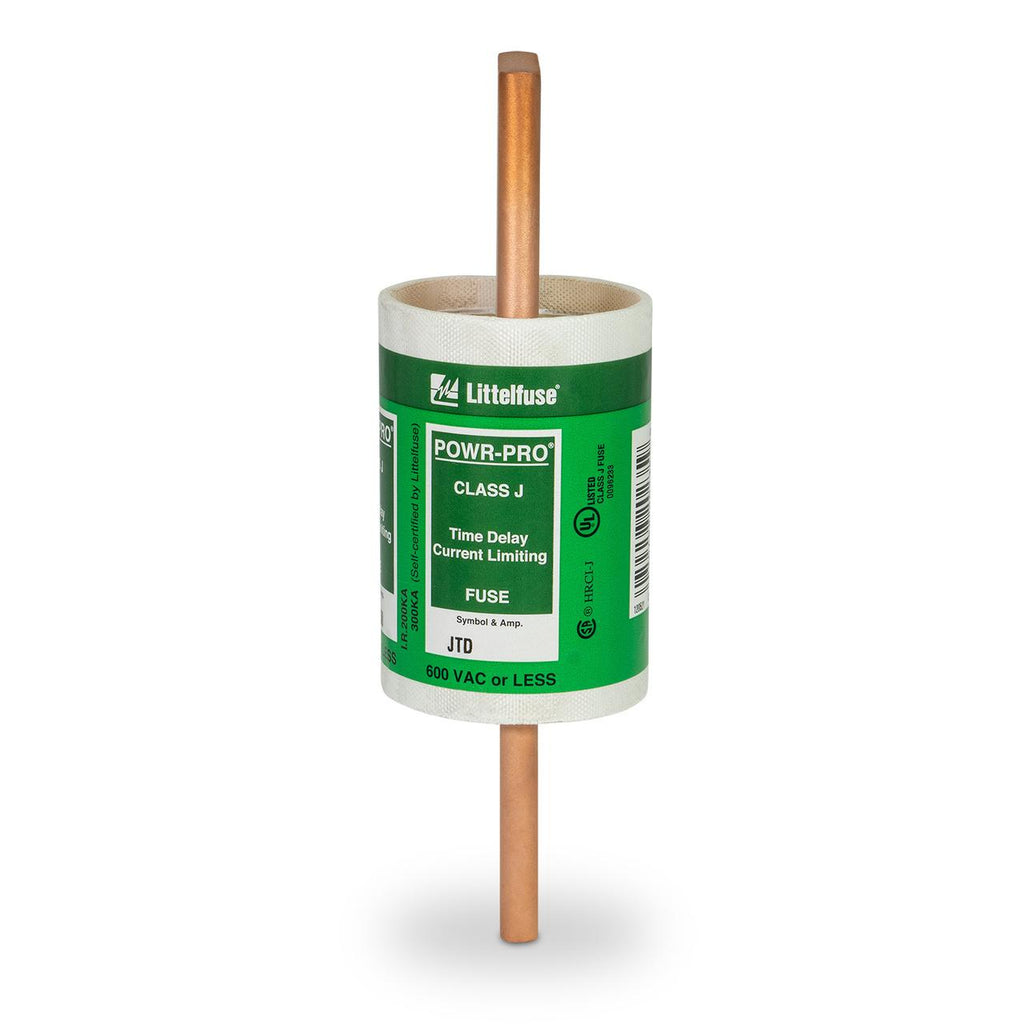

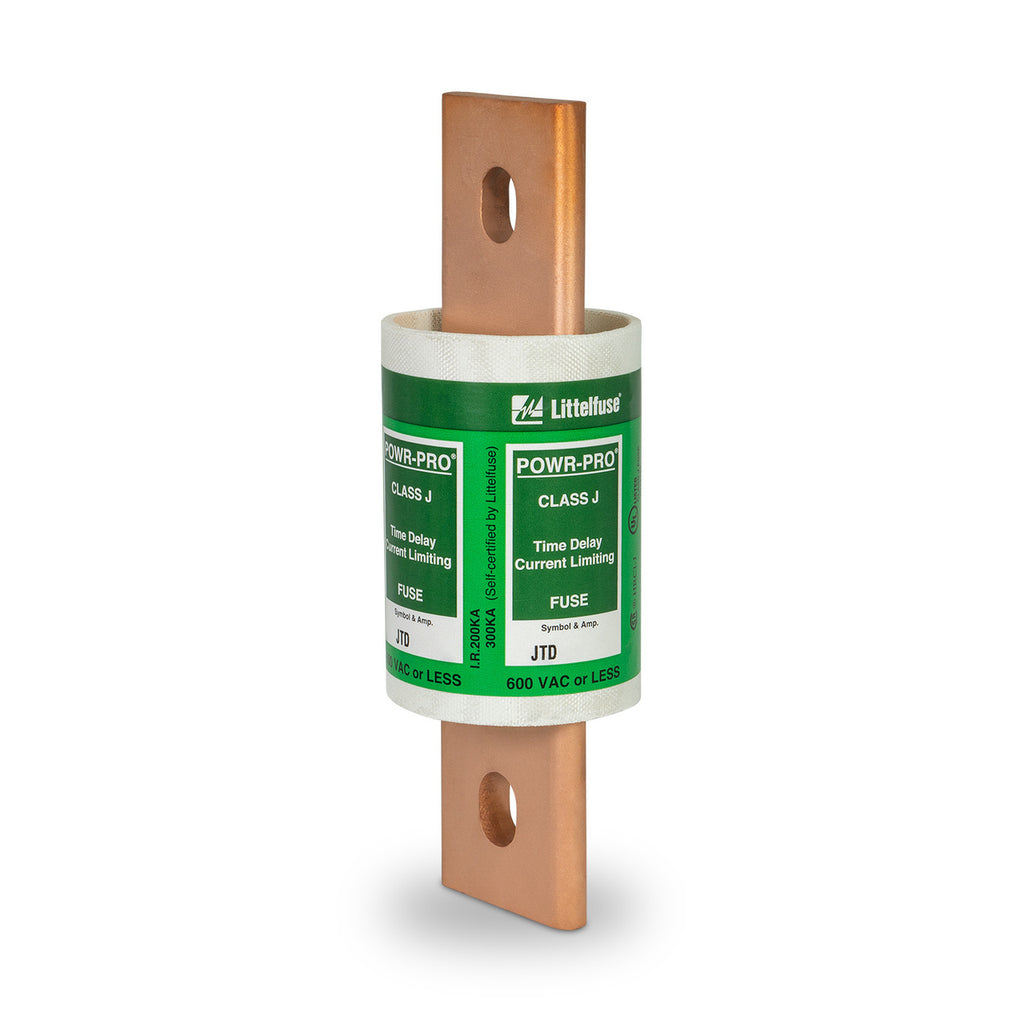

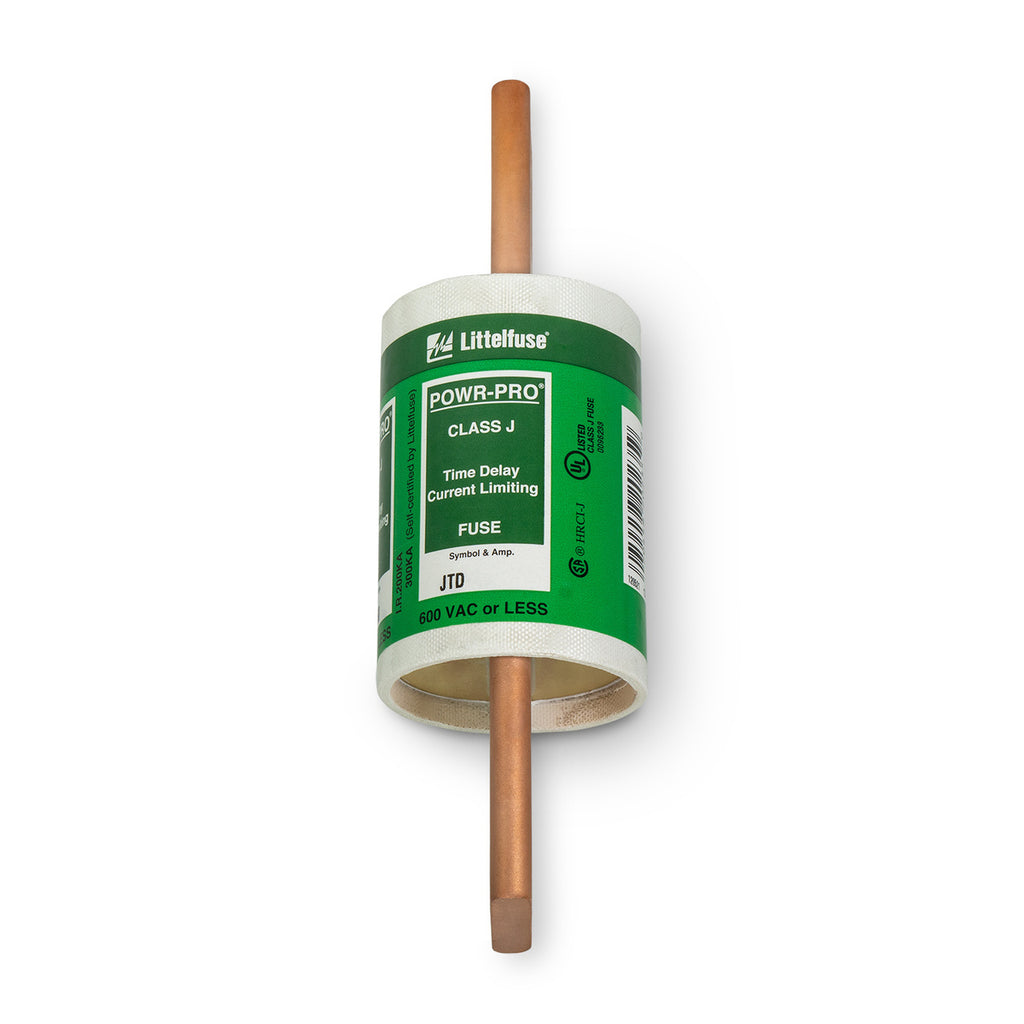

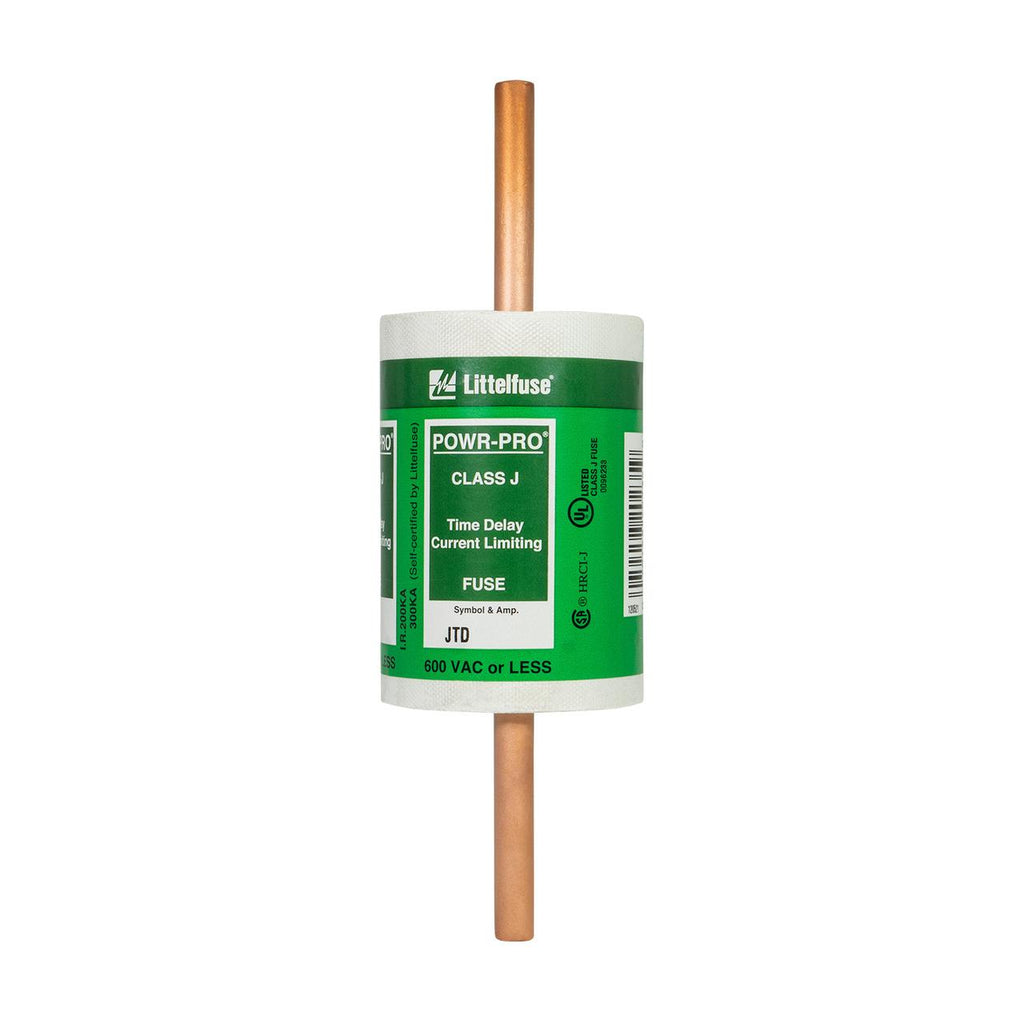

JTD-500
JTD-500 is a Class J time-delay fuse designed for high in-rush current applications and general circuit protection. This Littelfuse product features a dual-element construction for reliable performance and nuisance-free operation. The JTD-500 fuse is ideal for use in motor control centers, fused combination motor controllers, transformer protection, and series-rated molded case circuit breaker panels. It offers current-limiting protection and Type 2 "No Damage" protection for both NEMA- and IEC-type motor circuit components. The patented design helps reduce nuisance fuse openings and lowers costs in compact installations.
- Amperage: 500A
- AC Voltage Rating: 600VAC
- DC Voltage Rating: 500VDC
- Interrupting Rating: 200kA at 600VAC, 20kA at 500VDC
- Mounting Type: Clip
- Series/Frame: JTD
- Opening Type: Time Delay (Slo-Blo)
- Construction: Dual-Element
- Body Material: Melamine
- Terminal Connection: Knife Blade
- Approvals: UL, CSA, CE
- Applications: Motor control centers, transformers, general purpose circuits
Specifications
- Part Number: JTD-500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : Line Card
Product Data
- UPC : 007945820236
- GTIN : 00079458202366
- Weight : 7
- Certification : UL, CE, CSA
