JTD-500 - Littelfuse 500A 600VAC 500VDC Class J Time Delay Fuse, Clip Mount, 200kA Interrupt Rating

JTD500

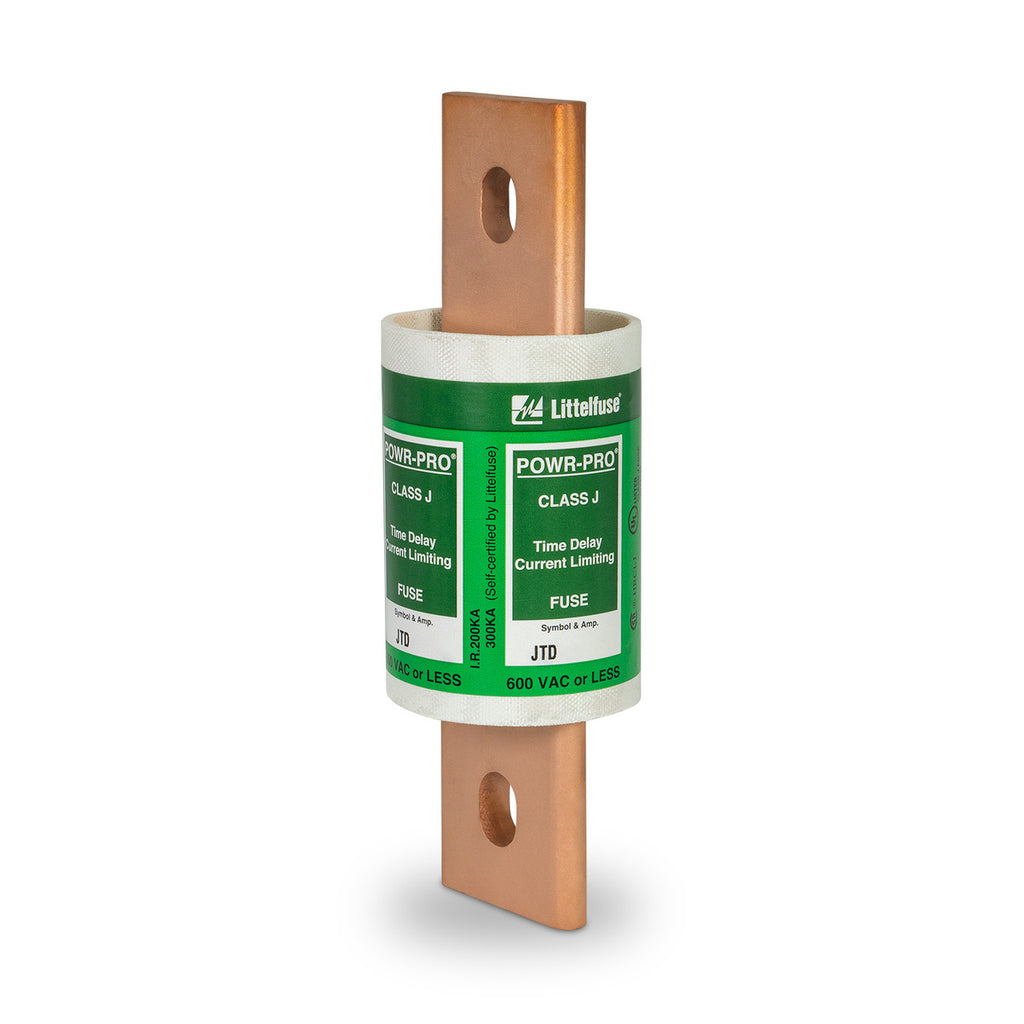

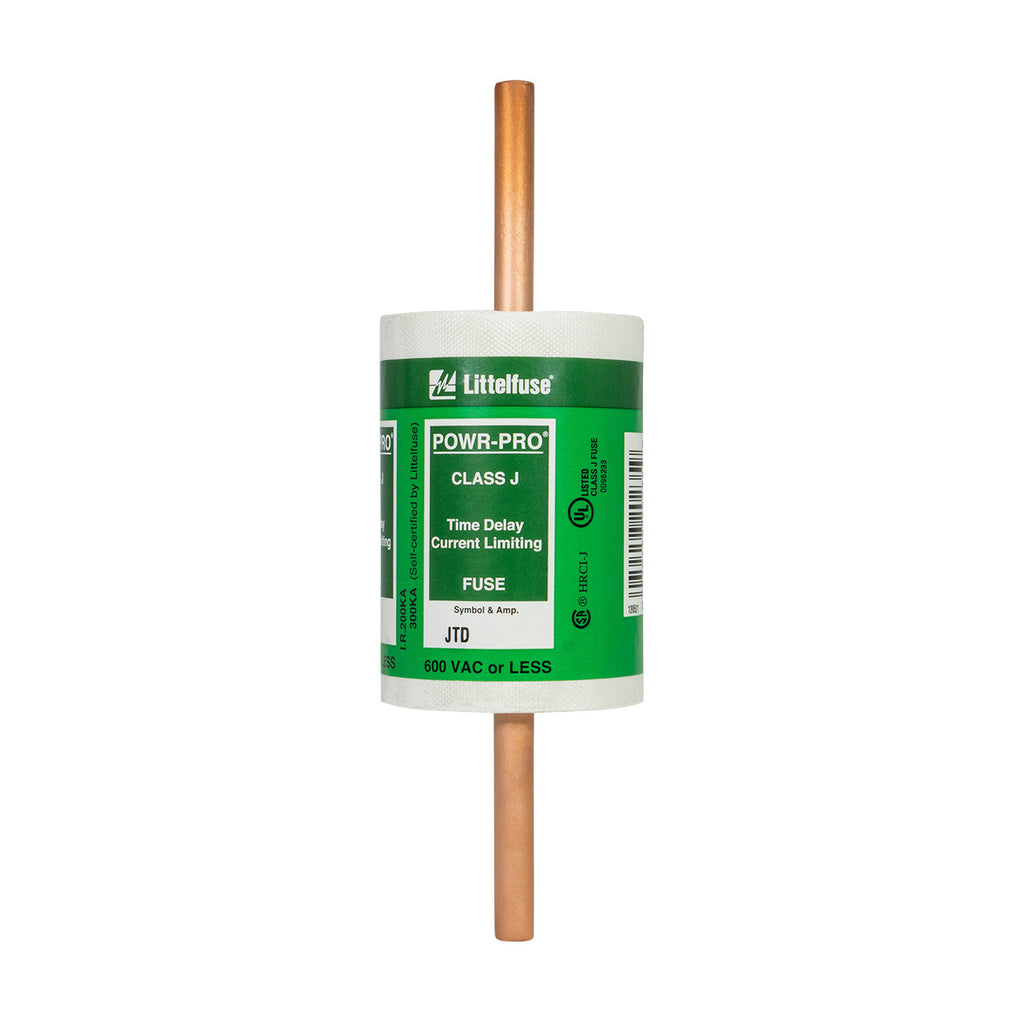

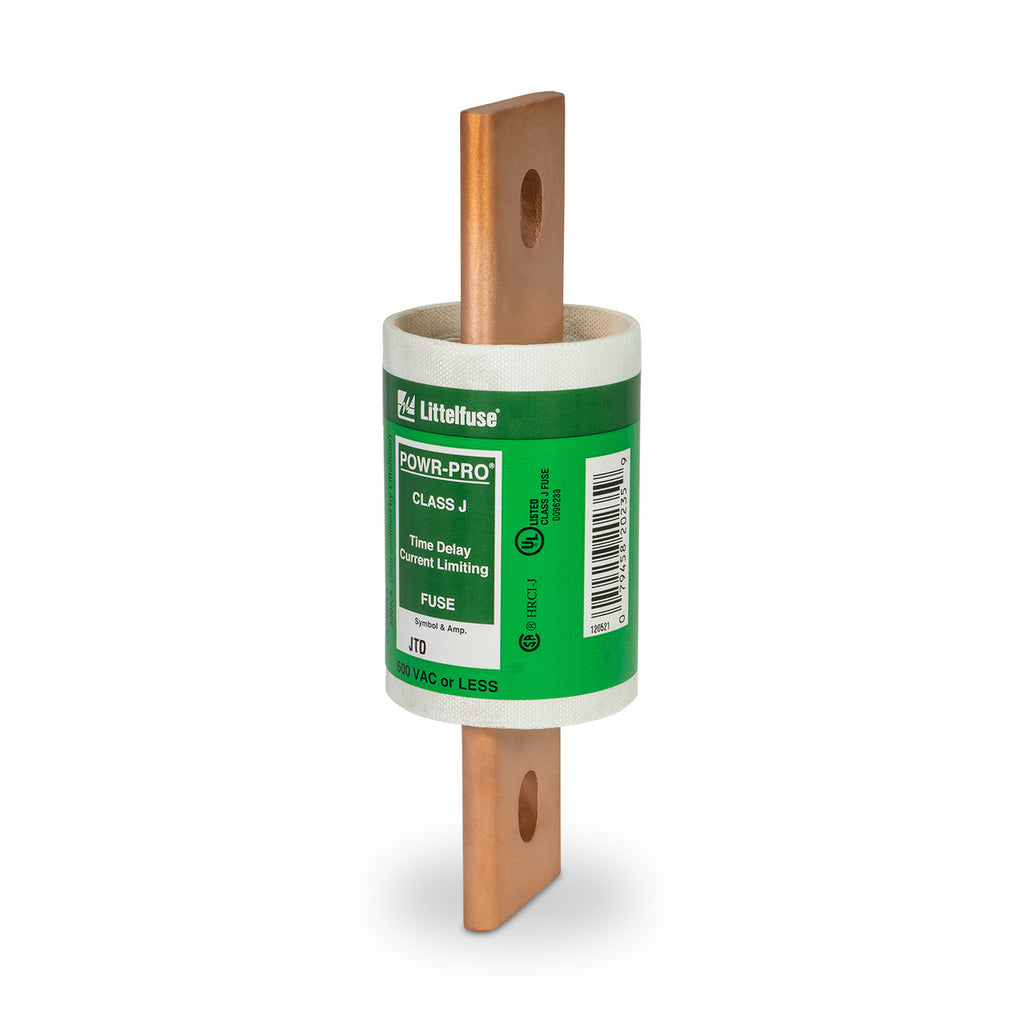

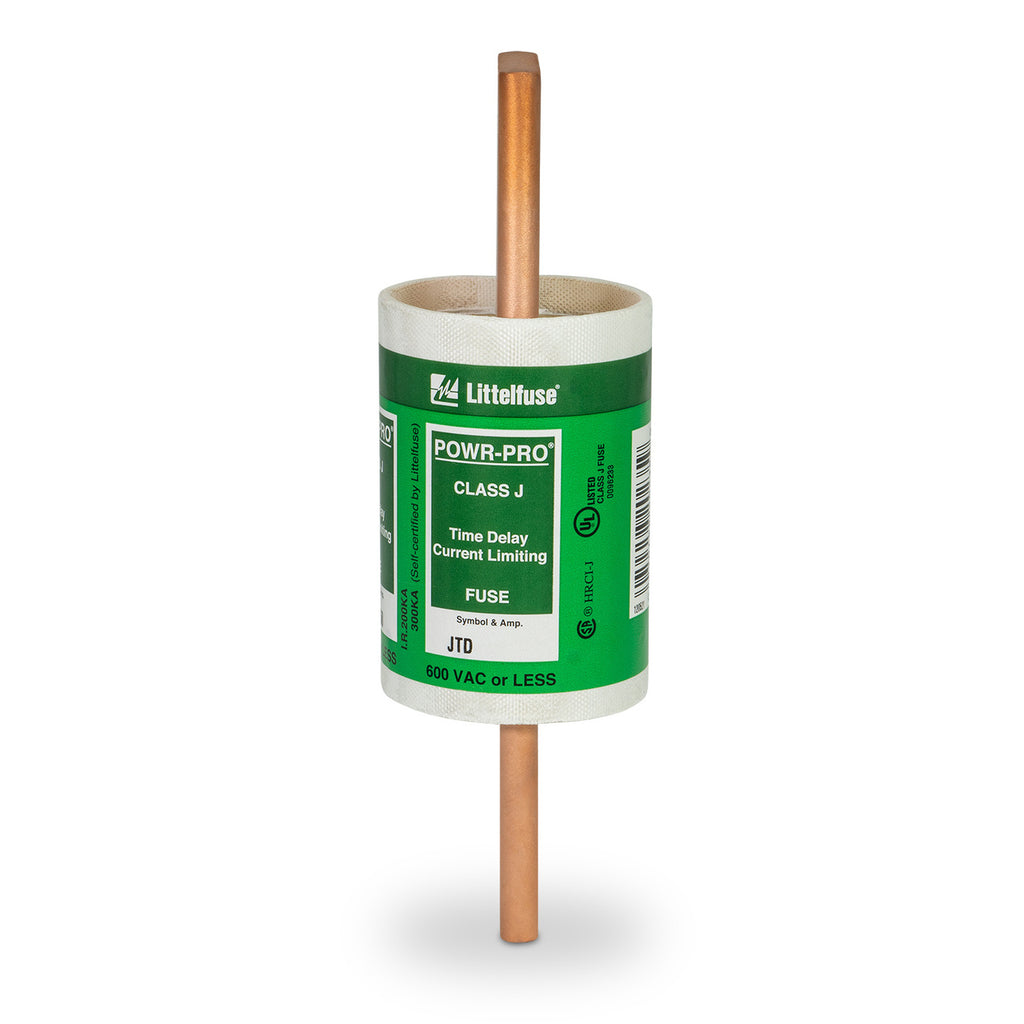

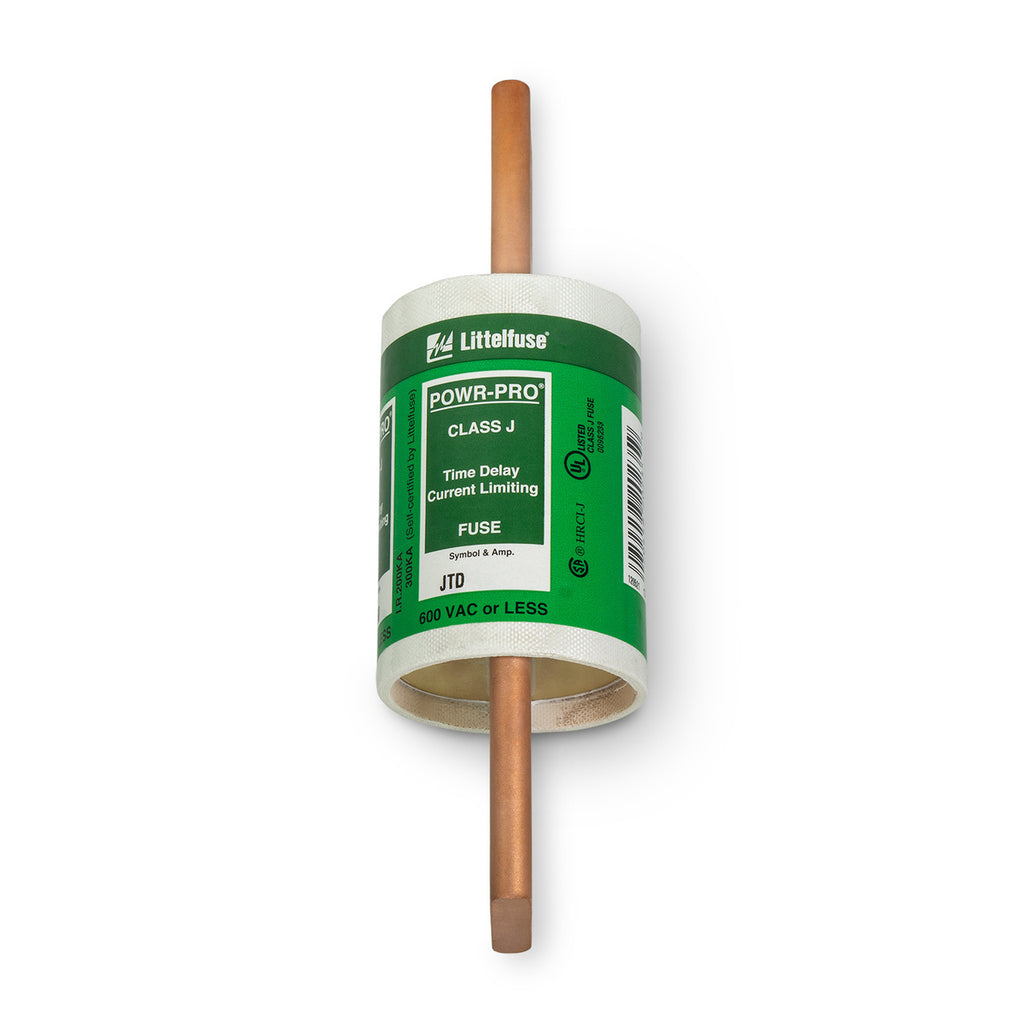

JTD-500 is a Littelfuse Class J time delay fuse rated for 500 Amps and designed for use in motor controllers, motor control centers, and general purpose circuits.

This fuse supports a voltage rating of 600VAC and 500VDC with an interrupting rating of 200kA at 600VAC and 20kA at 500VDC. It features a clip mounting type with bolt-in knife blade terminals and a melamine body for durability. The JTD-500 fuse is UL, CE, and CSA approved, ensuring compliance with industry safety standards.

• Amperage: 500 Amps
• Voltage: 600VAC, 500VDC
• Interrupting Rating: 200kA at 600VAC, 20kA at 500VDC
• Fuse Class: J (Class J)
• Time Delay (Dual Element)
• Mounting Type: Clip Mount
• Connection Type: Bolt-In with Knife Blade Terminals
• Body Material: Melamine
• Certifications: UL, CE, CSA
• Series/Frame: JTD

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JTD Series - UL Class J Time-Delay Fuses
• Type : JTD Series - UL Class J Time-Delay Fuses
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.13
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 079458202366
• GTIN : 00079458202366
• Country of Origin : Mexico
• Dimensions : x 8 in x
• Weight : 3.2
• Certification : CE, CSA Certified, UL 248-8 Class J, UL Listed
