Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JTD-400ID

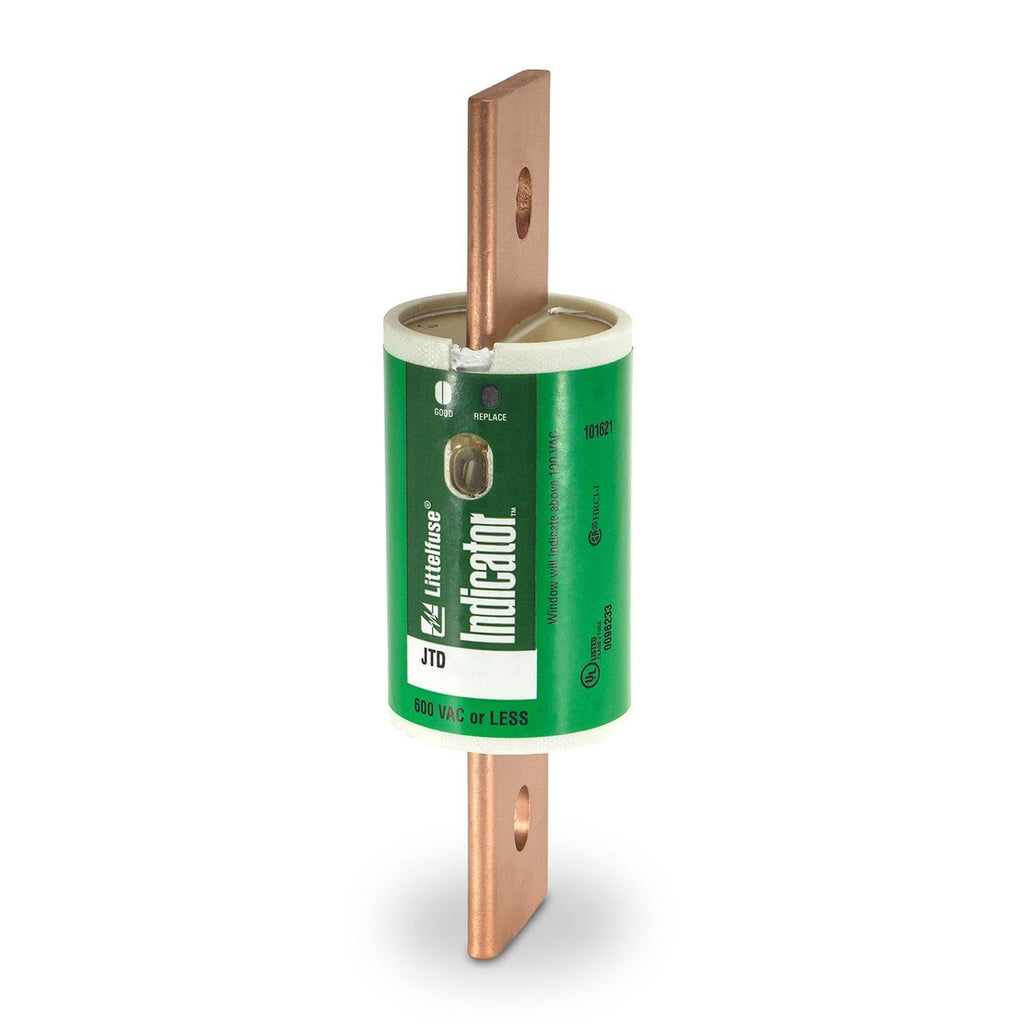

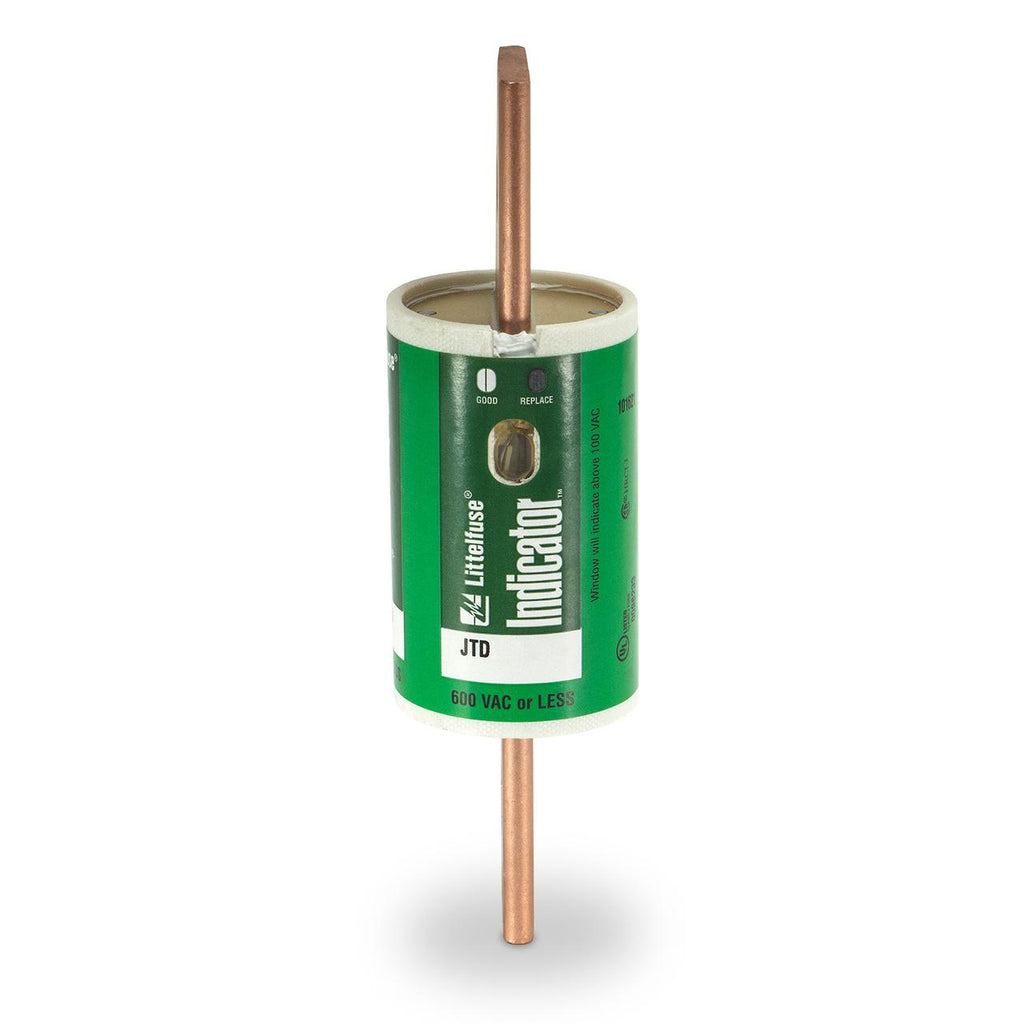

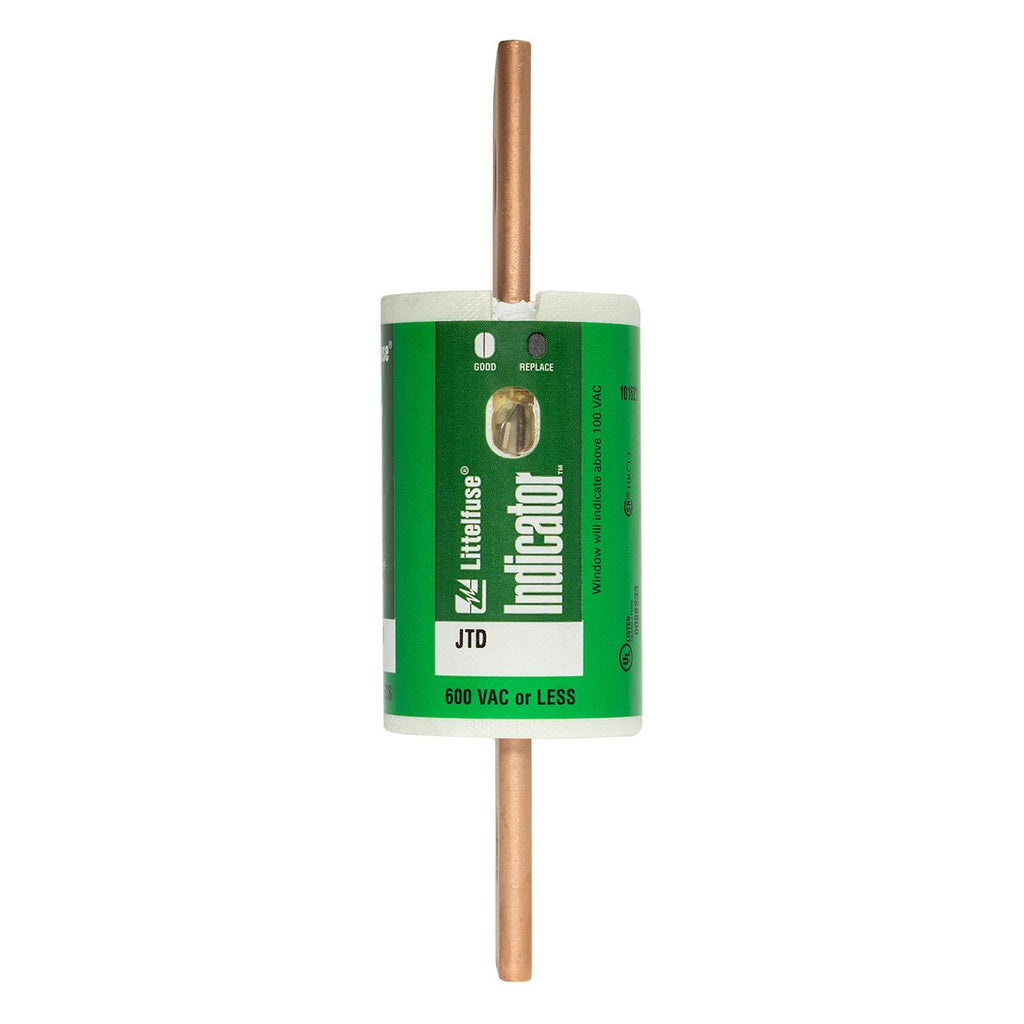

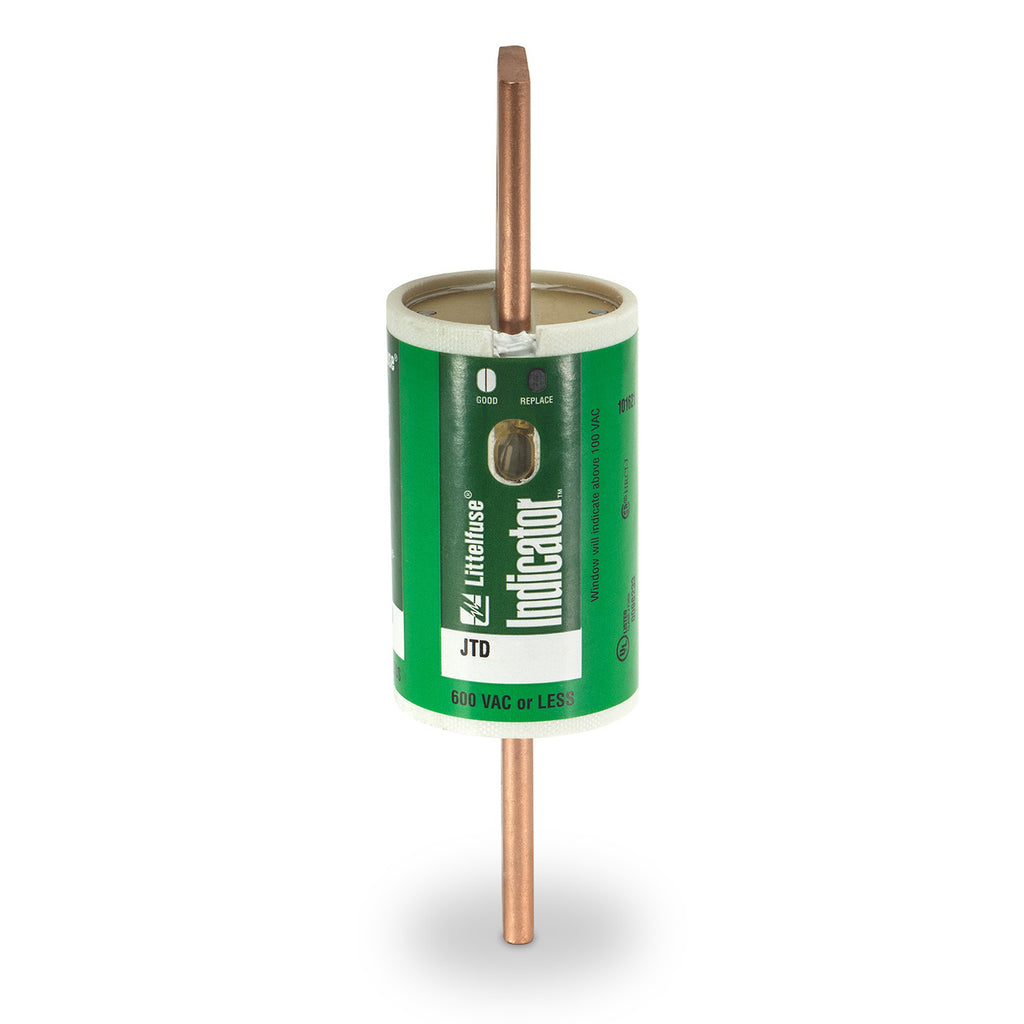

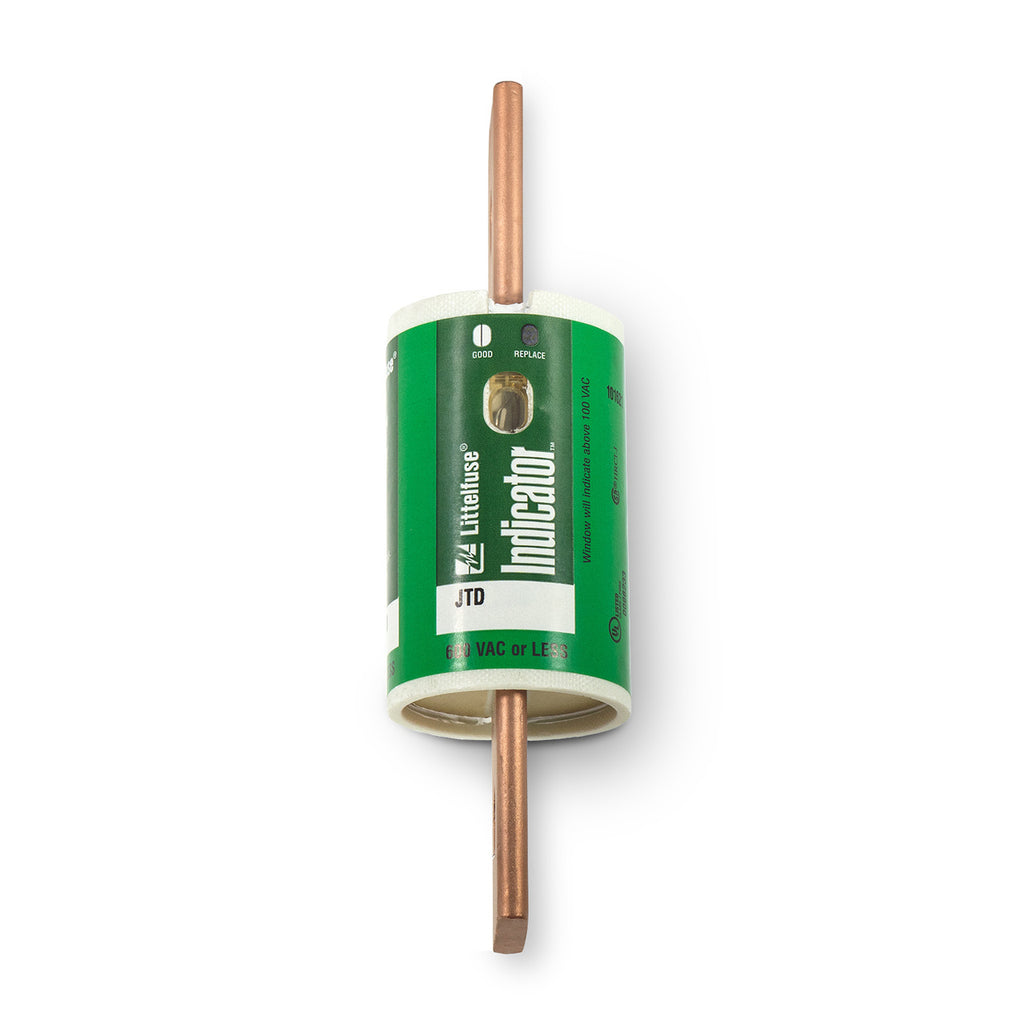

JTD400ID is a 400 Amp, 600 VAC Class J time delay fuse with visual blown fuse indication from Littelfuse.This cartridge fuse features a slow blow response time and requires a holder for mounting. It has a cylindrical body with knife-blade terminals and is rated for 400 amps at 600 VAC and 500 VDC. The fuse offers a high interrupting rating of 200kA AC and 20kA DC, providing reliable protection for transformer and industrial circuits. It is UL, CSA, and CE certified and designed for compact spaces where maximum protection and indication are needed.
- Key Specifications
- Current Rating: 400 Amps
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 500 VDC
- Fuse Type: Cartridge, Class J
- Response Time: Slow Blow (Time Delay)
- Mounting Type: Requires Holder
- Interrupting Rating: 200kA AC, 20kA DC
- Features: Visual blown fuse indicator
- Terminal Type: Knife-blade
- Certifications: UL Listed, CSA Certified, CE Approved
- Package: Cylindrical body
Specifications
- Part Number: JTD-400ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031904
- Weight : 5.19
