Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
JTD-350ID

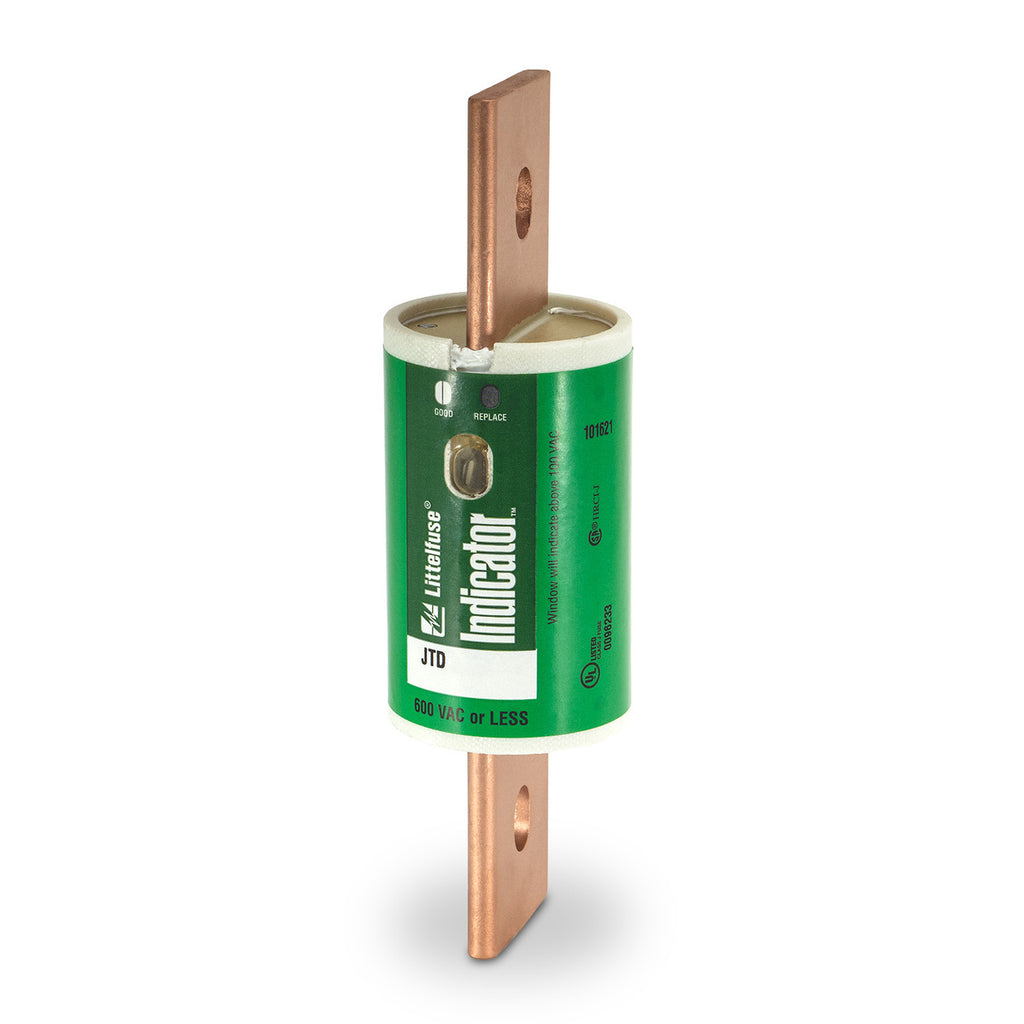

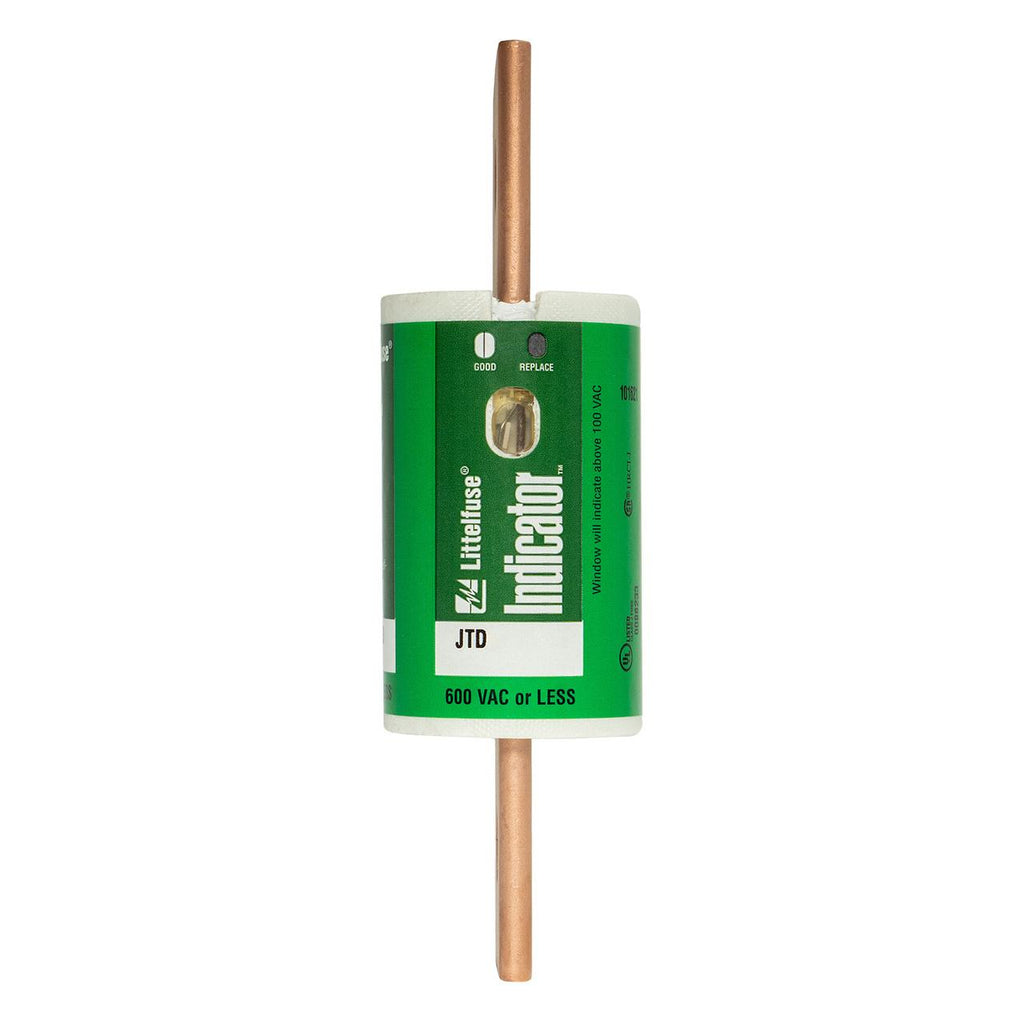

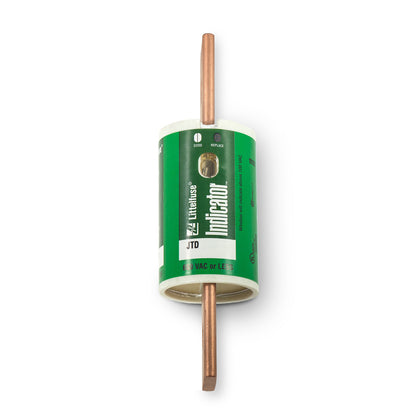

JTD-350ID is a Littelfuse Class J time delay fuse rated for 350 amps and 600 volts AC, designed for reliable overcurrent protection.This fuse features a current limiting, time delay design with IEC Type 2 "No Damage" protection, suitable for motor control centers and industrial applications. It has a cartridge body with a physical size of approximately 1-5/8" x 7-1/8", an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 500 VDC, and is UL Listed and CSA Certified.
- Key Specifications
- Amperage Rating: 350 Amps
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Type: Class J
- Poles: 1
- Mounting Type: Cartridge
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 500 VDC
- Fuse Response: Time Delay
- Protection Type: IEC Type 2 (No Damage)
- Dimensions: 1-5/8" x 7-1/8"
- Certifications: UL Listed, CSA Certified
- Series: POWR-GARD JTD_ID
Specifications
- Part Number: JTD-350ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 007945803189
- GTIN : 00079458031898
- Weight : 1.2
