Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-250

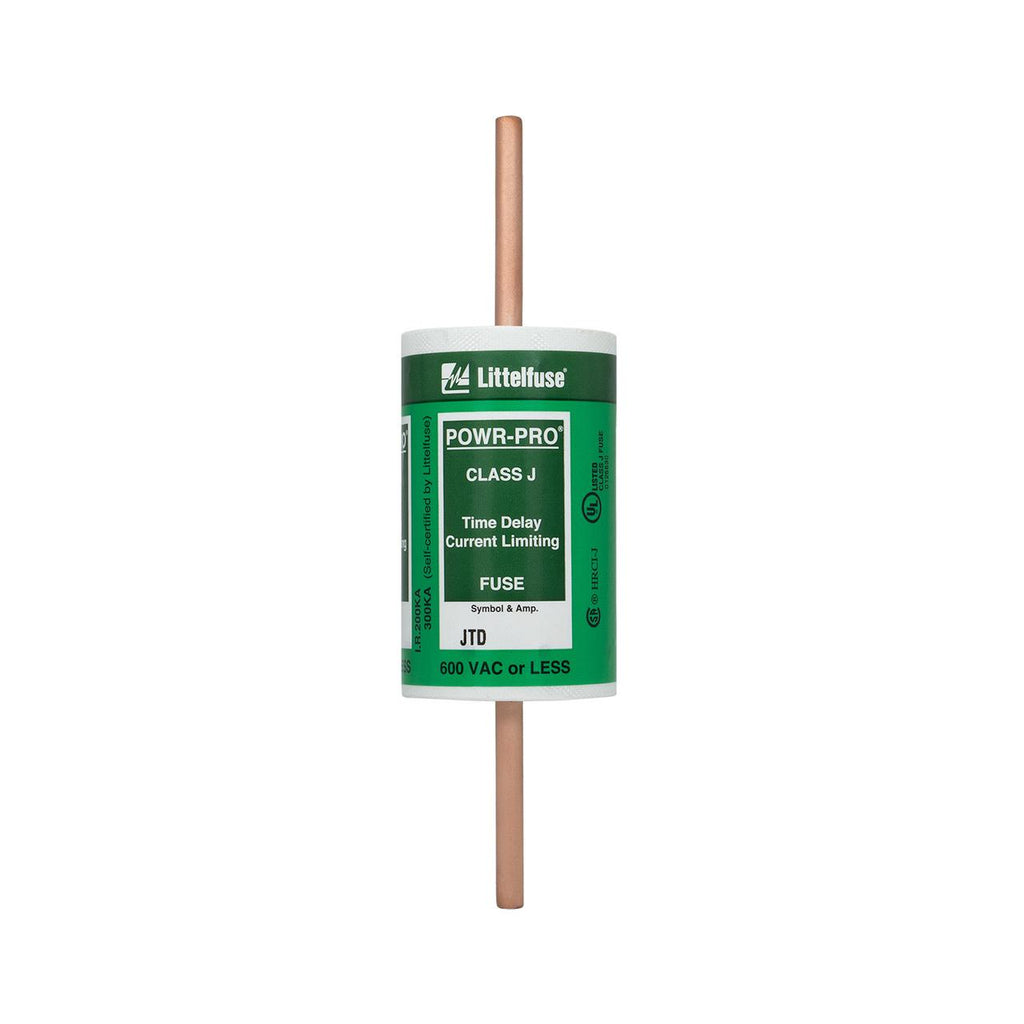

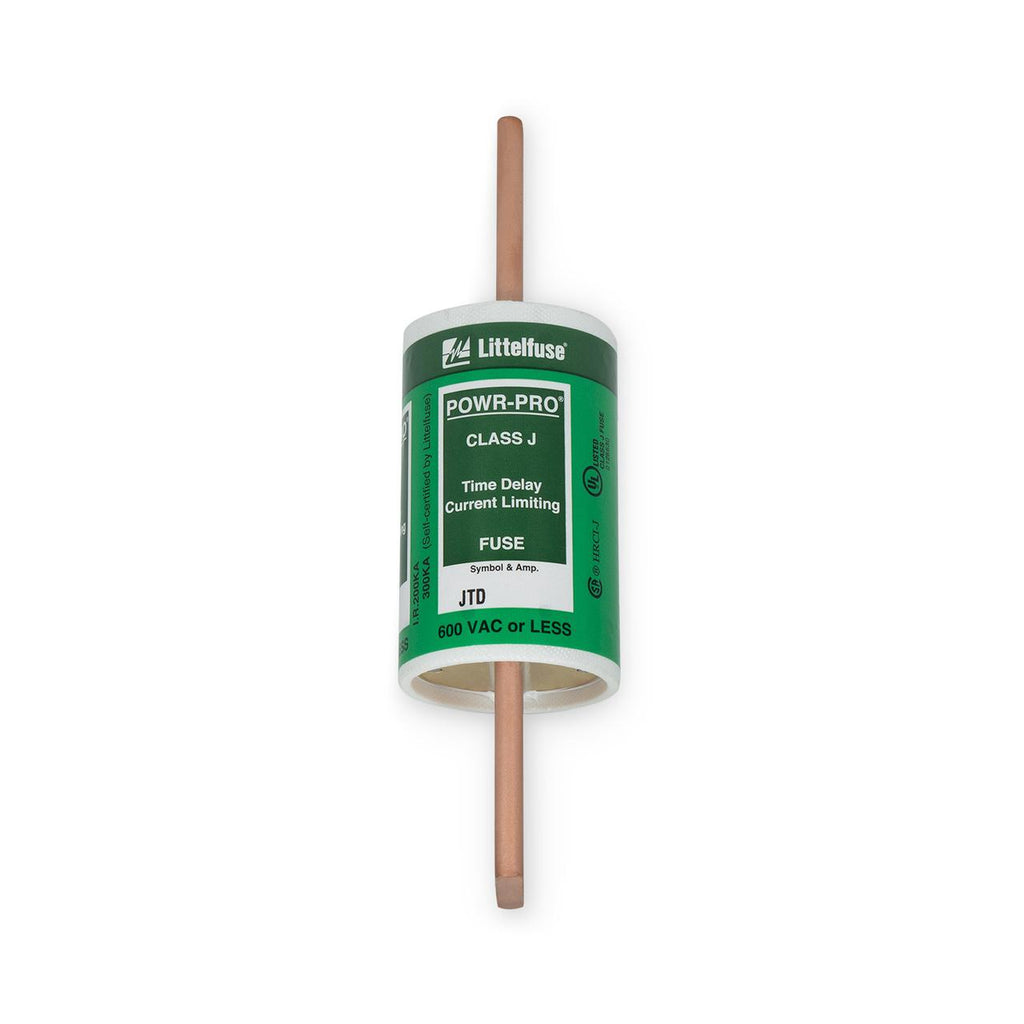

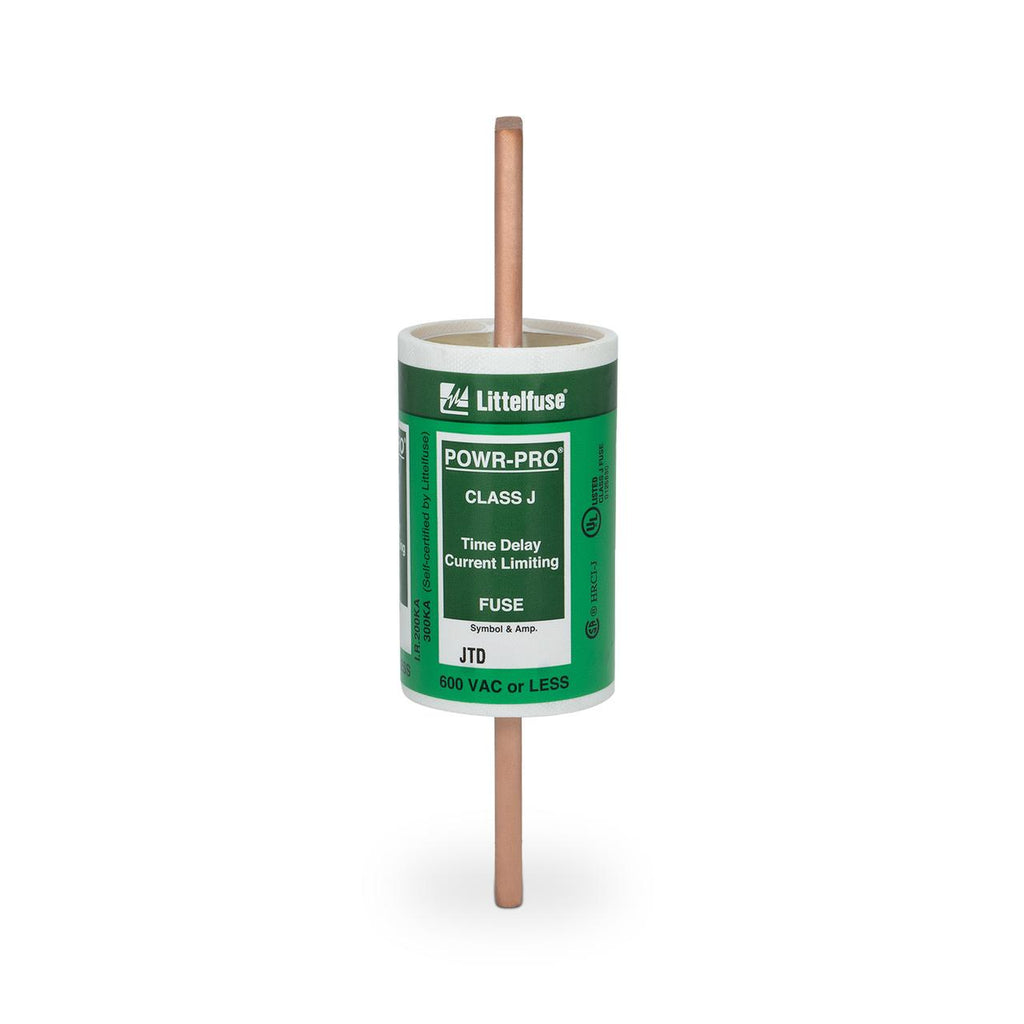

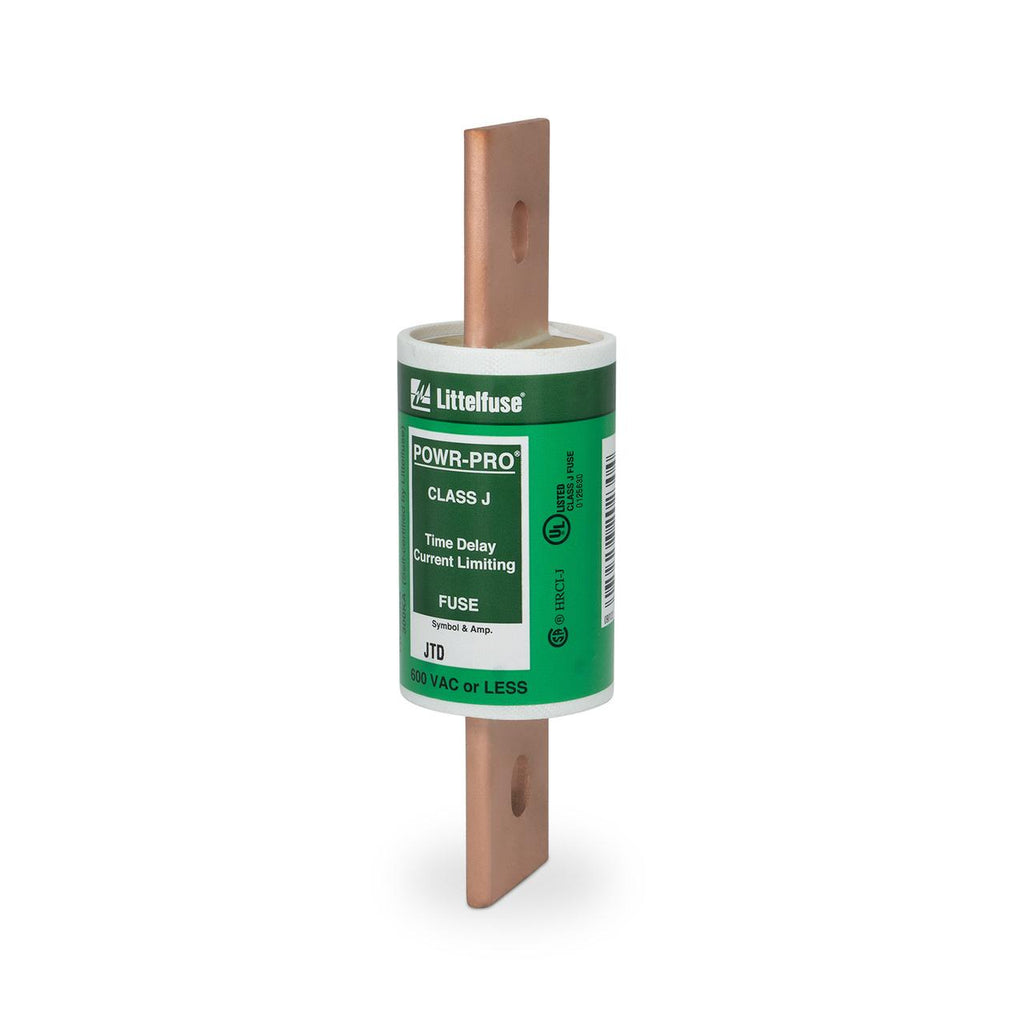

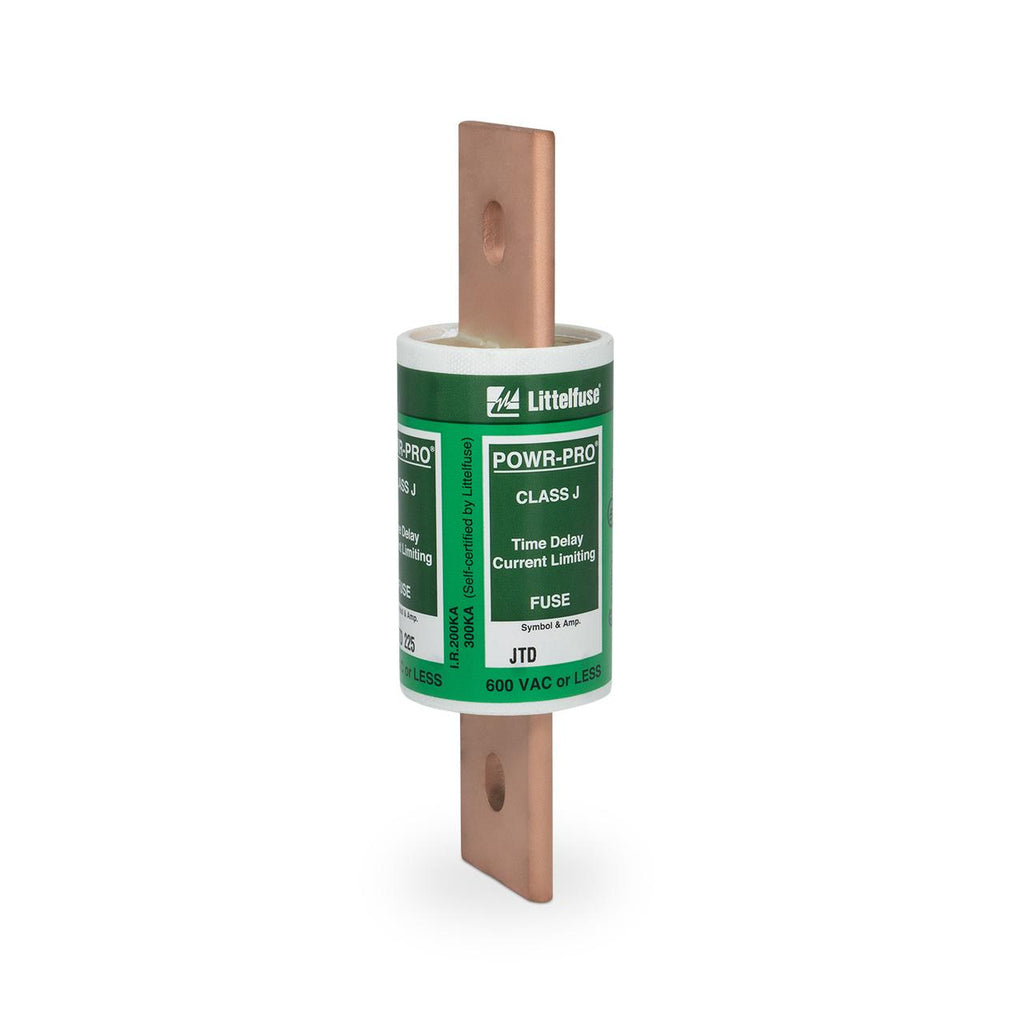

JTD-250 is a Littelfuse Class J time delay fuse rated for 250 amps and 600 volts AC. It provides reliable overcurrent protection with a dual element design.
This fuse features a current rating of 250 amps, an AC voltage rating of 600 volts, and a DC voltage rating of 500 volts. It has a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 500 VDC. The JTD-250 is UL Listed and CSA Certified, constructed with a melamine body and brass caps with copper blades for durability. It offers IEC Type 2 "No Damage" protection and is designed to reduce nuisance fuse openings with a patented time delay dual element design.
- Key Specifications
- Current Rating: 250 Amps
- Voltage Rating: 600 V AC, 500 V DC
- Fuse Type: Class J, Time Delay, Dual Element
- Interrupting Rating: 200 kA AC, 20 kA DC
- Body Material: Melamine
- Cap Material: Brass with Copper Blade
- Dimensions: 2" x 7 1/8"
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
- IEC Type 2 Protection
- Patented design to reduce nuisance openings
- Part Number: JTD-250
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 007945820231
- GTIN : 00079458202311
- Weight : 5.19
