Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JTD-225ID

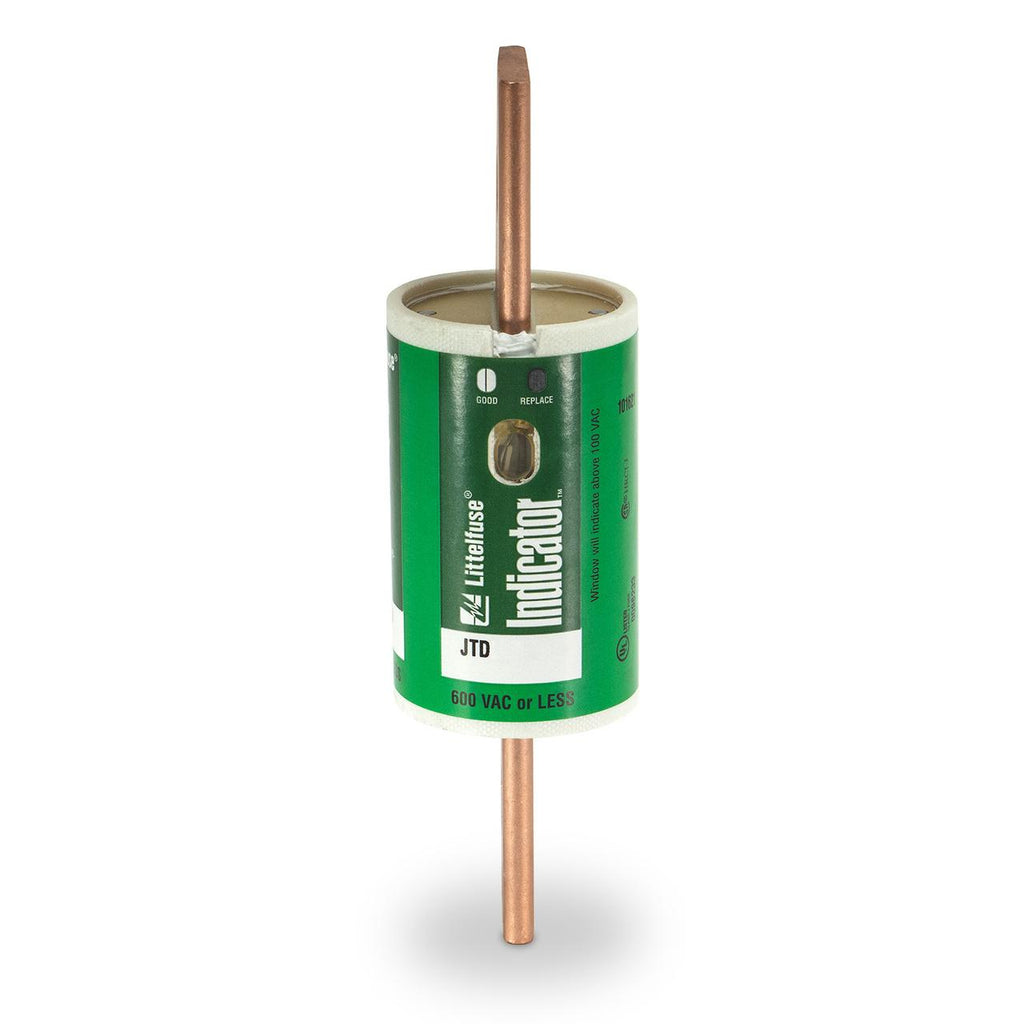

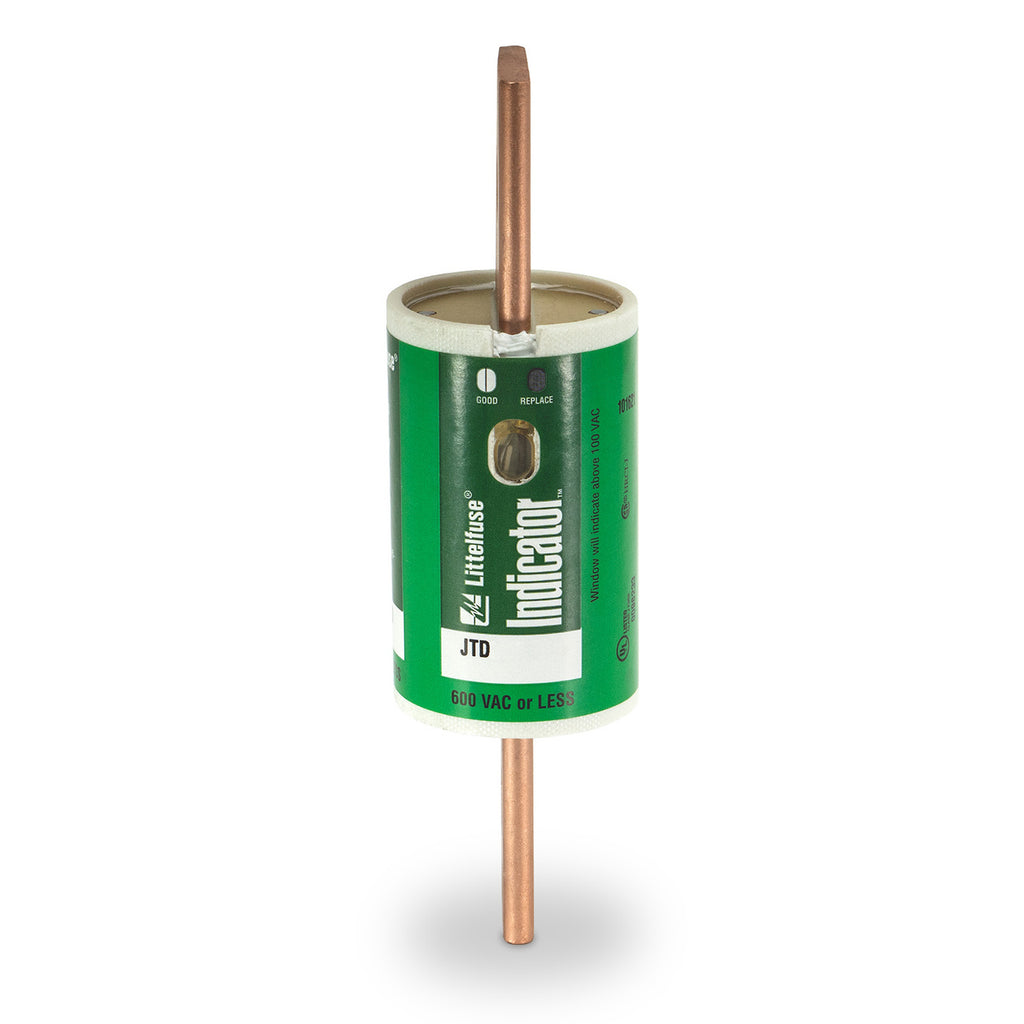

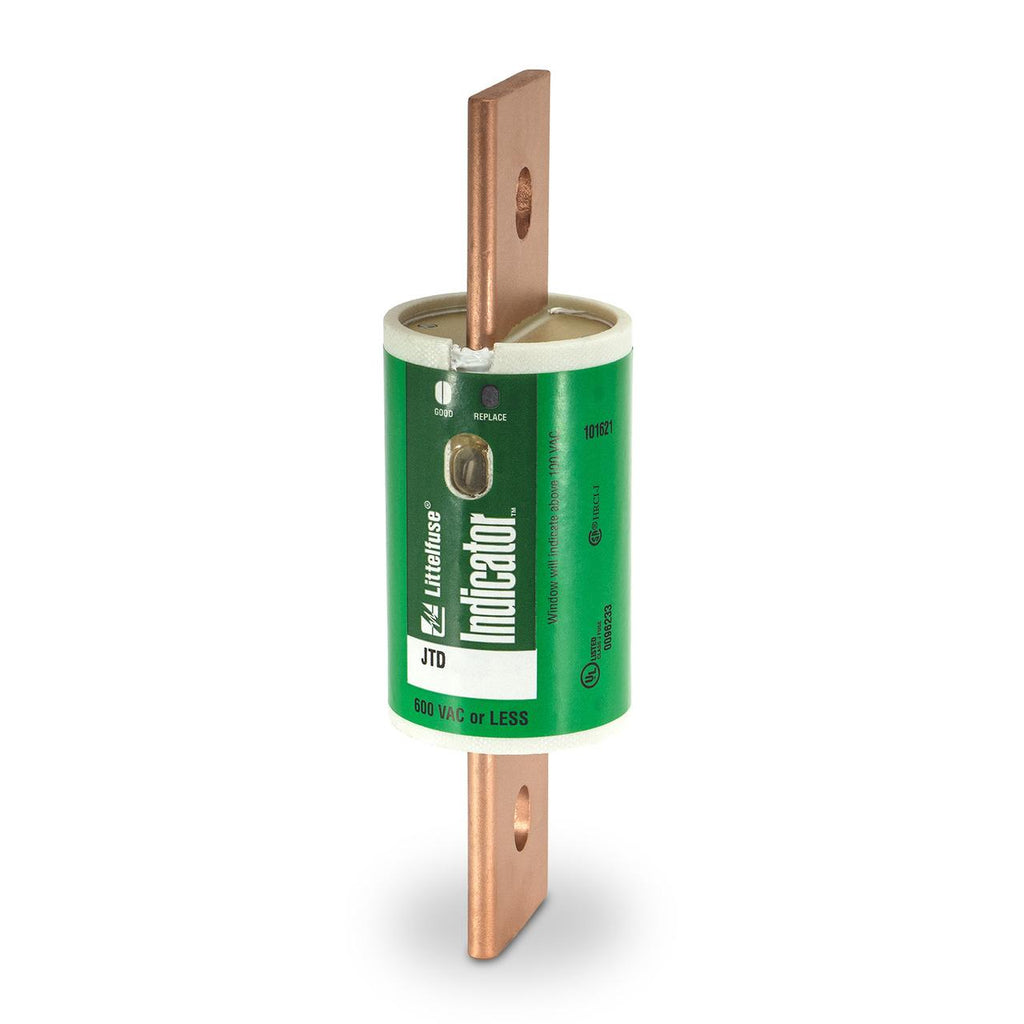

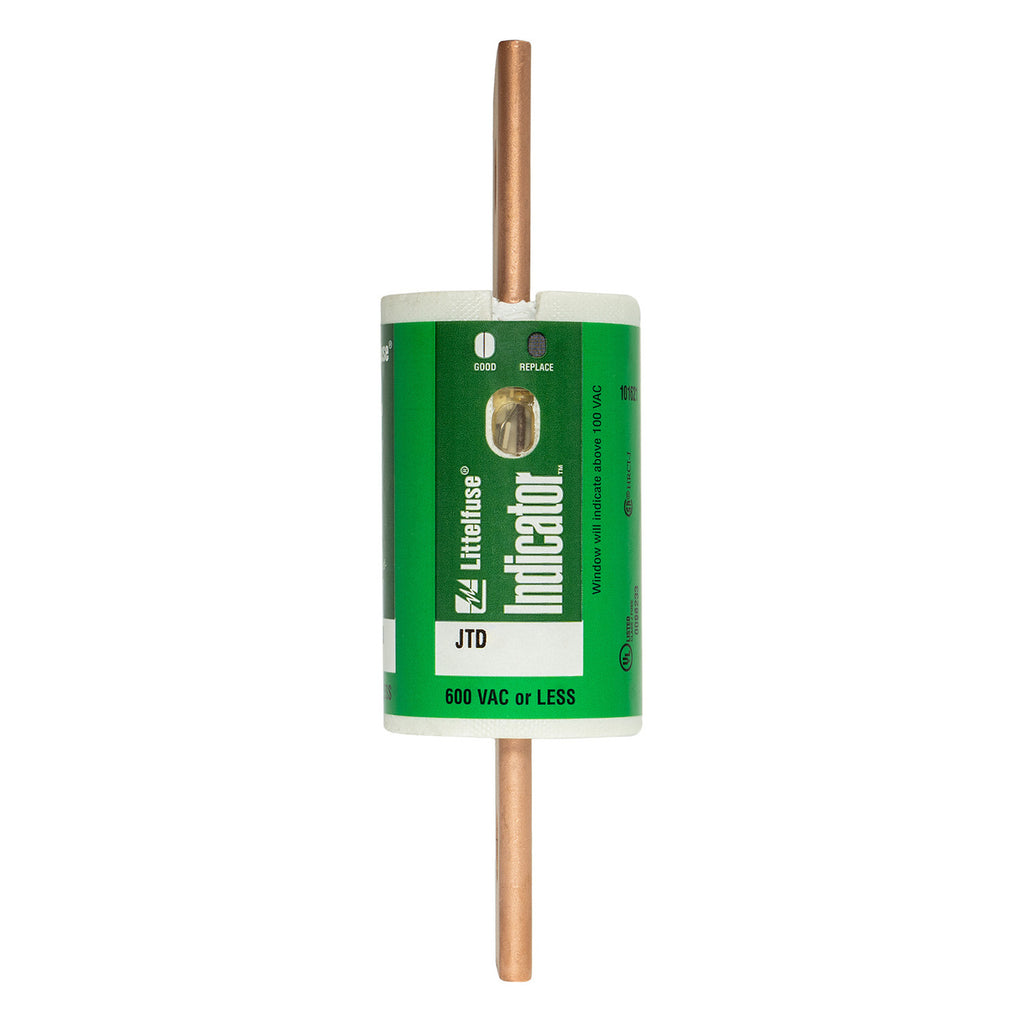

JTD-225ID is a Littelfuse Class J time delay, current limiting fuse designed for robust circuit protection in demanding electrical applications.
This fuse features a 225A ampere rating, 600VAC/500VDC voltage rating, and a high interrupting capacity of 200kA at 600VAC (20kA at 500VDC). It is part of the POWR-PRO series, offering reliable performance, visual blown fuse indication, and compliance with major safety standards. The cartridge-style body ensures easy installation and maintenance.
-
Key Specifications
- Part Number: JTD-225ID
- Manufacturer: Littelfuse
- Amperage: 225A
- Voltage: 600VAC, 500VDC
- Poles: 1
- Mounting Type: Cartridge (knife-blade style)
- Interrupt Rating: 200,000A @ 600VAC, 20,000A @ 500VDC
- Series/Frame: POWR-PRO, Class J
- Trip Unit: Time Delay
- Certifications: UL Listed, CSA Certified
- Body Material: Melamine
- Cap Material: Brass with copper blade
- Standards: UL 248-8, Class J
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-225ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031867
- Weight : 1.2
