Description

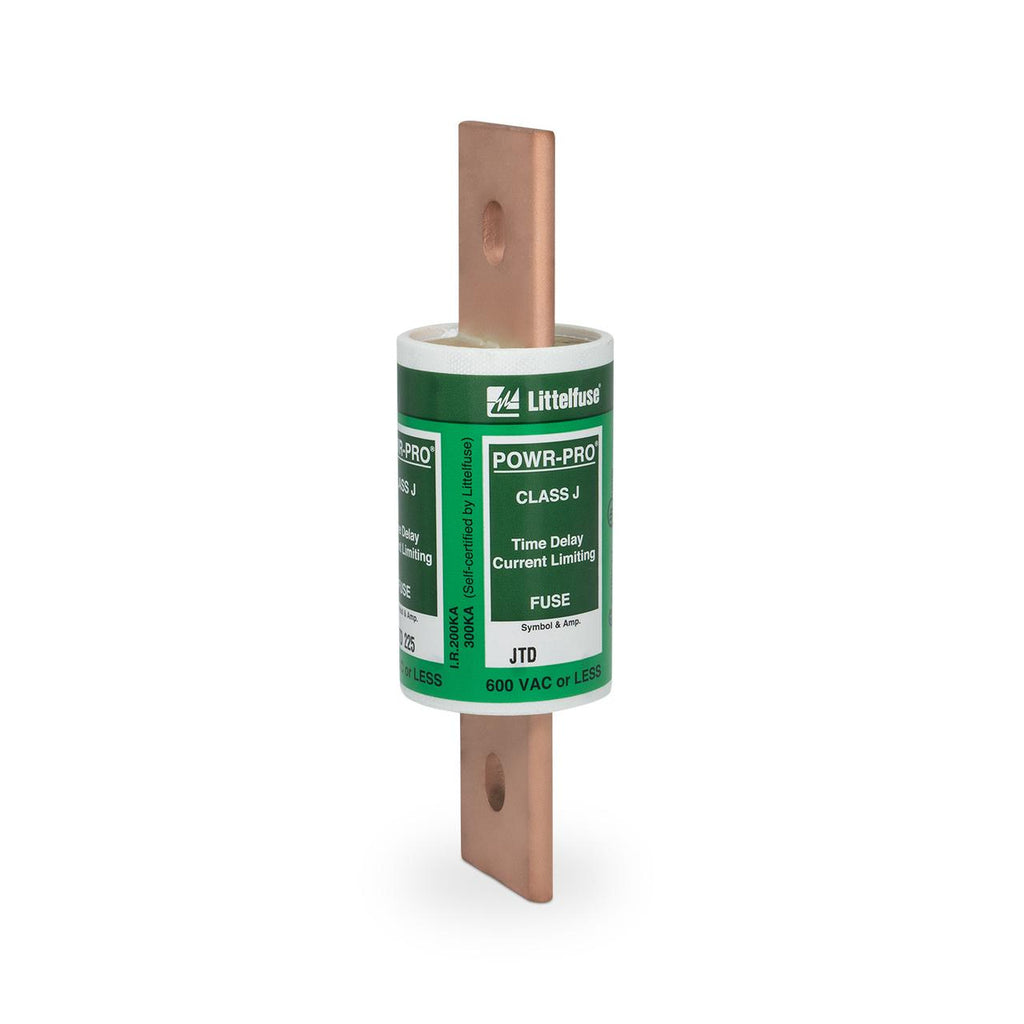

JTD-225
JTD225 is a Littelfuse Class J fuse with a 225 ampere rating and knife-blade construction designed for reliable overcurrent protection.This fuse features a time delay (Slo-Blo) trip unit suitable for industrial power applications. It supports a maximum AC voltage of 600 VAC and DC voltage of 500 VDC, with an interrupting rating of 20,000 amps at 500 VDC and up to 200,000 amps at 600 VAC. The fuse is designed for mounting in fuse blocks, clips, or holders and is part of the Powr-Pro Fuse family.
- Amperage: 225 A
- Voltage Rating: 600 VAC / 500 VDC
- Fuse Class: Class J
- Trip Unit: Time Delay (Slo-Blo)
- Interrupt Rating: 20 kA DC, 200 kA AC
- Construction: Knife-Blade Style
- Mounting Method: Fuse Block / Clip / Holder
- Series/Frame: Powr-Pro Fuse
- Body Material: Melamine
- Length: 3-3/8 inches
- Diameter: 7-1/8 inches
Specifications
- Part Number: JTD-225
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Conduit & Fittings
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 07945820230
- GTIN : 00079458202304
- Weight : 1.2
