Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JTD-200ID

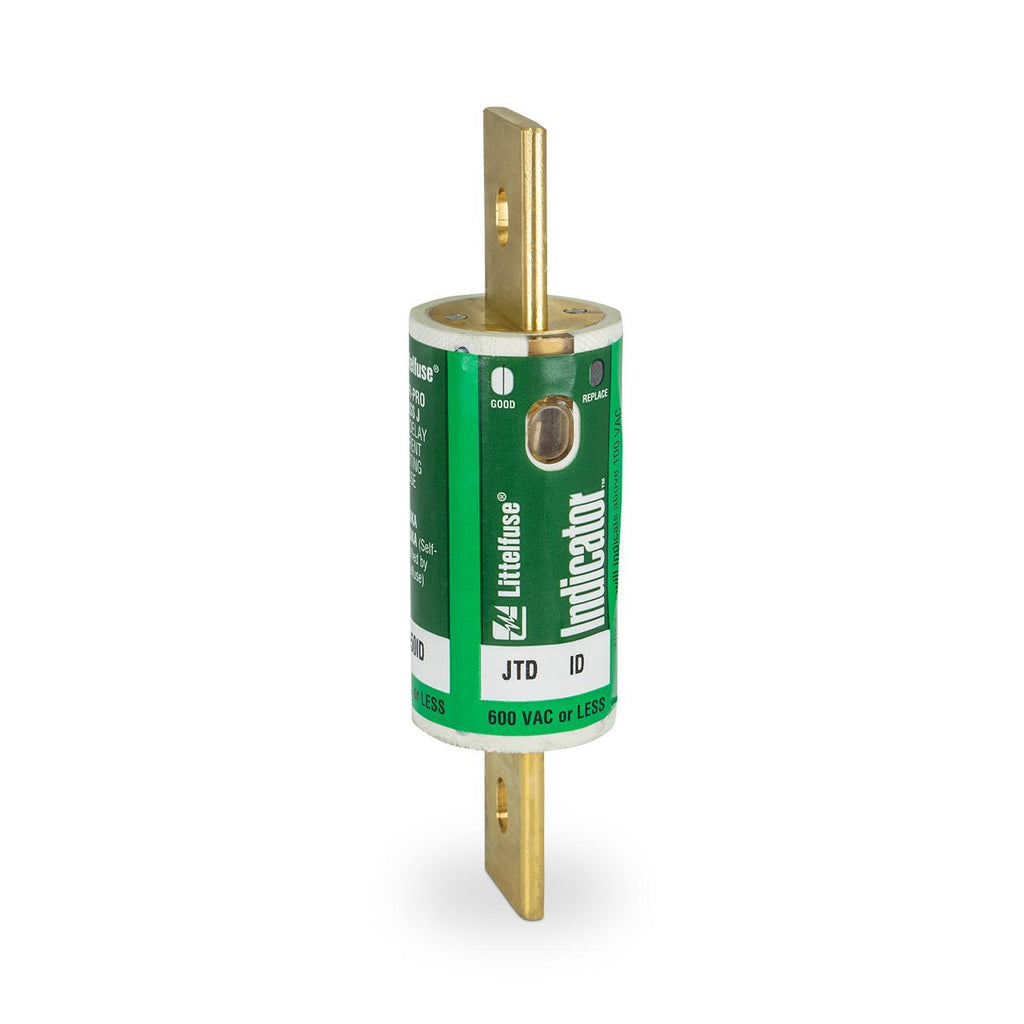

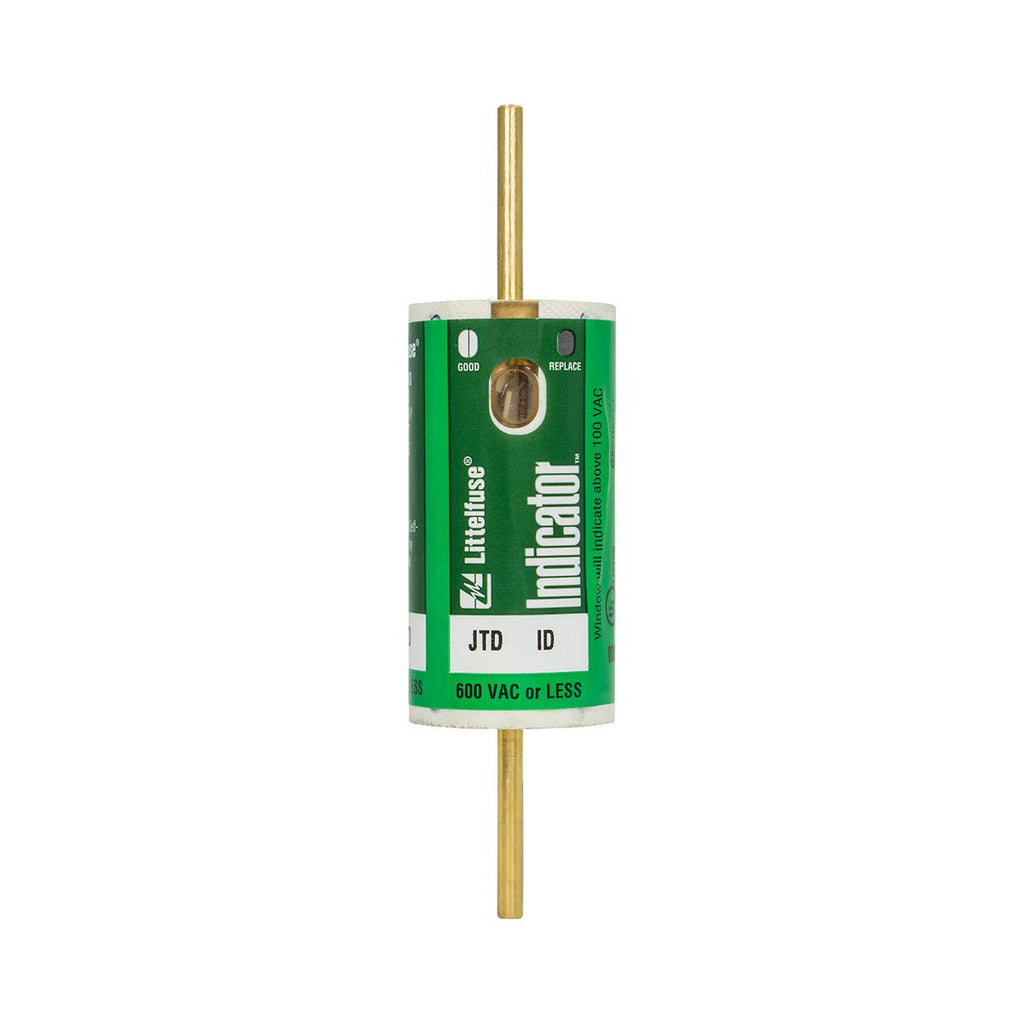

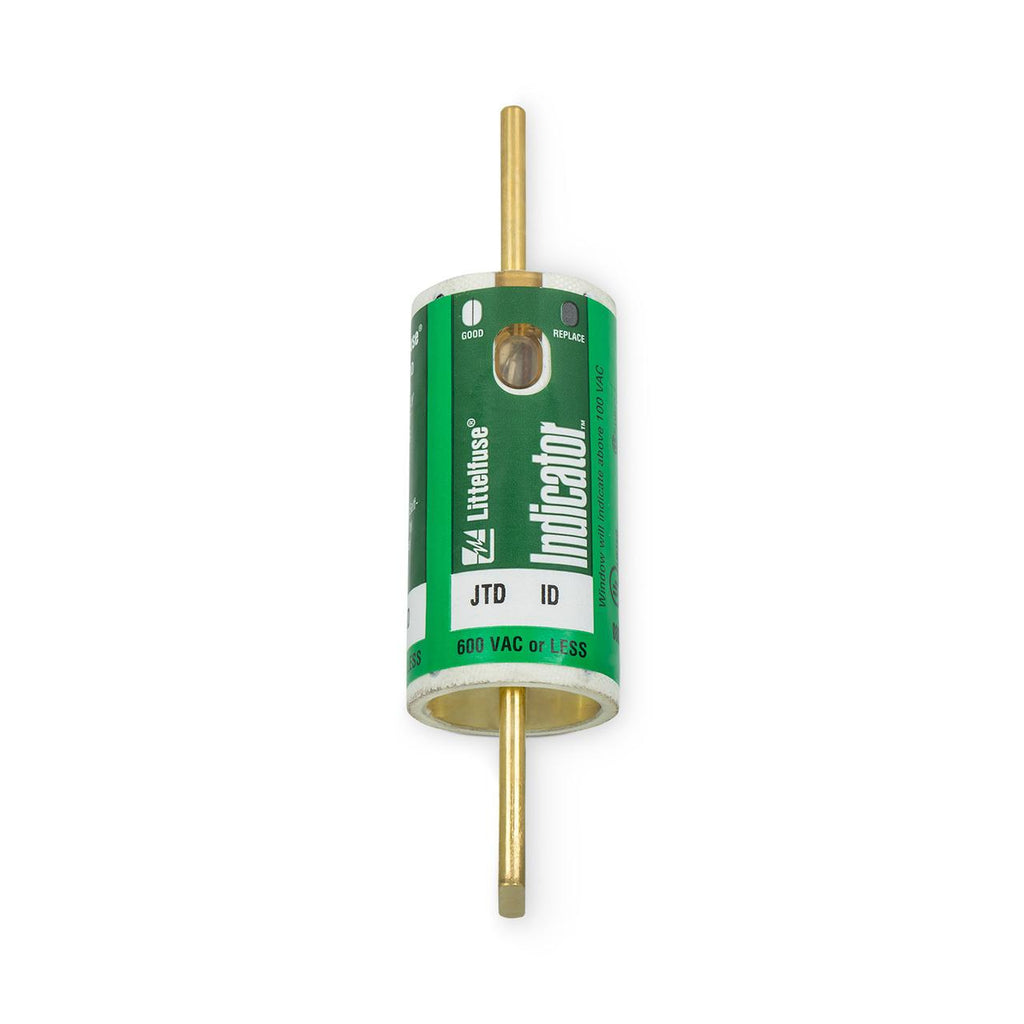

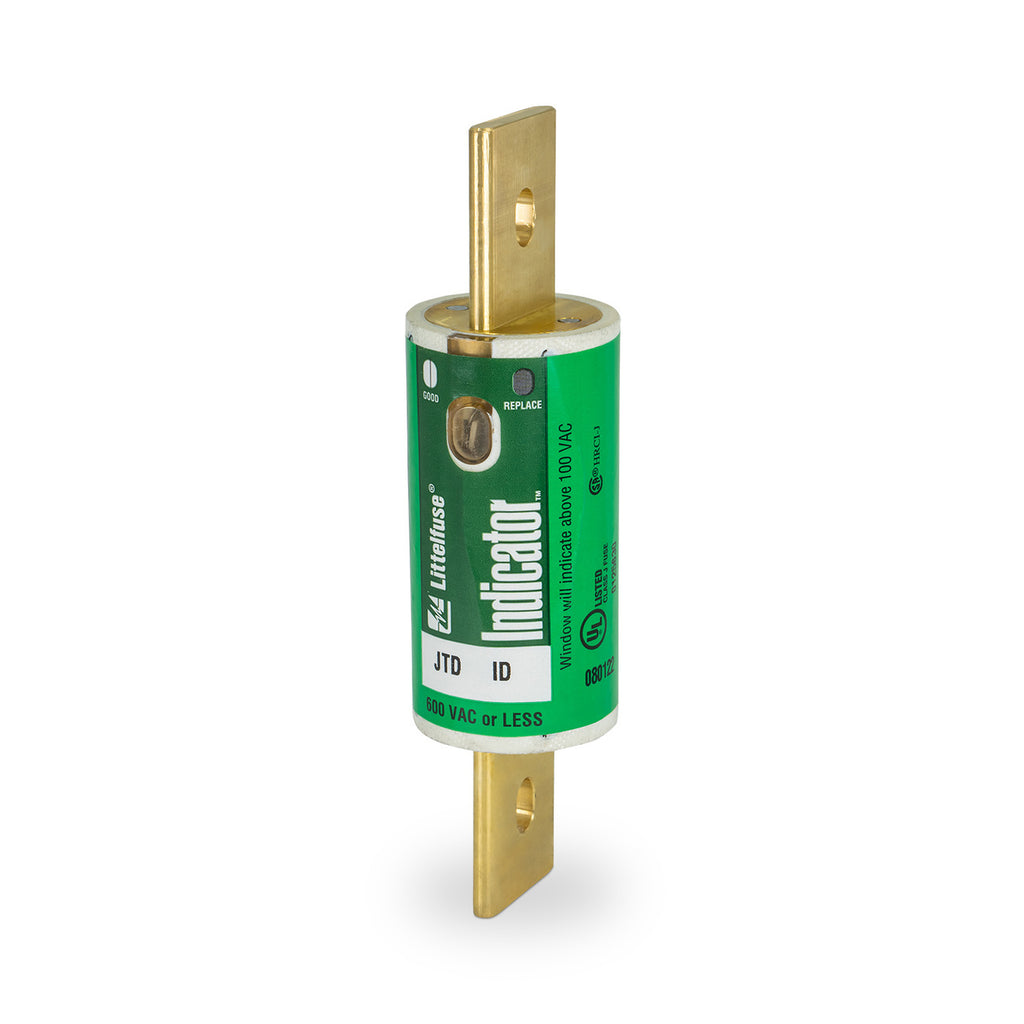

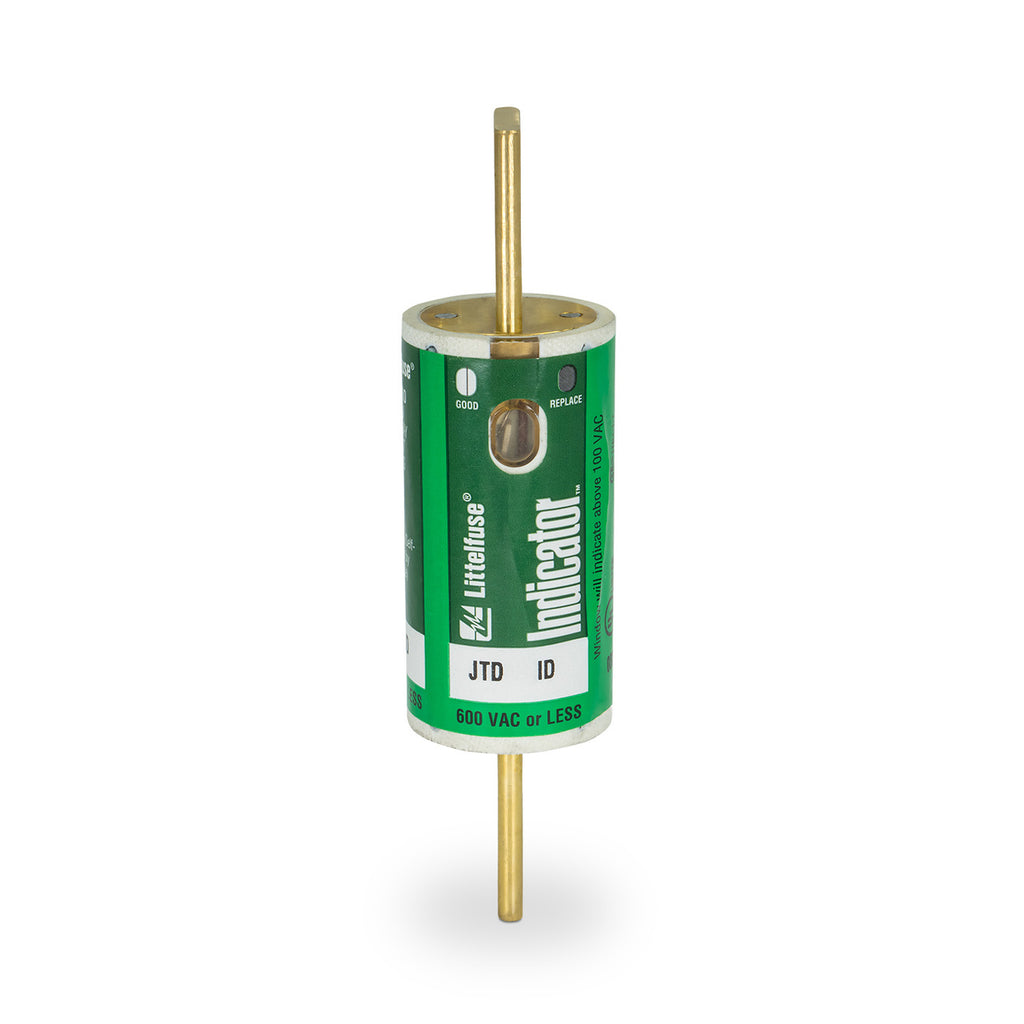

JTD-200ID is a Littelfuse Class J time delay fuse rated for 200 amps and designed for high performance circuit protection.
This fuse features a 600 VAC and 500 VDC voltage rating with a current limiting design that provides Type 2 "No Damage" protection. It has a high interrupting rating of 200 kA rms symmetrical at AC and 20 kA at DC, making it suitable for motor controllers, motor control centers, and transformer protection. The fuse has a cartridge body with knife-blade style construction and complies with UL 248-8 and CSA standards.
- Amperage: 200 A
- Voltage: 600 VAC / 500 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Type: Class J, Time Delay
- Construction: Cartridge body, knife-blade style
- Standards: UL 248-8, CSA Certified
- Material: Melamine body with brass caps
- Mounting: Fuse holder compatible (LFJ60 series, LFPSJ series)
- Country of Origin: Mexico
- Series: JTD_ID Indicator®
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-200ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031850
- Weight : 5.19
