JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified

Save $422.05
SKU: JTD-200-New
Condition: New
Price:
$85.35 $507.40
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 Littelfuse Low Voltage Fuse Fuse - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply
JTD-200 - Littelfuse 200A 600VAC Class J Time Delay Fuse, Dual Element, Current Limiting, 1-1/2" x 5-3/4", UL Listed, CSA Certified - Essential Electric Supply

Description

JTD-200

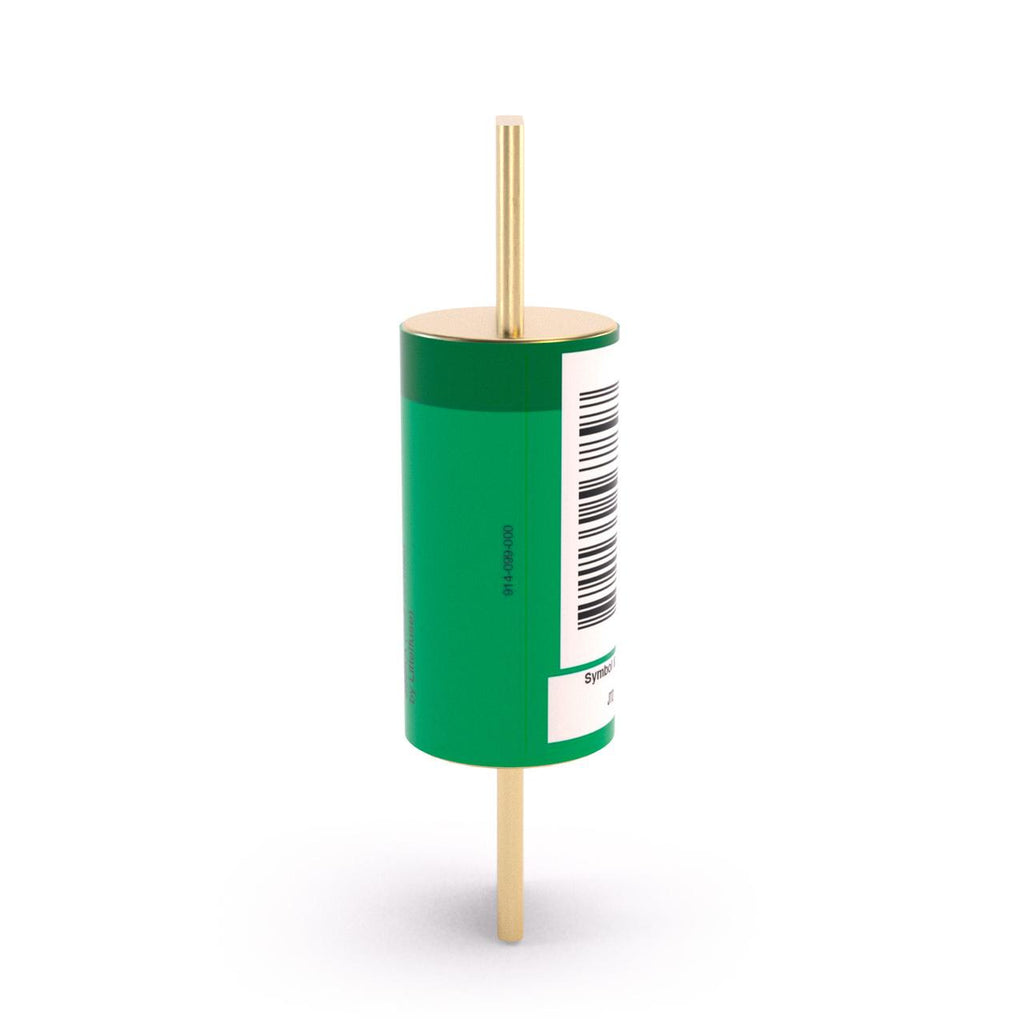

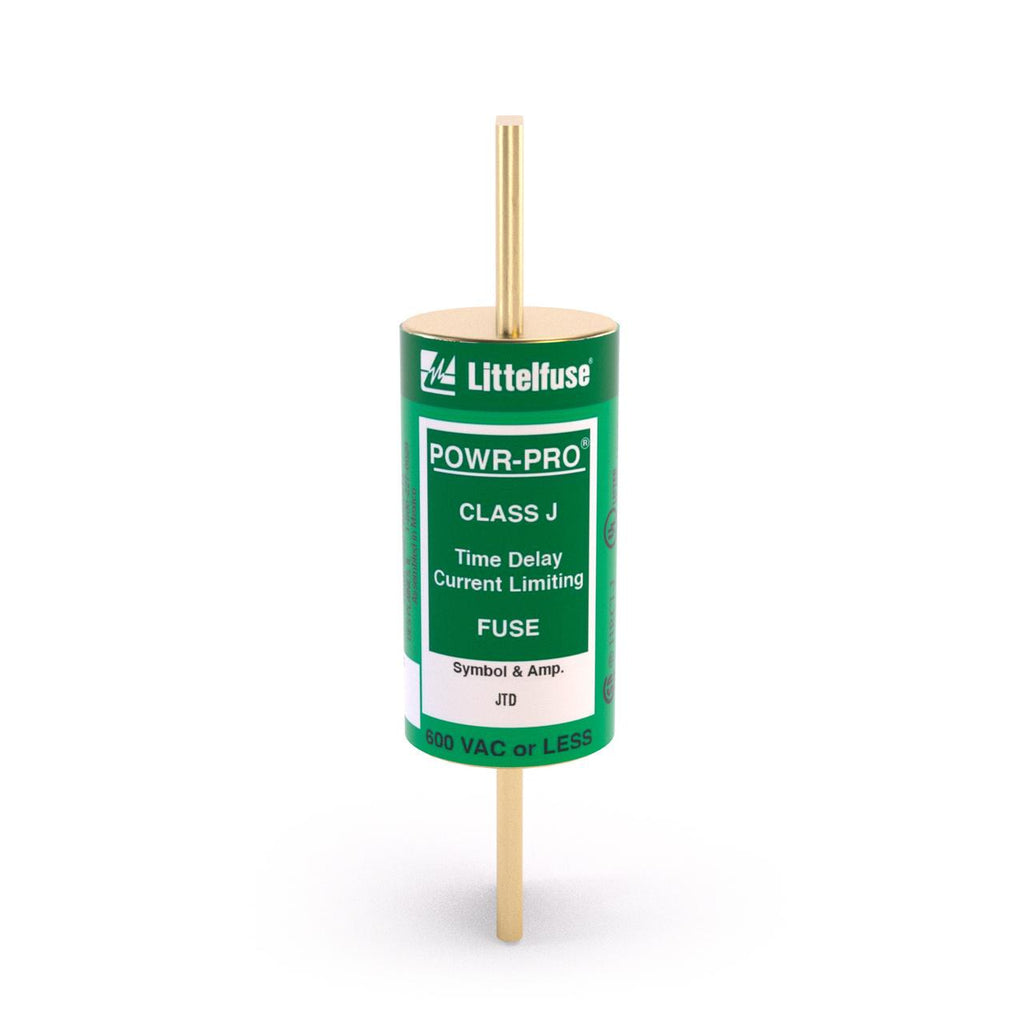

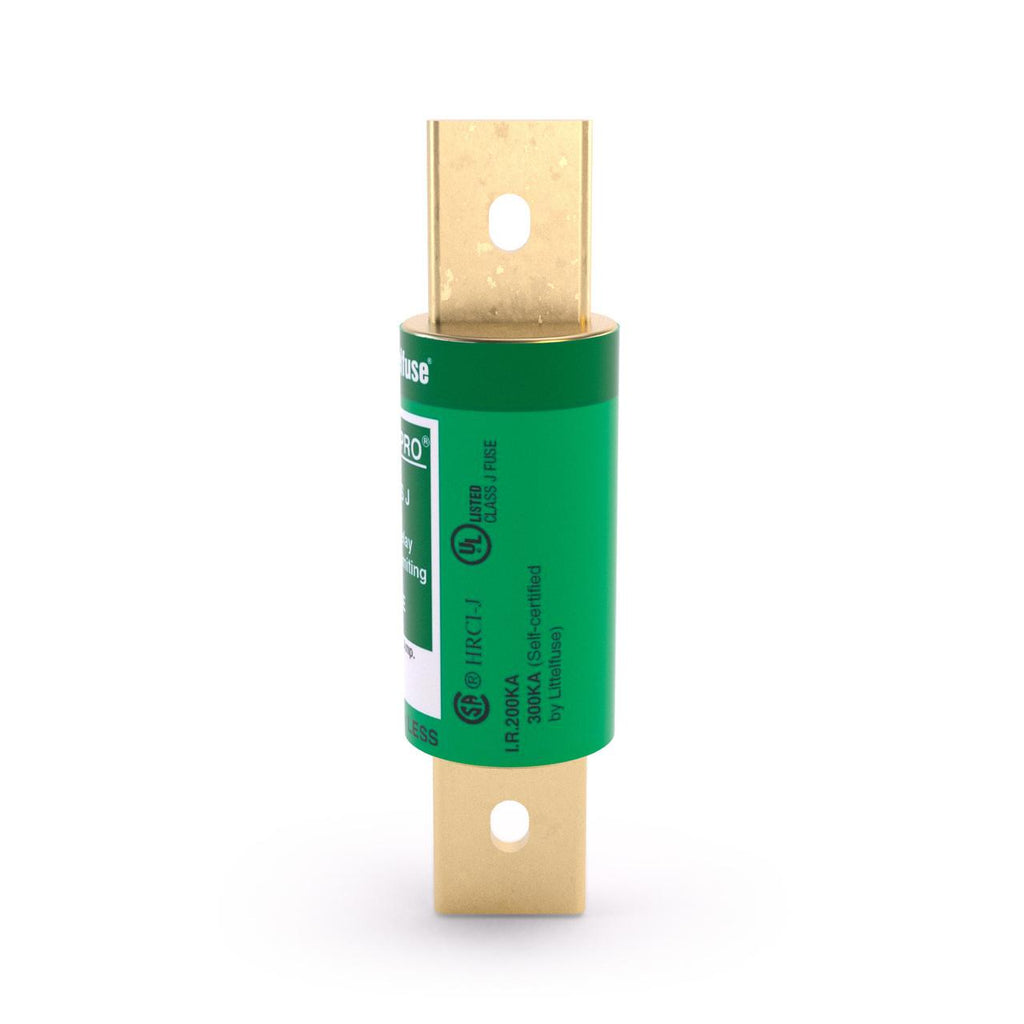

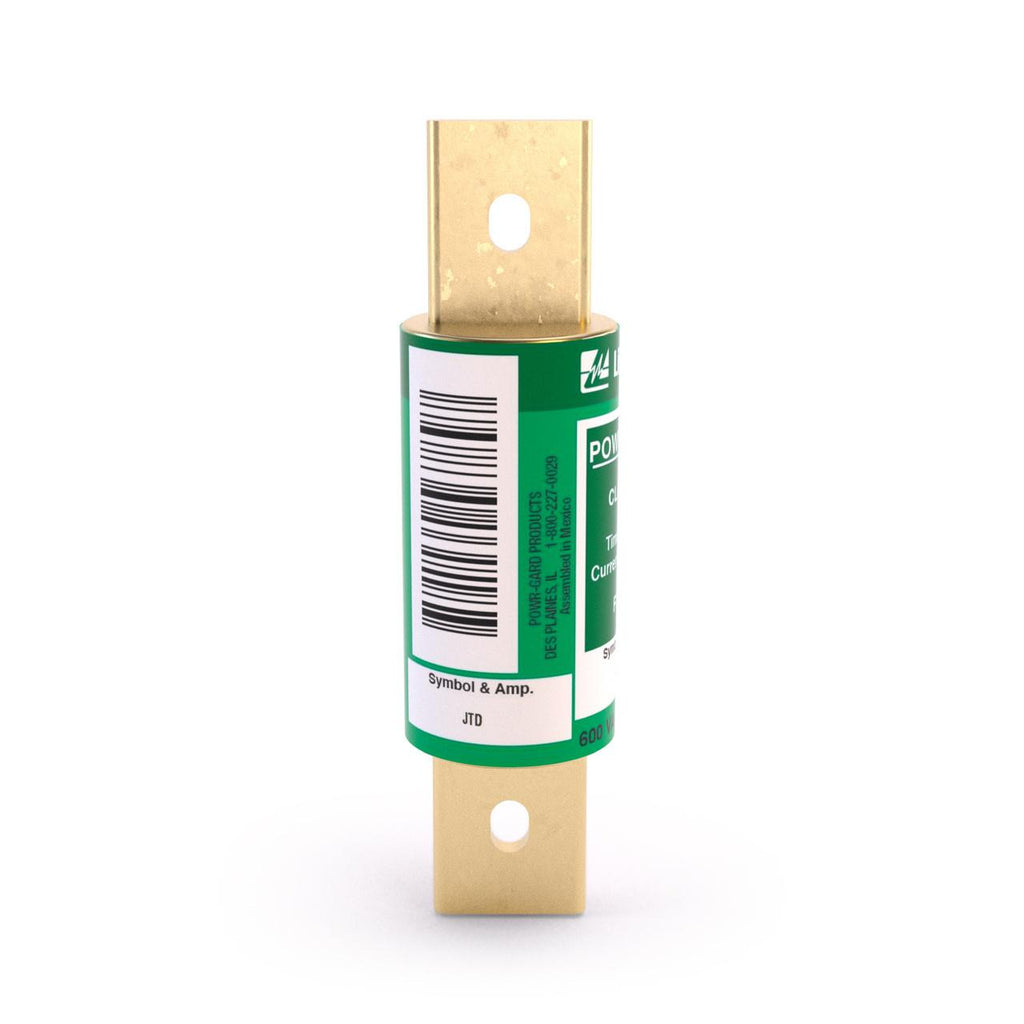

JTD-200 is a Littelfuse Class J time delay fuse designed for reliable circuit protection in demanding electrical applications.

This dual-element, current-limiting fuse offers a 200A rating at 600VAC/500VDC, with a high interrupting rating of 200,000A at 600VAC and 20,000A at 500VDC. It features a patented design to reduce nuisance openings and is suitable for a wide range of industrial and commercial uses. The fuse body is constructed for durability, and the product meets rigorous safety and performance standards.

Key Specifications

  • Amperage: 200A
  • Voltage: 600VAC, 500VDC
  • Poles: Not applicable (fuse)
  • Mounting Type: Bolt-on, cartridge blade
  • Interrupt Rating: 200,000A @ 600VAC, 20,000A @ 500VDC
  • Series/Frame: JTD Series, Class J
  • Trip Unit: Time delay (dual element)
  • Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
  • Physical Size: 1-1/2" diameter x 5-3/4" length
  • Current Limiting: Yes
  • IEC Type 2 Protection: Yes
  • Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: JTD-200
  • Manufacturer : Littelfuse
  • Brand : Littelfuse
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse

Product Data

  • UPC : 07945820229
  • GTIN : 00079458202298
  • Weight : 0.6
