Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-175

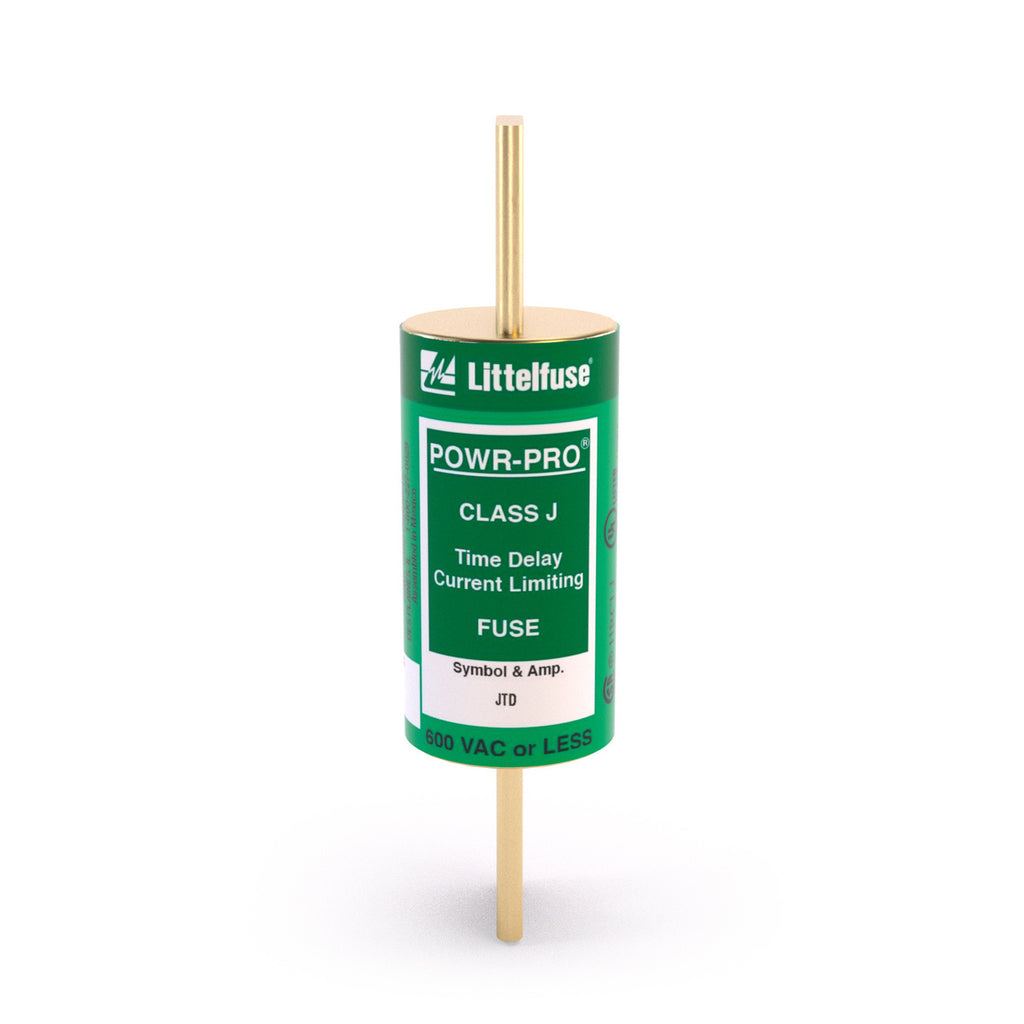

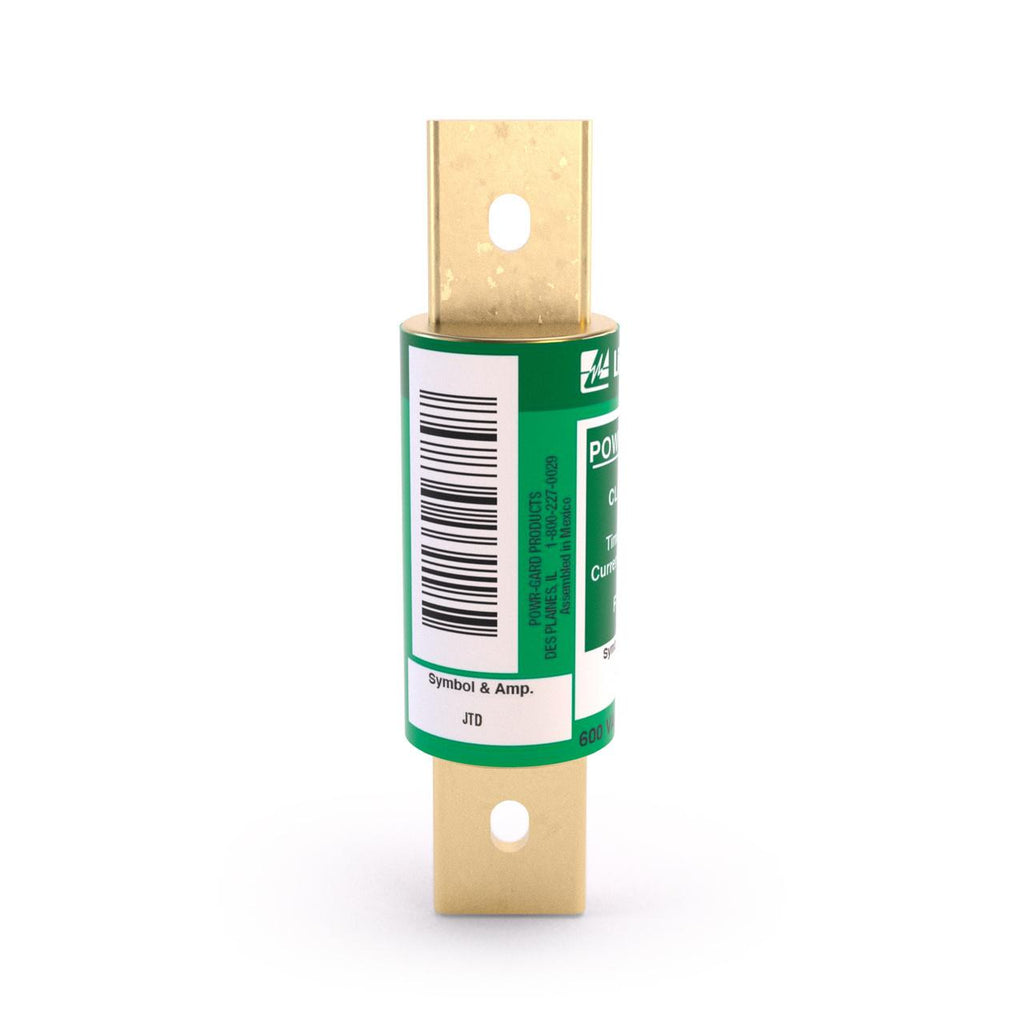

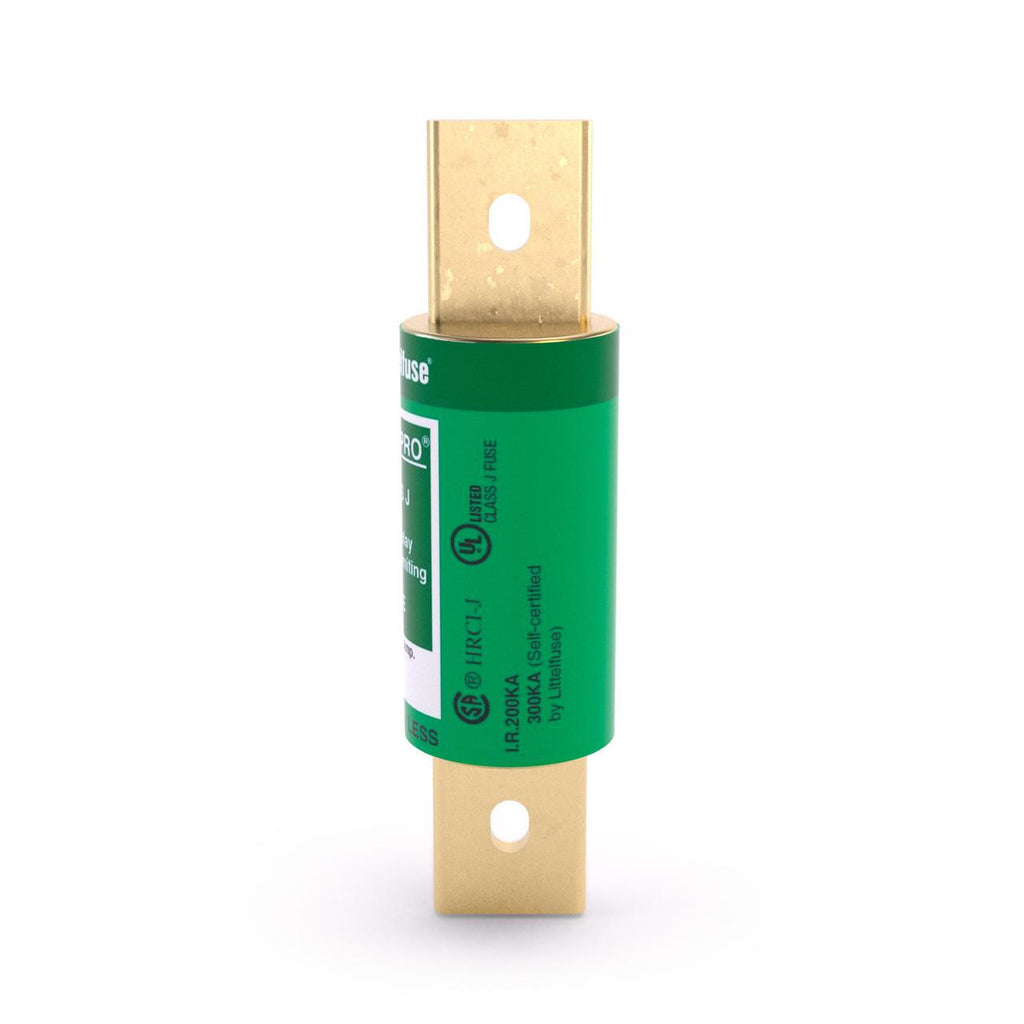

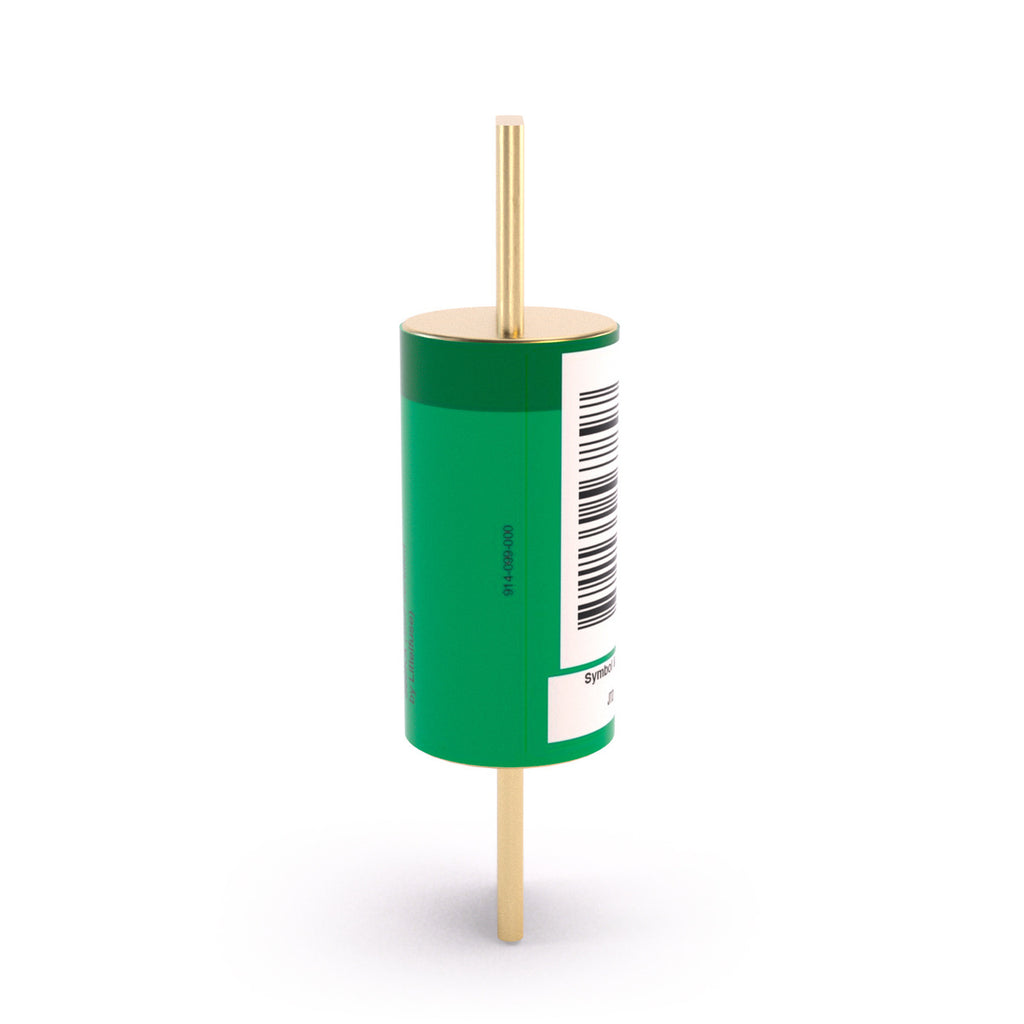

JTD-175 is a Littelfuse Class J fuse rated for 175 amps with time-delay dual-element construction for reliable circuit protection.This fuse supports 600VAC and 500VDC voltage ratings with a high interrupting rating of 200kA at 600VAC and 20kA at 500VDC. It features a bolt mounting type and a melamine body with brass caps, suitable for residential, commercial, and industrial applications. Certified to UL 248-8, CSA, and CE standards, the JTD-175 fuse provides current limiting and IEC Type 2 protection.
- Amperage: 175A
- Voltage: 600VAC, 500VDC
- Mounting Type: Bolt
- Interrupting Rating: 200kA at 600VAC, 20kA at 500VDC
- Fuse Class: J (UL 248-8)
- Time Delay, Dual Element
- Body Material: Melamine
- Caps: Brass with Copper Blade
- Dimensions: 1.5 in diameter x 5.75 in length
- Certifications: UL Listed, CSA Certified, CE Compliant
- Series: JTD
Specifications
- Part Number: JTD-175
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 07945820228
- Weight : 0.6
