Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
JTD-17.5ID

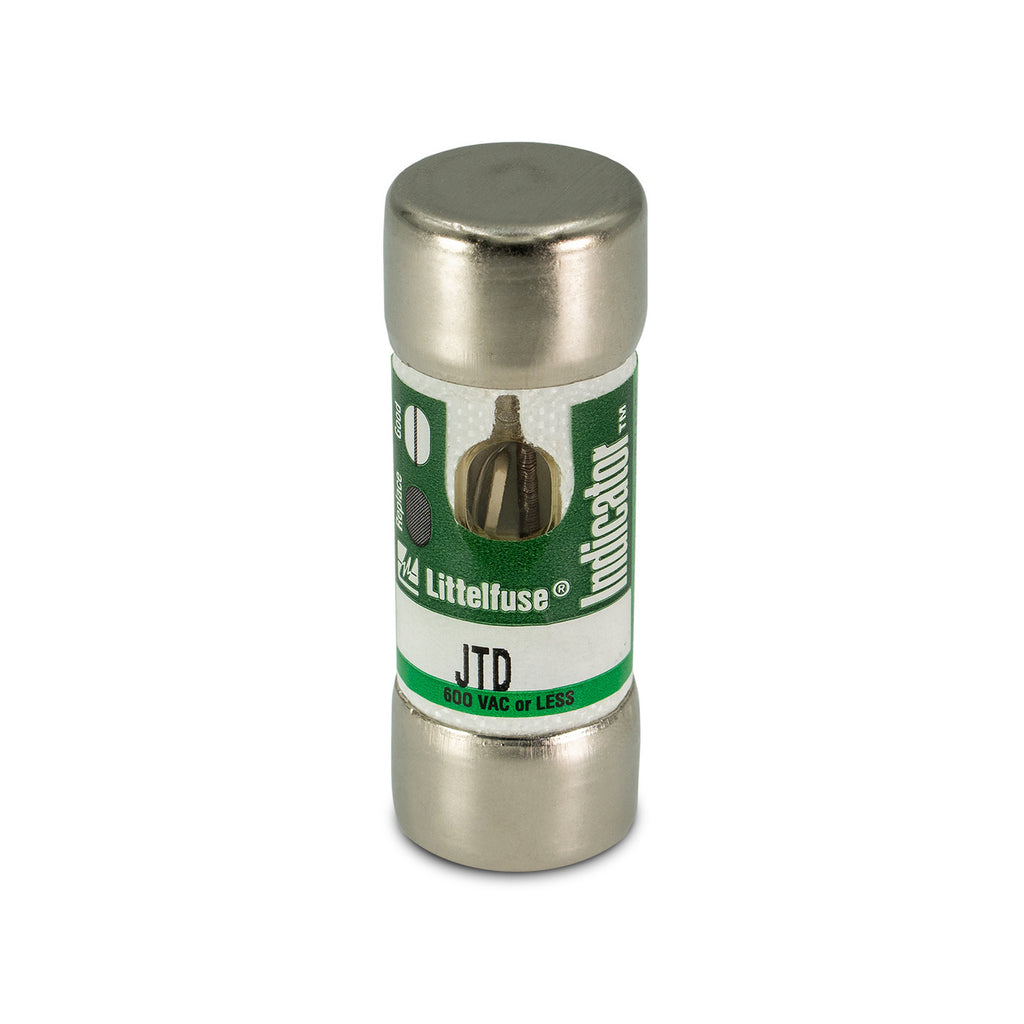

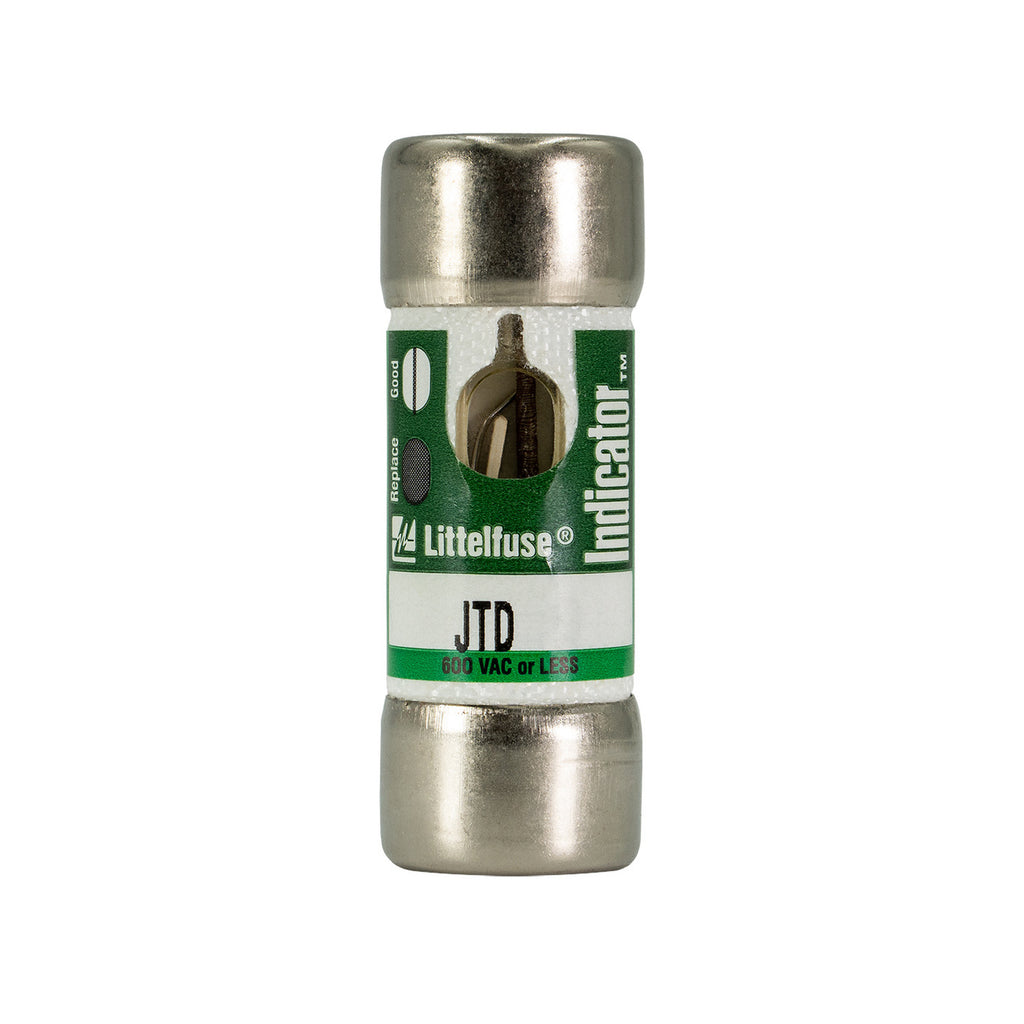

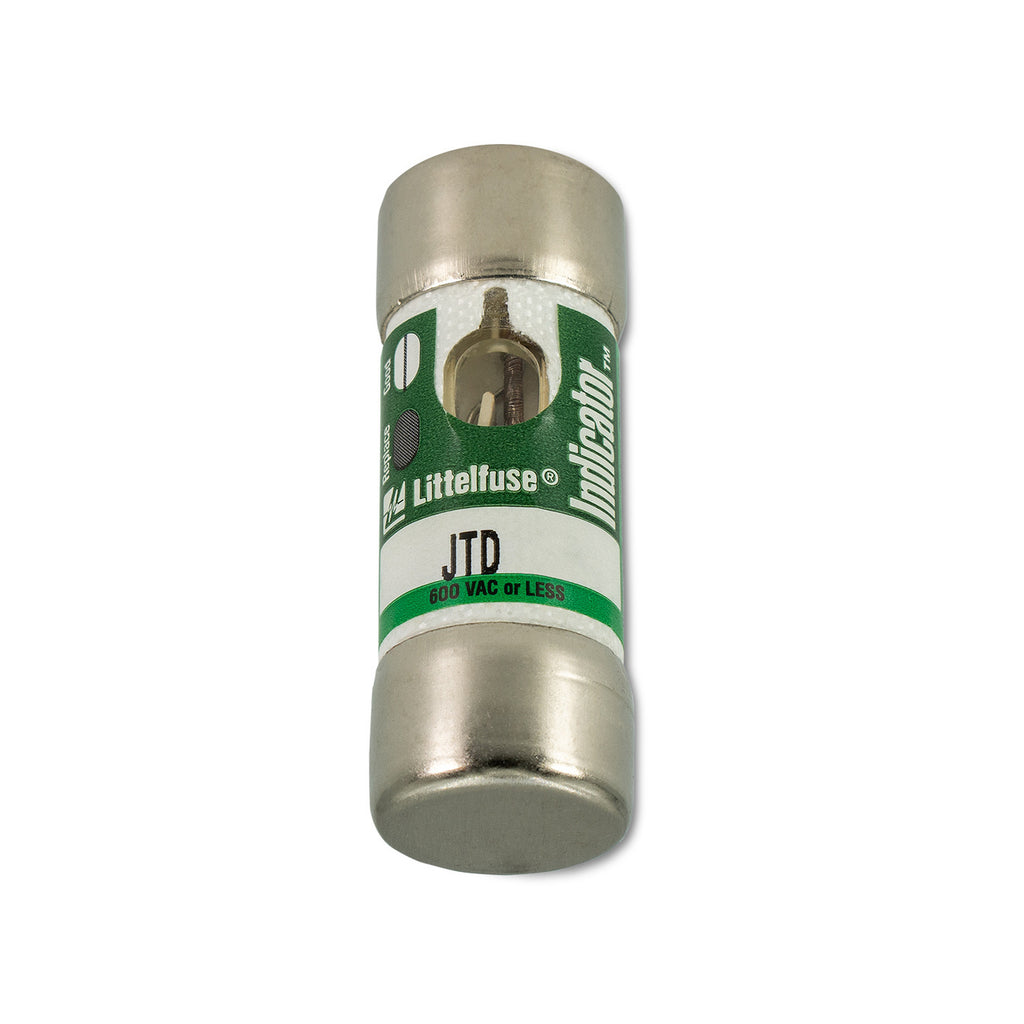

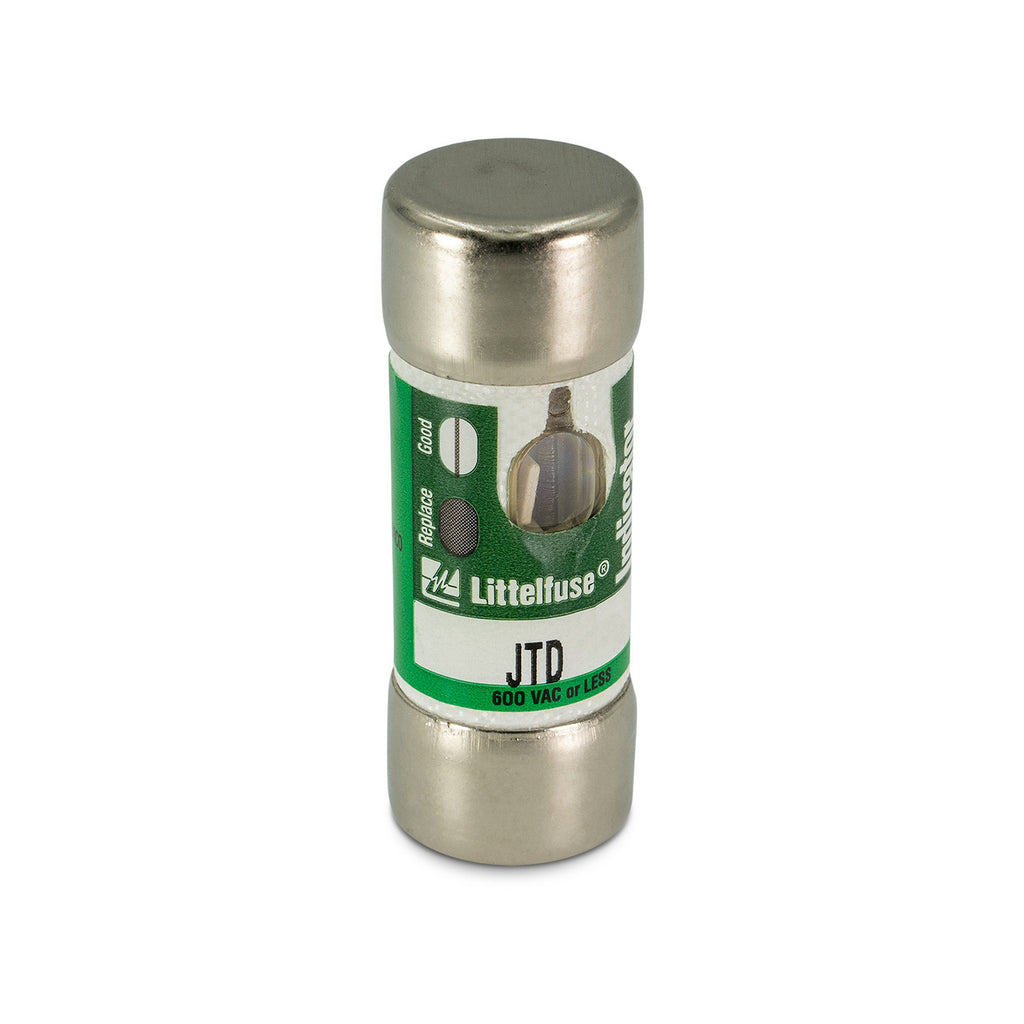

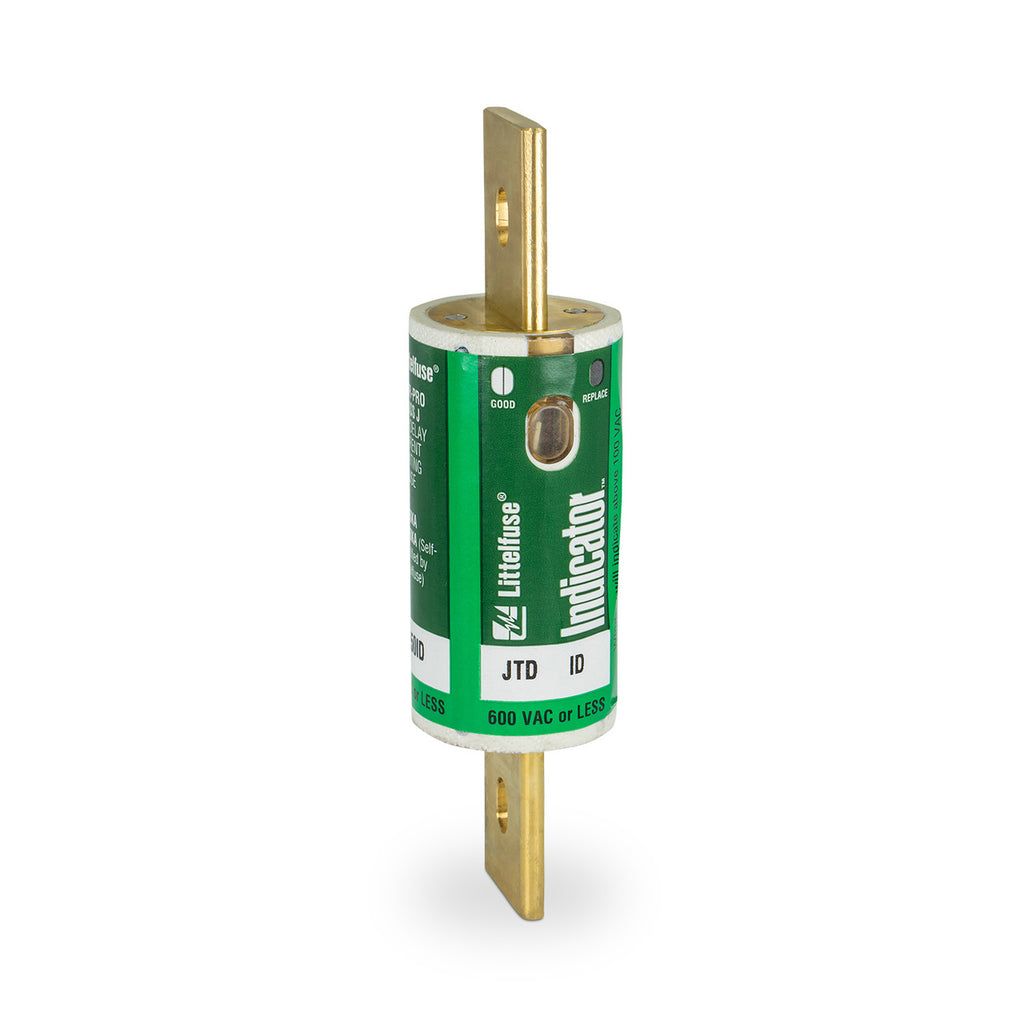

JTD-17.5ID is a Littelfuse Class J time delay fuse rated for 17.5 amps and 600 volts AC with an indicator for blown fuse status.This dual-element, current-limiting fuse features a patented design to reduce nuisance openings and provides Type 2 "No Damage" protection for motor circuits and general purpose applications. It has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, meeting UL and CSA certifications. The fuse body is melamine with nickel-plated bronze caps, sized 13/16" x 2 1/4" for compact mounting.
- Key Specifications
- Amperage: 17.5 A
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Type: Class J, Time Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Mounting Type: Cartridge Fuse
- Physical Size: 13/16" x 2 1/4"
- Indicator: Blown fuse indicator included
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Current Limiting: Yes
- IEC Type 2 Protection
Specifications
- Part Number: JTD-17.5ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- UPC : 007945802586
- GTIN : 00079458025866
- Weight : 5.19
