Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-150

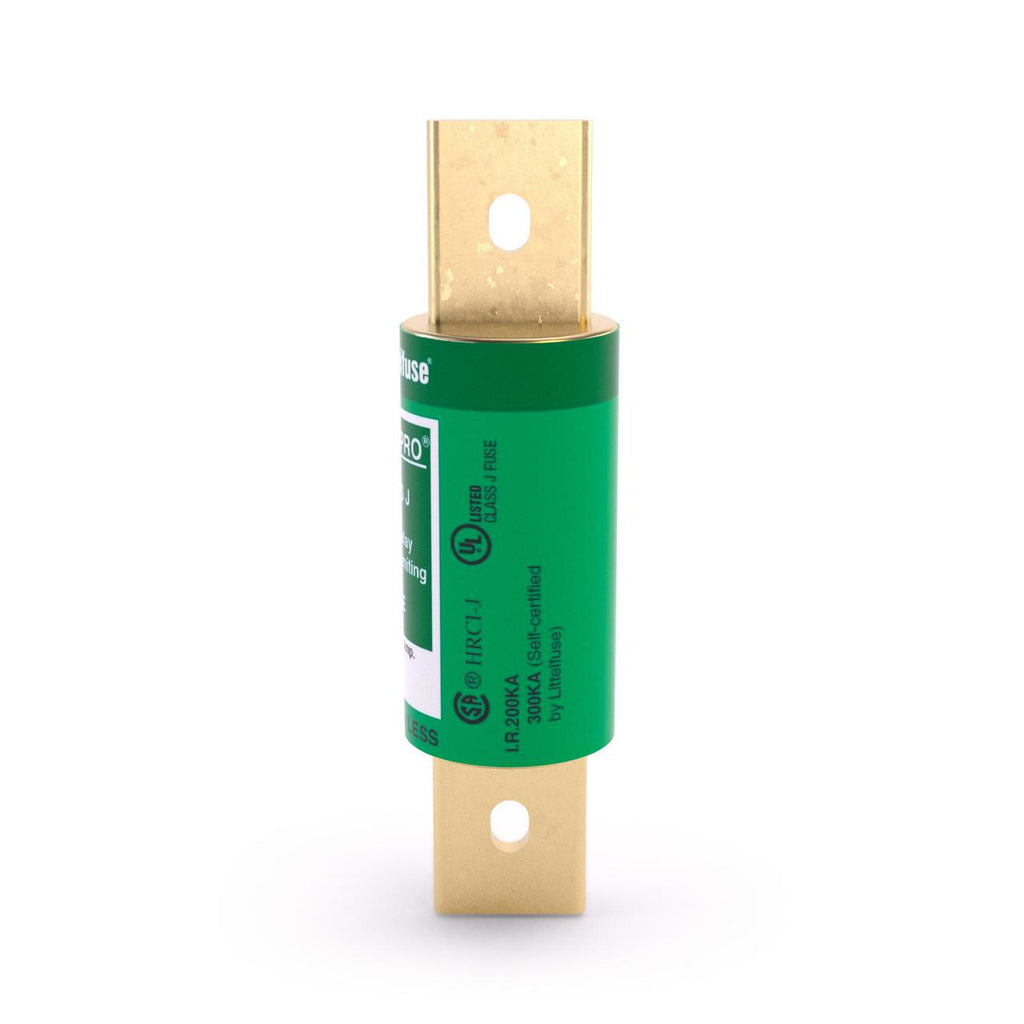

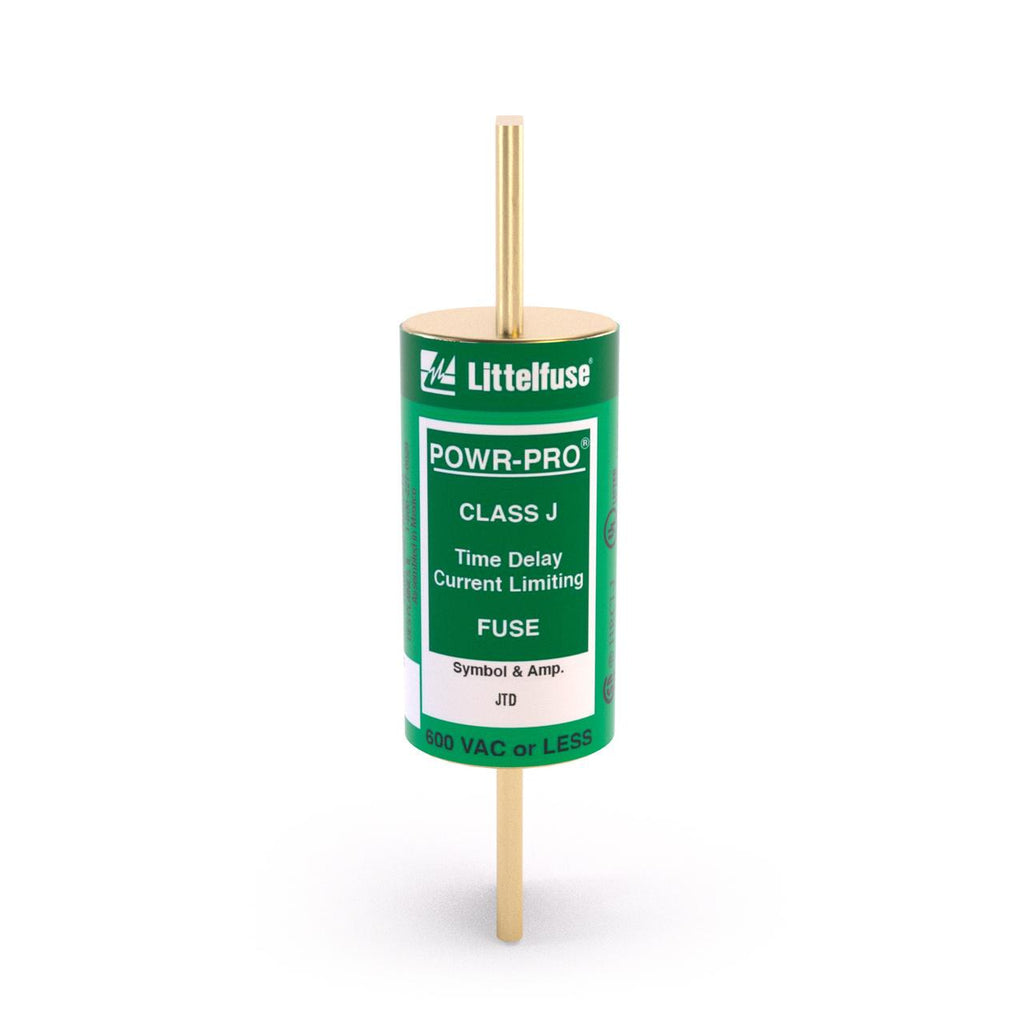

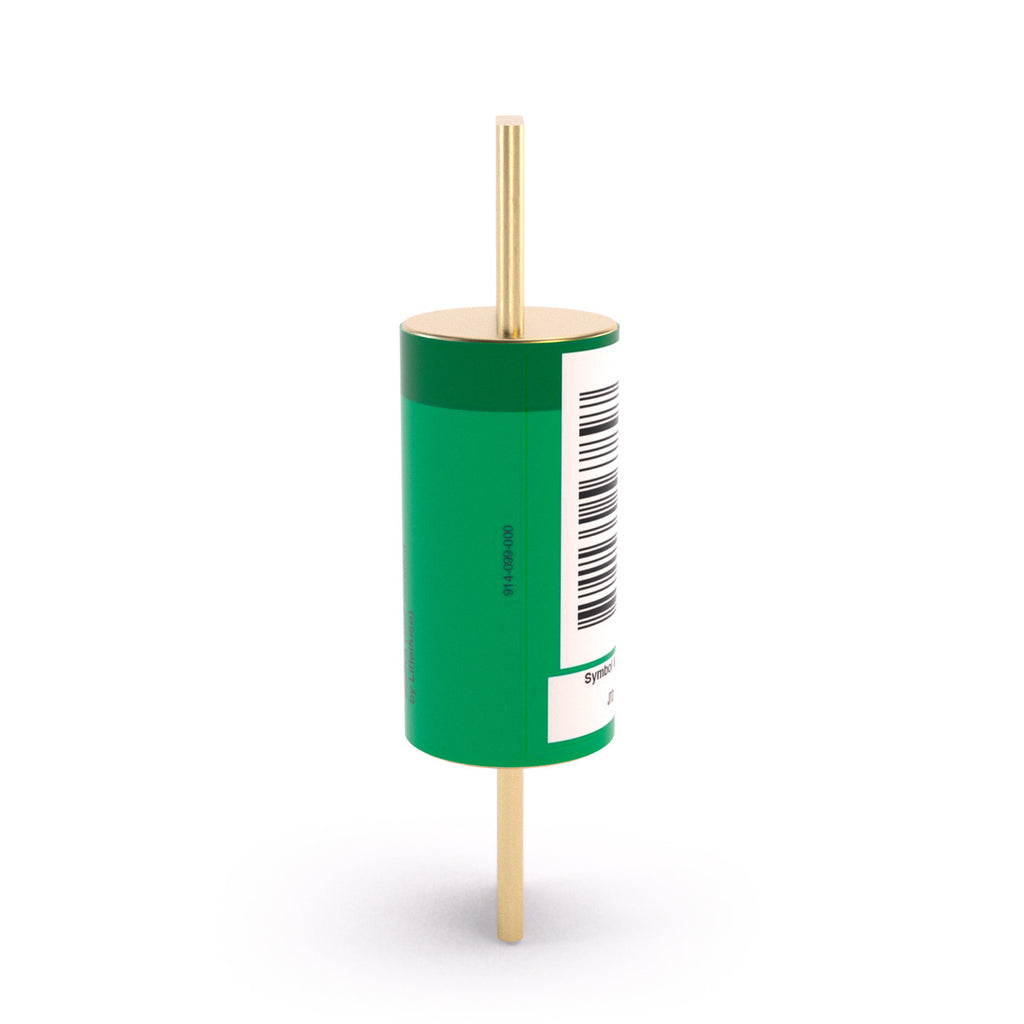

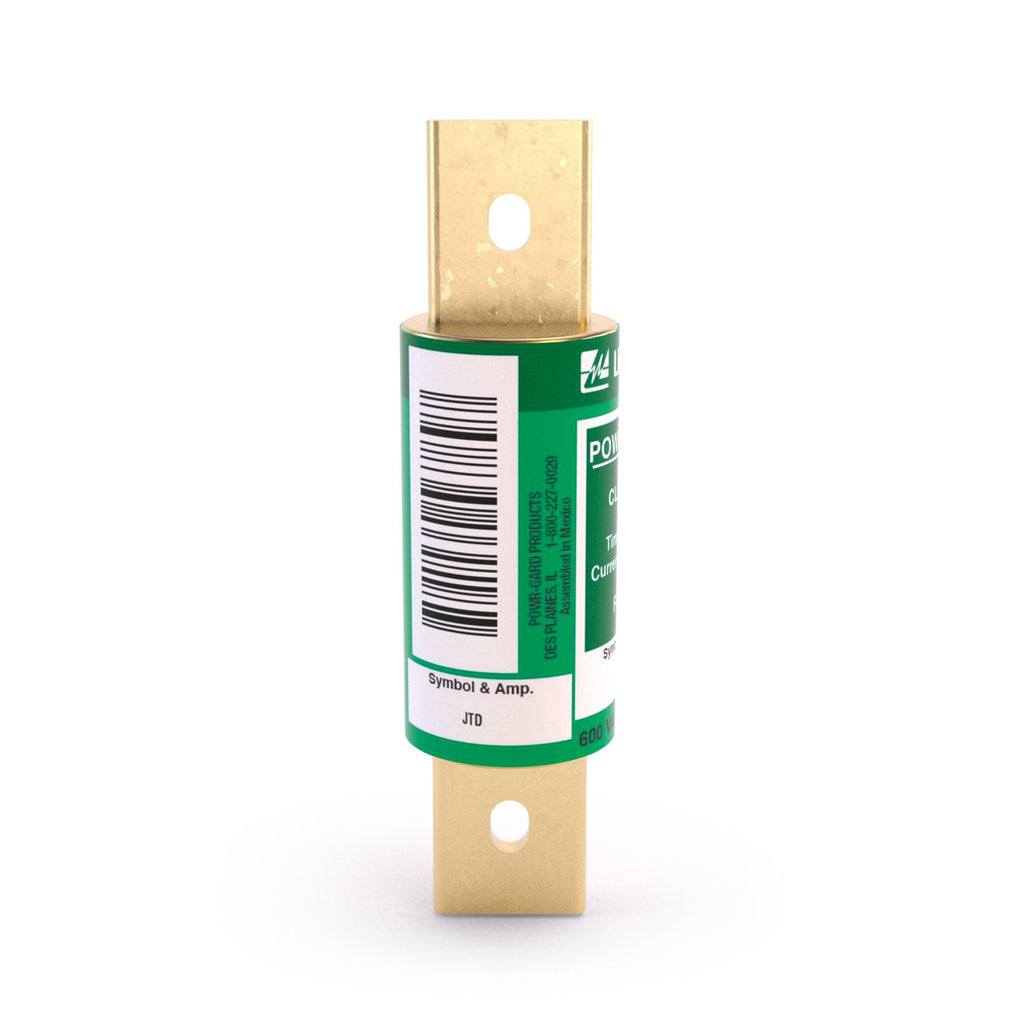

JTD-150 is a Littelfuse Class J fuse rated for 150 Amps and 600 Volts AC with time delay and dual element design.This fuse features a clip mounting type and provides a high interrupting rating of 200kA at 600VAC and 20kA at 500VDC. It is constructed with a melamine body and brass caps, suitable for residential, commercial, and industrial applications. The JTD-150 meets UL, CSA, and CE certifications and offers reliable current limiting and IEC Type 2 protection.
- Amperage: 150 A
- Voltage: 600 VAC, 500 VDC
- Interrupting Rating: 200kA at 600VAC, 20kA at 500VDC
- Mounting Type: Clip
- Fuse Type: Class J, Time Delay, Dual Element
- Body Material: Melamine
- Caps Material: Brass
- Certifications: UL Listed, CSA Certified, CE Compliant
- Series: JTD
- Frame Type: JTD
- Application: Residential, Commercial, Industrial
Specifications
- Part Number: JTD-150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : Line Card
Product Data
- UPC : 007945820227
- GTIN : 00079458202274
- Weight : 7
- Certification : UL, CE, CSA
