Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-125

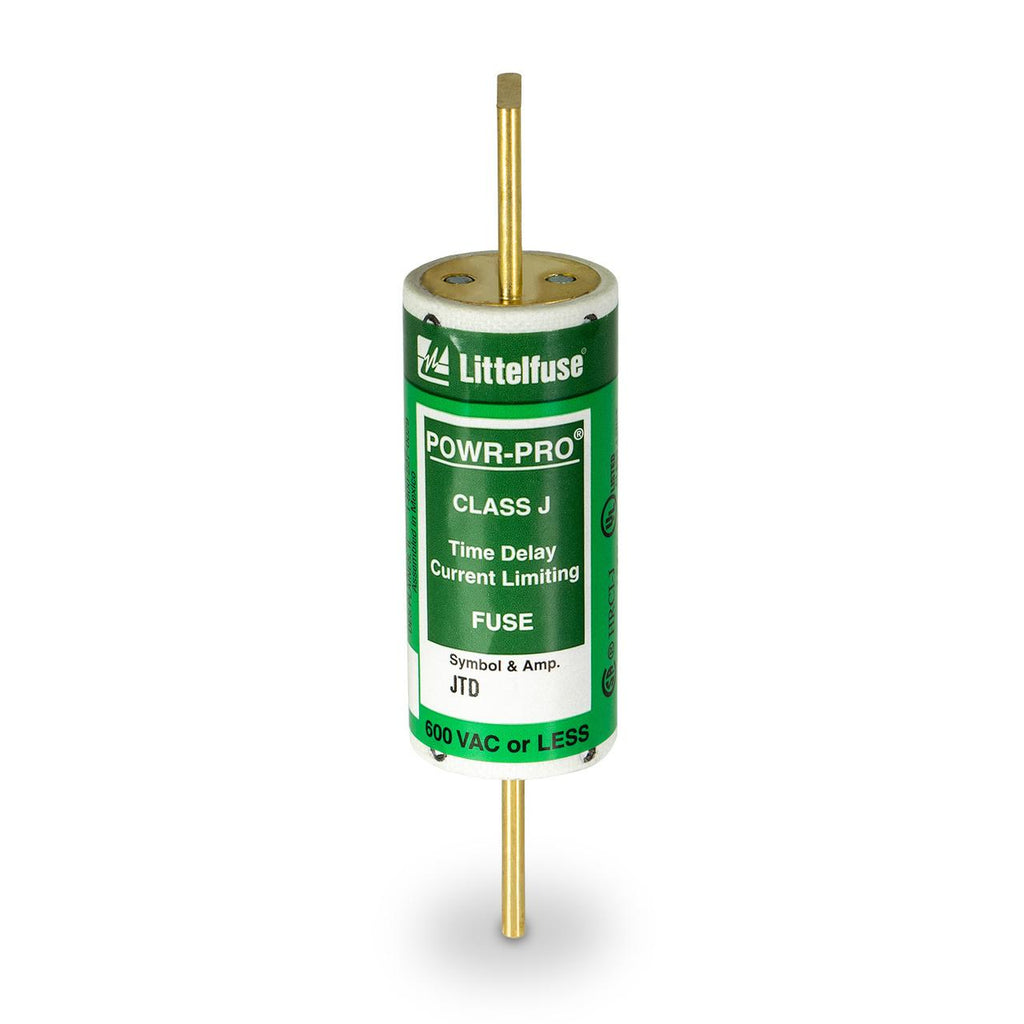

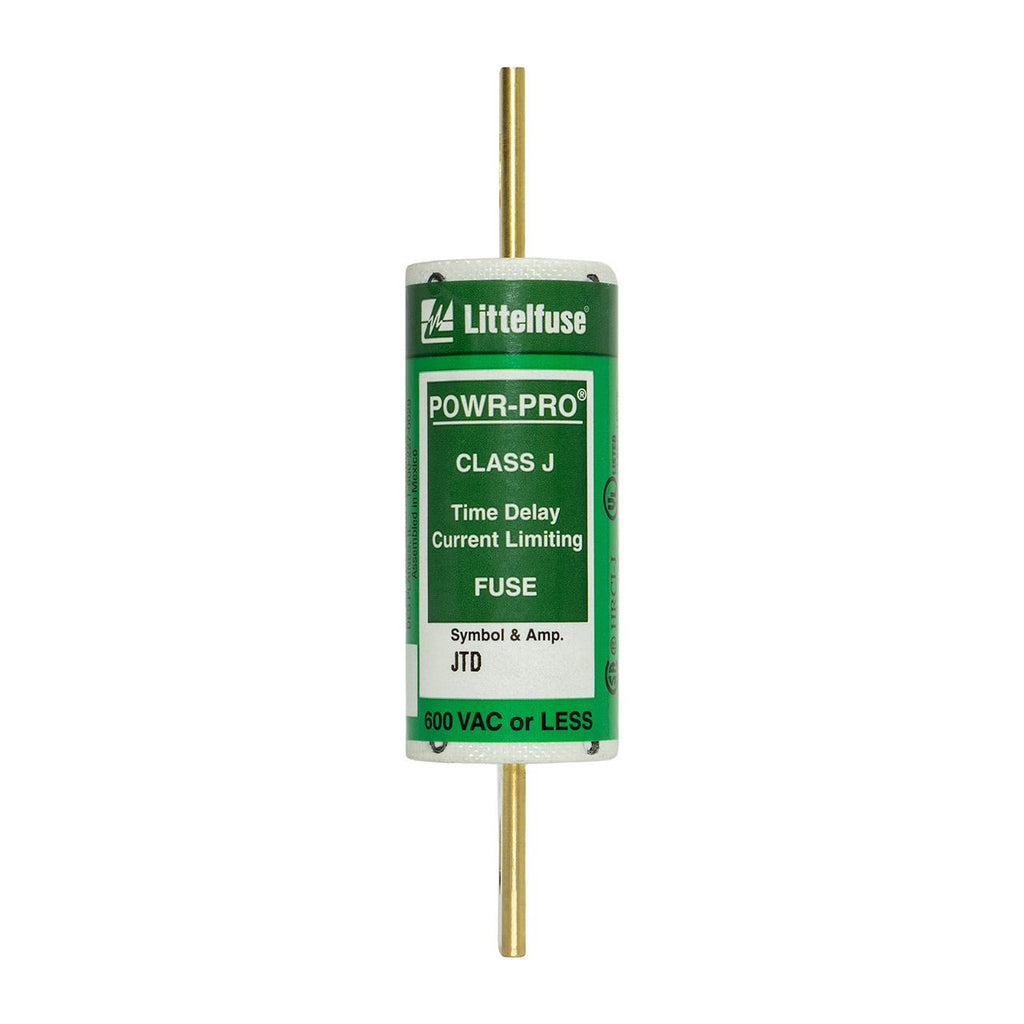

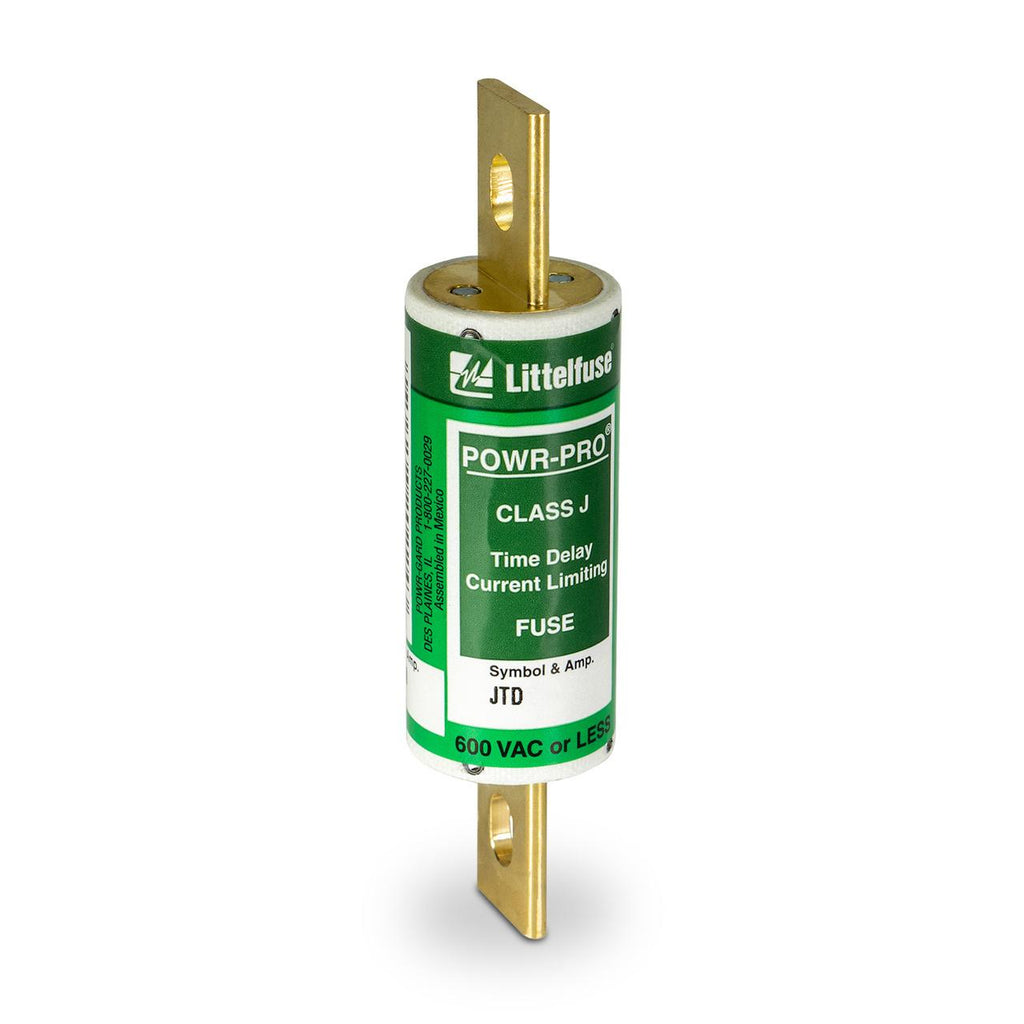

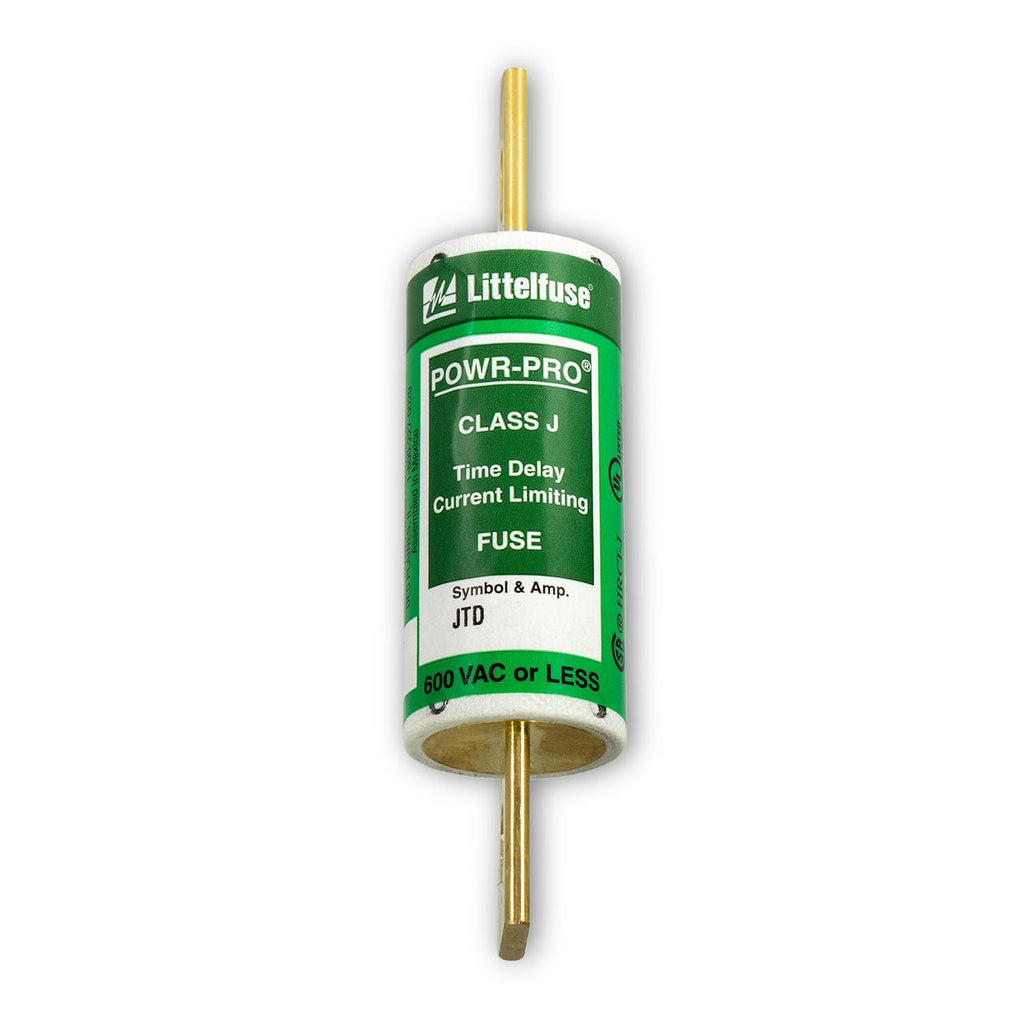

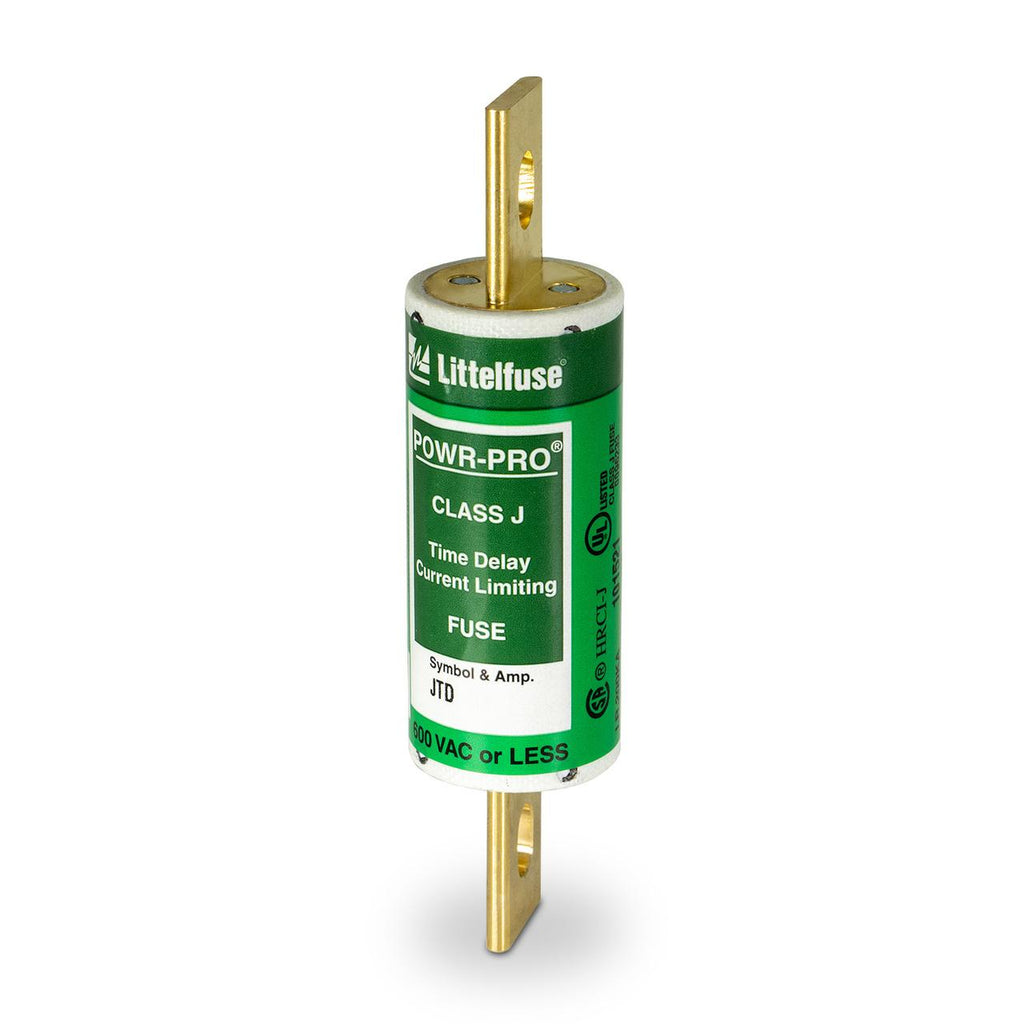

JTD-125 is a Littelfuse Class J time delay fuse rated for 125 amps and 600 volts AC, designed for reliable circuit protection.This dual-element, current-limiting fuse features POWR-PRO technology with a patented design to reduce nuisance openings and provide Type 2 "No Damage" protection for motor circuits and general purpose applications. It has a physical size of 1 1/2" diameter by 5 3/4" length, an interrupting rating of 200,000 AIC at 600 VAC, and is UL Listed and CSA Certified.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600 V AC, 500 V DC
- Fuse Type: Class J, Time Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 500 V DC
- Physical Size: 1 1/2" diameter x 5 3/4" length
- Mounting Type: Knife-blade style
- Series: JTD
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Current Limiting with POWR-PRO technology
- IEC Type 2 Protection
Specifications
- Part Number: JTD-125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Amperage : 125
Product Data
- UPC : 007945820226
- GTIN : 00079458202267
- Weight : 0.81
