Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-110

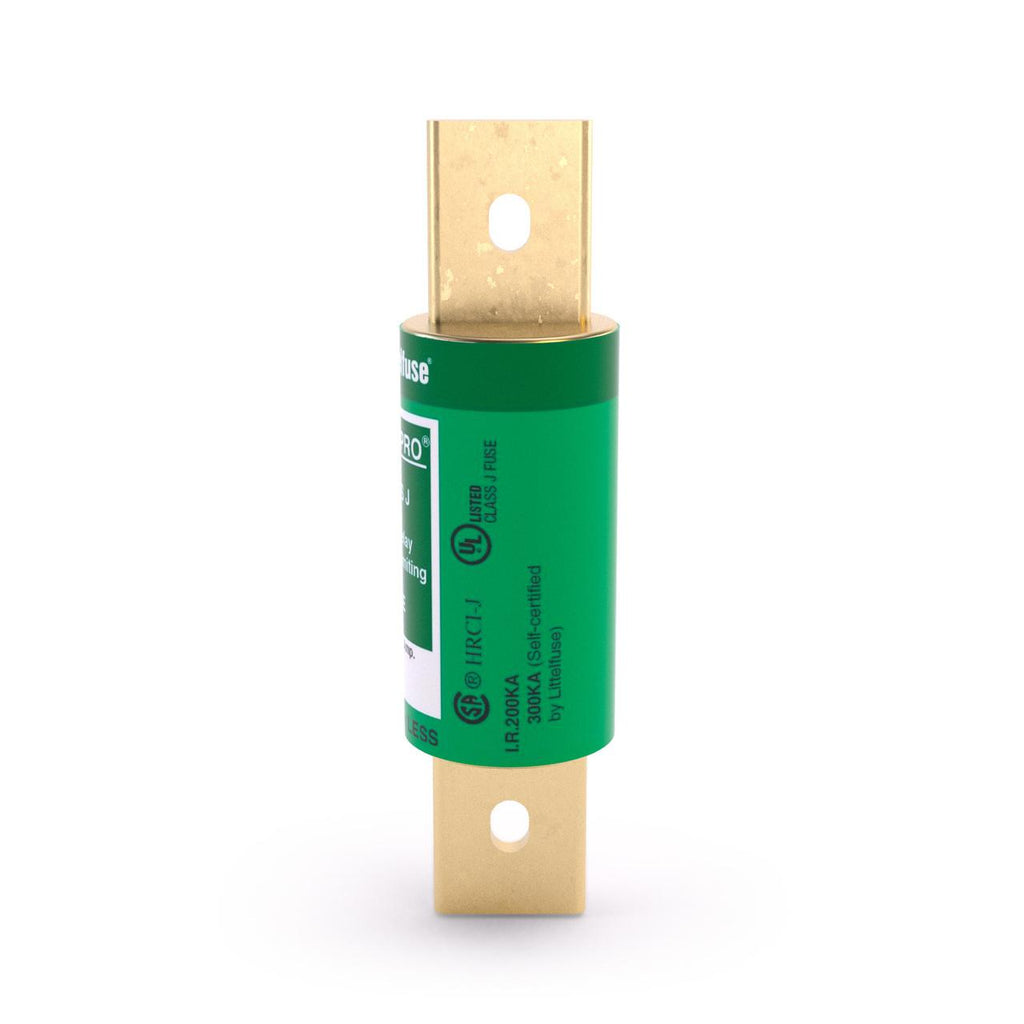

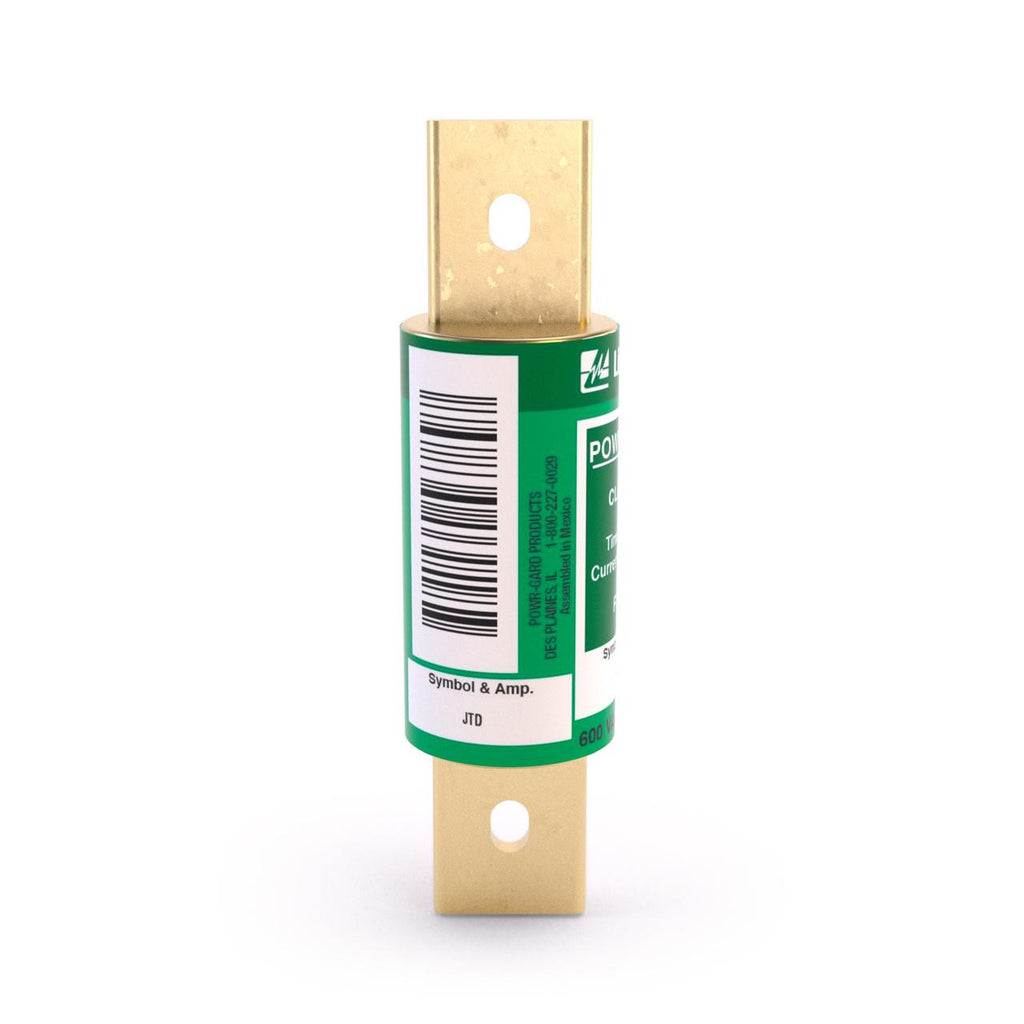

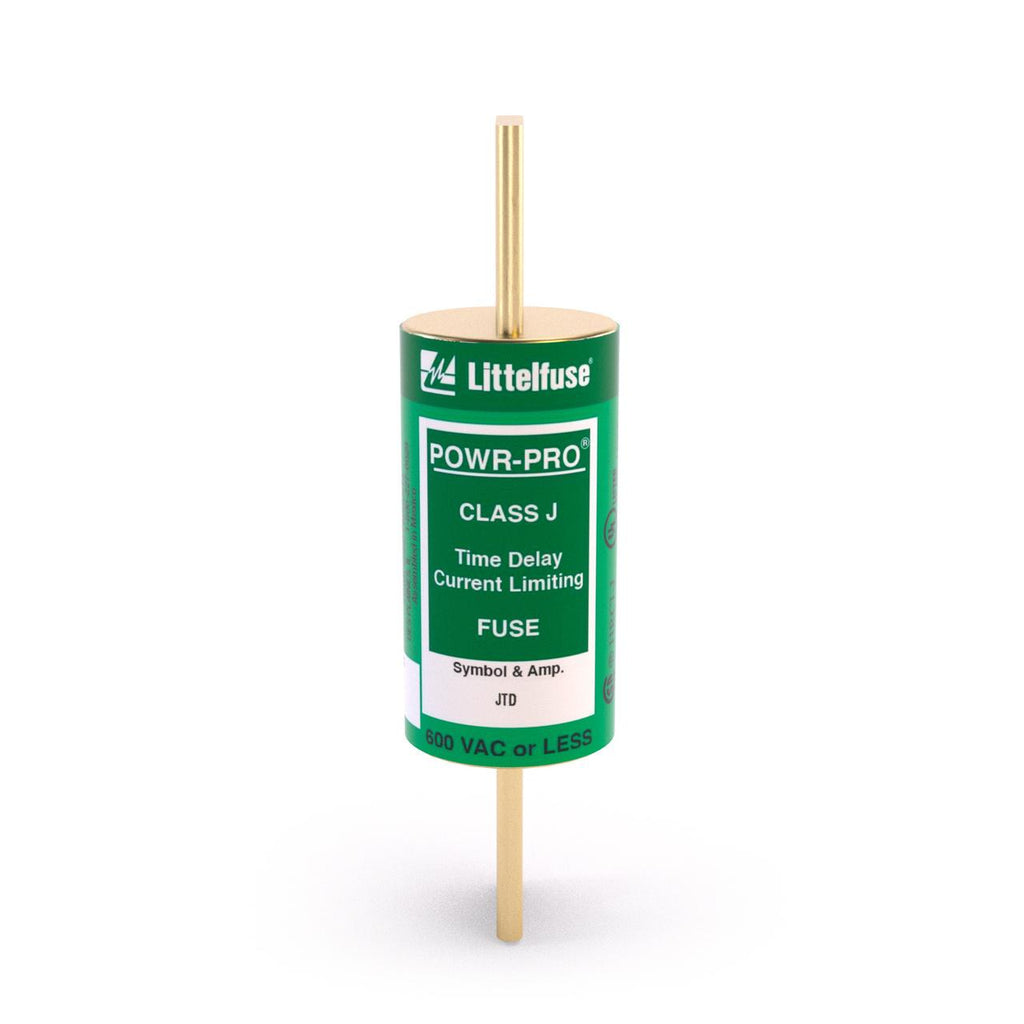

JTD-110 is a Littelfuse Class J fuse rated for 110 amps and 600 volts AC, designed for time delay applications.This fuse features a current rating of 110 amps and voltage ratings of 600VAC and 500VDC. It has a clip mounting type and a high interrupting rating of 200kA at 600VAC and 20kA at 500VDC. The JTD-110 fuse is constructed with a melamine body and brass caps, providing reliable protection in residential, commercial, and industrial electrical systems. It is UL listed, CSA certified, and CE compliant, ensuring adherence to strict safety standards.
- Amperage: 110 A
- Voltage: 600 VAC / 500 VDC
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 500 VDC
- Mounting Type: Clip
- Fuse Type: Class J, Time Delay (Slo-Blo)
- Body Material: Melamine
- Caps Material: Brass
- Certifications: UL Listed, CSA Certified, CE Compliant
- Series: JTD
- Application: Residential, Commercial, Industrial
Specifications
- Part Number: JTD-110
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 007945820225
- GTIN : 00079458202250
- Weight : 0.6
