Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-100ID

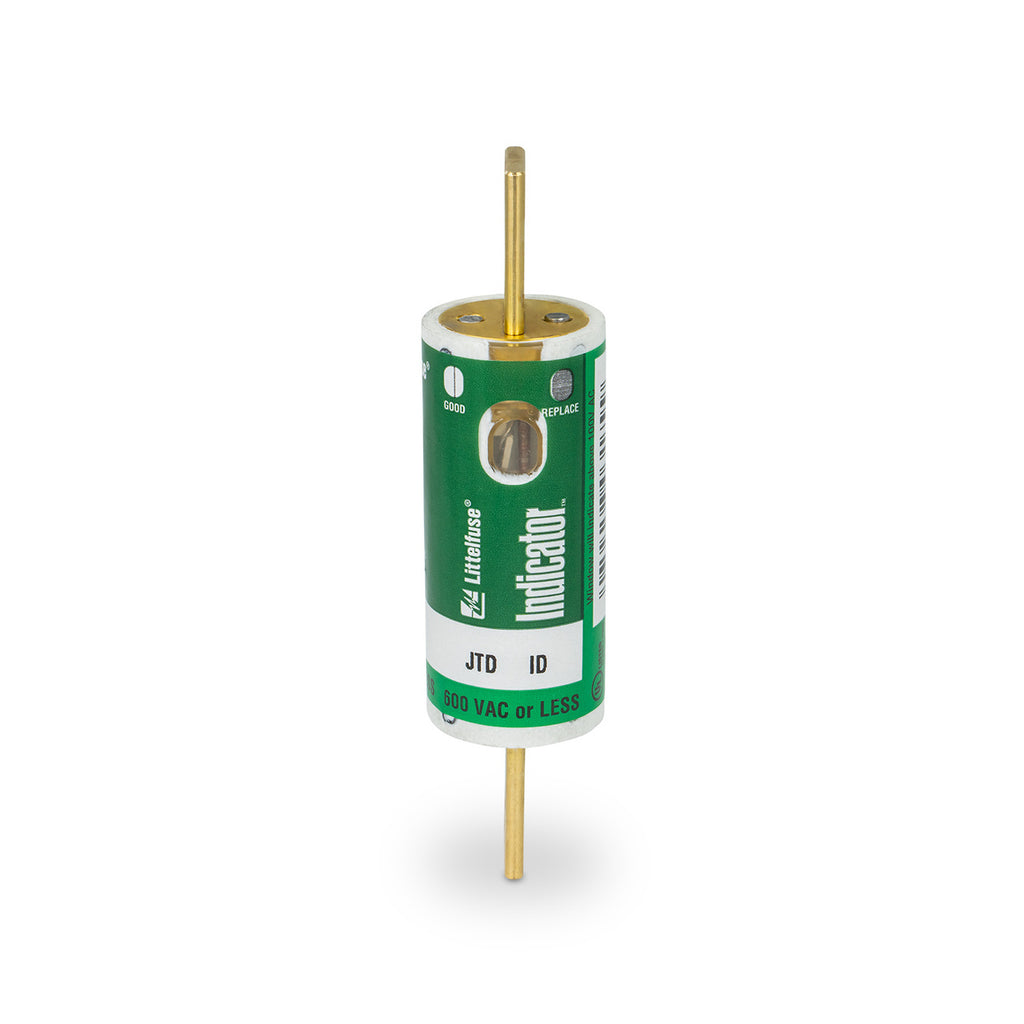

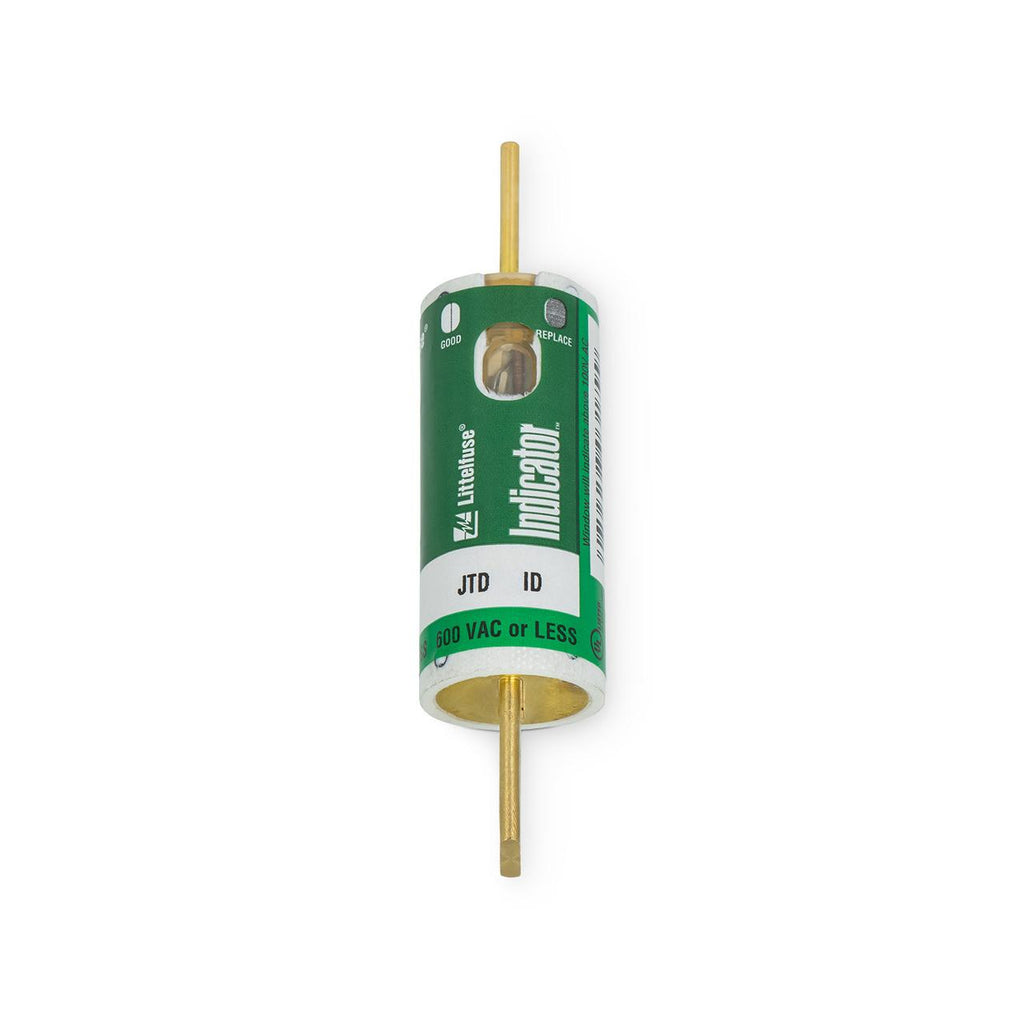

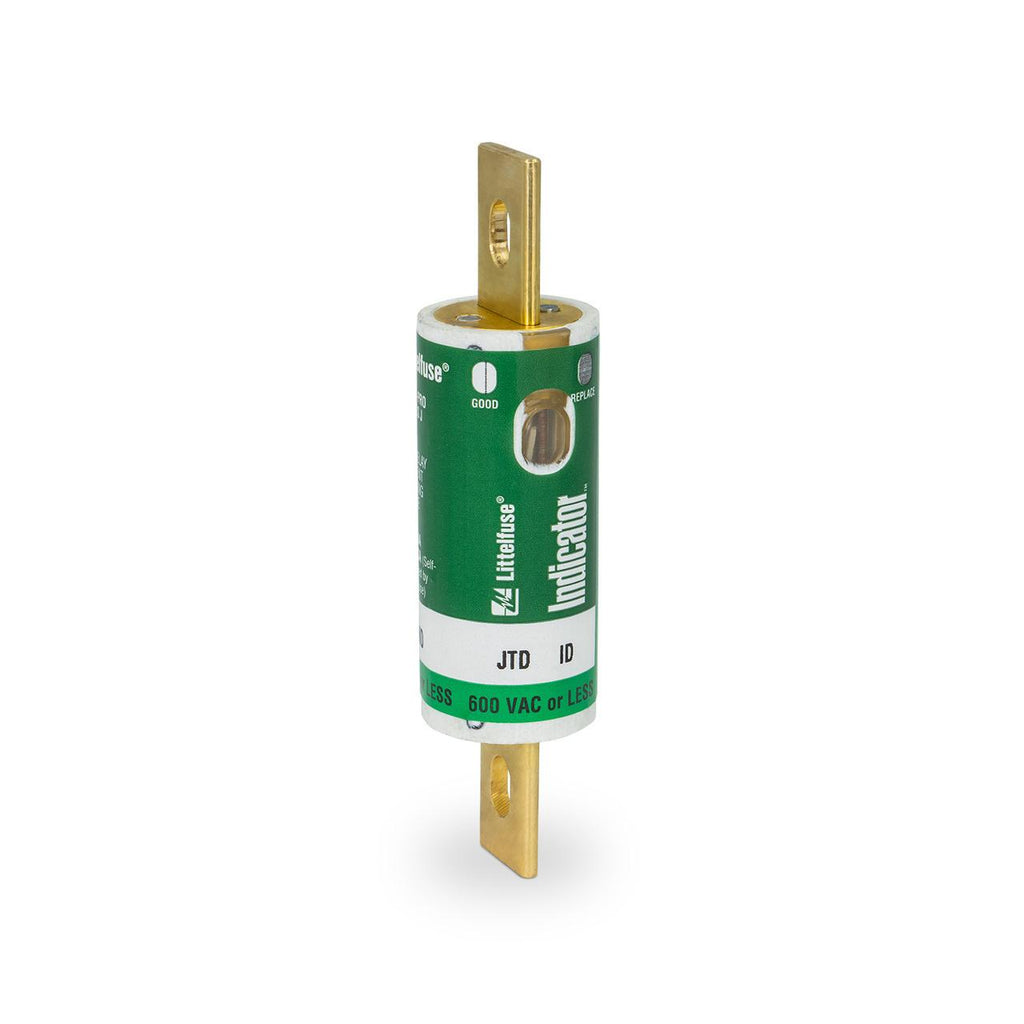

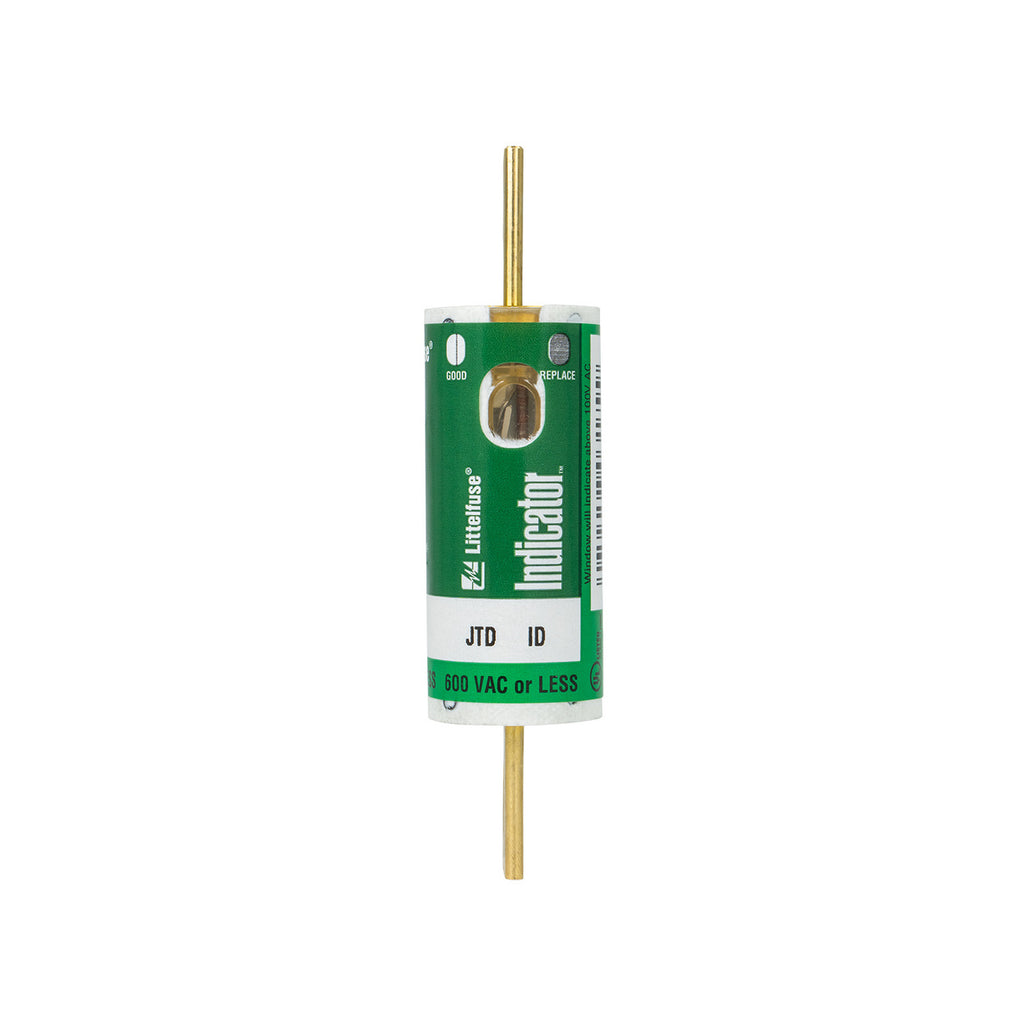

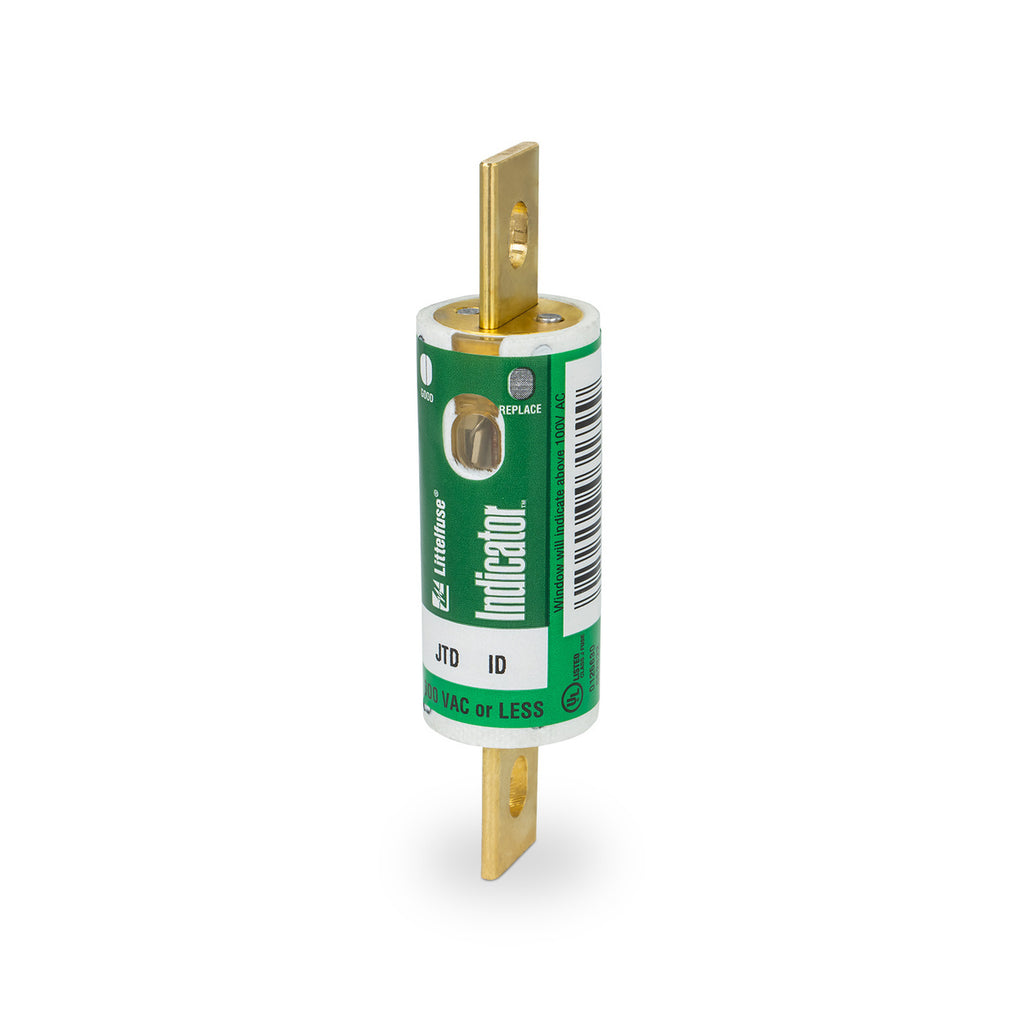

JTD-100ID is a 100 Amp, 600 Volt AC Class J time delay fuse with an indicator for blown fuse status.This Littelfuse JTD-100ID fuse features a cartridge body with a knife-blade style mounting, designed for high inrush currents and reliable overcurrent protection. It has a 200,000 Amp interrupting rating at 600 VAC and 20,000 Amp interrupting rating at 300 VDC. The fuse complies with UL 248-8 and CSA standards and is UL and CSA certified. It is part of the POWR-GARD JTD_ID series and includes a blown fuse indicator for easy status checking.
- Key Specifications
- Amperage: 100 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: J
- Time Delay: Yes
- Interrupting Rating: 200 kA AC / 20 kA DC
- Mounting Type: Knife Blade
- Body Material: Melamine
- Certification: UL Listed, CSA Certified
- Fuse Series: JTD_ID
- Blown Fuse Indicator: Yes
- Dimensions: 1 1/8 inch diameter x 4 5/8 inch length
- Part Number: JTD-100ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 079458031799
- GTIN : 079458031799
- Weight : 5.19
