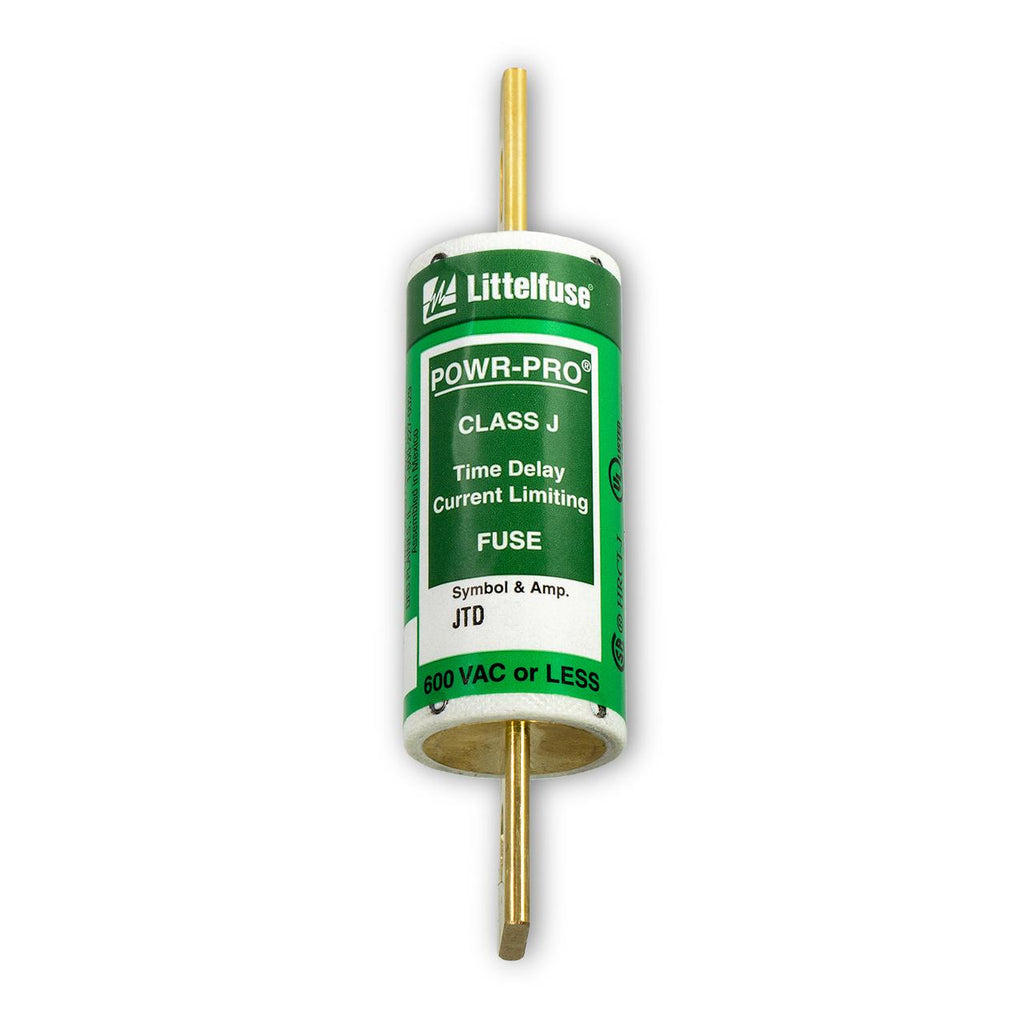

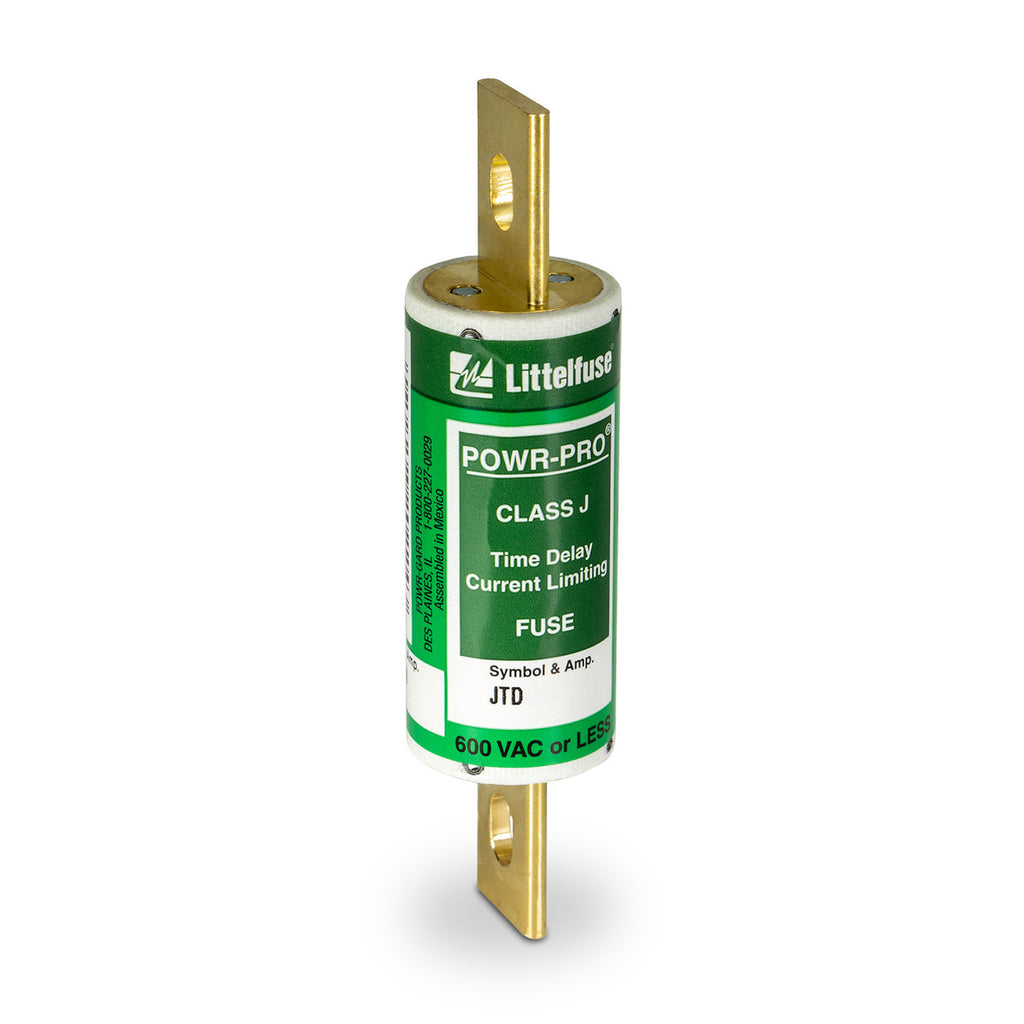

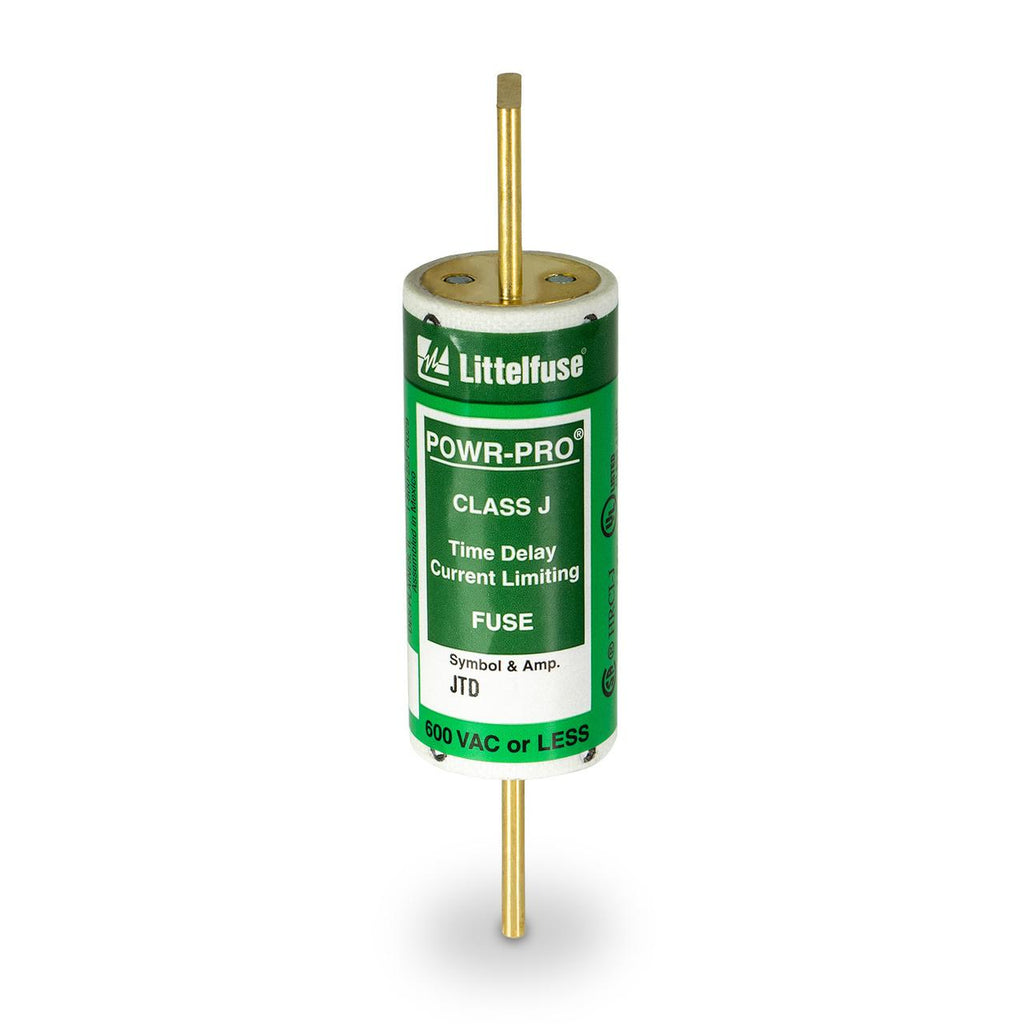

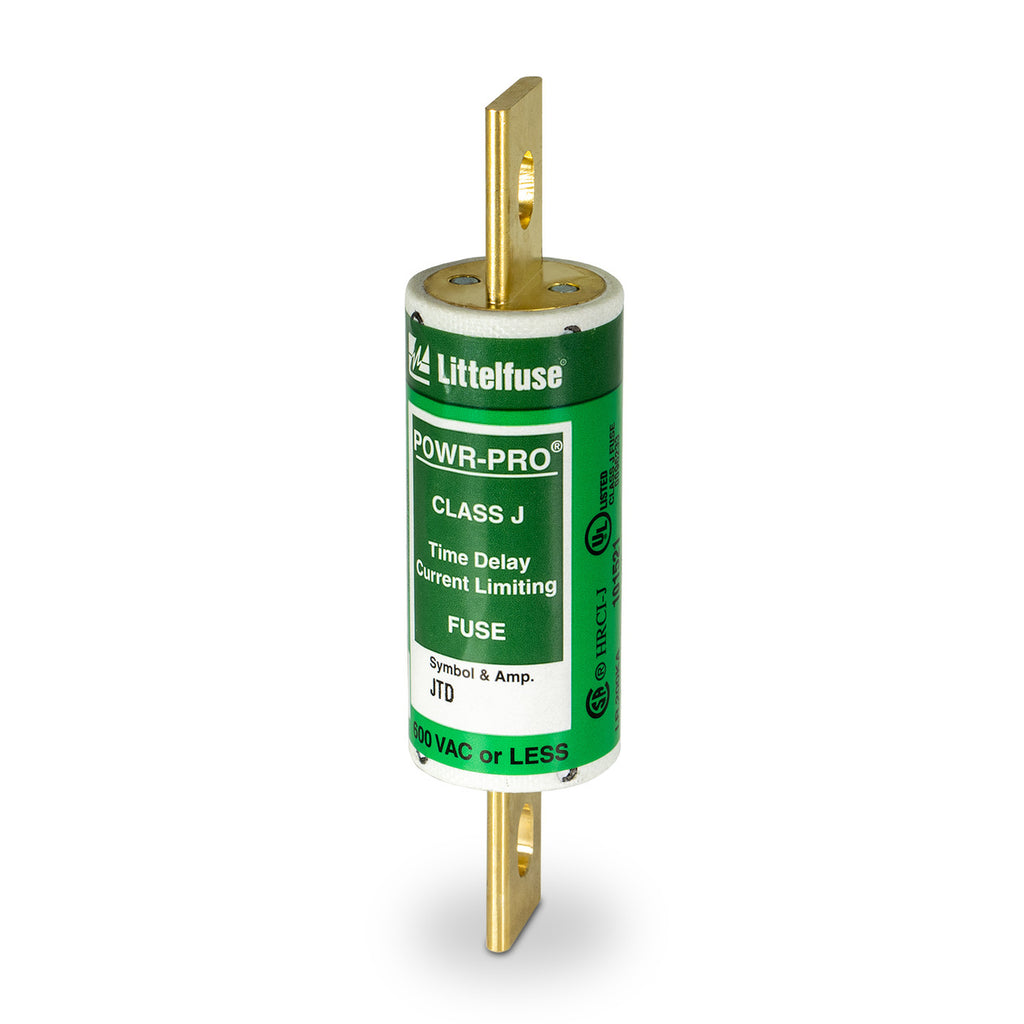

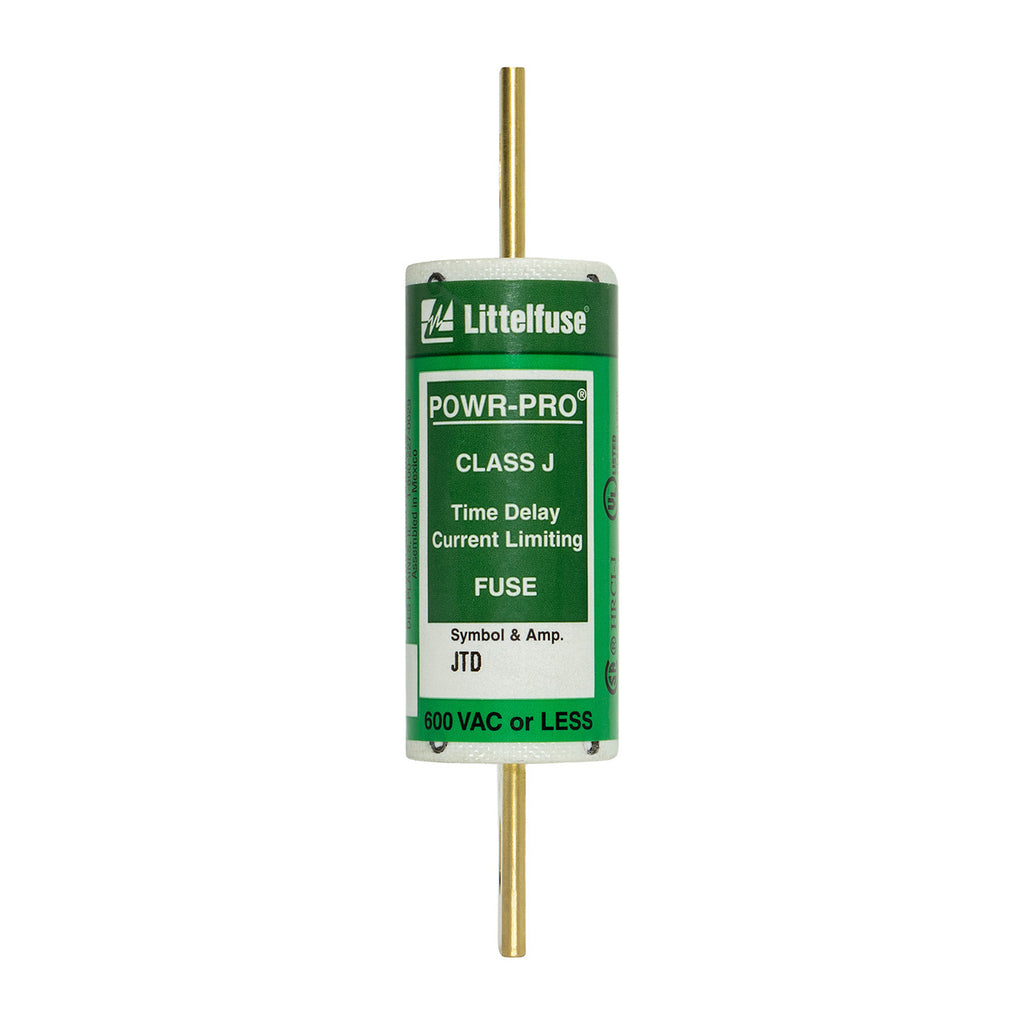

JTD-100 - Littelfuse 100 Amp 600V AC Class J Time-Delay Fuse

JTD-100

JTD-100 is a Littelfuse Class J fuse rated for 100 amps and 600 volts AC, designed for time-delay protection in electrical circuits.This 100 Amp, 600 Volt AC fuse features a dual-element, time-delay (Slo-Blo) design with current-limiting capability. It has a 20 kA interrupting rating at 300 VDC and 200 kA rms symmetrical interrupt rating at 600 VAC. The fuse is cartridge-style with a patented design to reduce nuisance openings and provides Type 2 "No Damage" protection for motor circuits. It is UL Listed (File: E81895) and CSA Certified (File: LR29862). The fuse body is melamine with brass caps and is suitable for applications with high inrush currents.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Type: Class J, Time-Delay, Dual Element
• Interrupting Rating: 200 kA AC, 20 kA DC
• Mounting Type: Cartridge
• Body Material: Melamine
• Cap Material: Brass
• Certifications: UL Listed, CSA Certified
• Current Limiting: Yes
• Type 2 "No Damage" Protection
• Patented Design to Reduce Nuisance Openings

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD-100
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse

Product Data

• UPC : 079458202243
• GTIN : 07945820224
• Weight : 0.3
