Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
JTD-090ID

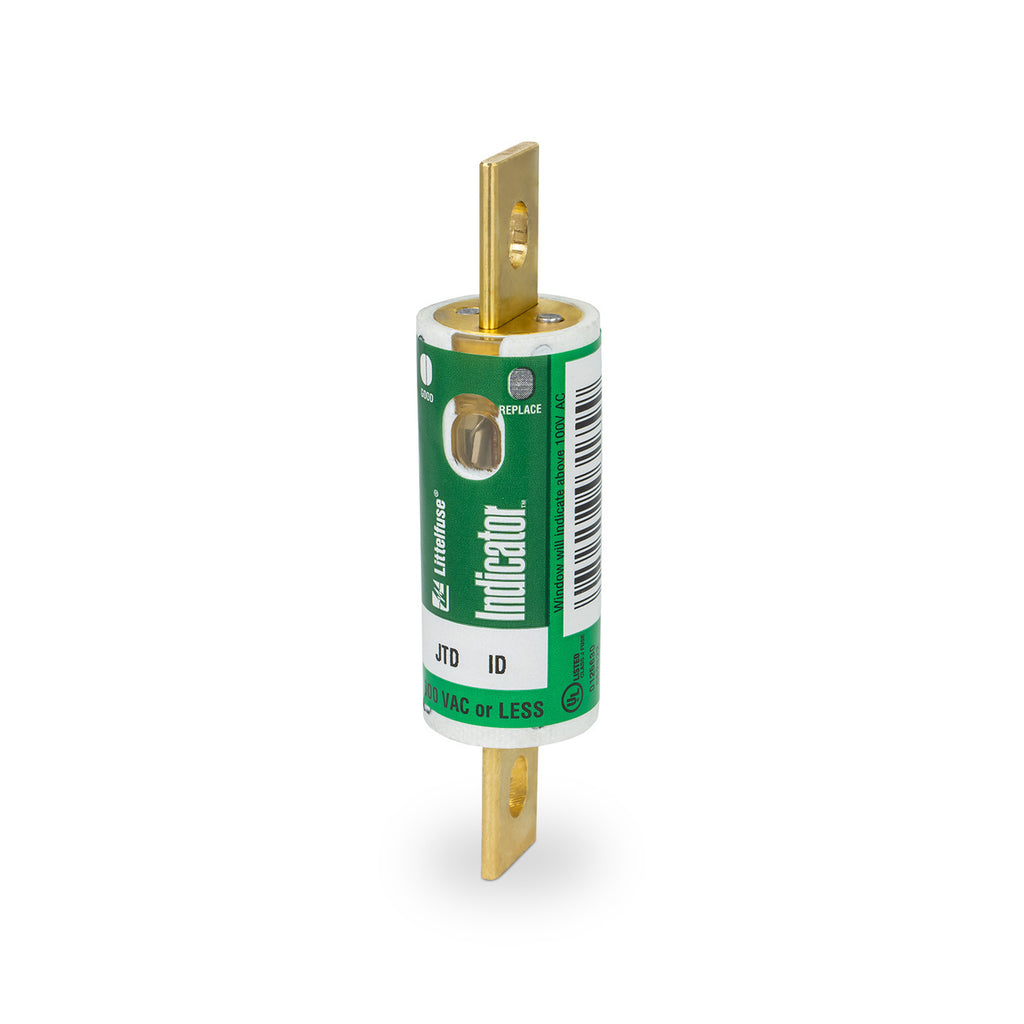

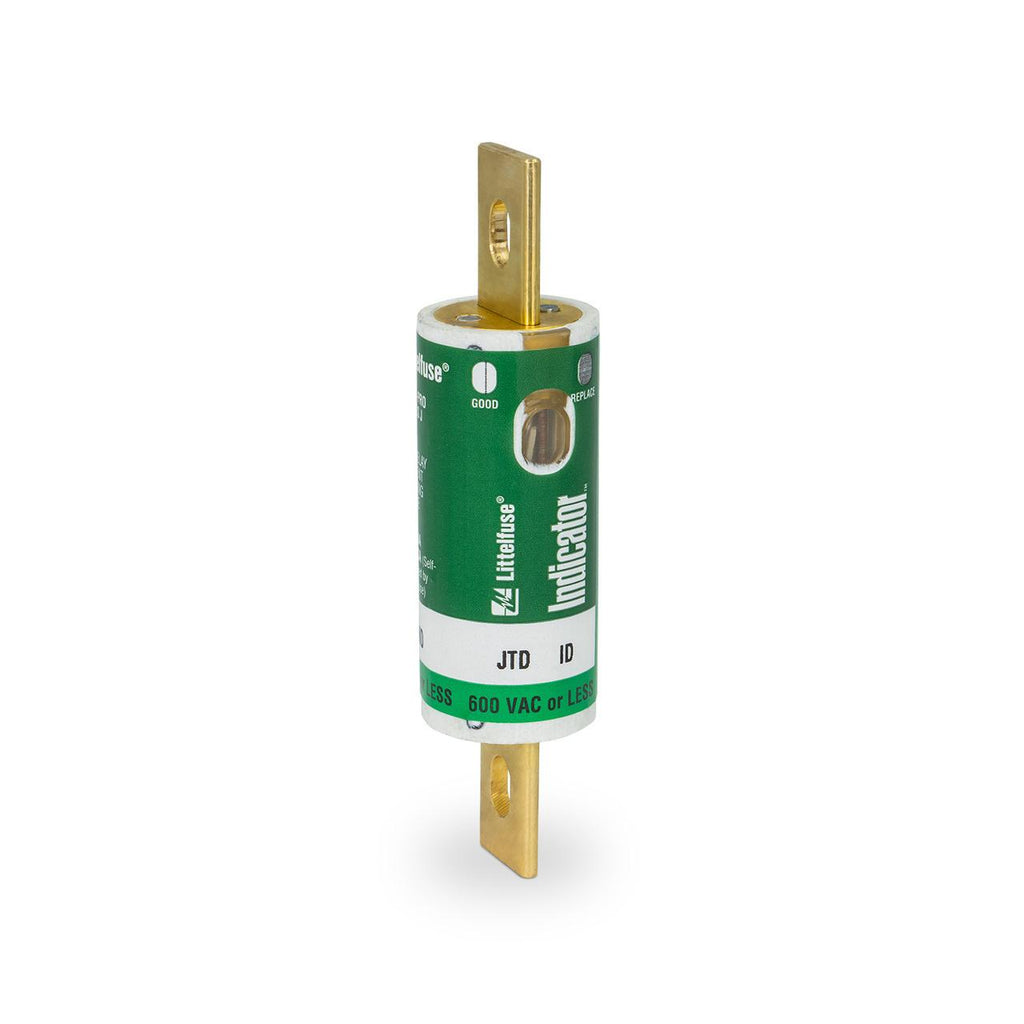

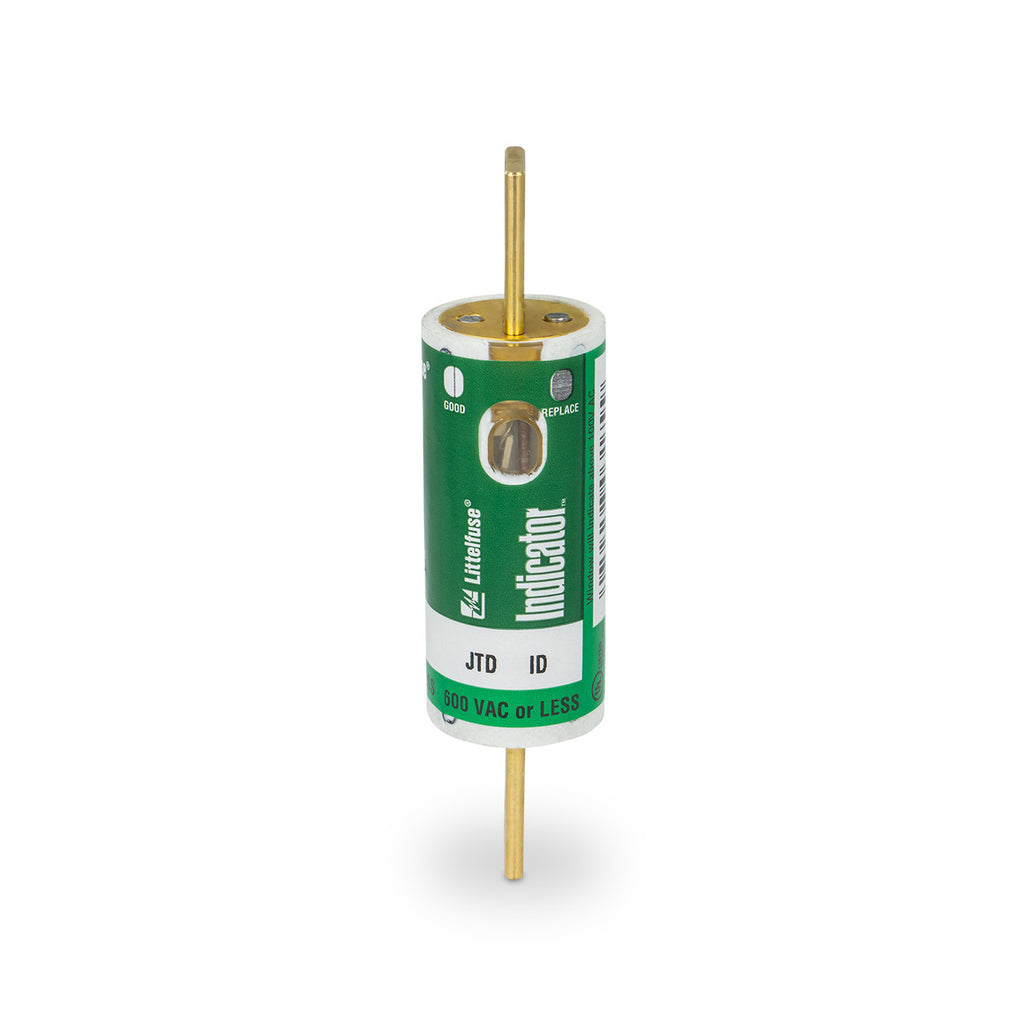

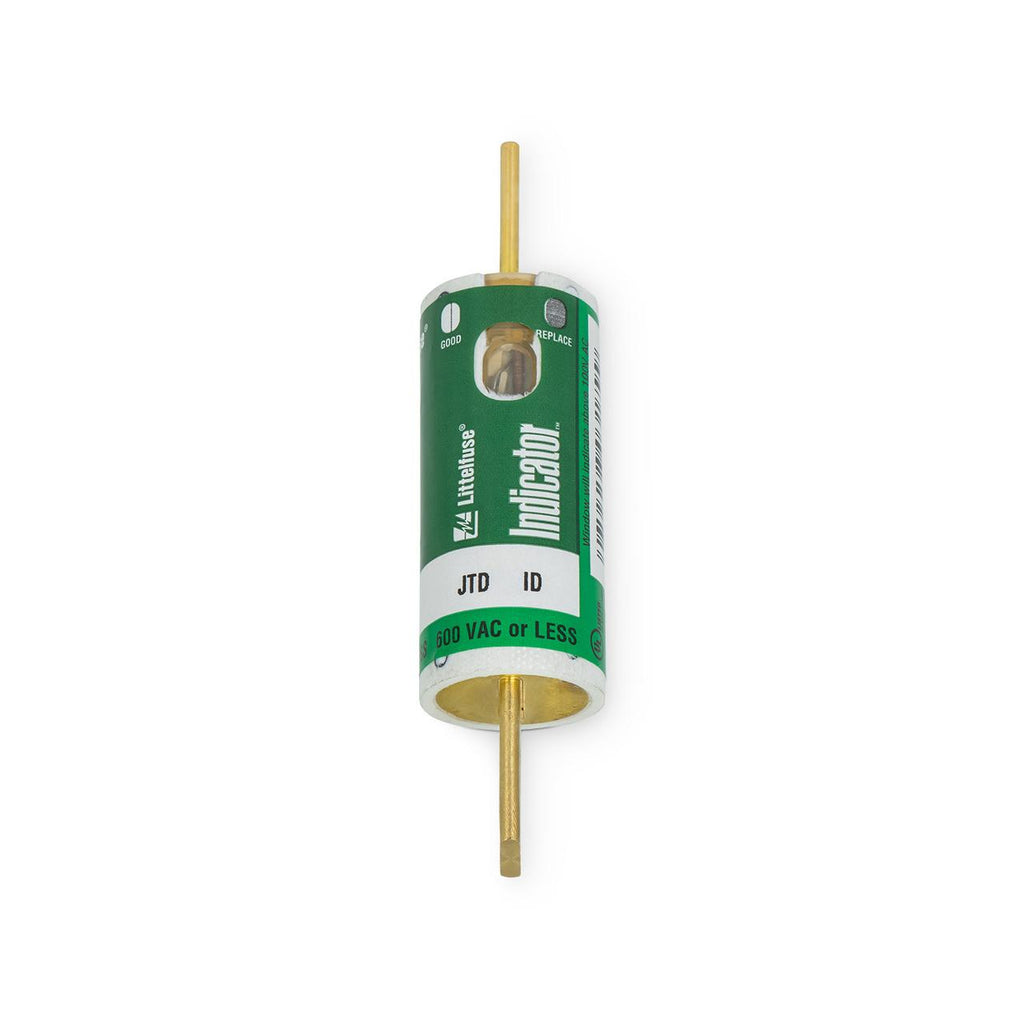

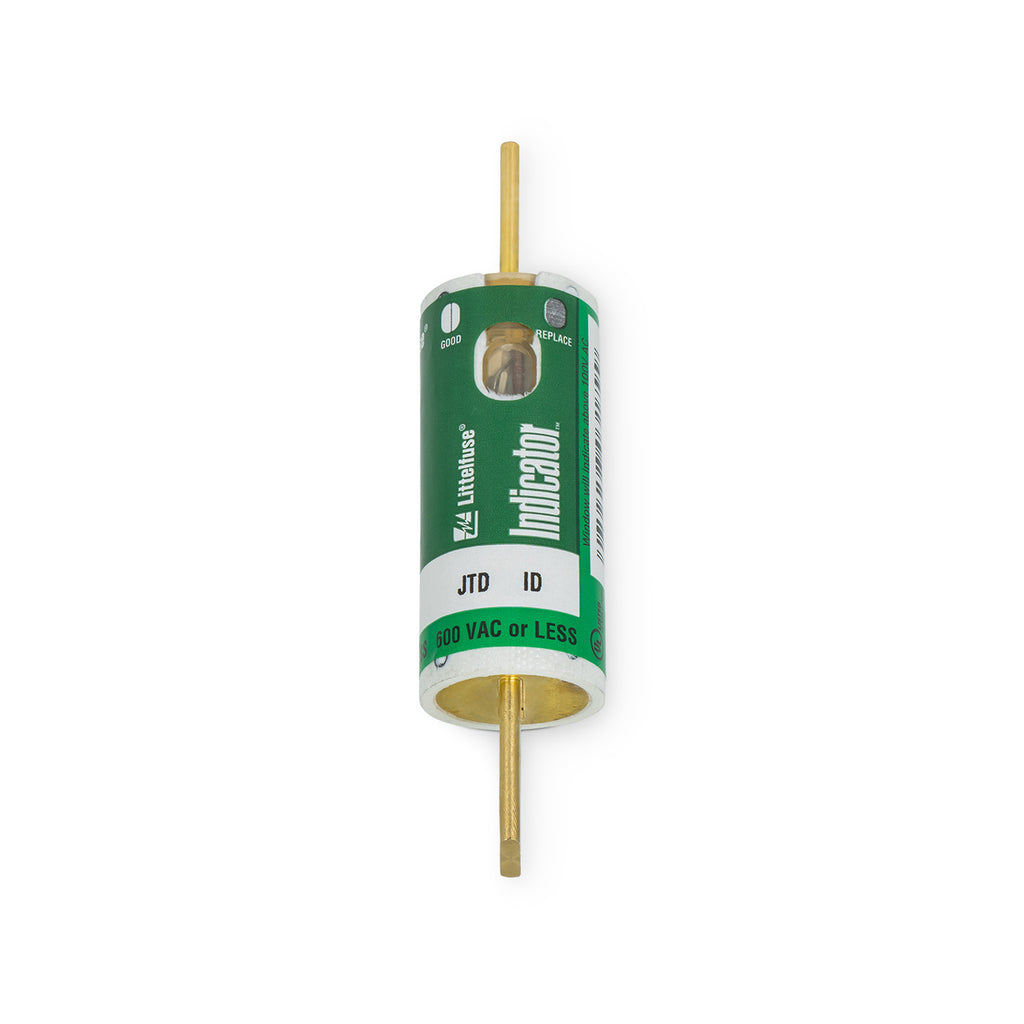

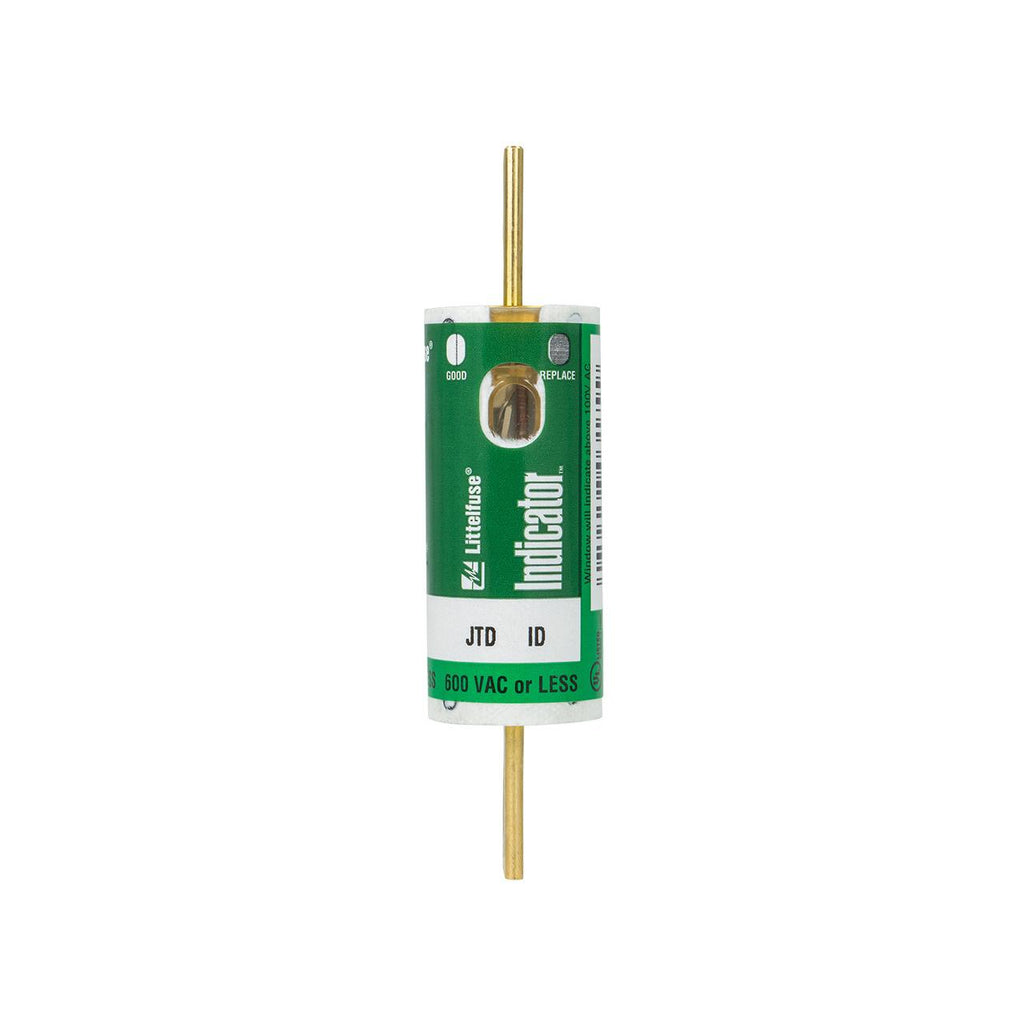

JTD-090ID is a Littelfuse Class J time delay fuse rated for 90 amps and 600 volts AC with an indicator for blown fuse status.This fuse features a dual element design providing current limiting and IEC Type 2 "No Damage" protection. It has a physical size of approximately 1 1/8" diameter by 4 5/8" length, with an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse is UL listed and CSA certified, suitable for industrial and commercial power distribution applications.
- Amperage: 90 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: UL Class J
- Time Delay (Dual Element)
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Physical Size: 1 1/8" x 4 5/8"
- Fuse Indicator: Visual blown fuse indicator
- Current Limiting
- IEC Type 2 Protection
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
Specifications
- Part Number: JTD-090ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- UPC : 007945803178
- GTIN : 00079458031782
- Weight : 0.3
