JTD-090 - Littelfuse 90A 600V Class J Time Delay Fuse Dual Element

JTD-090

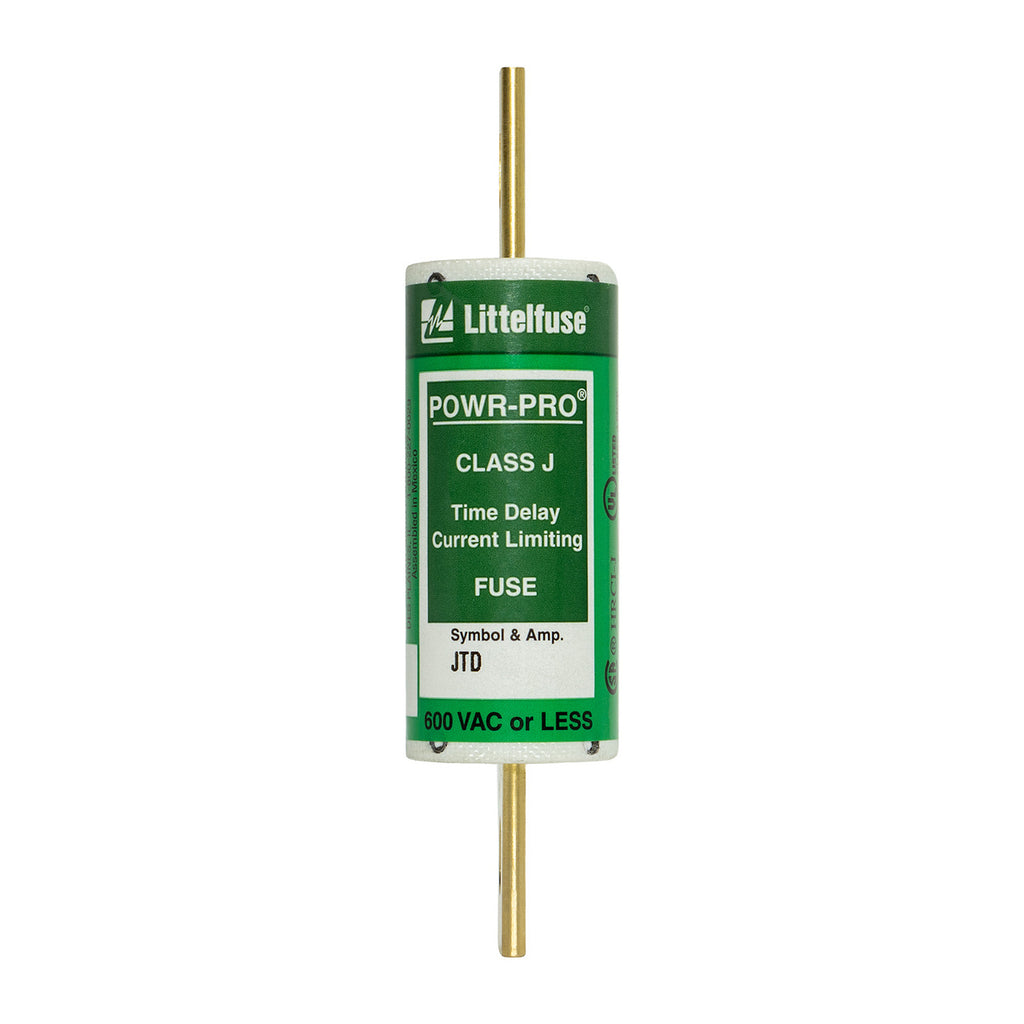

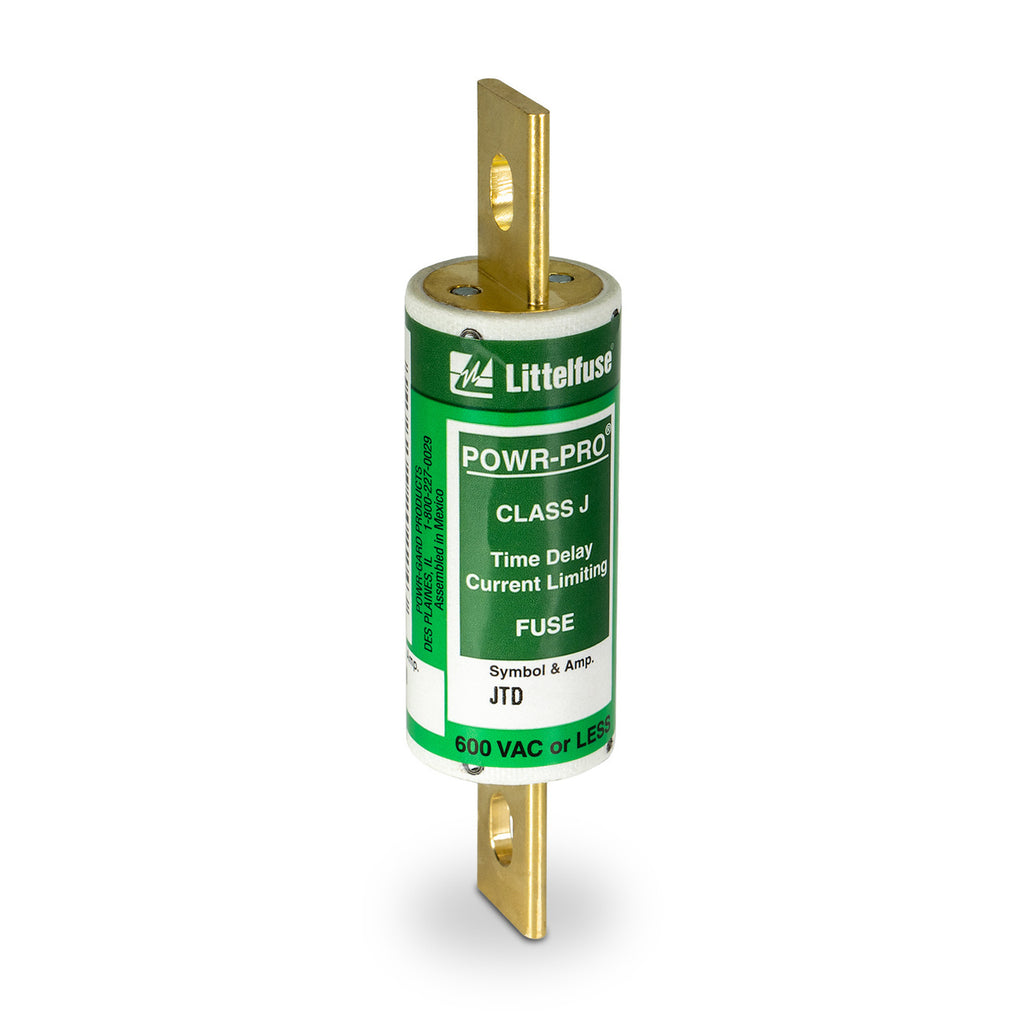

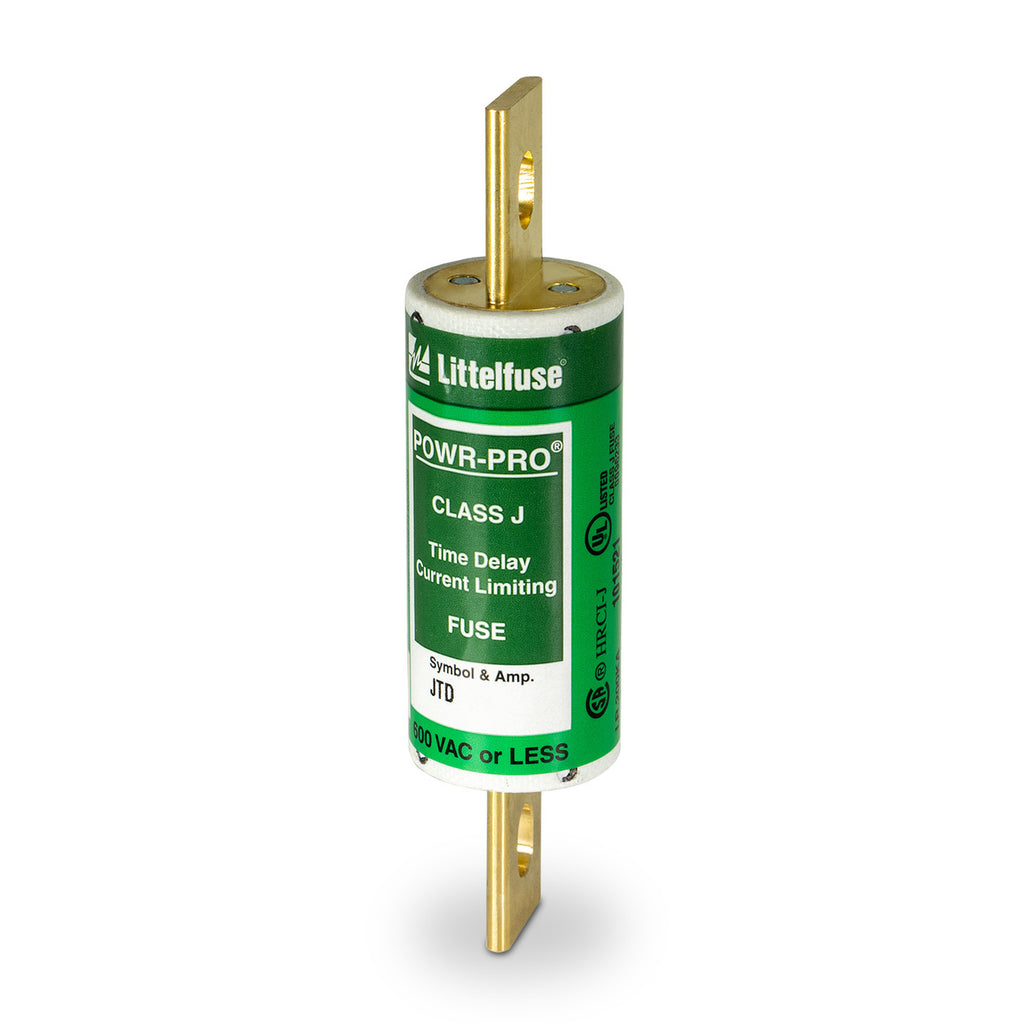

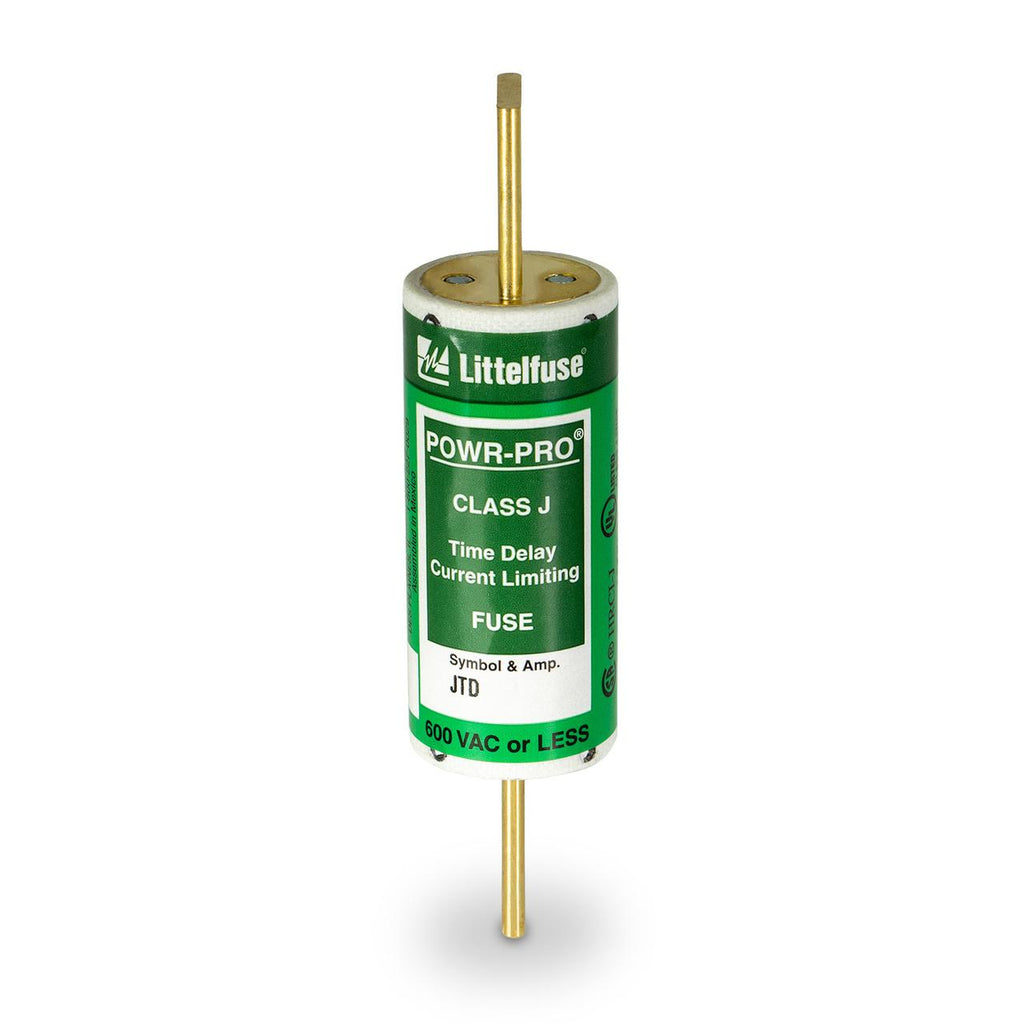

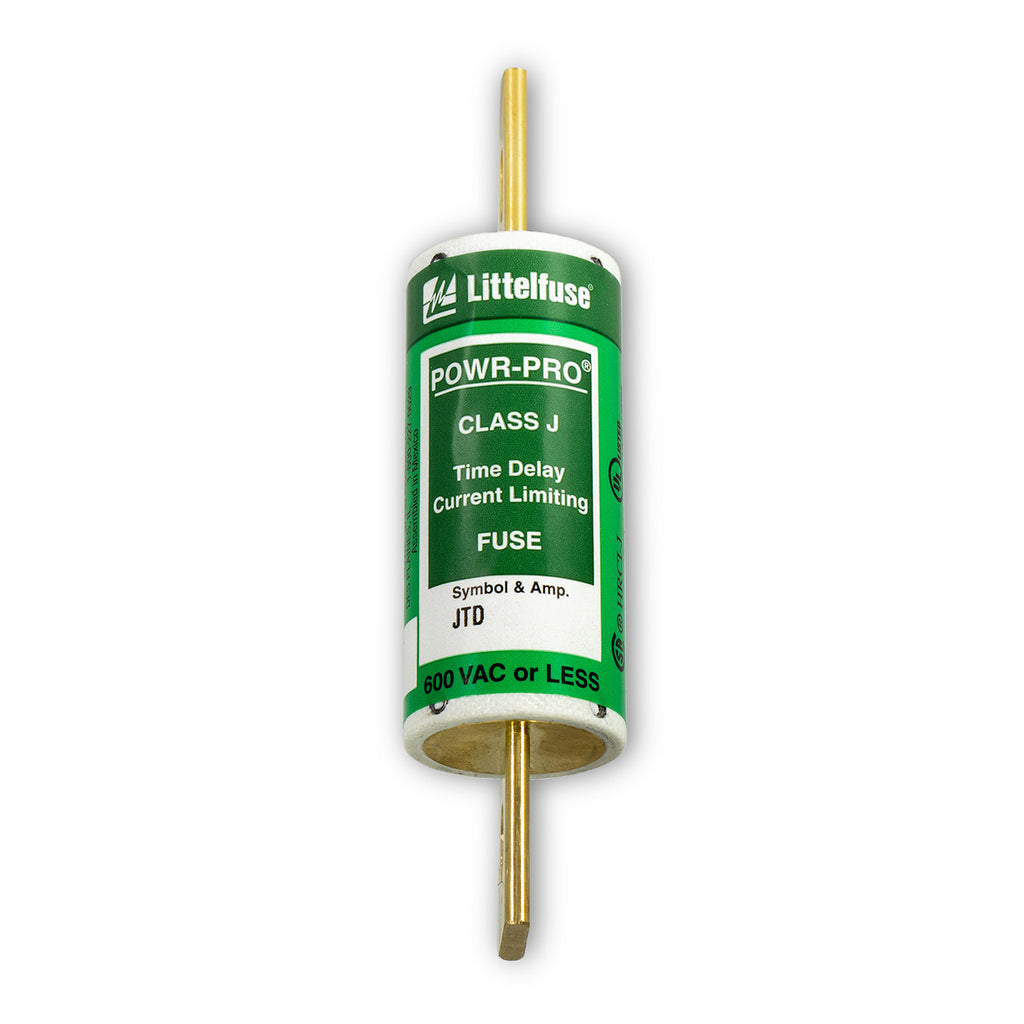

JTD-090 is a Littelfuse 90 Amp, 600 Volt AC Class J time delay fuse designed for reliable overcurrent protection.This dual element, current limiting fuse features a compact cartridge body with a bolt-on mounting type. It offers a 200,000 A interrupting rating at 600 VAC and 20,000 A at 300 VDC, providing superior protection for circuits with high inrush currents. The JTD series fuse is UL Listed, CSA Certified, and designed to reduce nuisance openings with IEC Type 2 "No Damage" protection.

Key Specifications
• Amperage: 90 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Poles: Single Pole
• Mounting Type: Bolt Mount
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Fuse Series: Class J, JTD
• Trip Unit: Time Delay Dual Element
• Dimensions: Approx. 1 1/8" diameter x 4 5/8" length
• Certifications: UL Listed (E81895), CSA Certified (LR29862)
• Current Limiting and IEC Type 2 Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD-090
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Fuse Part

Product Data

• UPC : 07945820223
• Weight : 0.3
