Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-080

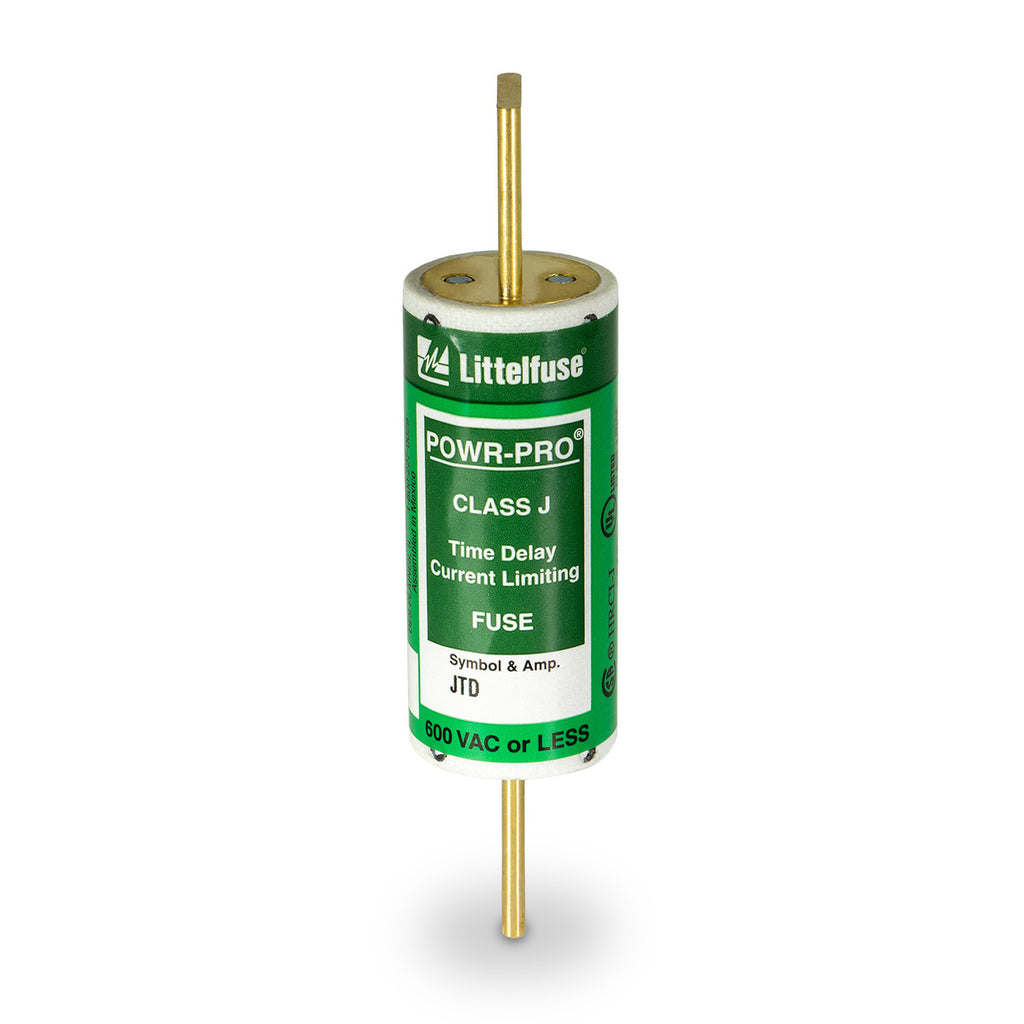

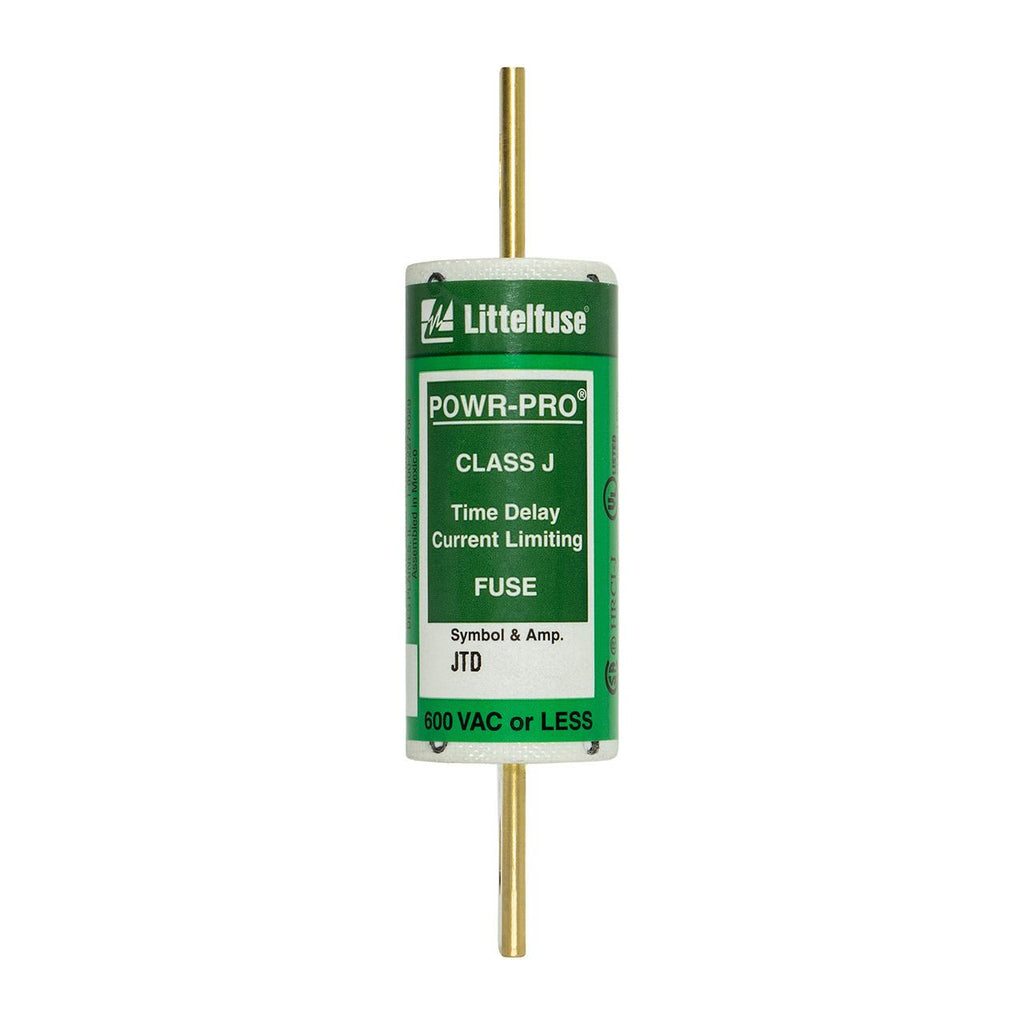

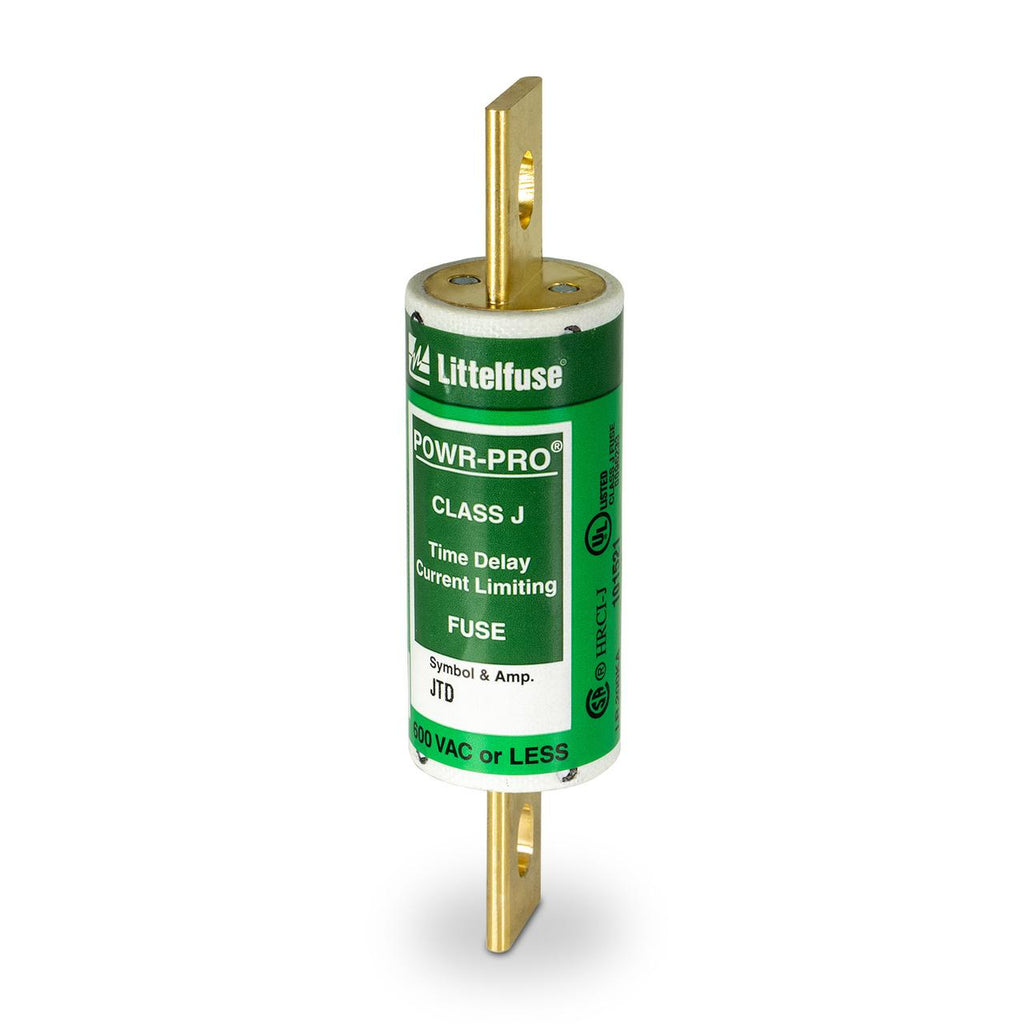

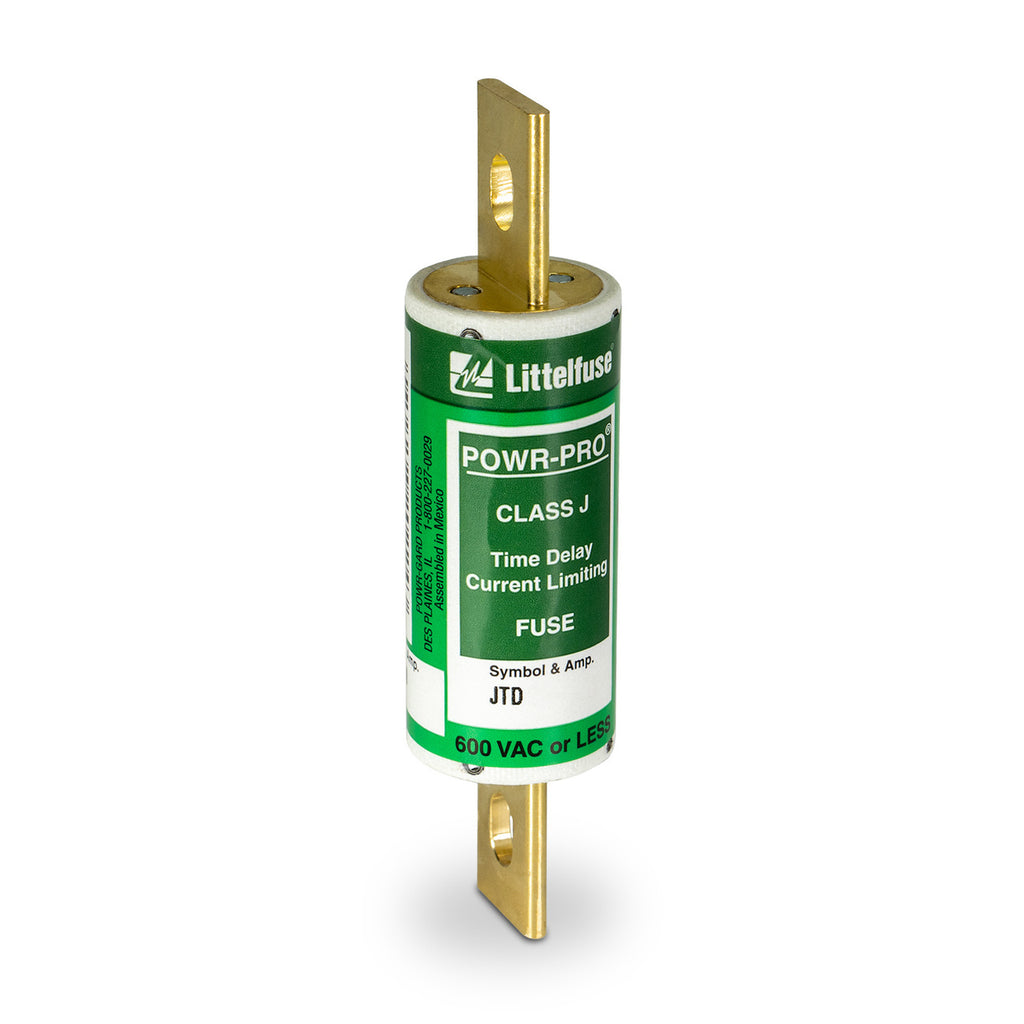

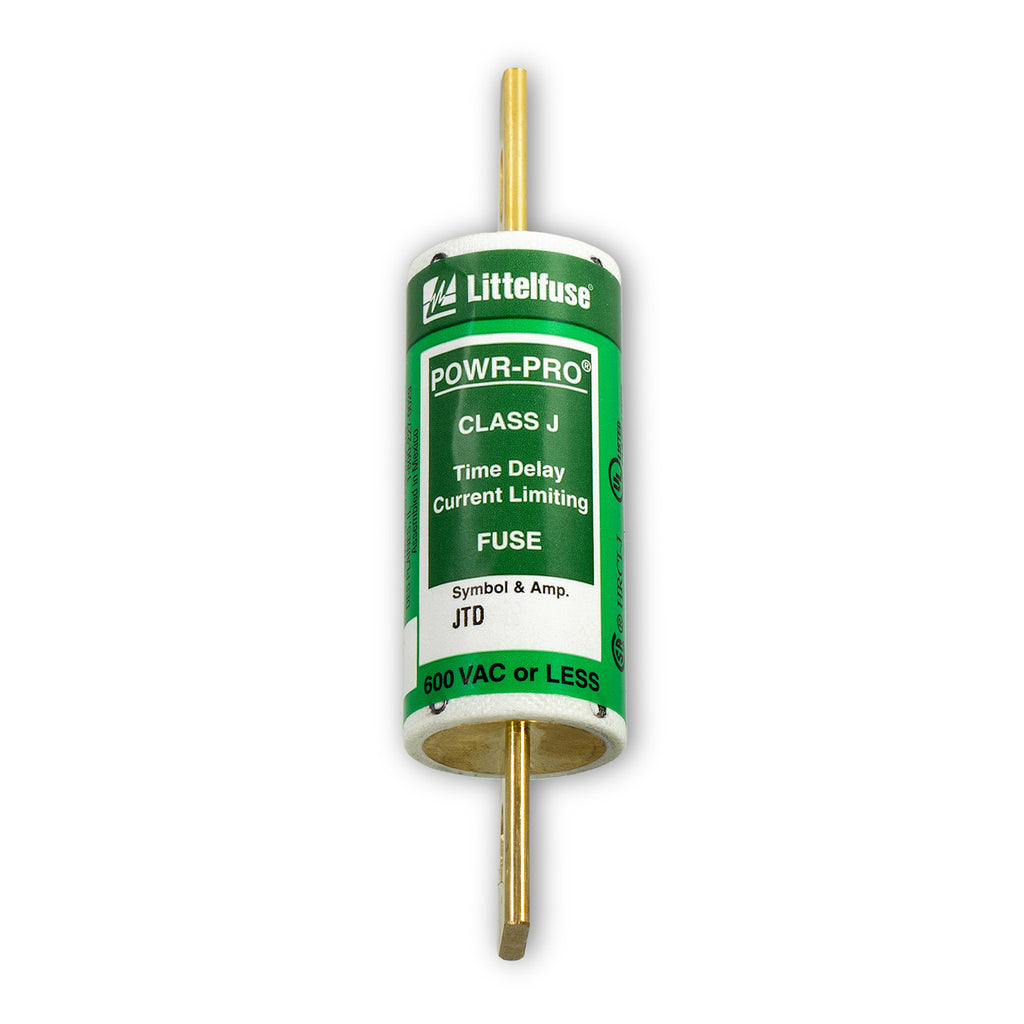

JTD-080 is an 80 Amp, 600 Volt AC Class J time-delay fuse from Littelfuse designed for reliable circuit protection.This JTD Series fuse features dual-element, current-limiting technology with POWR-PRO® advanced design for high inrush current applications. It provides Type 2 "No Damage" protection for motor circuits, minimizing equipment damage and nuisance openings. The fuse is rated for 600 VAC and 300 VDC with an interrupting rating of 20 kA at 300 VDC. It has a melamine body and is UL 248-8, CSA, and CE certified.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 600 V AC, 300 V DC
- Interrupting Rating: 20 kA @ 300 VDC
- Fuse Type: Class J, Time Delay (Slo-Blo)
- Construction: Dual-element, current-limiting
- Body Material: Melamine
- Certifications: UL Listed, CSA Certified, CE Compliant
- Dimensions: Approx. 1 1/8" diameter x 4 5/8" length
- Series: JTD
- Mounting Type: Cartridge style
- Part Number: JTD-080
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 079458202229
- GTIN : 07945820222
- Weight : 5.19
