Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-070

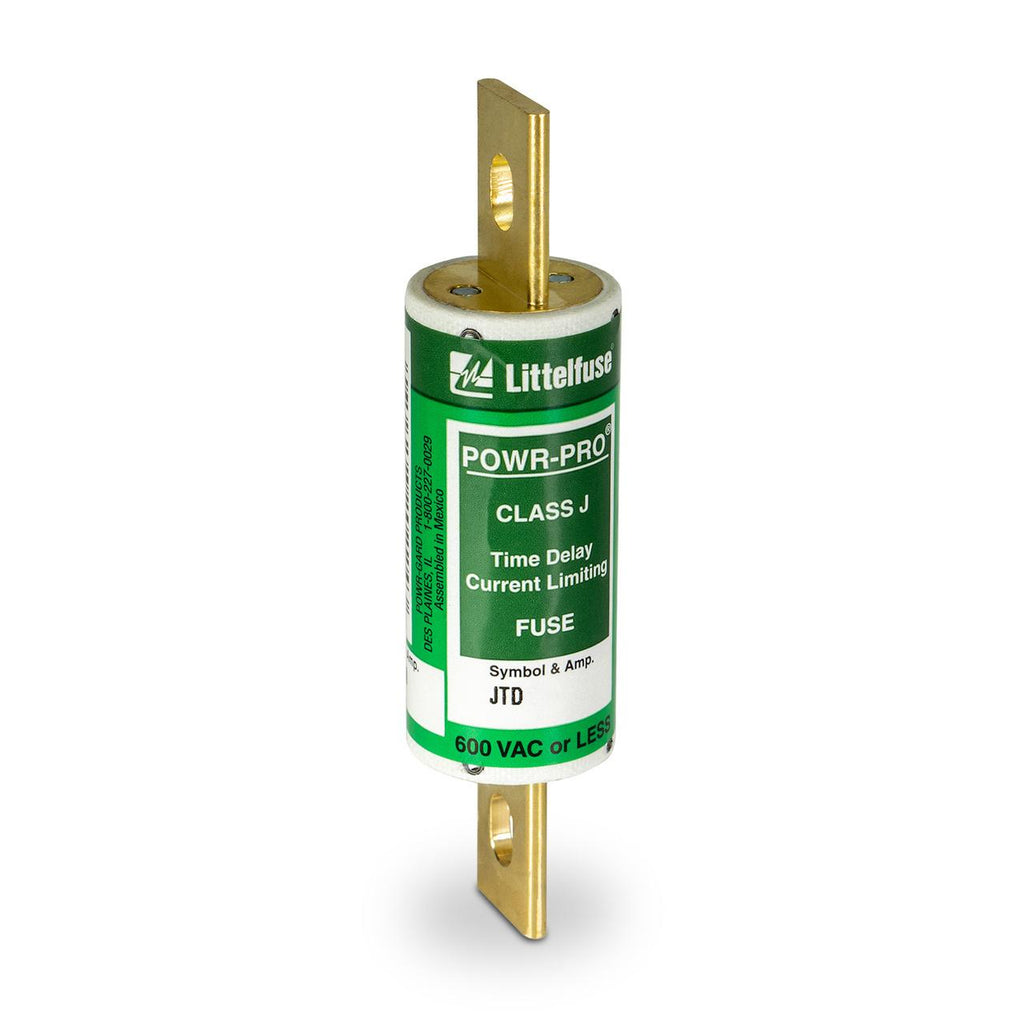

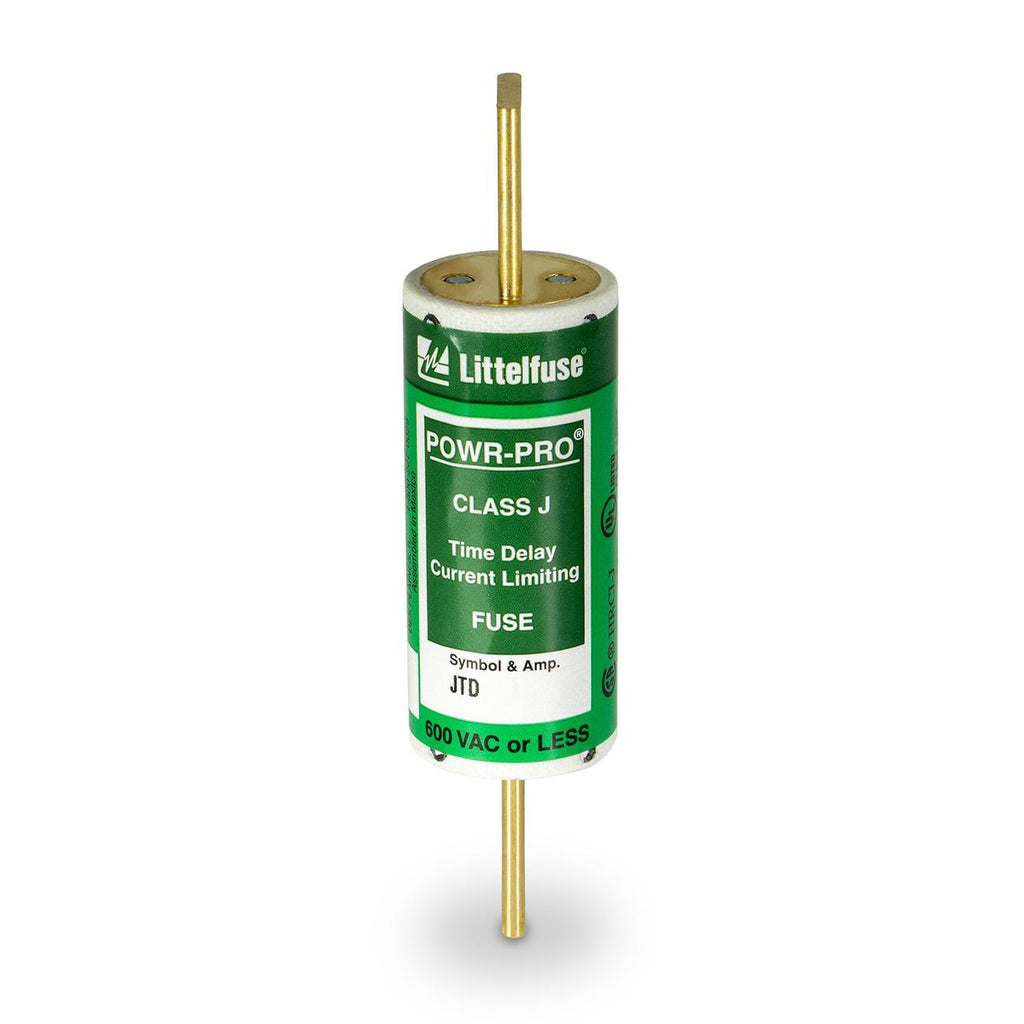

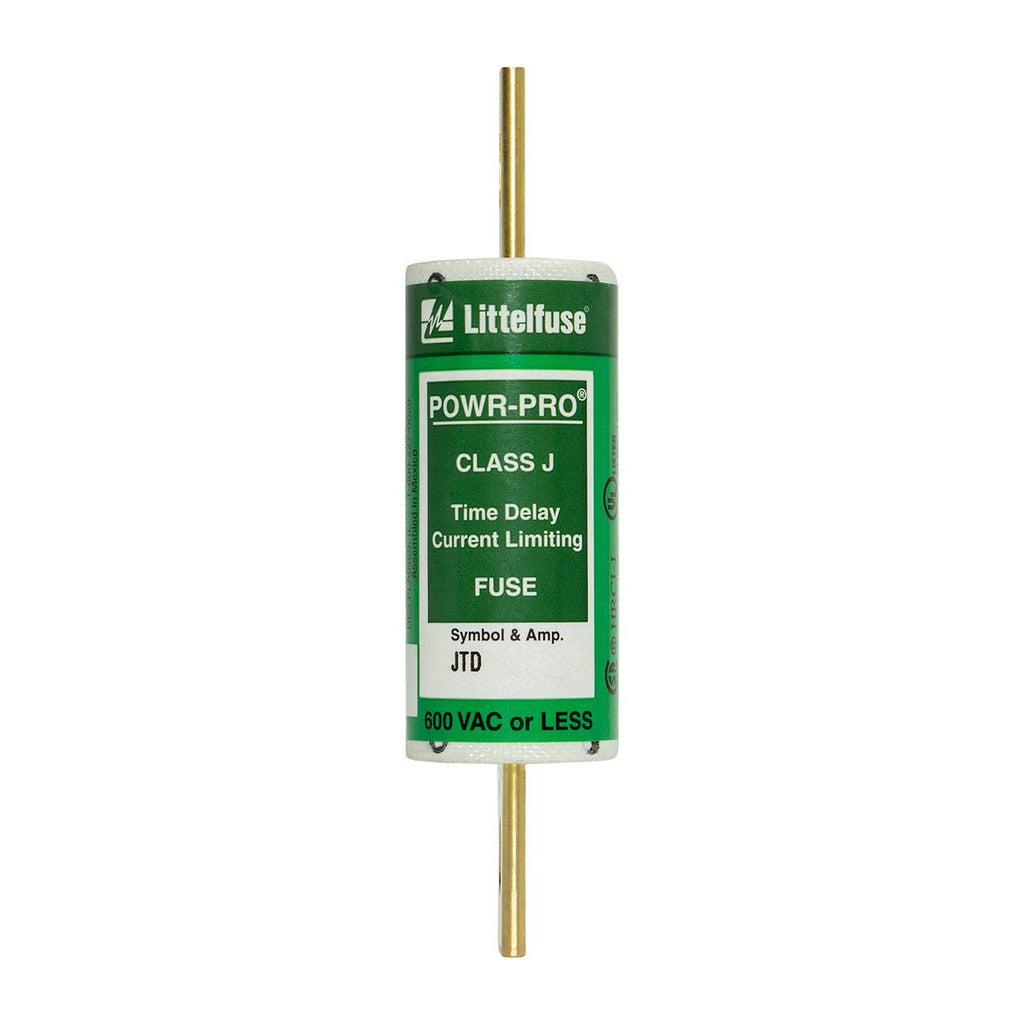

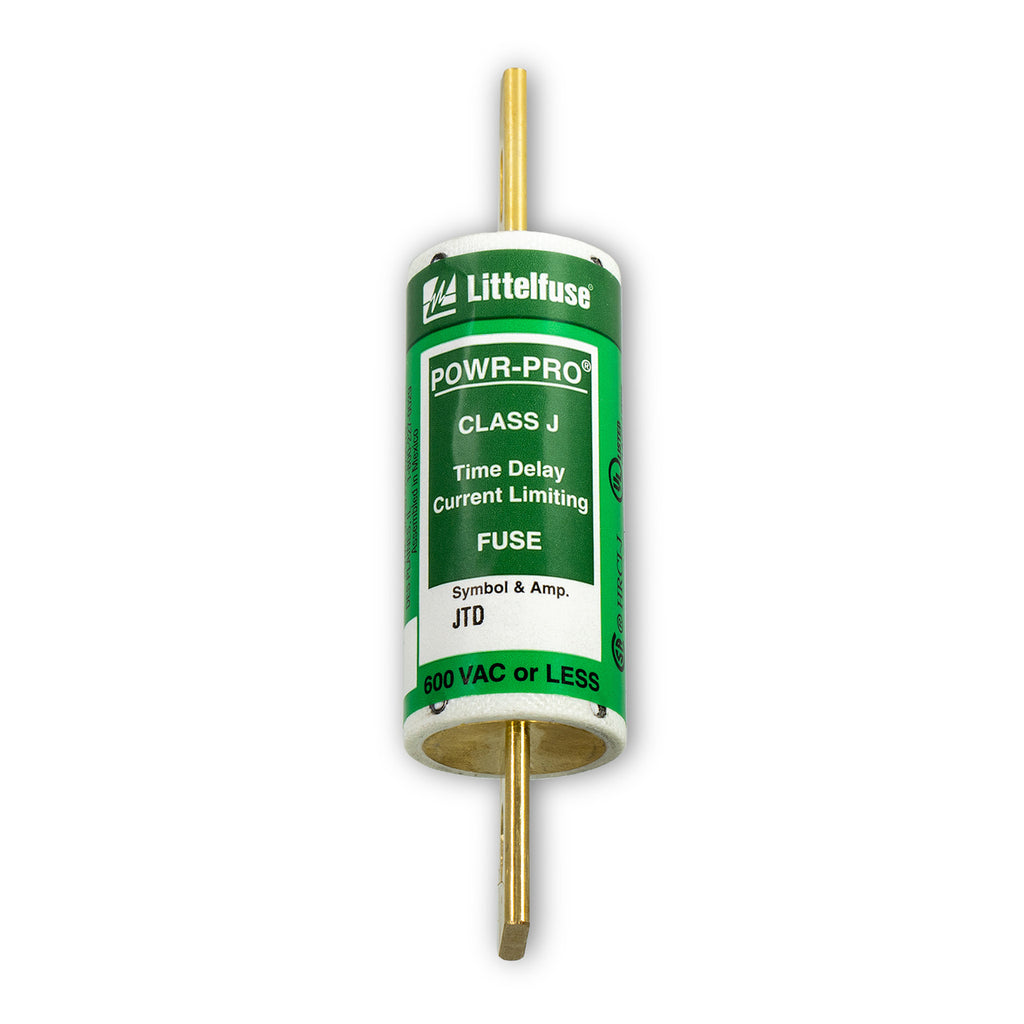

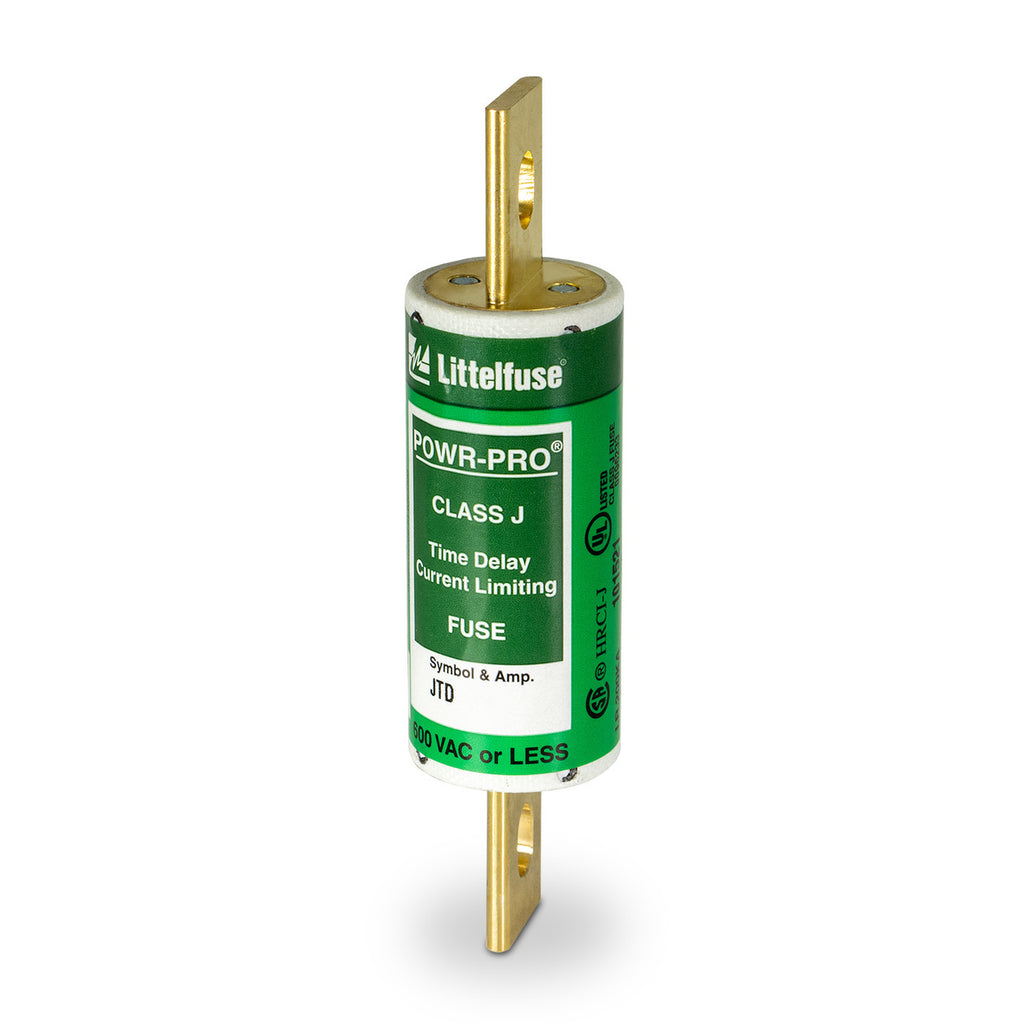

JTD-070 is a Littelfuse Class J fuse rated for 70 amps and 600 volts AC with time-delay (slow-blow) characteristics.This fuse features a knife-blade mounting style and is designed for industrial power protection with a 20 kA interrupt rating at 300 VDC and 200 kA interrupt rating at 600 VAC. It is UL listed, CSA certified, and meets IEC Type 2 protection standards. The fuse is ideal for motor control centers, transformer circuits, and applications with high inrush currents.
- Amperage Rating: 70 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Class J, Time-Delay (Slow Blow)
- Mounting Type: Knife-Blade
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Fuse Size: 1 1/8 inch diameter x 4 5/8 inch length
- Standards: UL Listed (UL 248-8), CSA Certified, CE Compliant
- Fuse Construction: Dual Element, Current Limiting
- IEC Type 2 Protection
Specifications
- Part Number: JTD-070
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Conduit & Fittings
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 07945820221
- GTIN : 00079458202212
- Weight : 5.19
