2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JTD-060ID

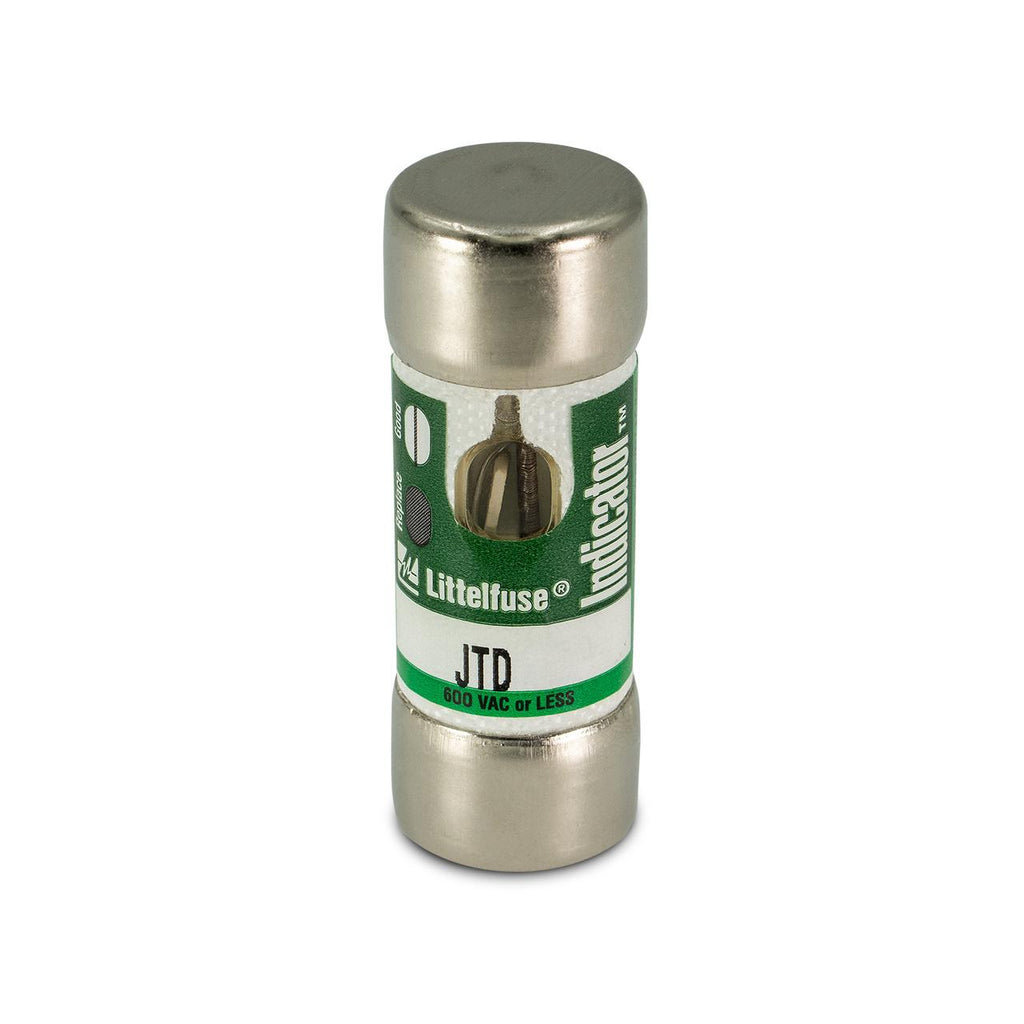

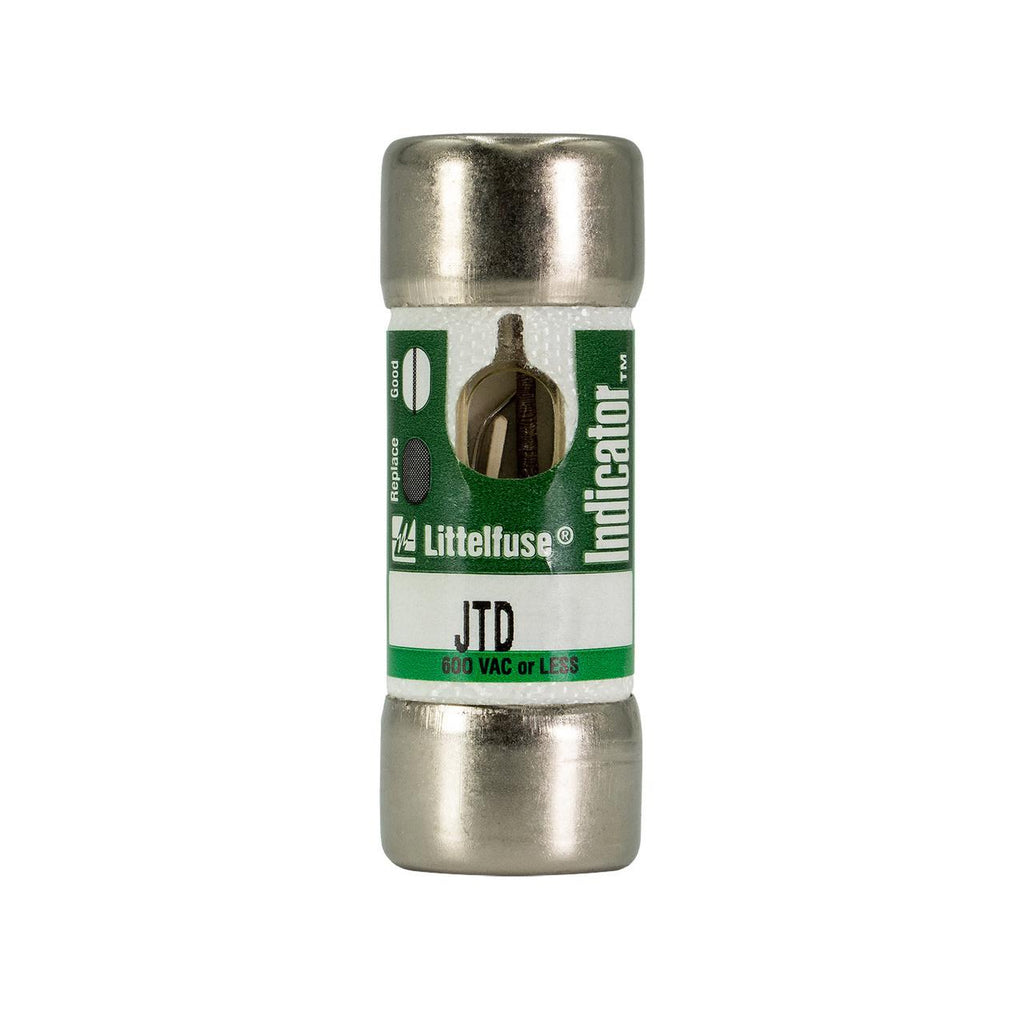

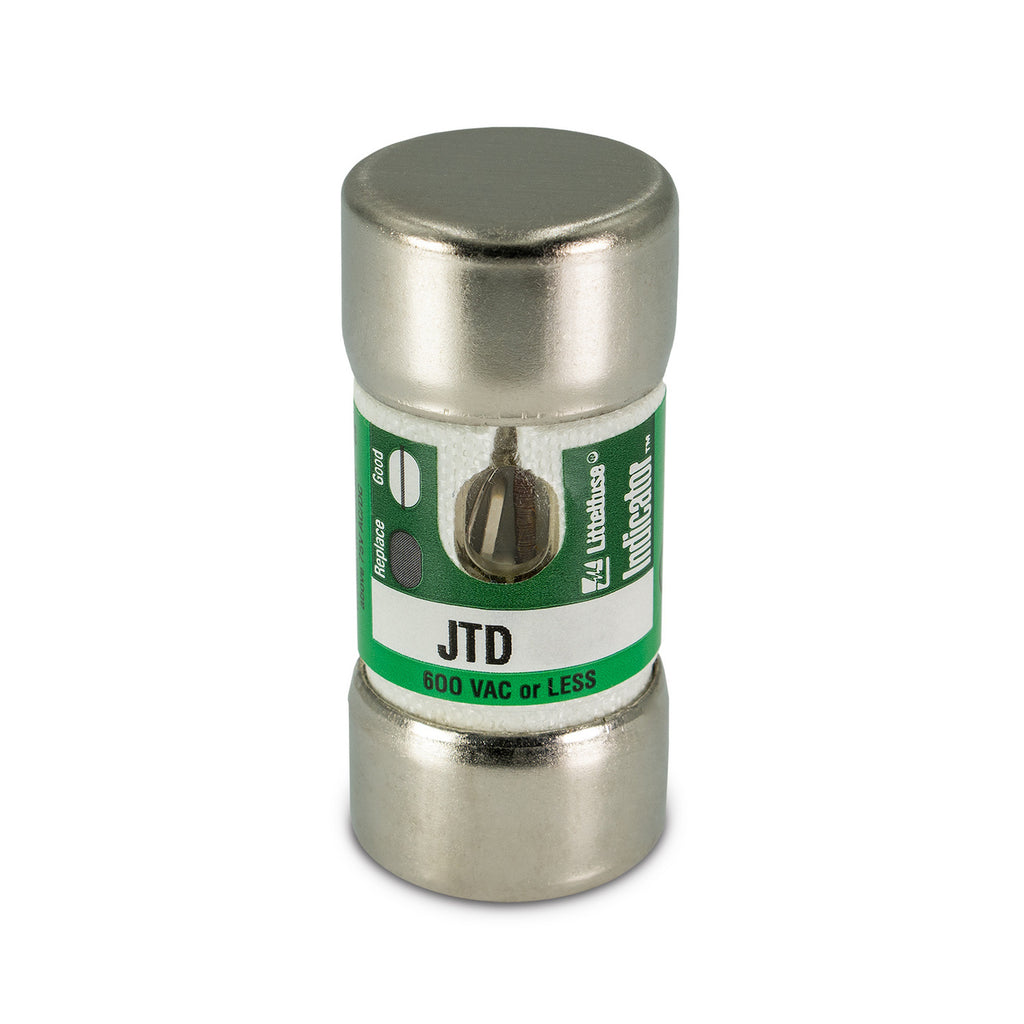

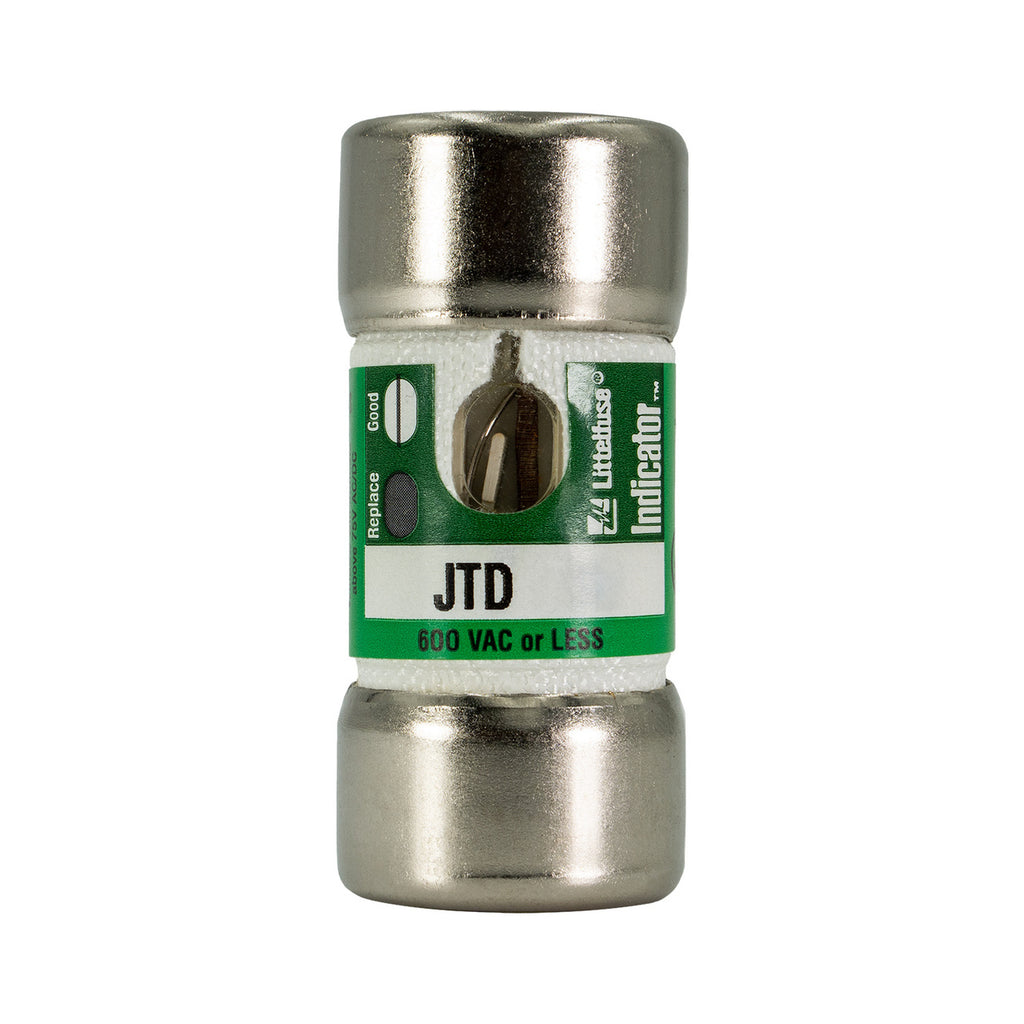

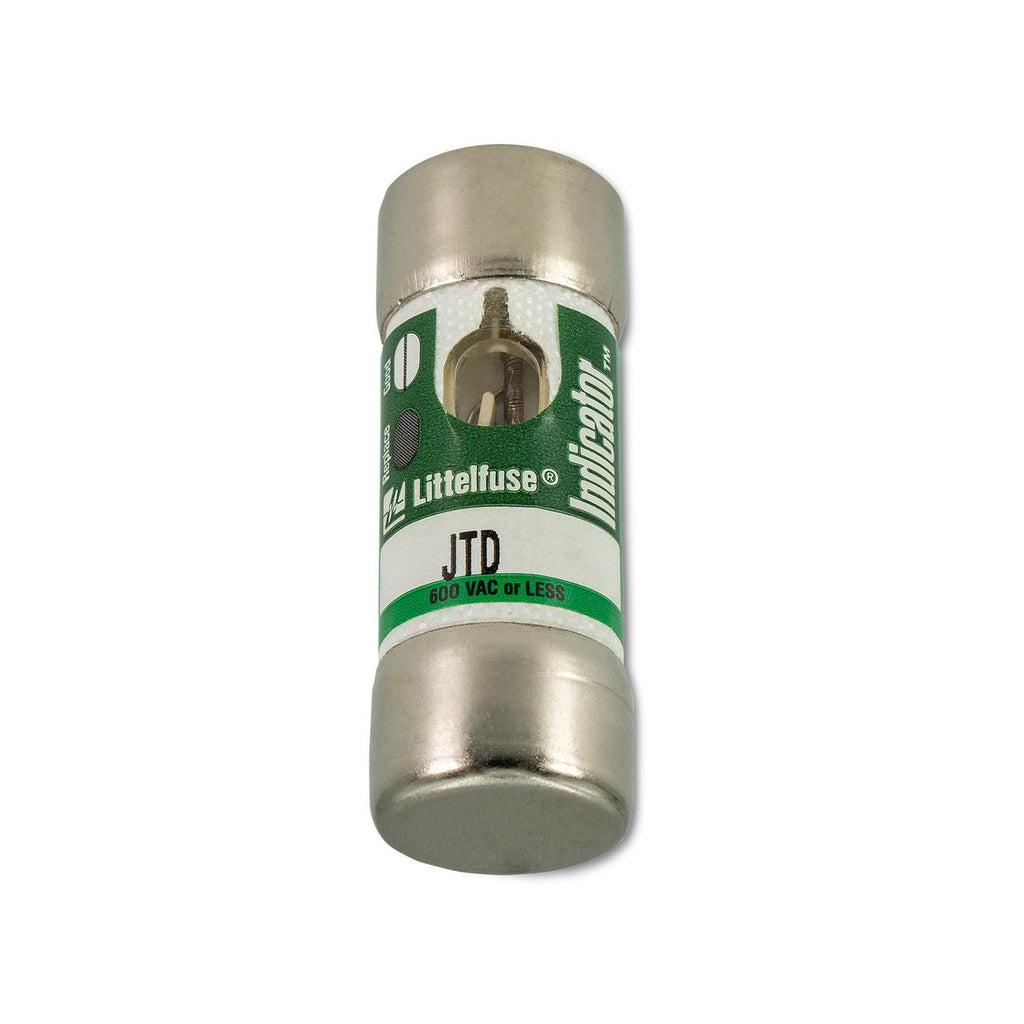

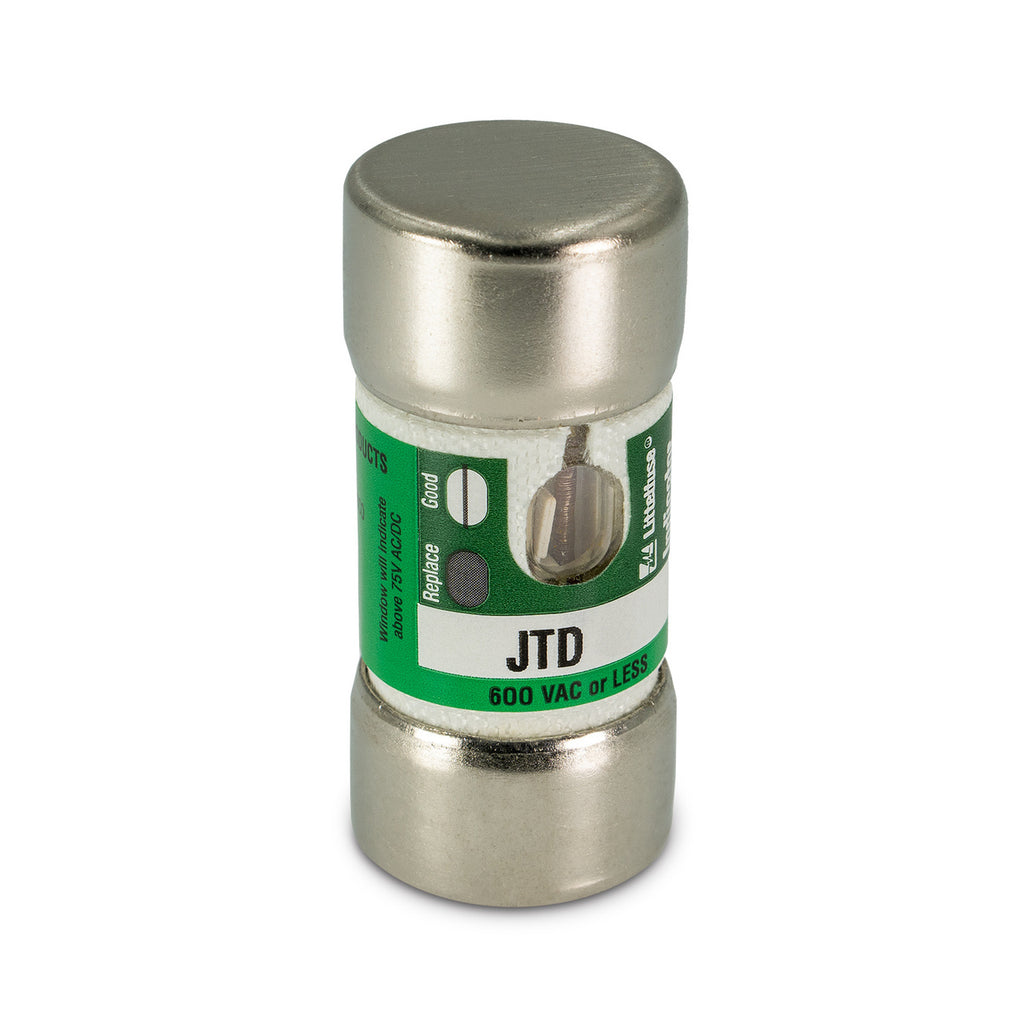

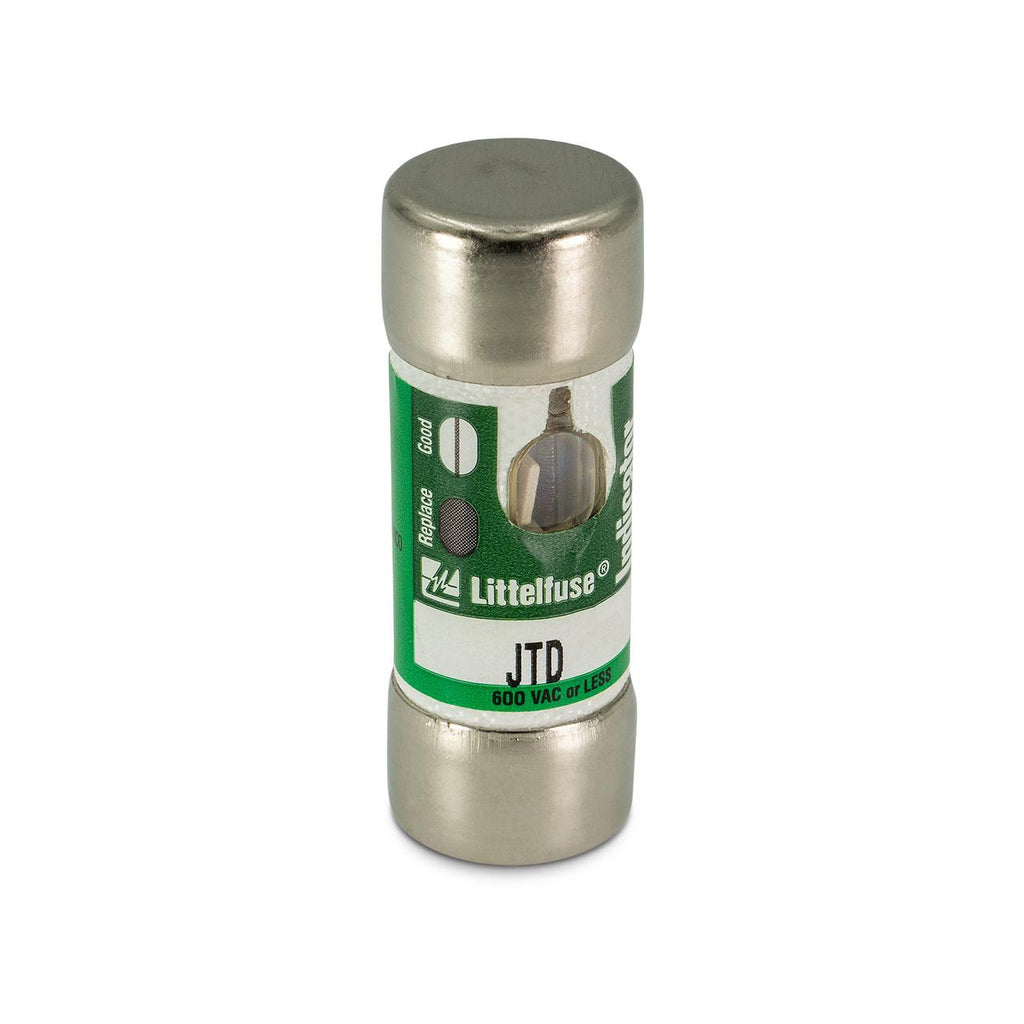

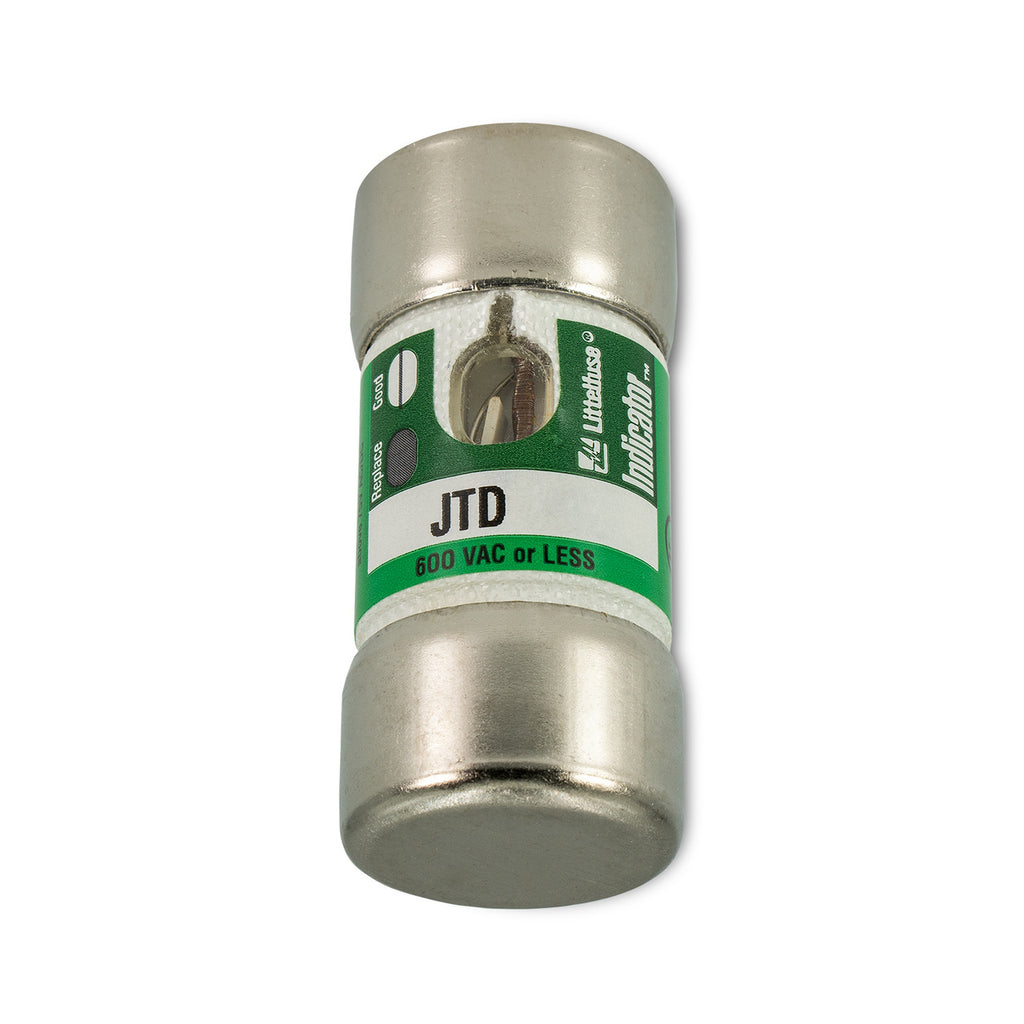

JTD-060ID is a Littelfuse Class J time delay fuse rated for 60 amps and 600VAC/300VDC operation.This fuse features a current limiting design with a 20kA interrupting rating at 300VDC and 200kA at 600VAC. It has a ferrule terminal connection and a cartridge body construction, providing reliable protection with reduced nuisance openings. The JTD-060ID complies with UL 248-8 and CSA certifications and is designed for use in industrial and commercial power distribution applications.
- Key Specifications
- Amperage: 60 Amps
- Voltage Rating: 600VAC, 300VDC
- Interrupting Rating: 20kA at 300VDC, 200kA at 600VAC
- Fuse Type: Class J, Time Delay (Slo-Blo)
- Terminal Connection: Ferrule
- Body Material: Melamine
- Certifications: UL Listed, CSA Certified
- Length: 2-3/8 inches
- Diameter: 1-1/16 inches
- Series: JTD_ID
Specifications
- Part Number: JTD-060ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458025941
- Weight : 5.19
