Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JTD-035ID

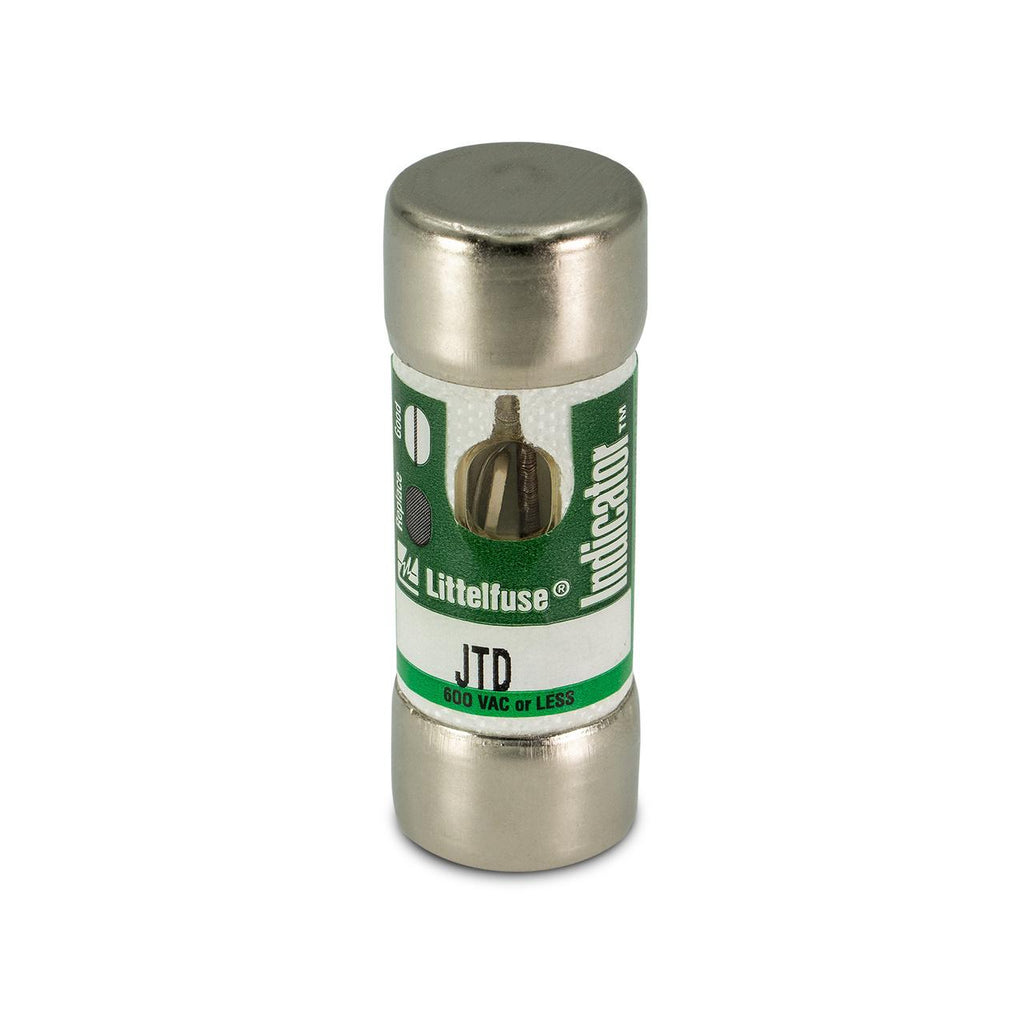

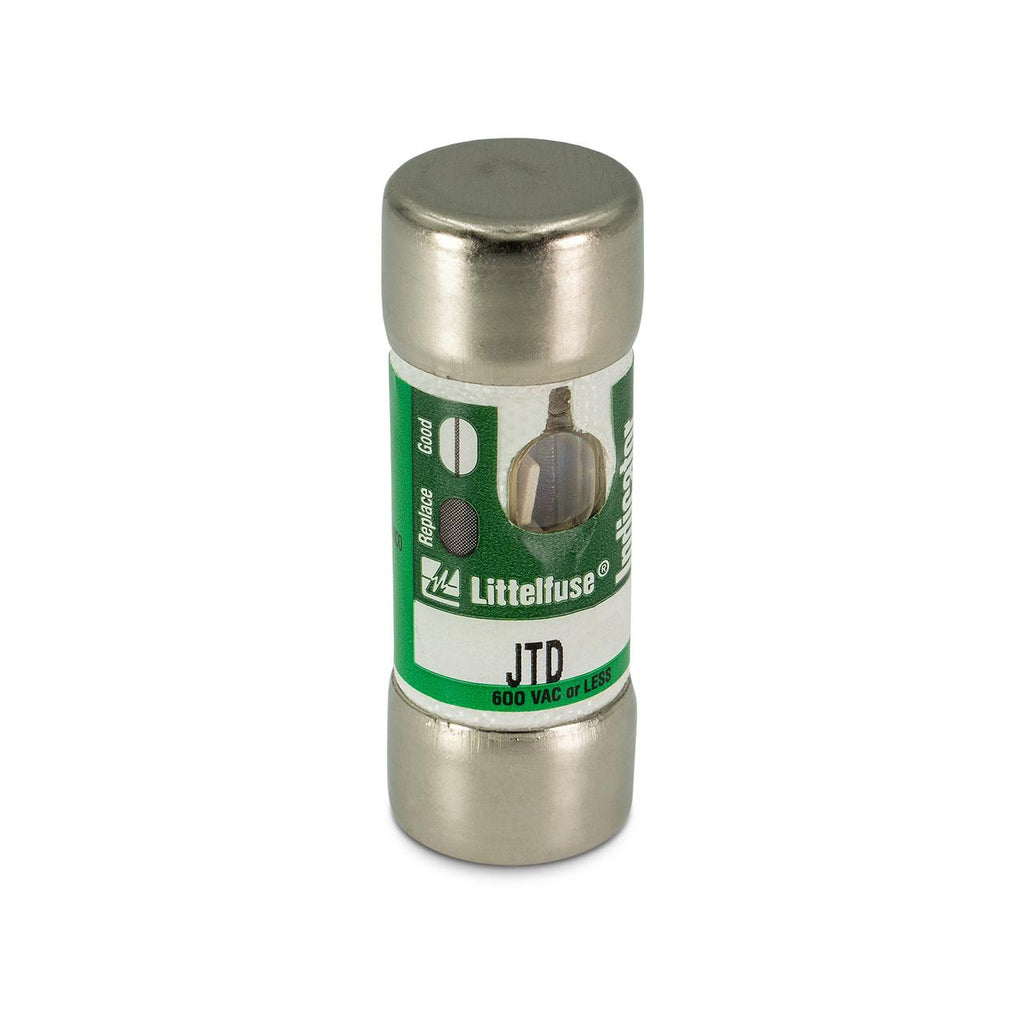

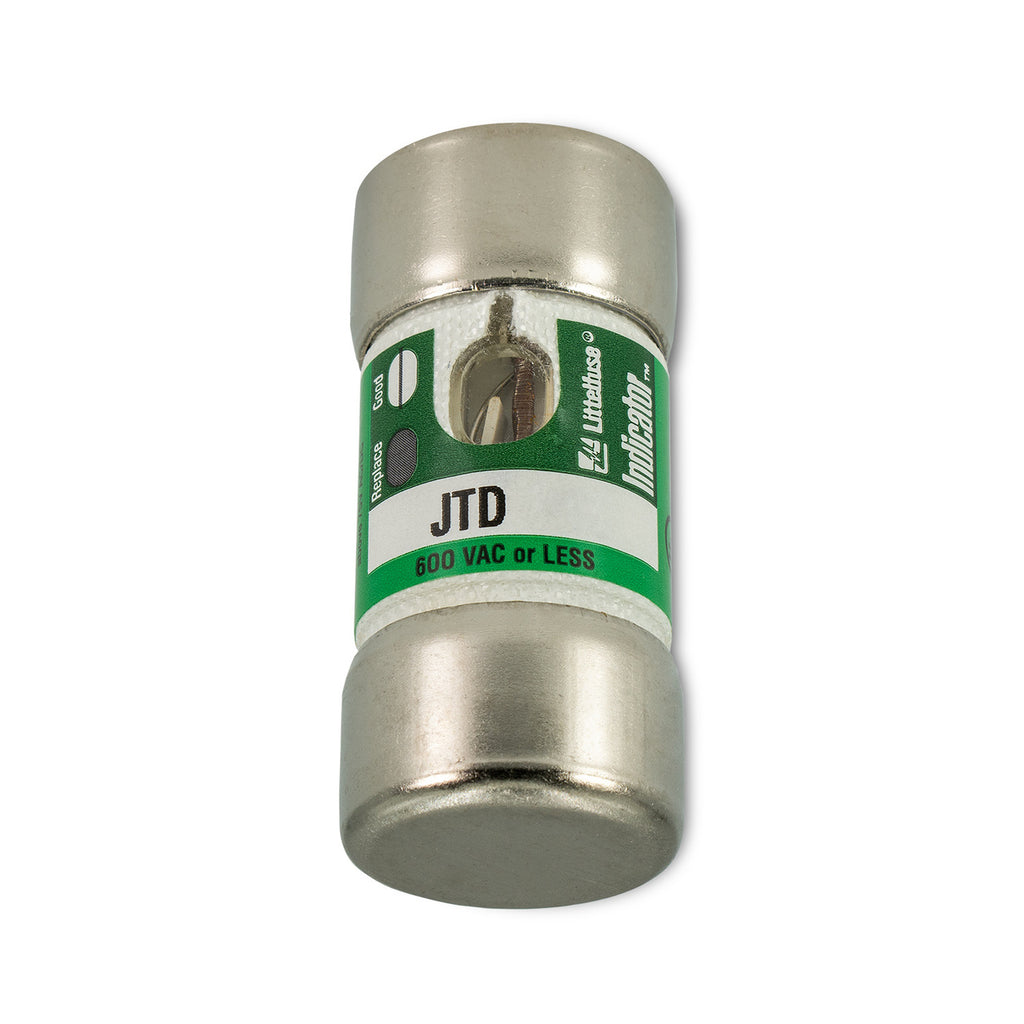

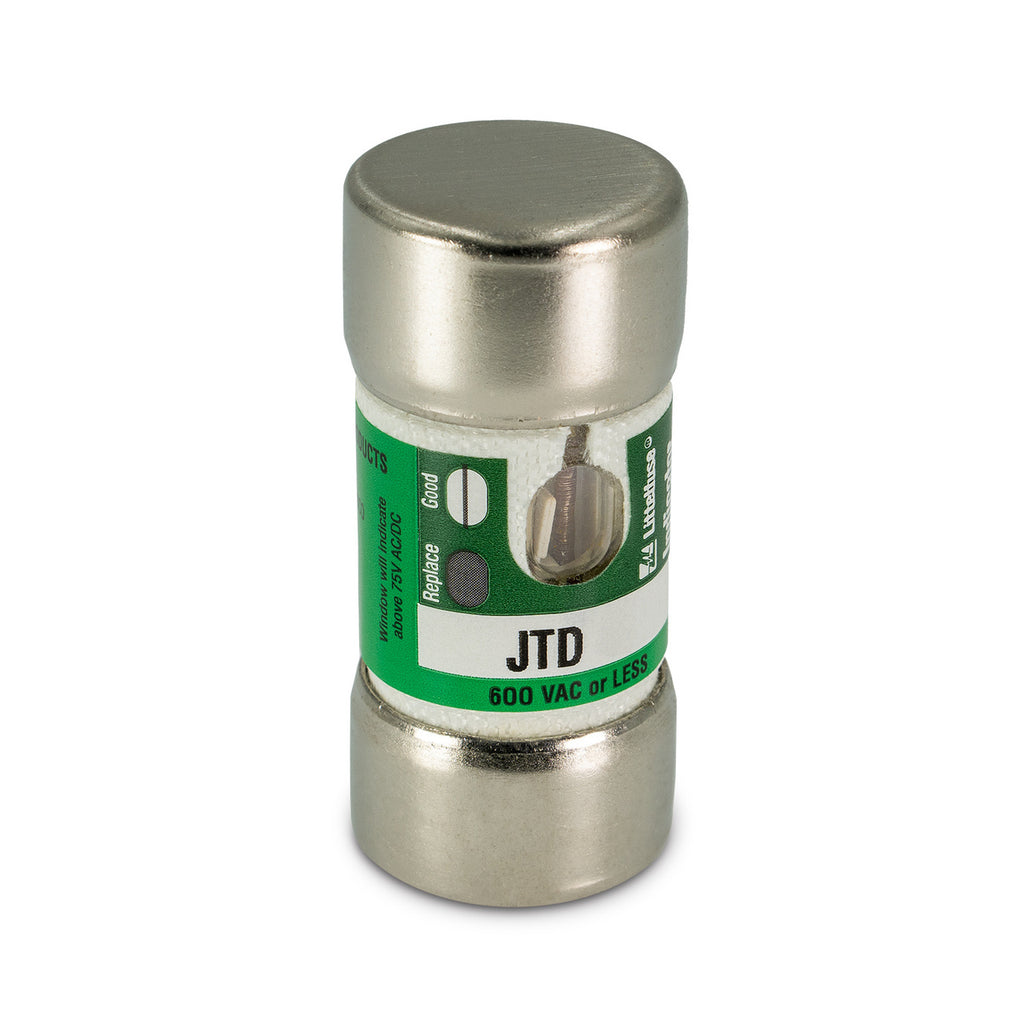

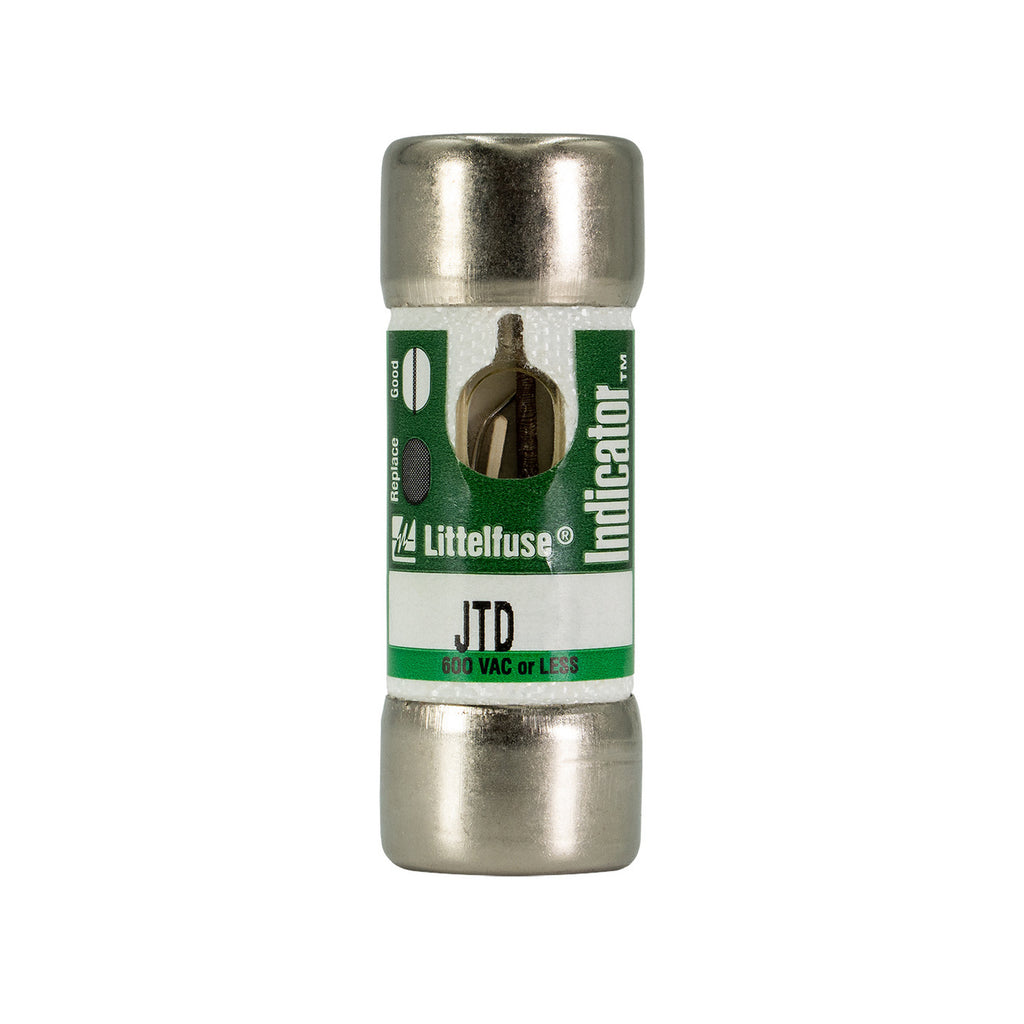

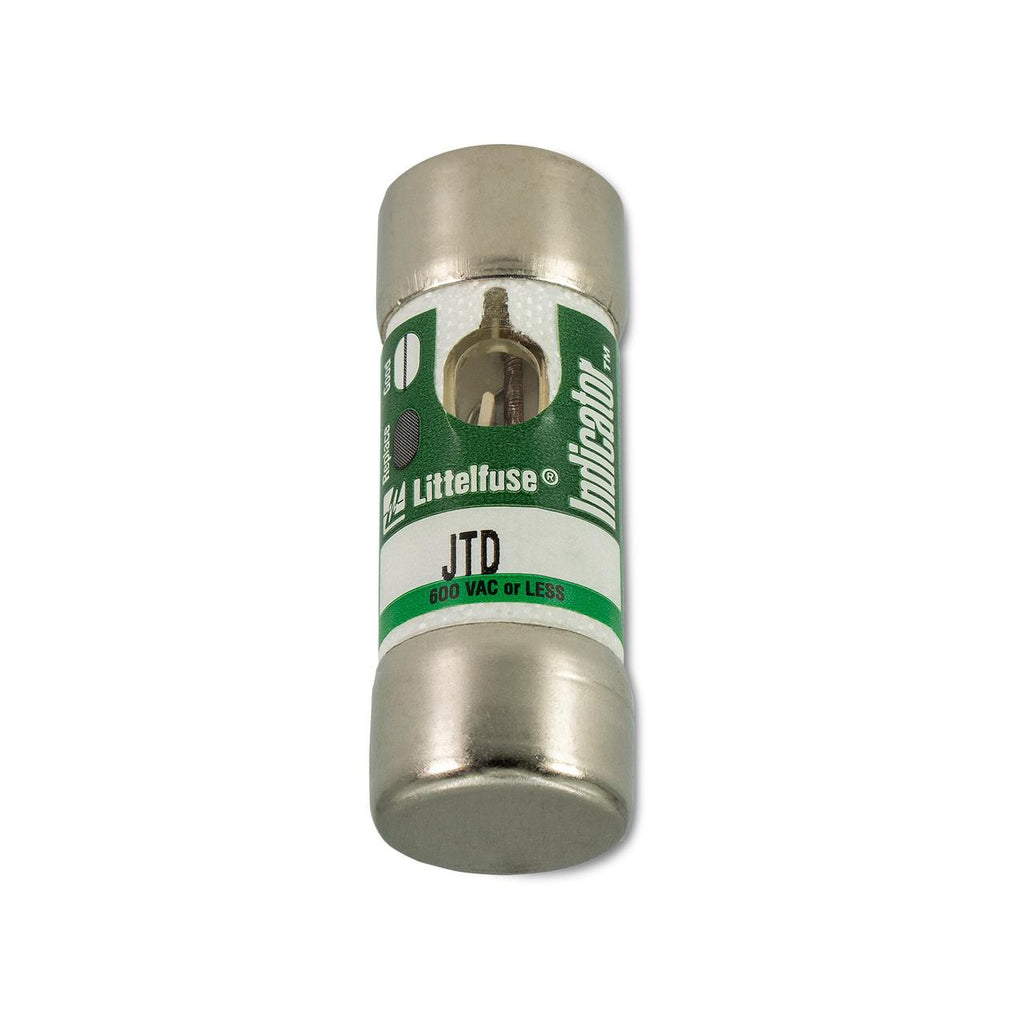

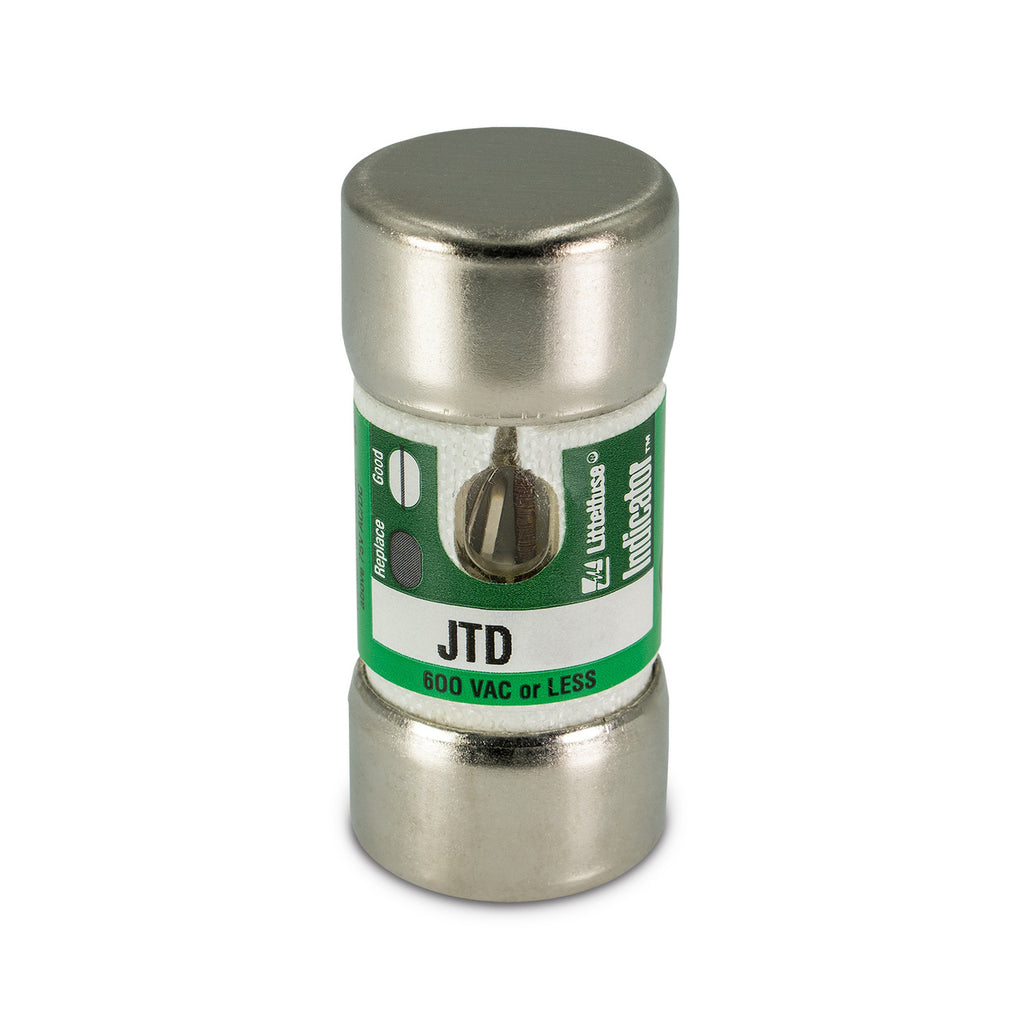

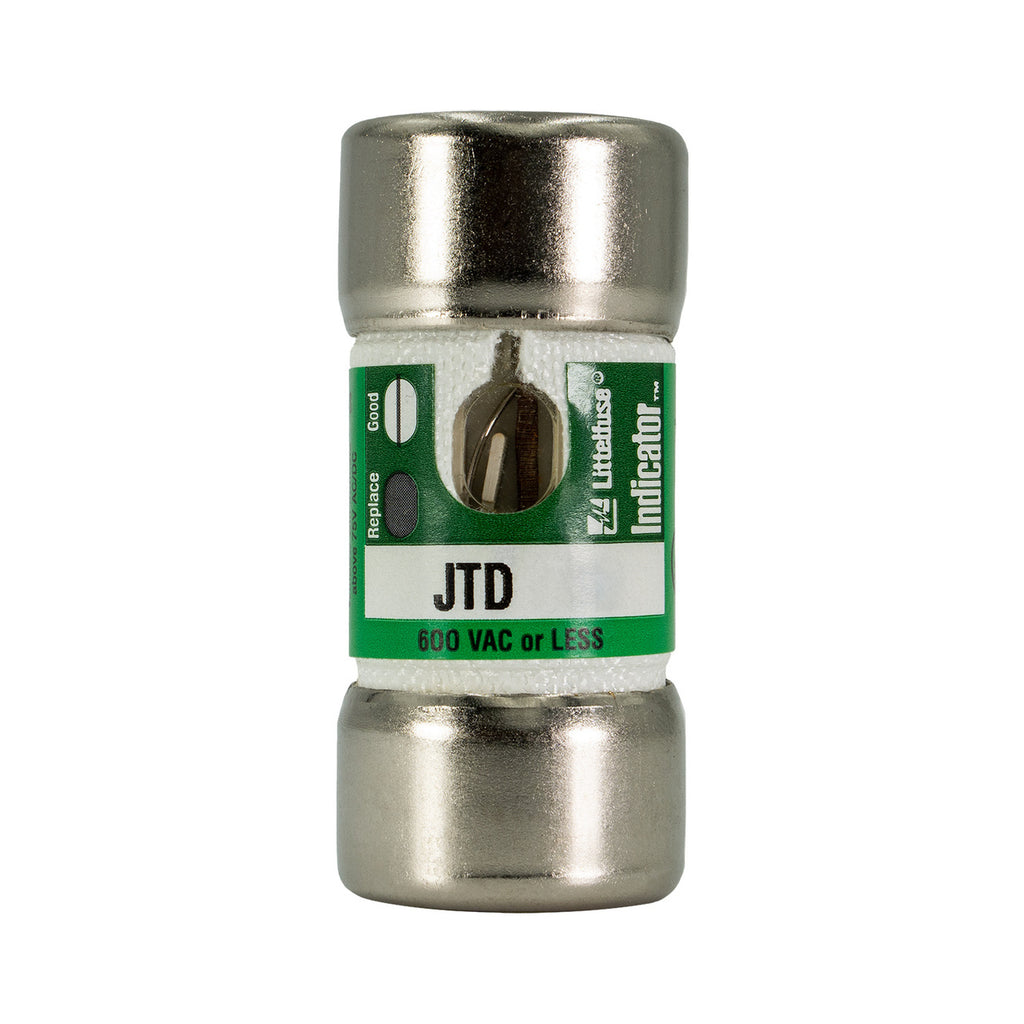

JTD-035ID is a Littelfuse Class J time delay fuse rated for 35 amps and 600 volts AC with an indicator feature.
This fuse features a cartridge-style design with a 1-1/16 inch diameter and 2-3/8 inch length, providing current limiting and dual element time delay protection. It has a voltage rating of 600VAC and 300VDC, an interrupting rating of 200kA at AC and 20kA at DC, and meets UL 248-8 and CSA certifications. The JTD-035ID fuse is designed for motor control centers and fused combination motor controllers, offering Type 2 "No Damage" protection and reducing nuisance fuse openings.
- Key Specifications
- Amperage: 35 Amps
- Voltage: 600 VAC / 300 VDC
- Interrupting Rating: 200kA AC / 20kA DC
- Fuse Class: J
- Time Delay: Dual Element
- Physical Size: 1-1/16 inch diameter, 2-3/8 inch length
- Mounting Type: Cartridge
- Indicator: Yes
- Certifications: UL Listed, CSA Certified
- Material: Melamine body with nickel-plated bronze caps
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTD-035ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 07945802590
- Weight : 5.19
