Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JTD-030

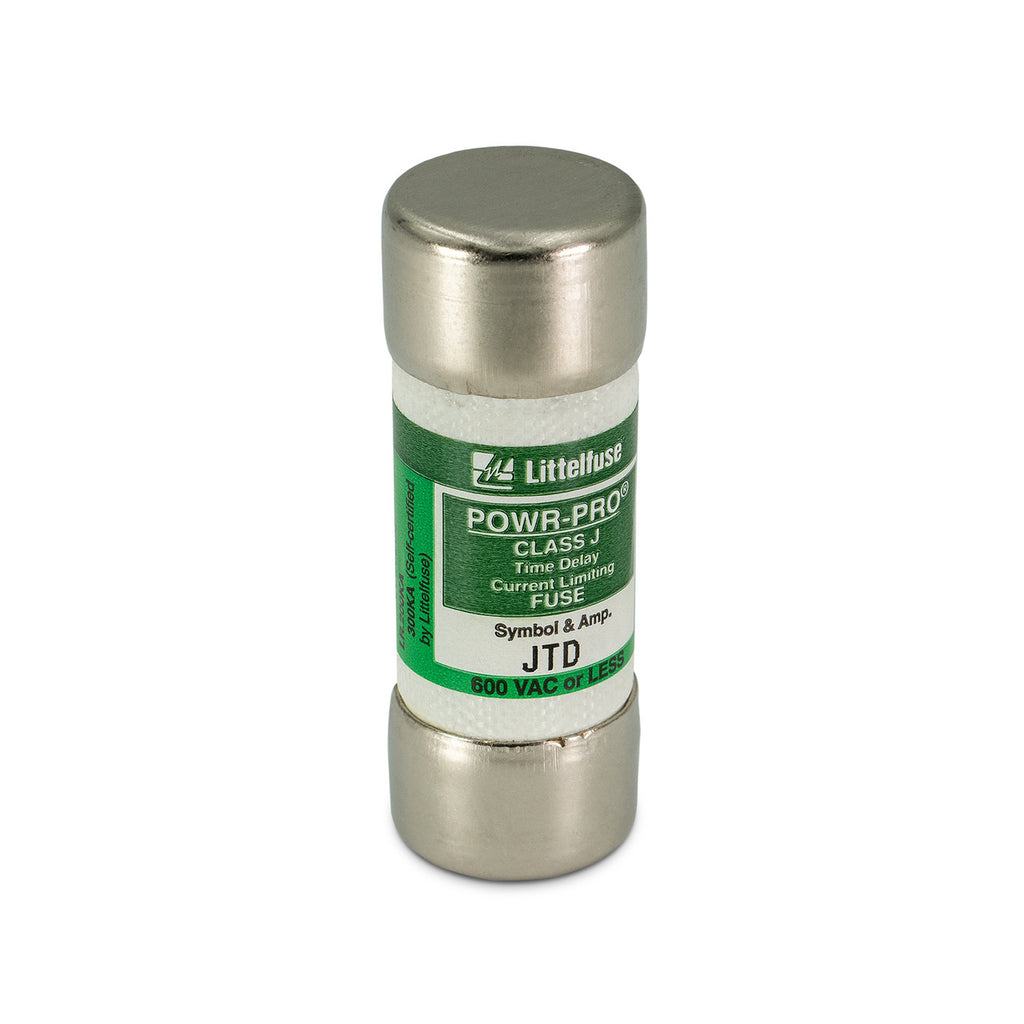

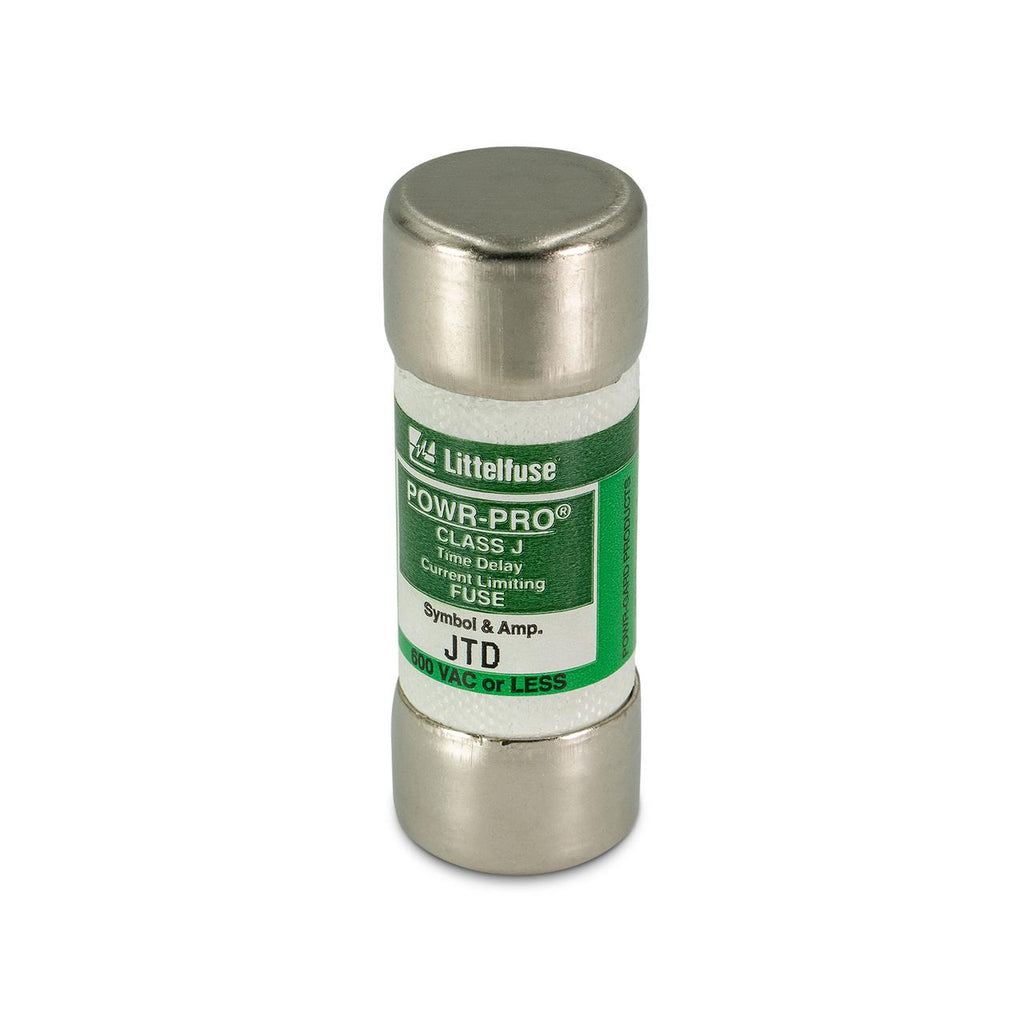

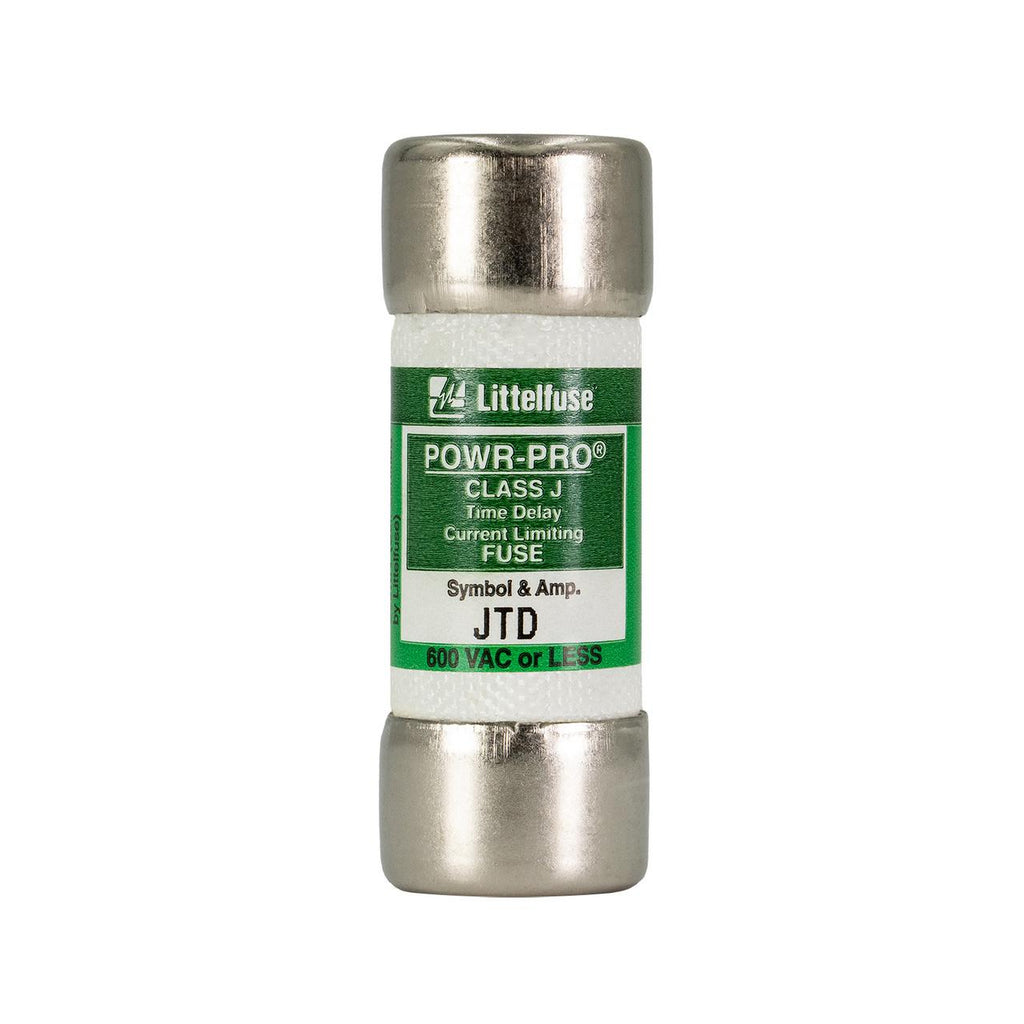

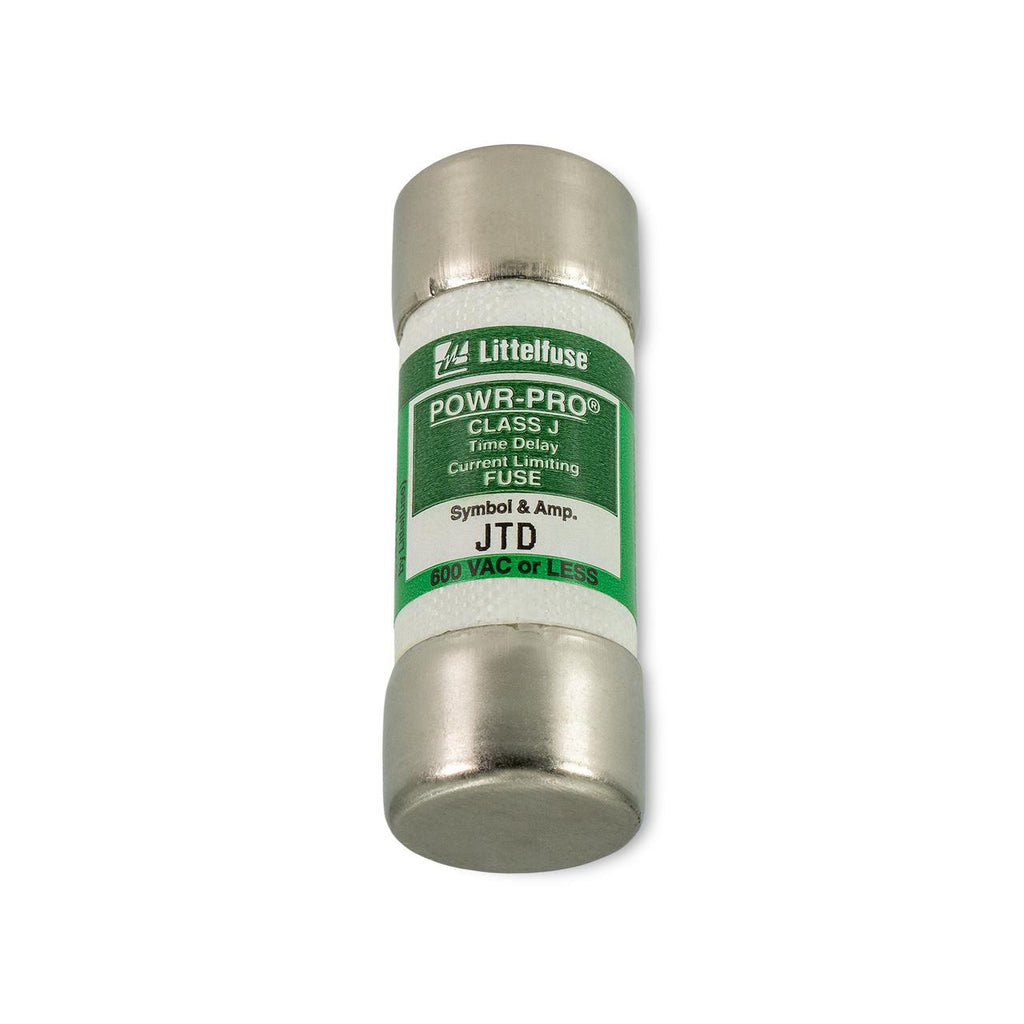

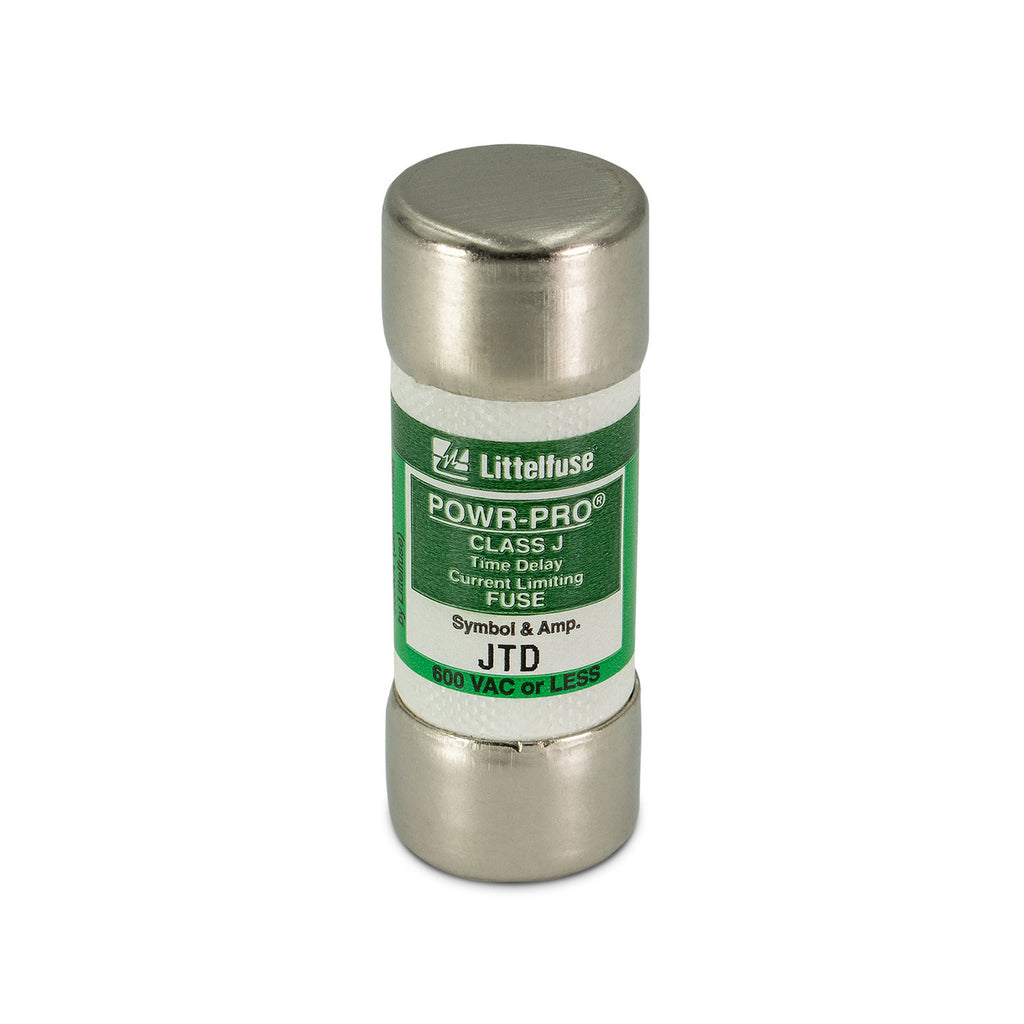

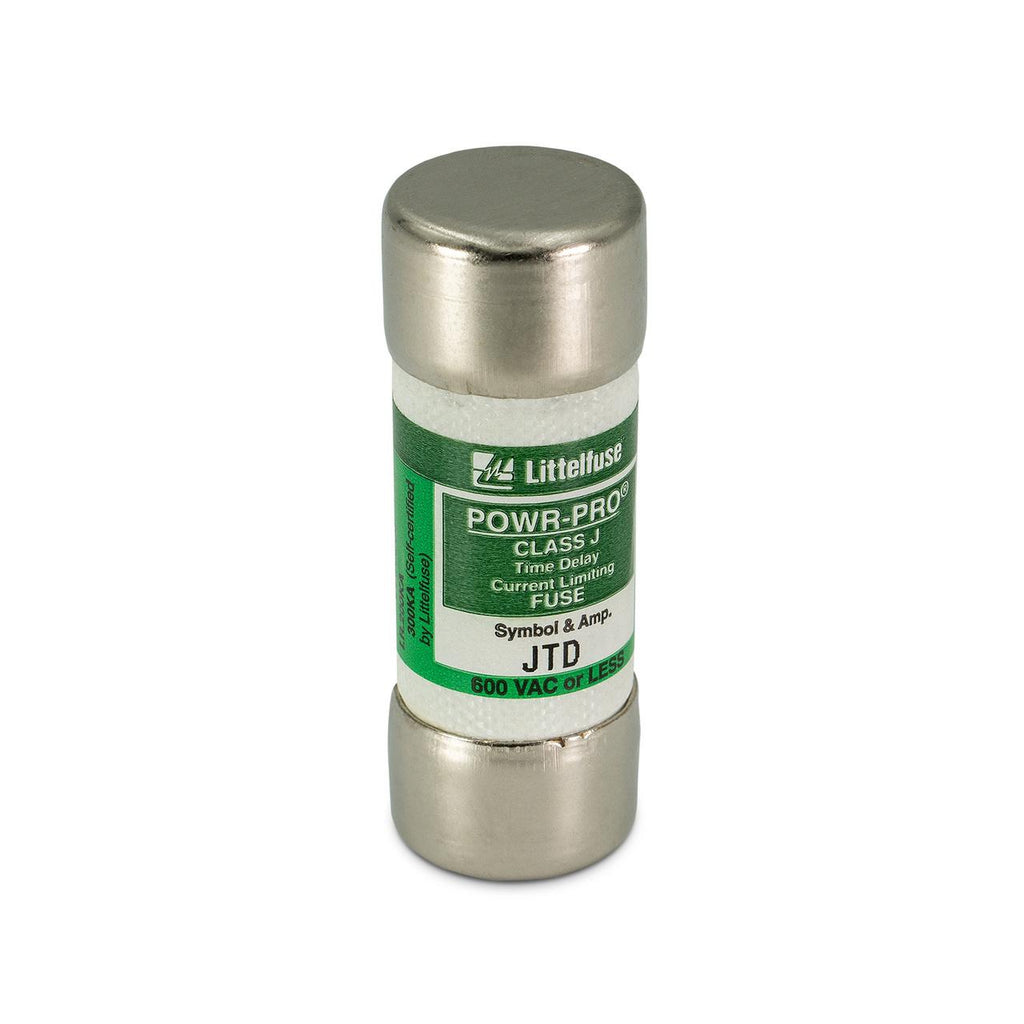

JTD-030 is a Littelfuse Class J time delay fuse rated for 30 amps and 600 volts AC, designed for reliable circuit protection.This JTD Series fuse features a dual-element, current-limiting design with POWR-PRO® technology, providing Type 2 "No Damage" protection for motor circuits. It has a 20 kA interrupting rating at 300 VDC and 200 kA at 600 VAC, with a slow-blow/time delay opening characteristic to handle high inrush currents and reduce nuisance openings. The fuse is UL listed and CSA certified, with a cartridge-style construction measuring 13/16" diameter by 2 1/4" length.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Fuse Class: Class J
- Opening Type: Time Delay (Slo-Blo)
- Element: Dual Element
- Dimensions: 13/16" diameter x 2 1/4" length
- Mounting Type: Cartridge Style
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
- Technology: POWR-PRO® advanced technology
- Protection Type: IEC Type 2 "No Damage"
Specifications
- Part Number: JTD-030
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458202151
- GTIN : 00079458202151
- Weight : 5.19
