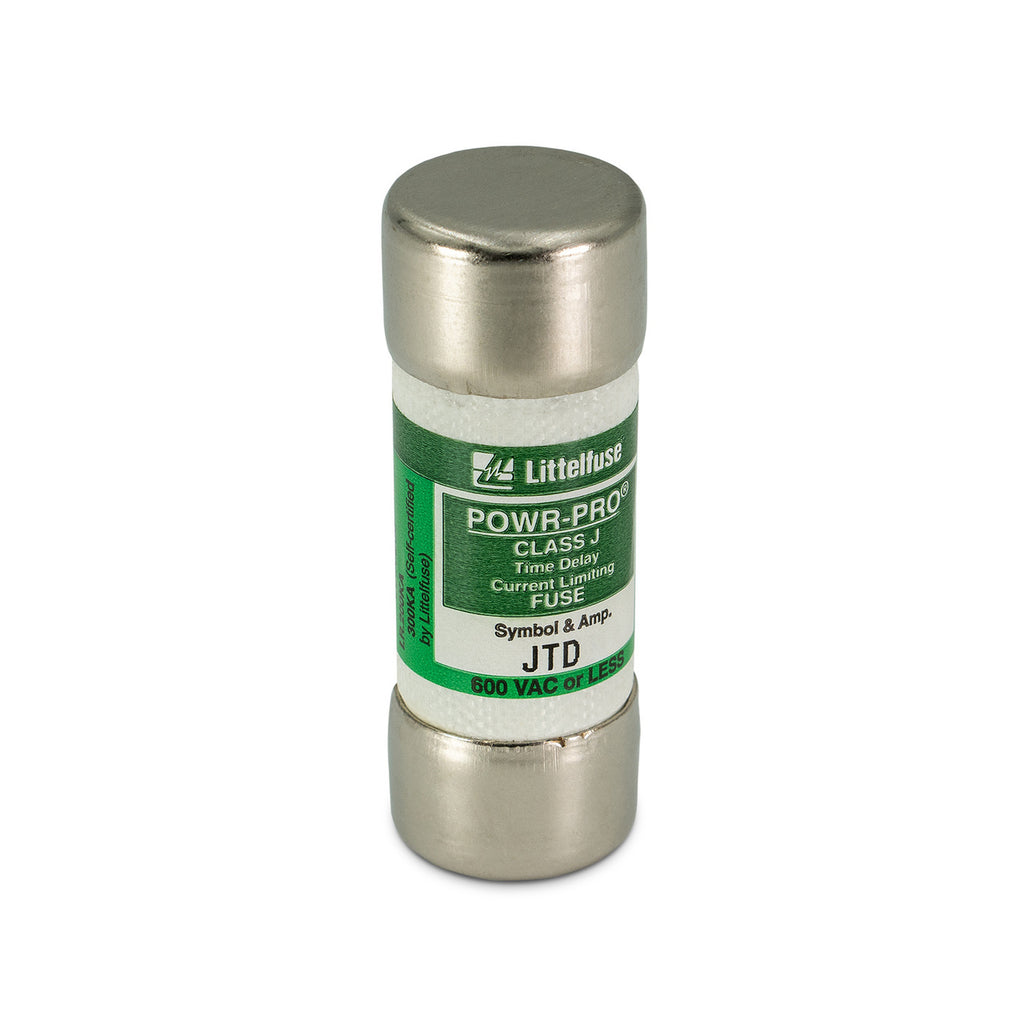

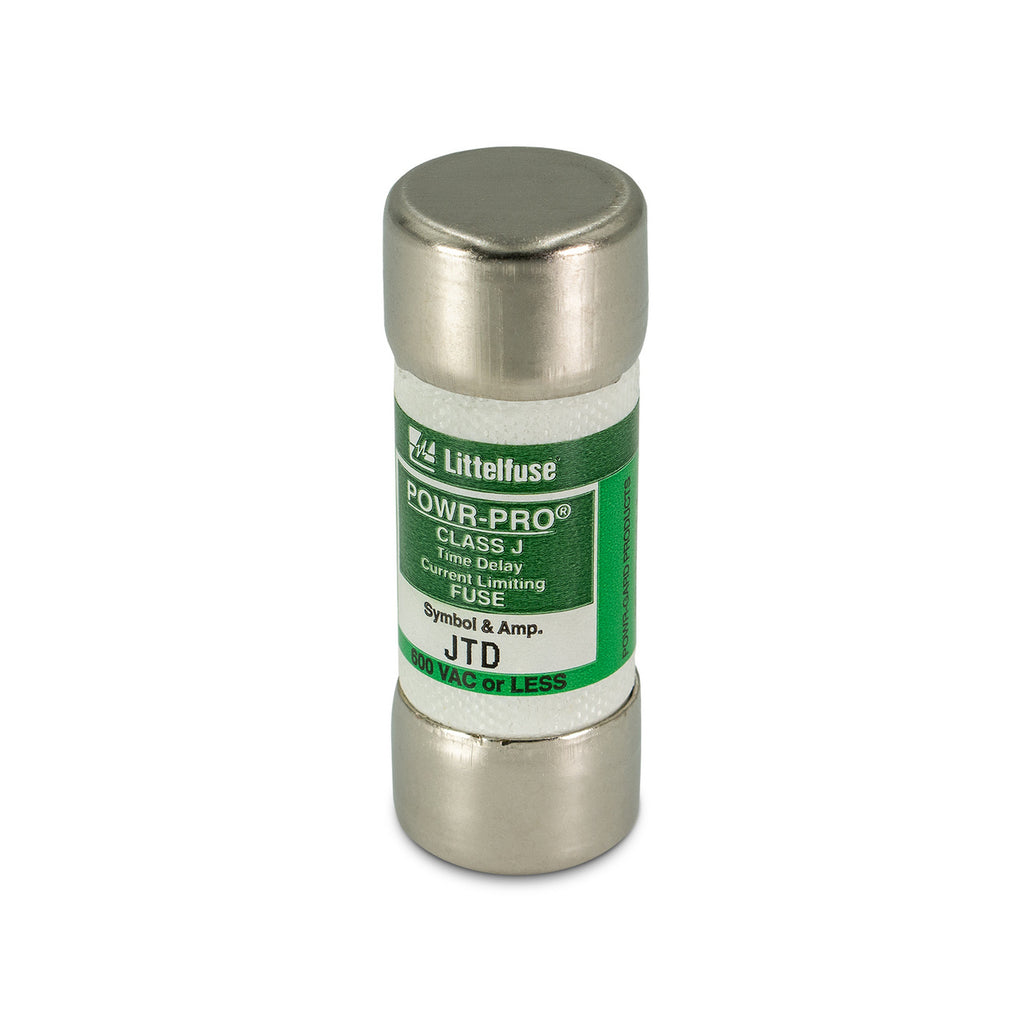

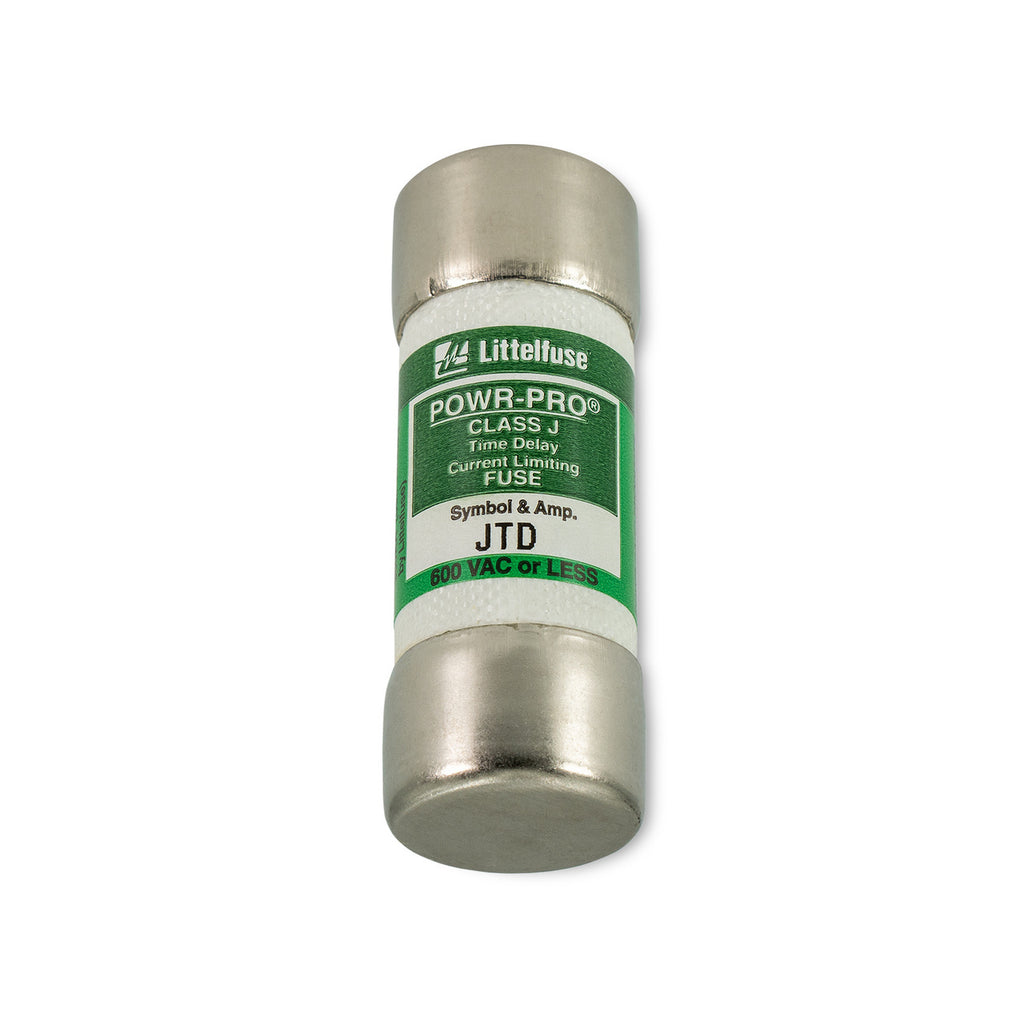

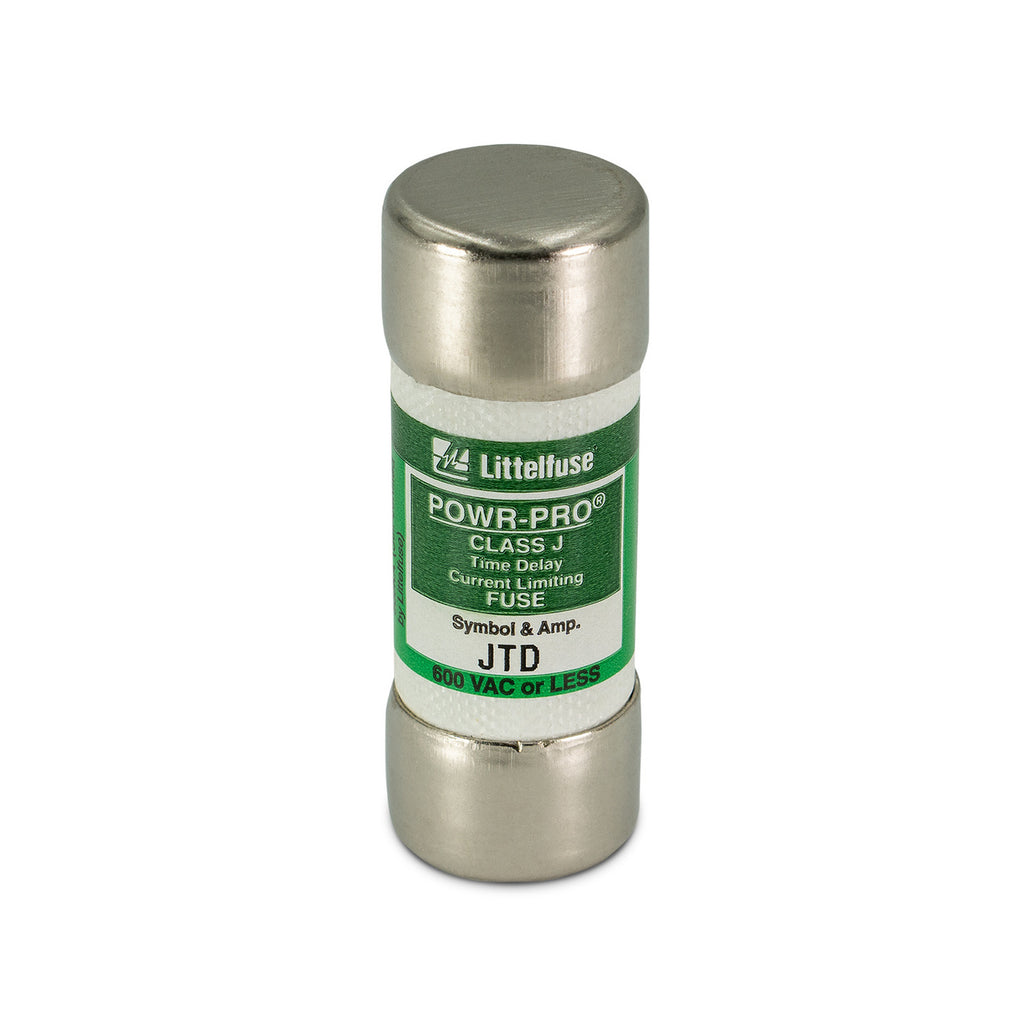

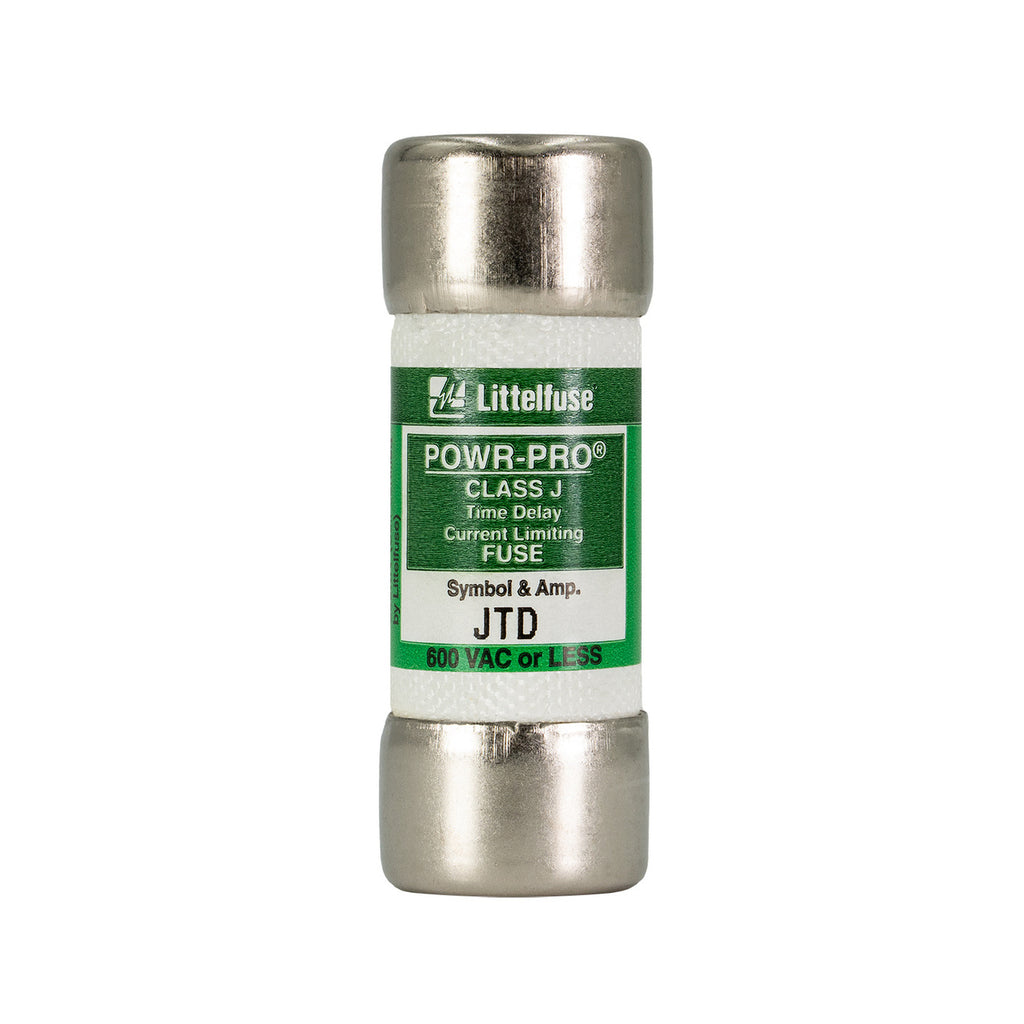

JTD-025 - Littelfuse 25 Amp 600V Class J Time Delay Fuse Dual Element

JTD-025

JTD-025 is a Littelfuse Class J time delay fuse rated for 25 amps and 600 volts AC, designed for industrial cartridge applications.This fuse features a dual-element, current-limiting design with POWR-PRO technology to reduce nuisance openings and provide Type 2 "No Damage" protection for motor circuits. It has a 600 VAC and 300 VDC voltage rating, an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, and meets UL 248-8 Class J standards. The fuse body is melamine with nickel-plated bronze end caps, offering reliable performance in compact spaces.

Key Specifications
• Amperage: 25 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Fuse Type: Class J, Time Delay (Slo-Blo)
• Element: Dual Element
• Body Material: Melamine
• End Caps: Nickel-plated Bronze
• Dimensions: 13/16" x 2 1/4"
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
• Mounting Type: Cartridge Style
• Series: JTD
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JTD-025
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse



Product Data

• UPC : 079458202144
• GTIN : 079458202144
• Weight : 0.08
