Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-012ID

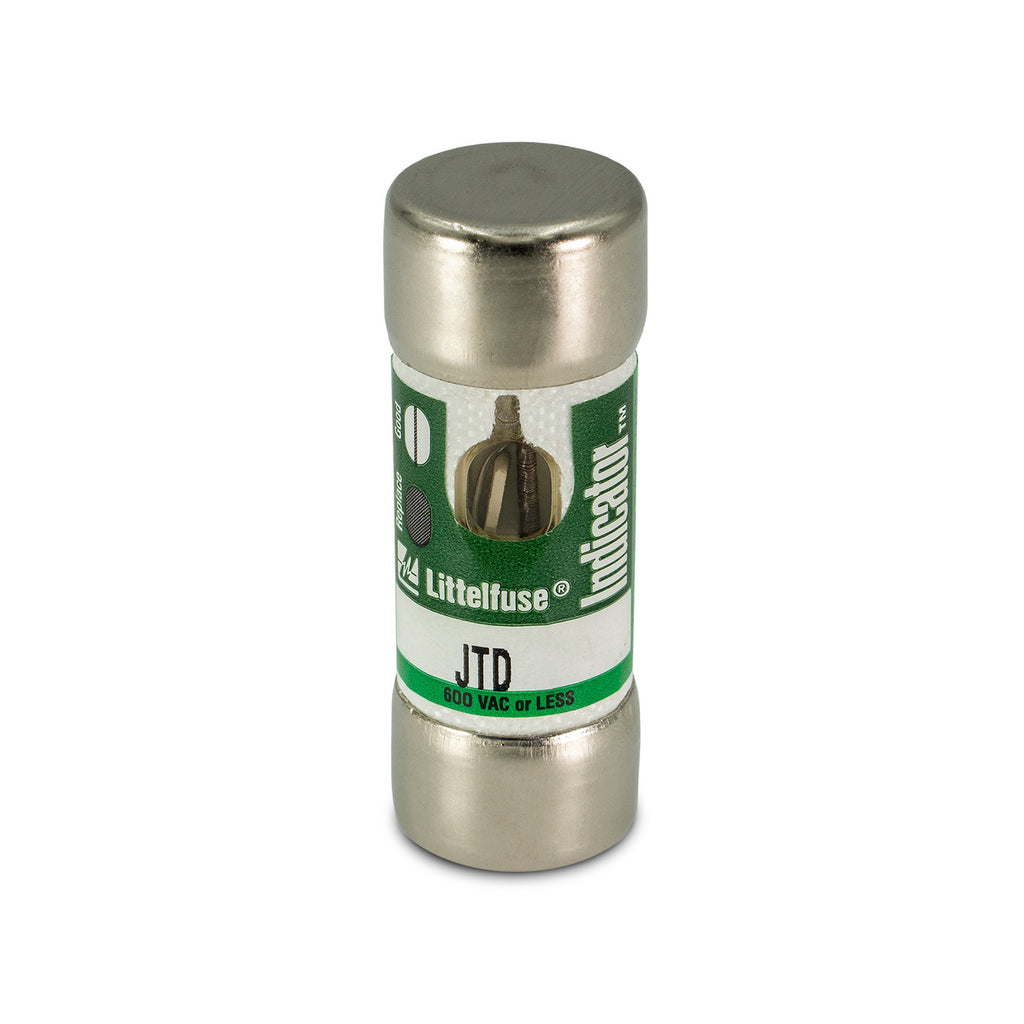

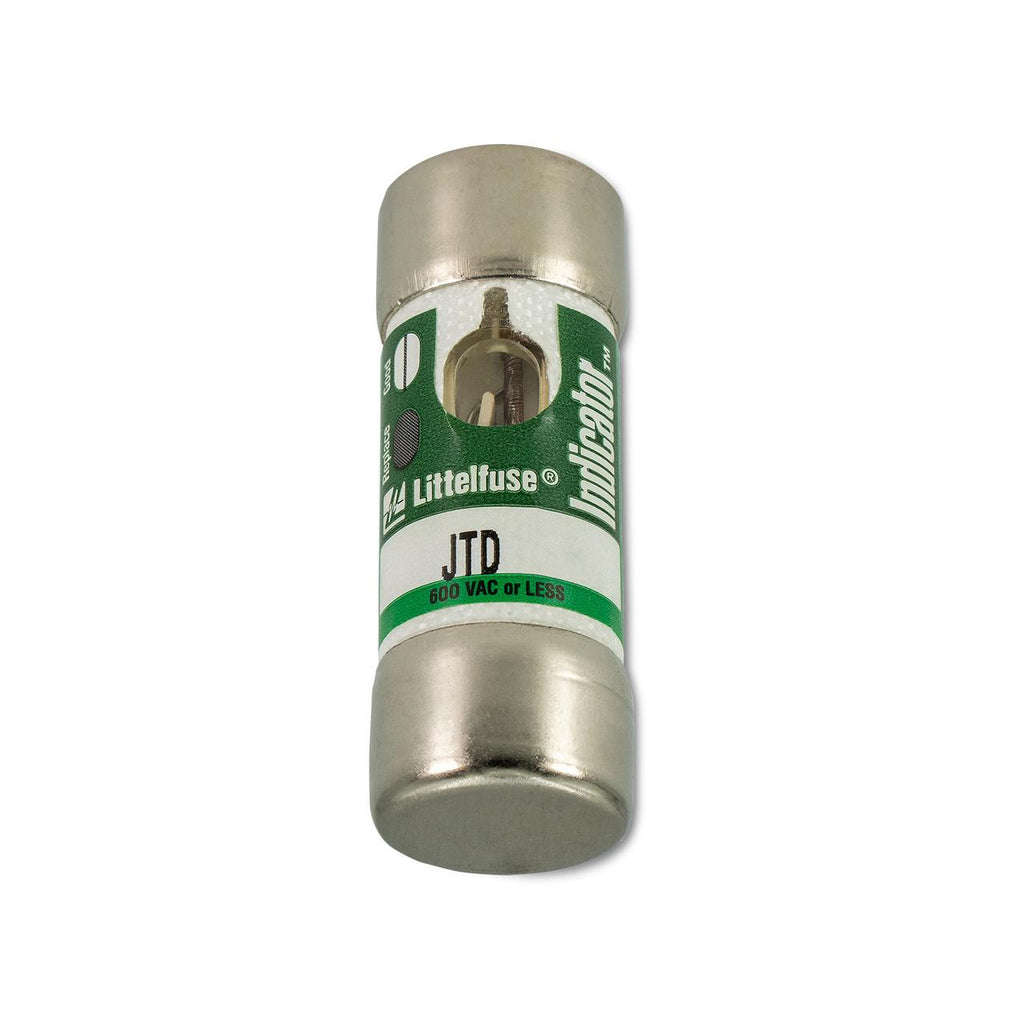

JTD-012ID is a Littelfuse Class J time delay fuse with an indicator, designed for industrial cartridge applications.This fuse features a 12 Amp current rating, voltage ratings of 600VAC and 300VDC, and a high interrupting rating of 200kA at 600VAC. It provides Type 2 "No Damage" protection and is UL 248-8 and CSA certified. The fuse body is melamine with nickel-plated bronze caps, sized 13/16" diameter by 2-1/4" length, suitable for use in Powr-Pro fuse holders.
- Key Specifications
- Amperage: 12 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA at 600 VAC
- Fuse Type: Class J, Time Delay, Indicator
- Size: 13/16" diameter x 2-1/4" length
- Body Material: Melamine
- Cap Material: Nickel-plated Bronze
- Standards: UL 248-8, CSA Certified
- Mounting: Industrial Cartridge
- Series: JTD_ID
- Part Number: JTD-012ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- UPC : 7945802596
- Weight : 0.08
