Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
JTD-009ID

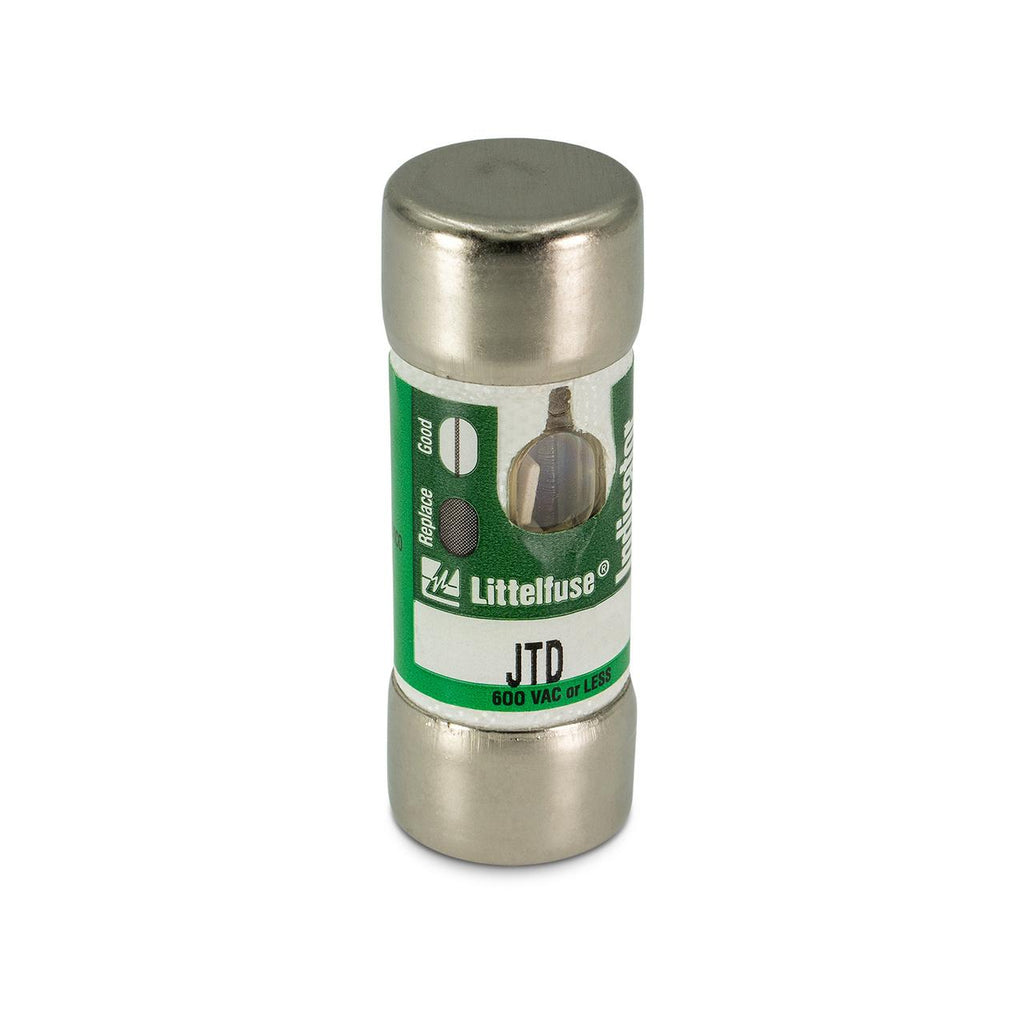

JTD-009ID is a 9 Amp, 600 Volt AC Class J time delay fuse with an indicator for visual blown fuse identification.This Littelfuse JTD-009ID fuse features dual-element construction for time-delay protection, current limiting capability, and a compact cartridge design measuring 13/16" diameter by 2-1/4" length. It has a 200,000 AIC interrupt rating at 600 VAC and 20,000 AIC at 300 VDC, meeting UL 248-8 and CSA certifications. The fuse provides Type 2 "No Damage" protection for motor circuits and helps reduce nuisance openings with POWR-PRO advanced technology.
- Key Specifications
- Amperage: 9 Amps
- Voltage: 600 VAC, 300 VDC
- Fuse Type: Class J, Time Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Indicator: Visual blown fuse indicator included
- Dimensions: 13/16" diameter x 2-1/4" length
- Terminal Connection: Ferrule type
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Mounting: Cartridge style
- Standards: UL 248-8, IEC Type 2 Protection
Specifications
- Part Number: JTD-009ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- UPC : 007945802584
- GTIN : 00079458025842
- Weight : 0.08
