Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-005ID

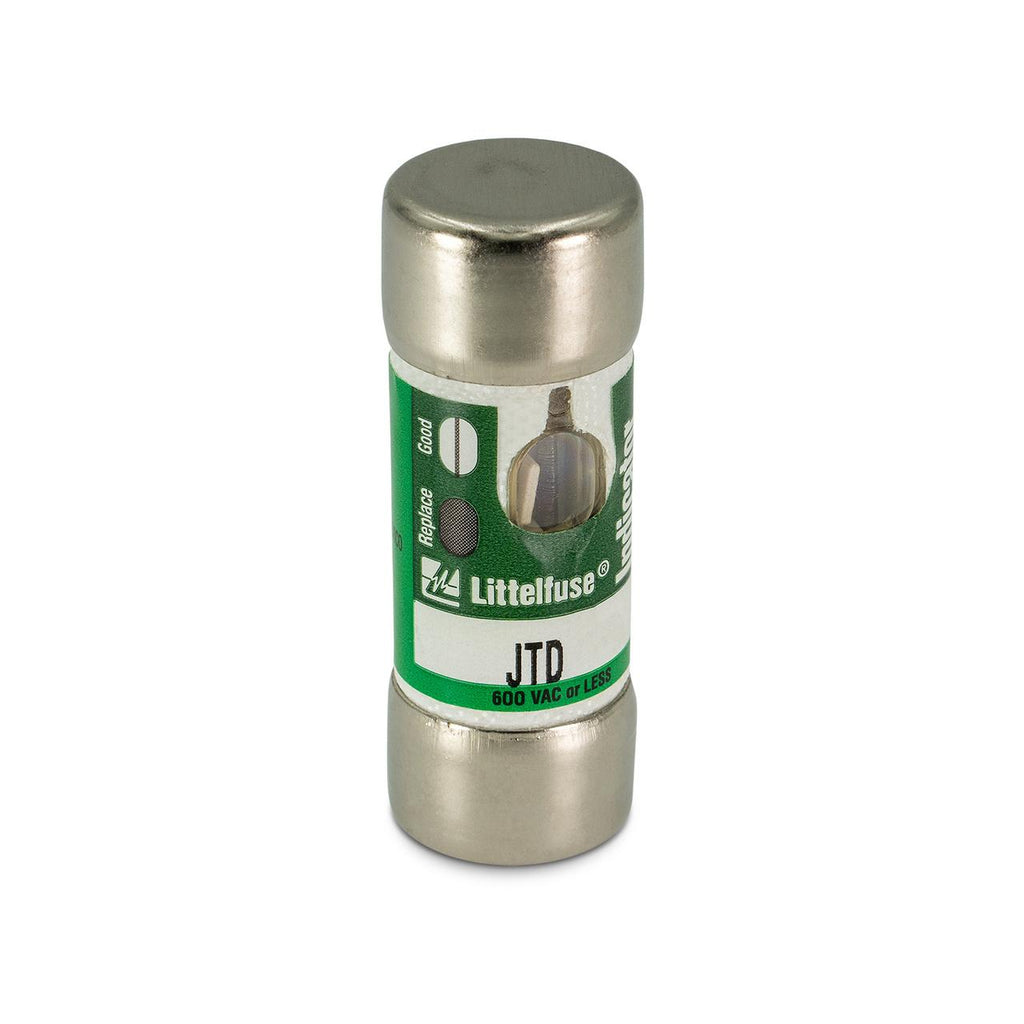

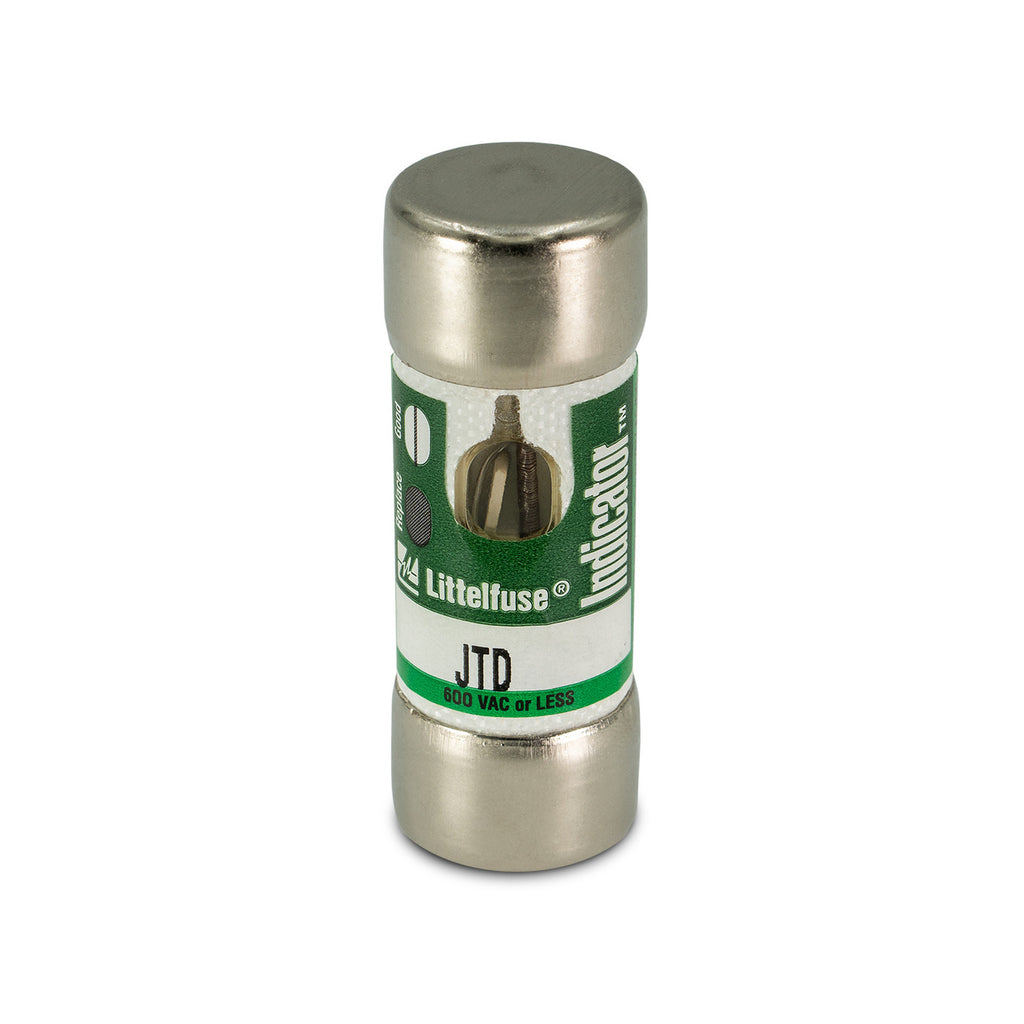

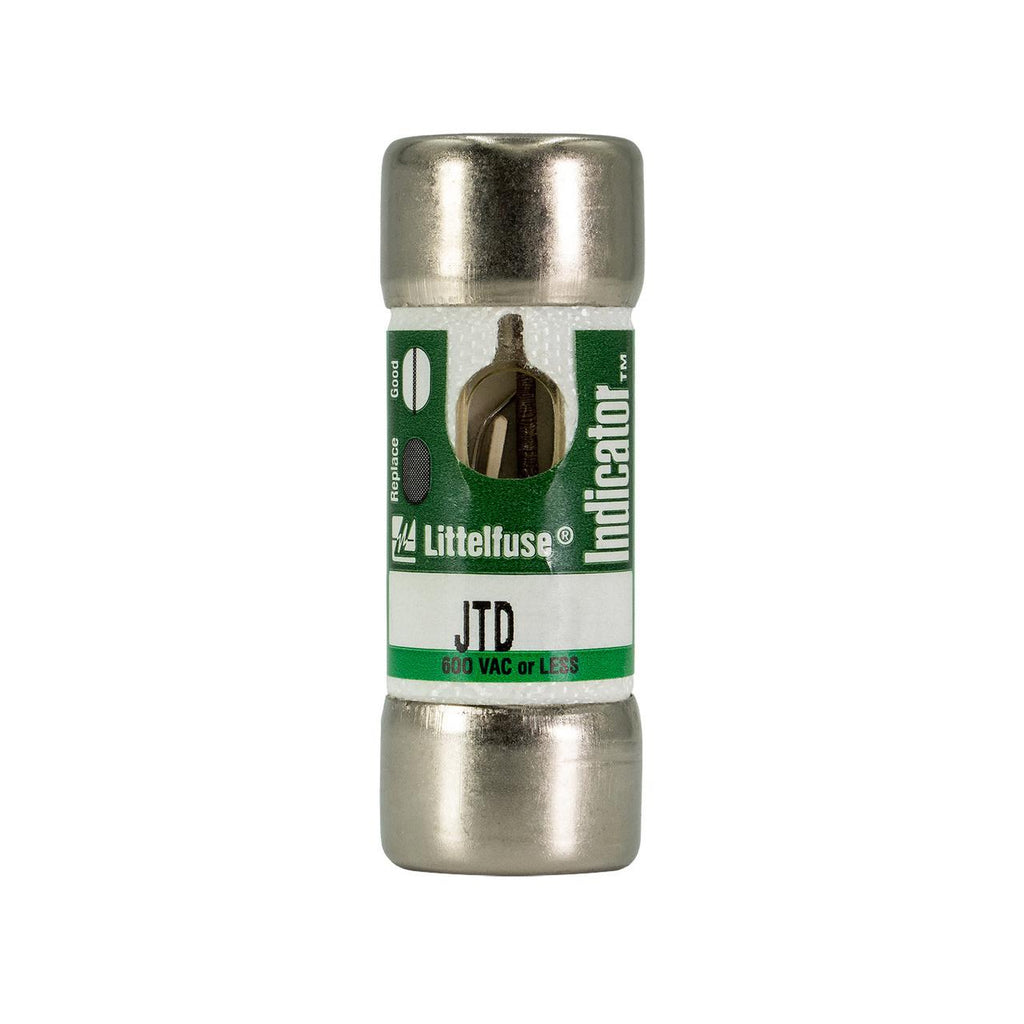

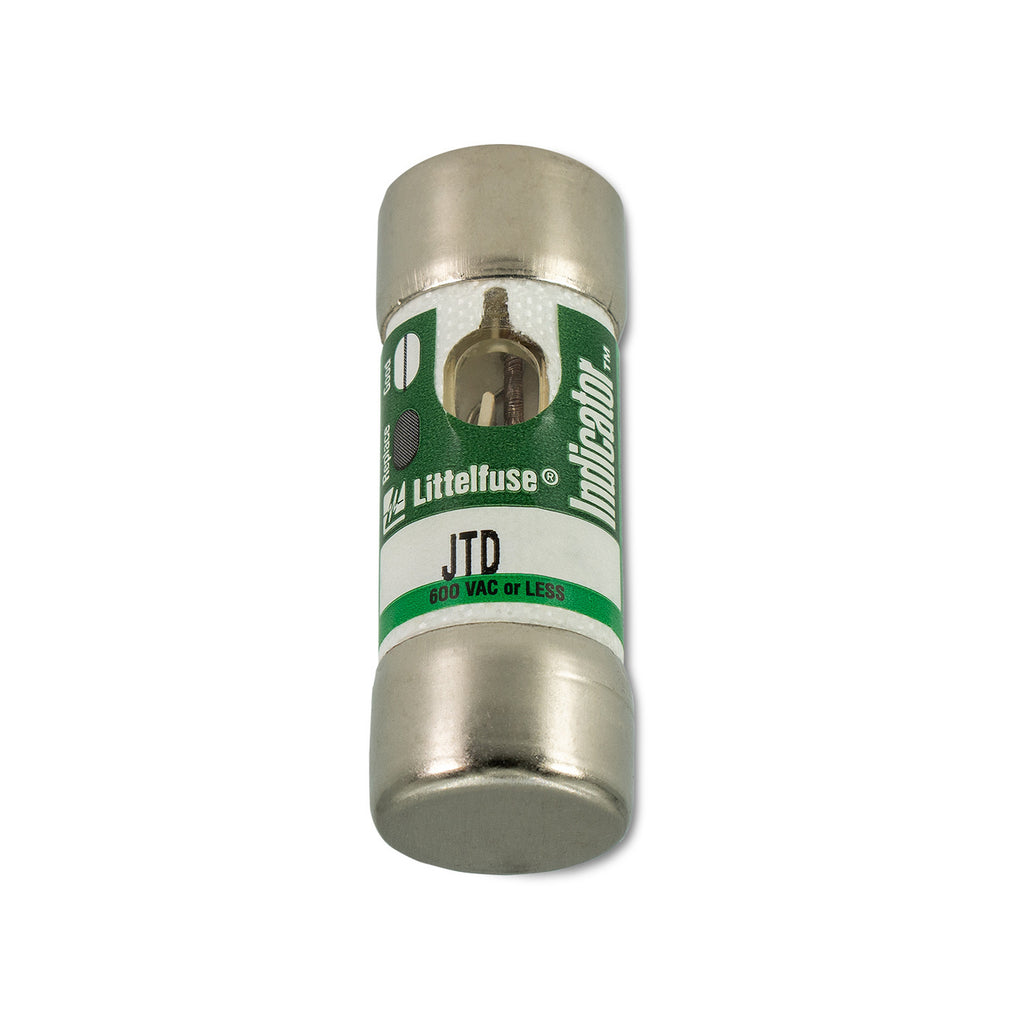

JTD-005ID is a Littelfuse Class J time delay fuse rated for 5 amps and 600VAC/300VDC operation with an indicator feature.This fuse provides reliable overcurrent protection with a cartridge-style construction and a high interrupting rating of 200,000 amps AC RMS symmetrical and 20,000 amps DC. It is UL 248-8 and CSA certified, designed for industrial and commercial electrical applications requiring Class J fuse performance.
- Amperage: 5 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Poles: 1 (single pole)
- Fuse Type: Time Delay, Indicator
- Interrupting Rating: 200 kA AC / 20 kA DC
- Series: JTD_ID Class J
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified
- Body Material: Melamine
- Caps: Nickel-plated Bronze
- Dimensions: 13/16 inch diameter, 2-1/4 inch length
Specifications
- Part Number: JTD-005ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 07945802579
- Weight : 0.08
