Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-005

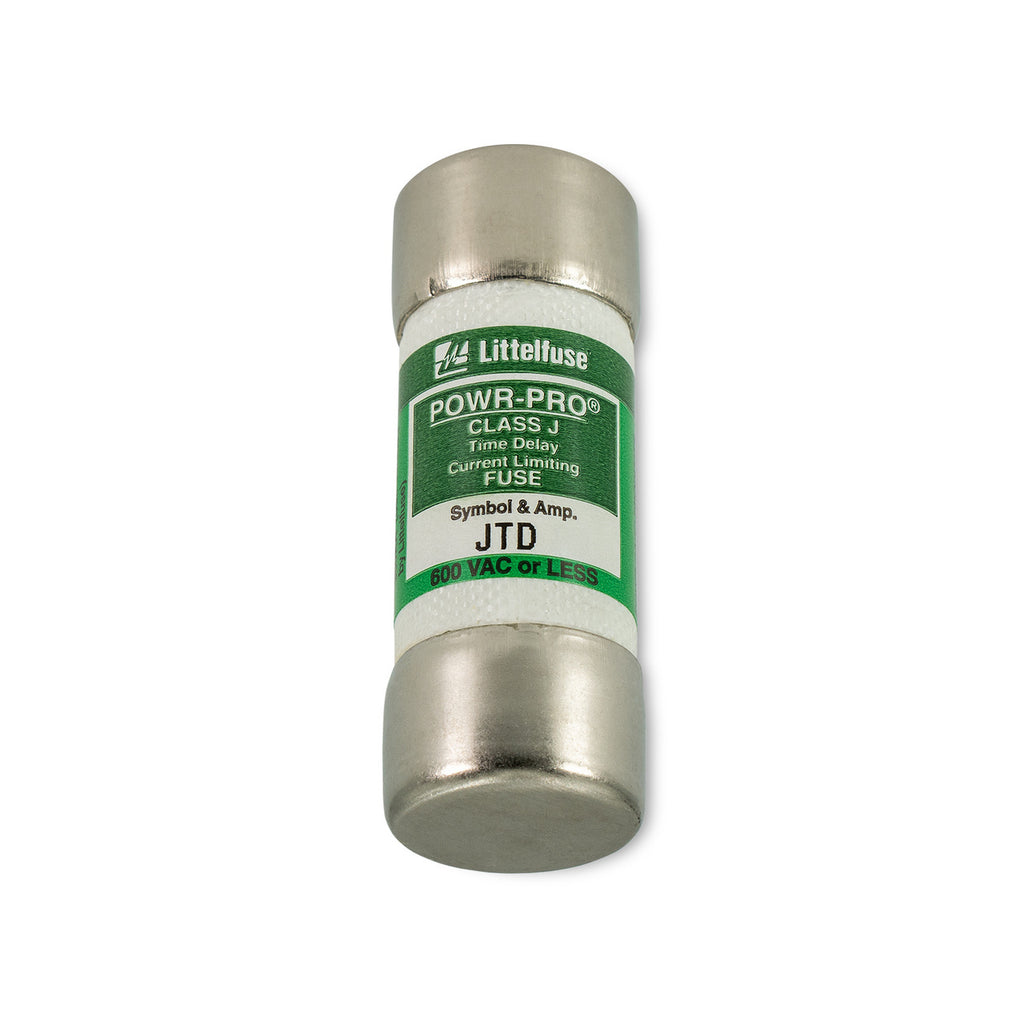

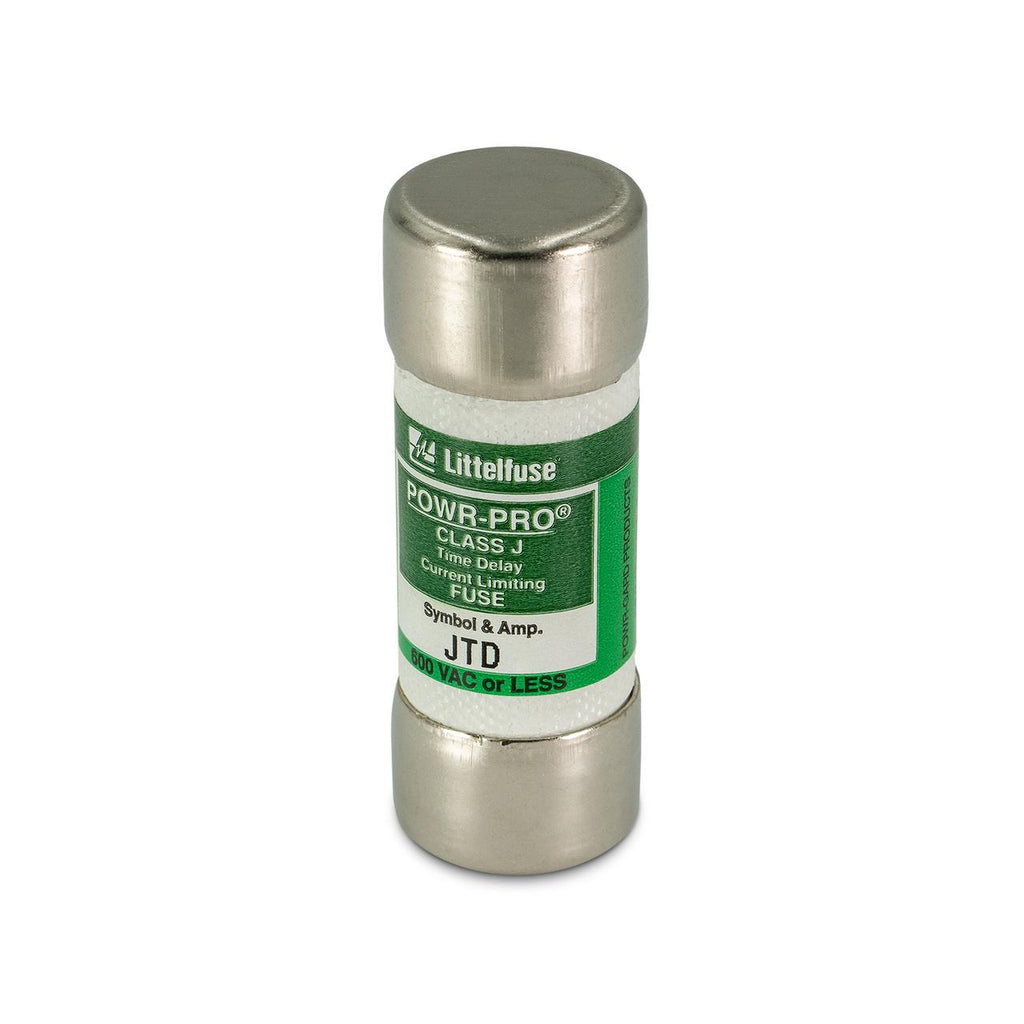

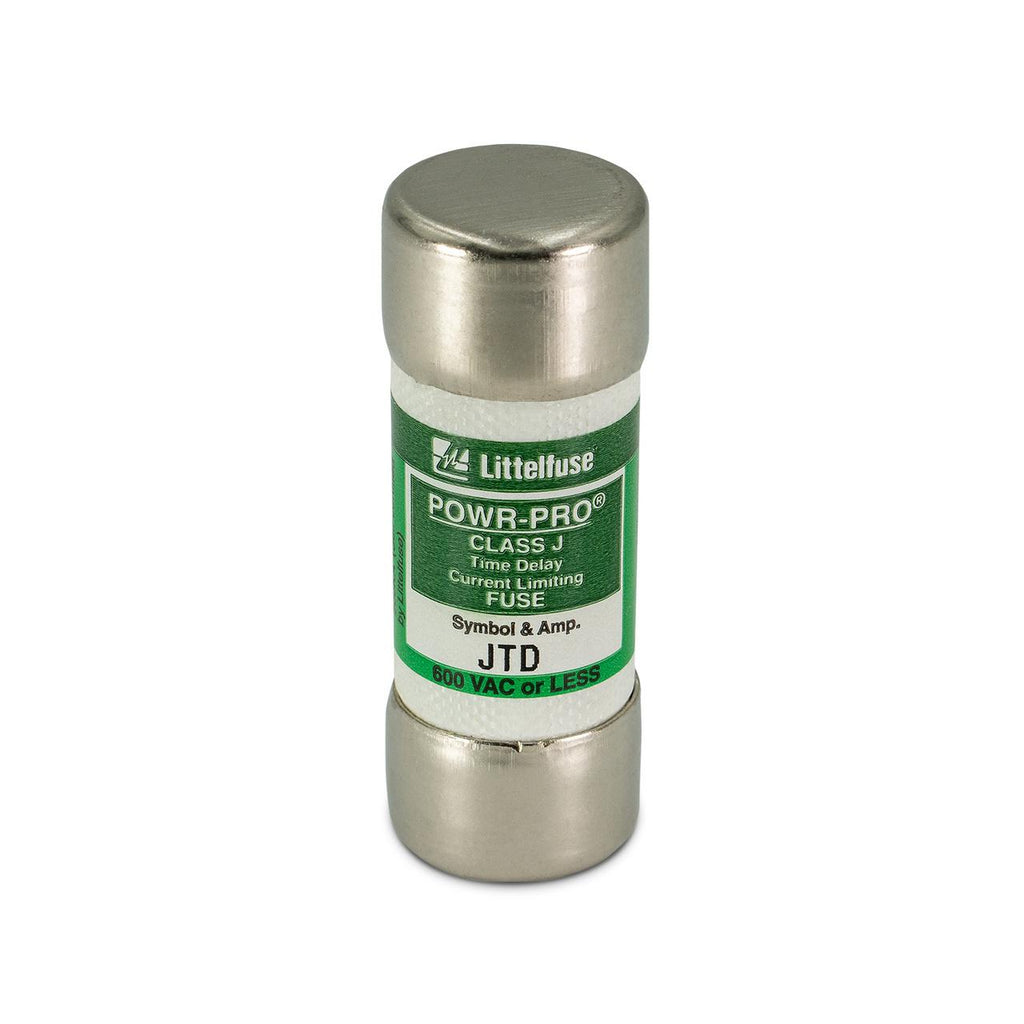

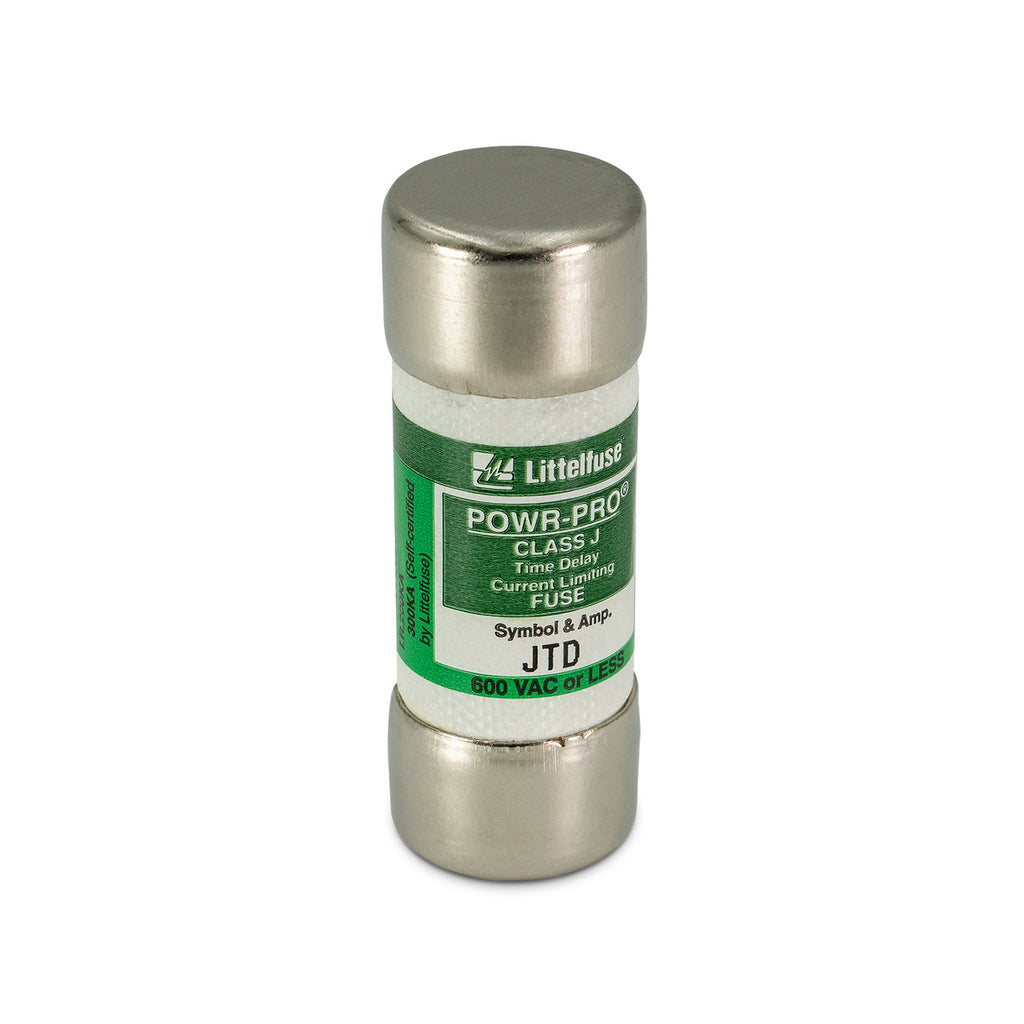

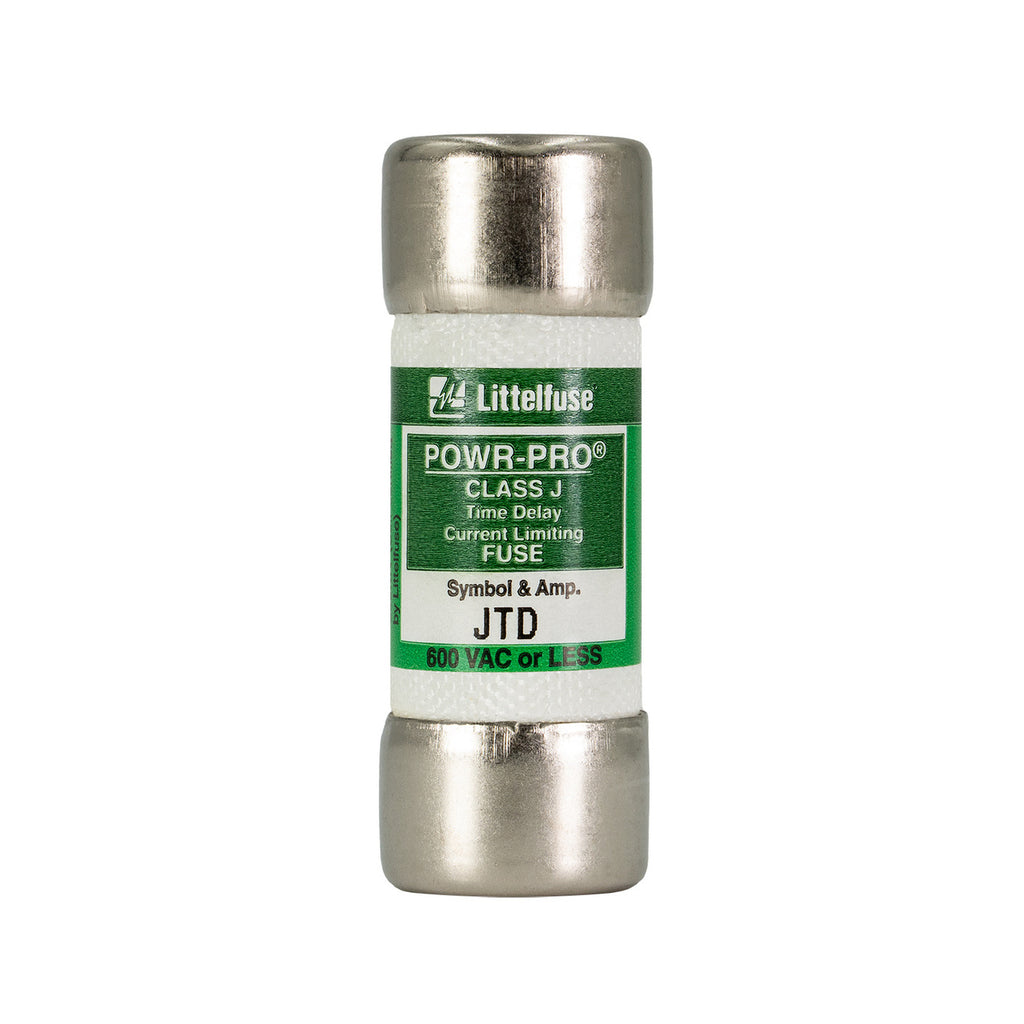

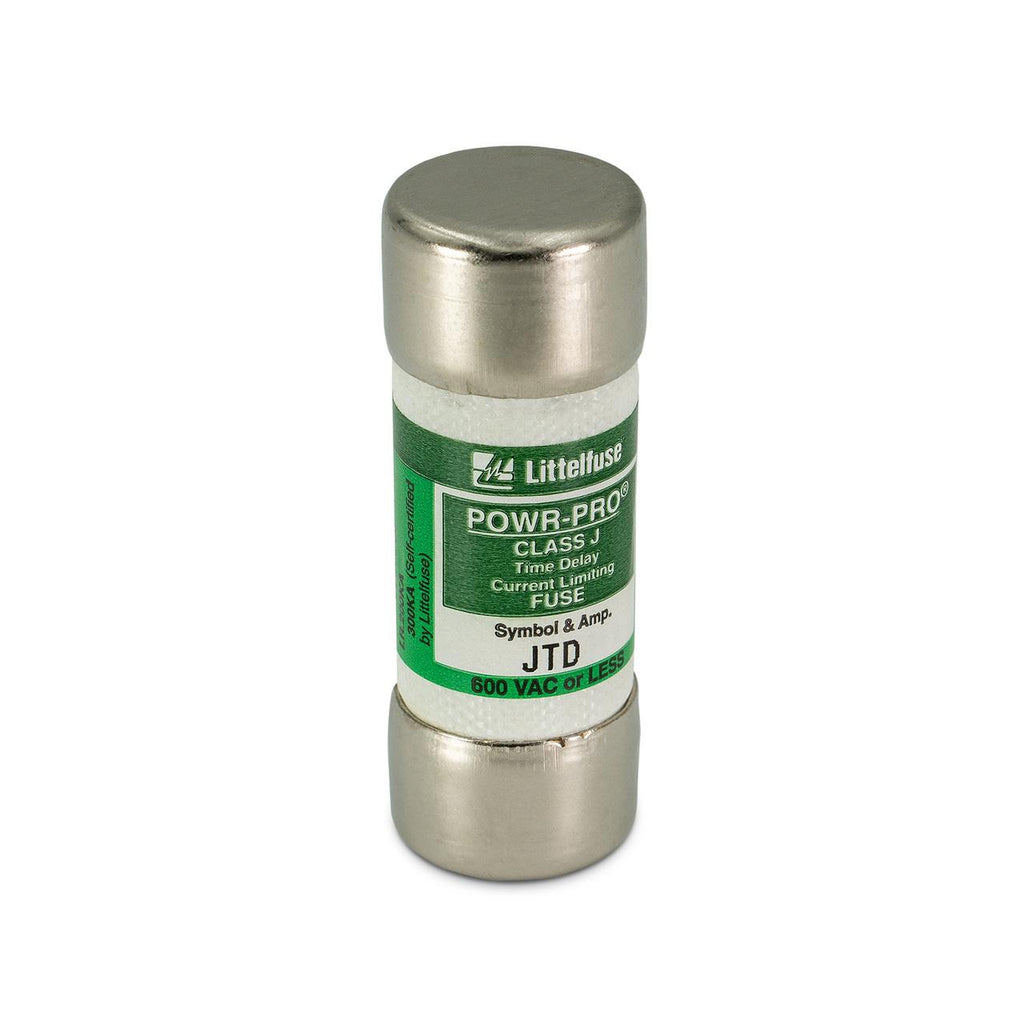

JTD-005 is a Littelfuse Class J time delay fuse rated for 5 amperes and 600 volts AC, designed for reliable circuit protection.This fuse features a dual element design providing current limiting and time delay characteristics, suitable for protecting motors and other inductive loads. It has a cylindrical melamine body, is rated for 600 V AC and 300 V DC, and offers a high interrupting rating of 200 kA AC and 20 kA DC. The JTD-005 complies with UL 248-8 standards and is UL and CSA certified.
- Key Specifications
- Amperage: 5 A
- Voltage Rating: 600 V AC, 300 V DC
- Class: J
- Fuse Type: Time Delay, Dual Element
- Interrupting Rating: 200 kA AC, 20 kA DC
- Body Material: Melamine
- Dimensions: 2.25" length x 0.81" diameter
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified
- Standards: UL 248-8
Specifications
- Part Number: JTD-005
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 7945802579
- Weight : 0.08
