JTD-003 - Littelfuse 3 Amp 600V Class J Time Delay Fuse Dual Element

JTD-003

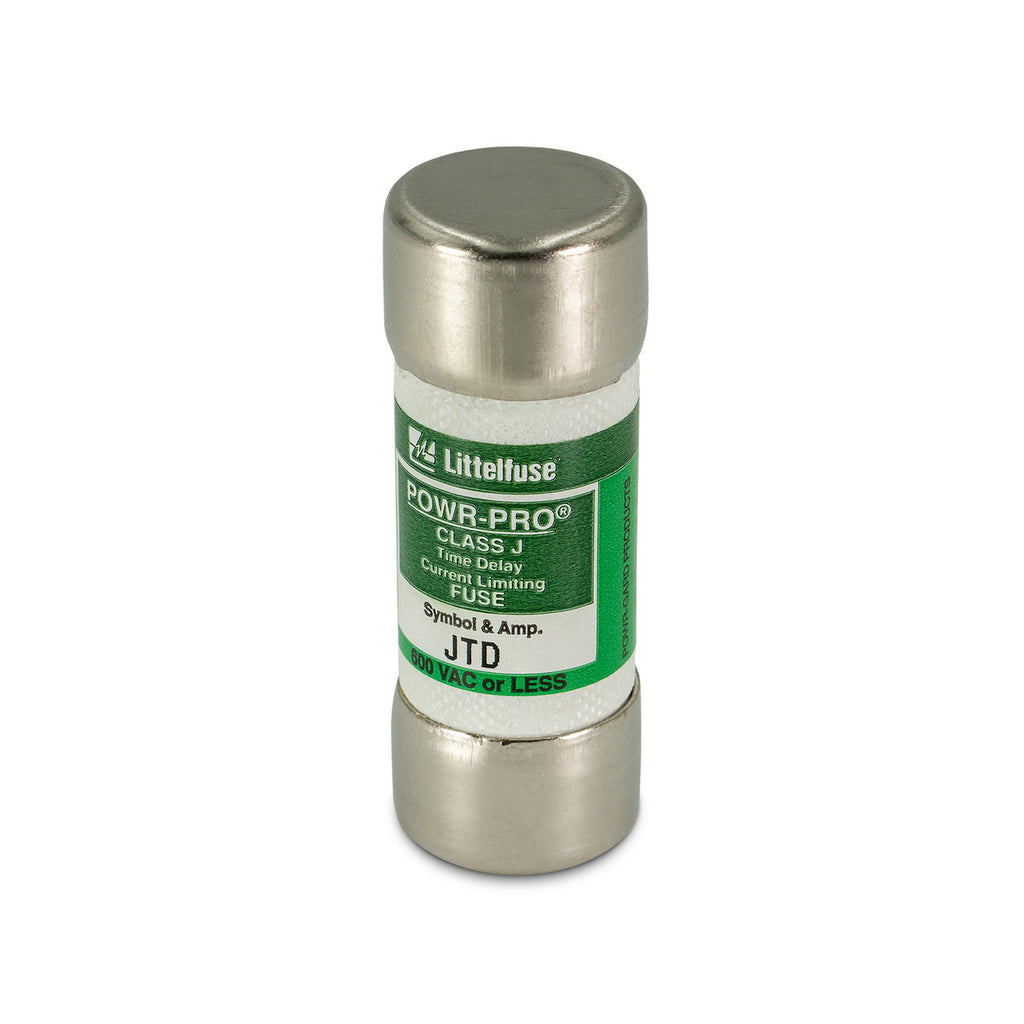

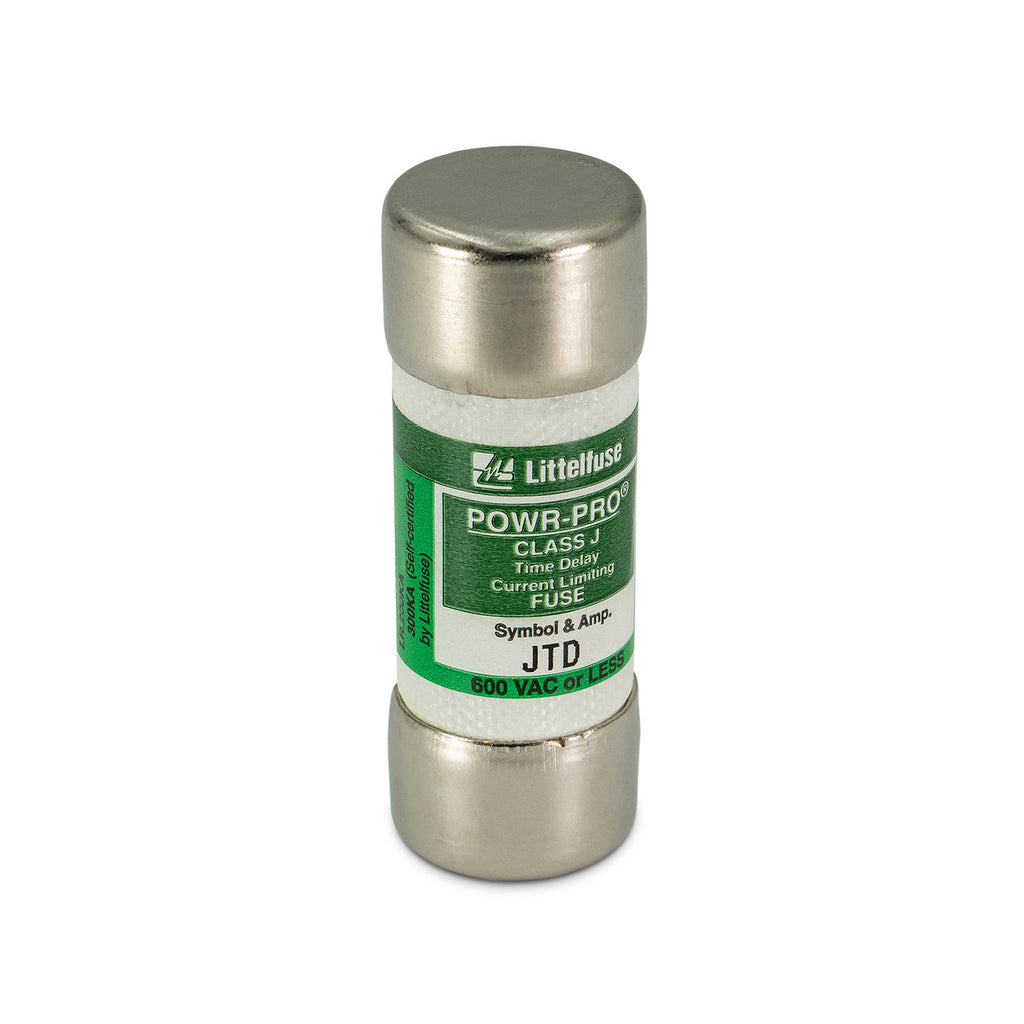

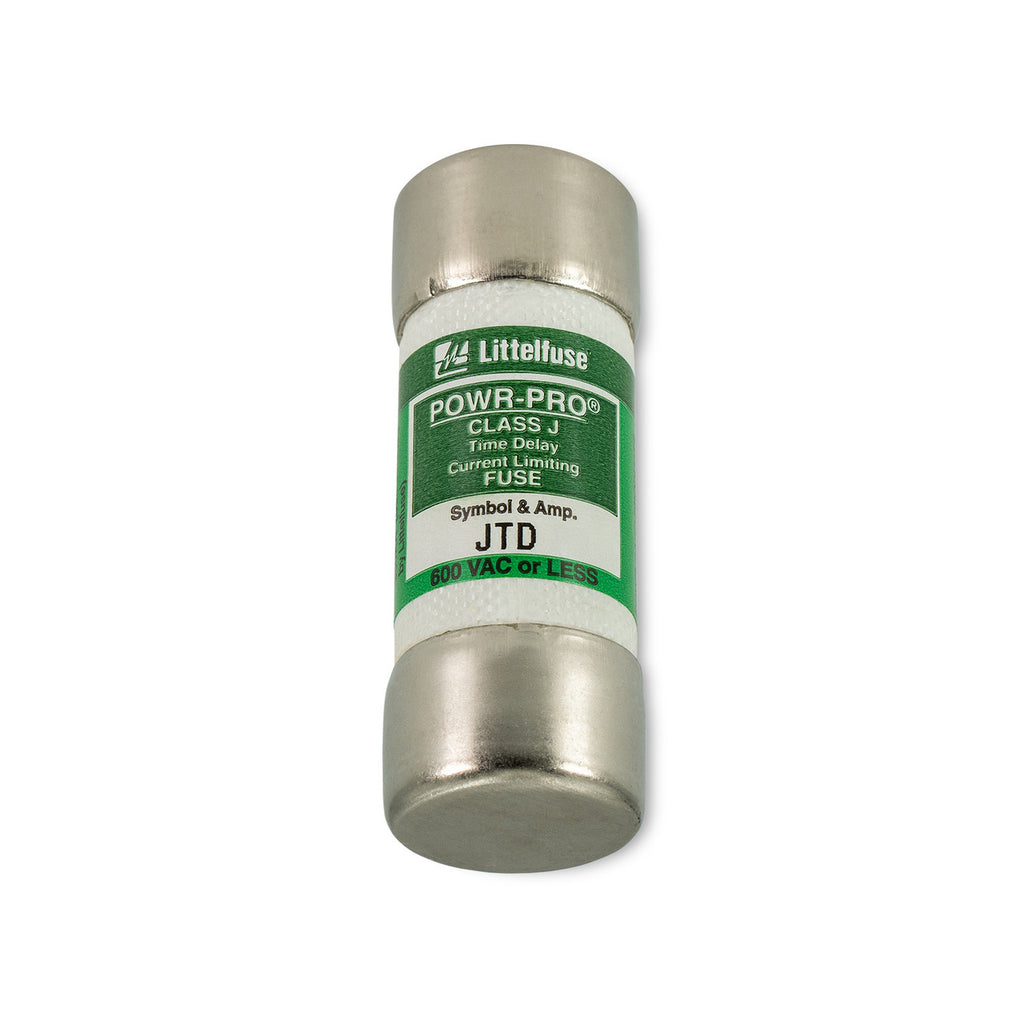

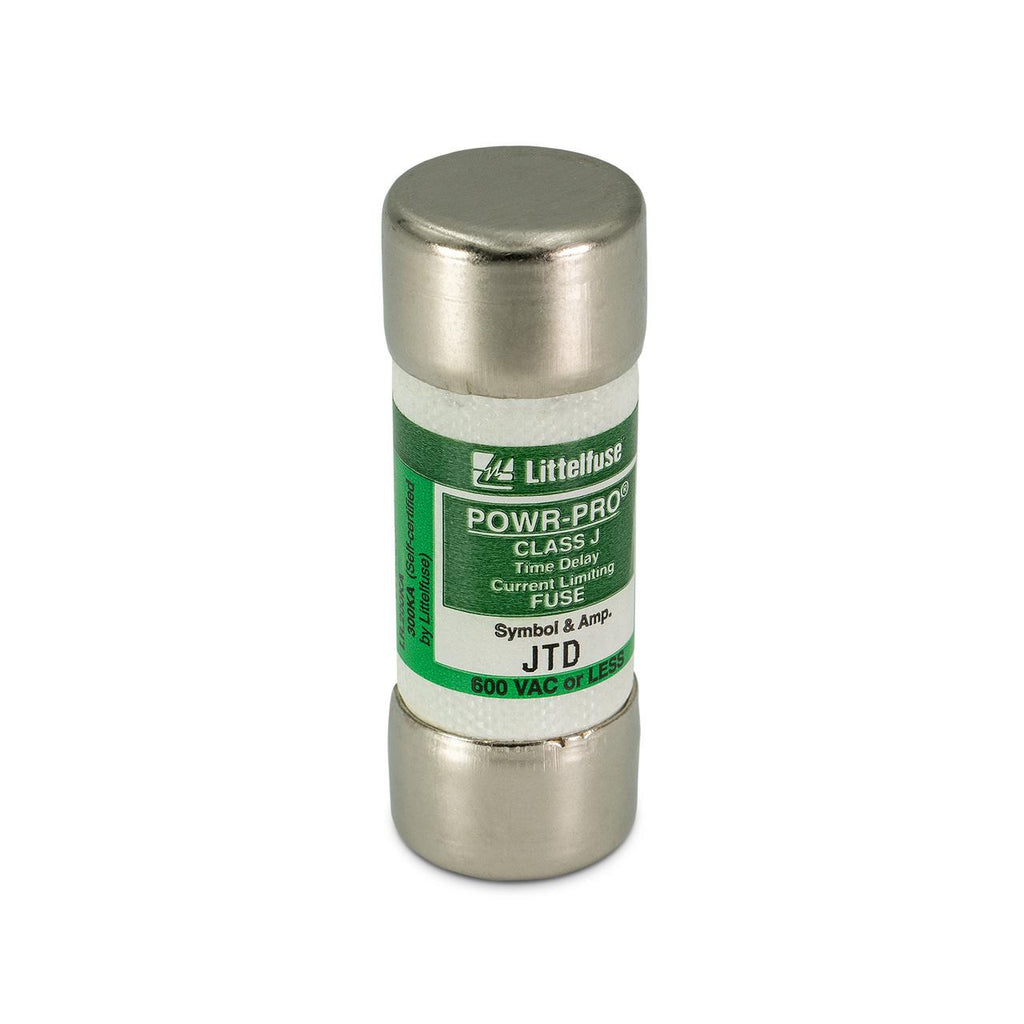

JTD-003 is a Littelfuse Class J time delay fuse rated for 3 amps and 600 volts AC, designed for reliable overcurrent protection.This dual-element, time-delay fuse features a cartridge-style body measuring 13/16" diameter by 2 1/4" length, offering current limiting and IEC Type 2 protection. It has an interrupt rating of 200,000 AIC at 600VAC and 20,000 AIC at 300V DC. The fuse is UL Listed (File: E81895) and CSA Certified (File: LR29862), suitable for industrial applications requiring high inrush current tolerance.

Key Specifications
• Amperage: 3 Amps
• Voltage Rating: 600V AC, 300V DC
• Fuse Class: J (UL 248-8)
• Time Delay, Dual Element
• Interrupt Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 300V DC
• Physical Size: 13/16" diameter x 2 1/4" length
• Current Limiting
• IEC Type 2 Protection
• UL Listed and CSA Certified
• Mounting Type: Cartridge

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD-003
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse

Product Data

• UPC : 7945802574
• Weight : 0.08
