Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-002

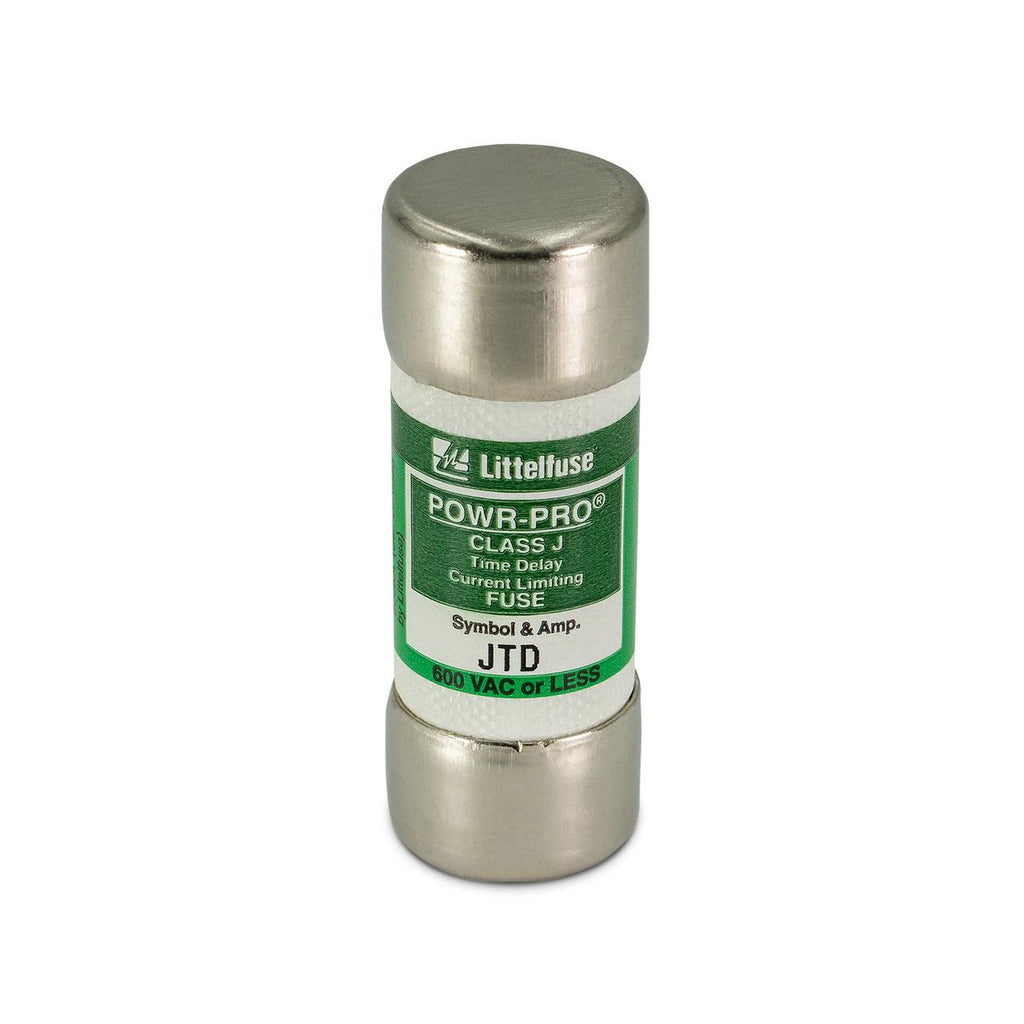

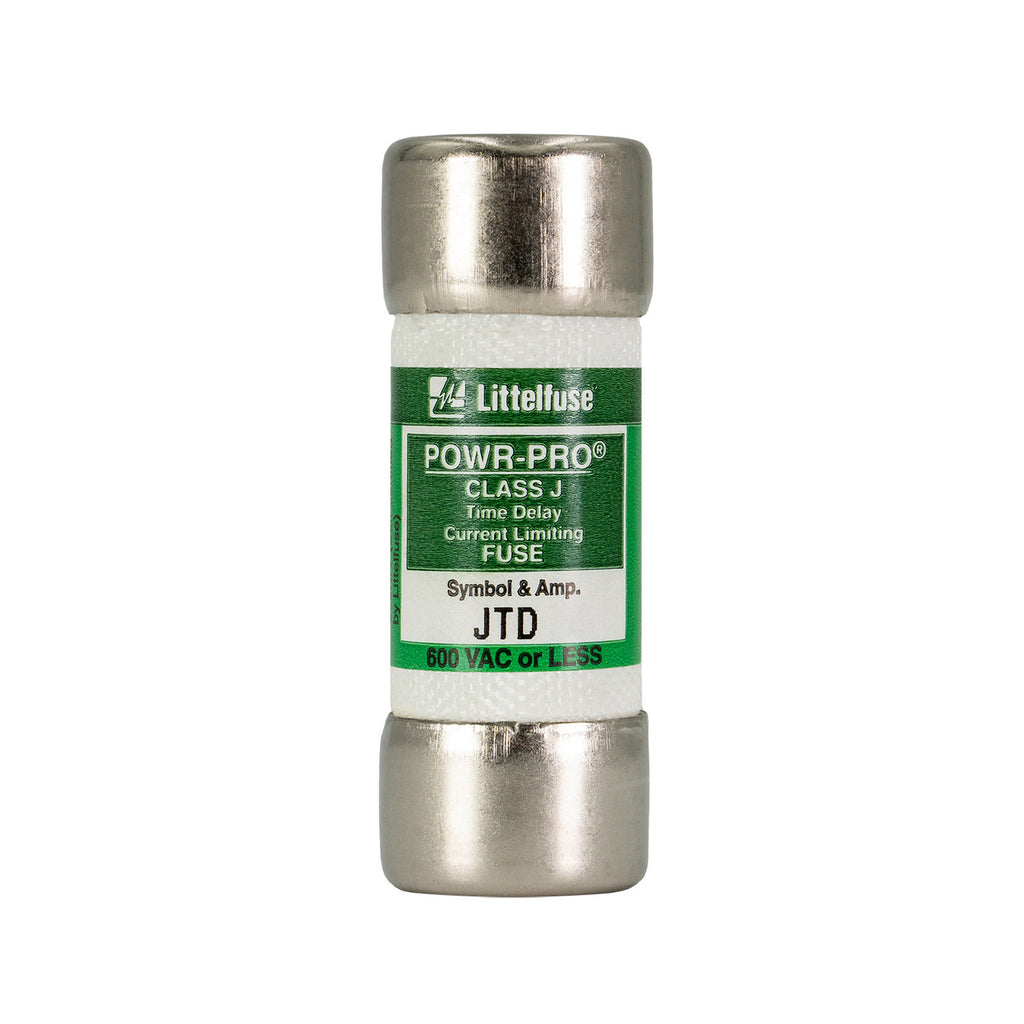

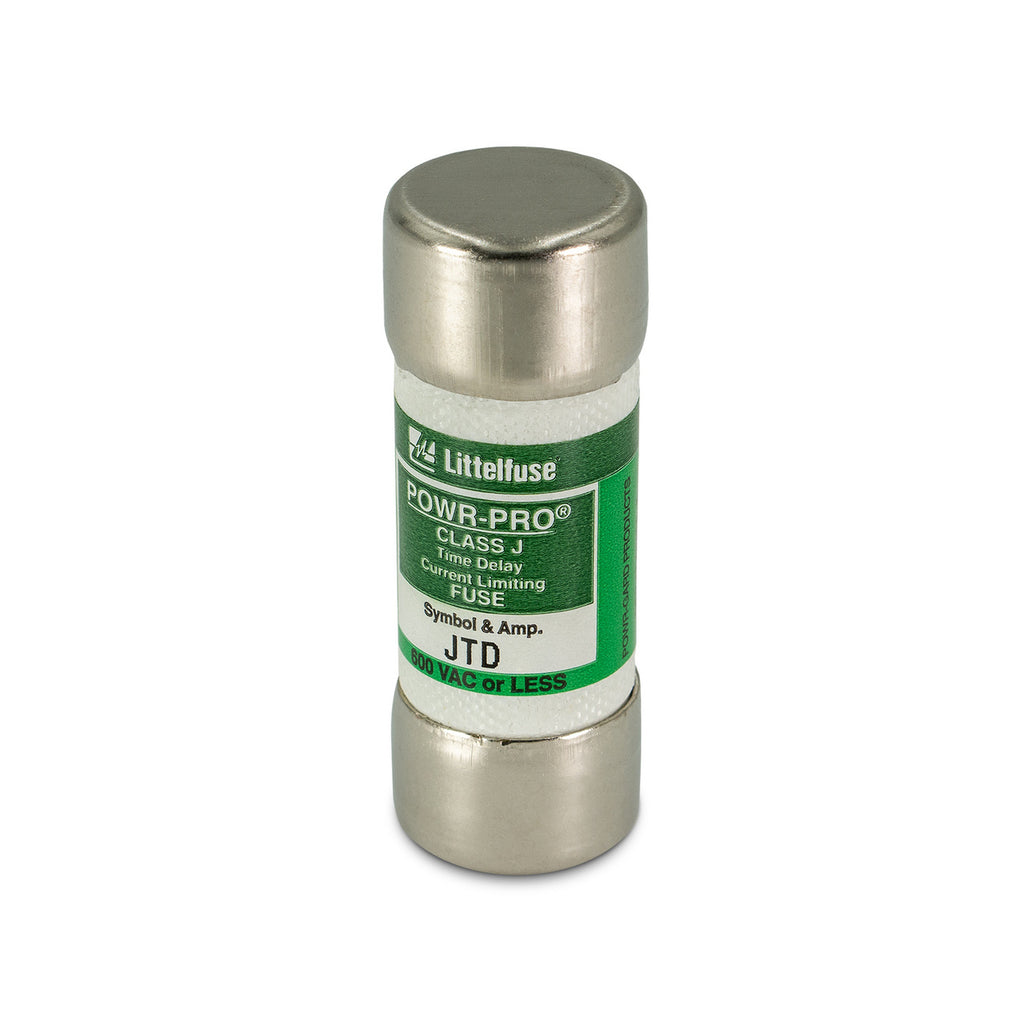

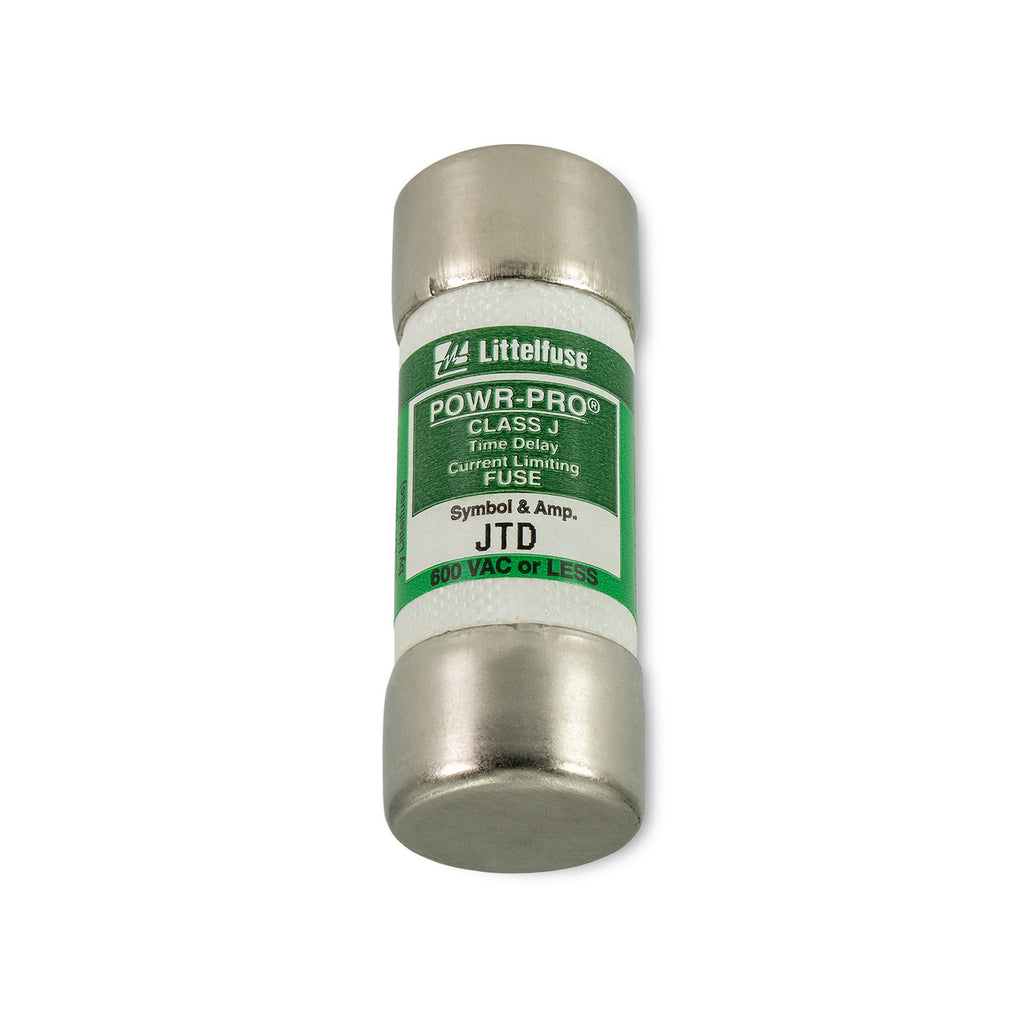

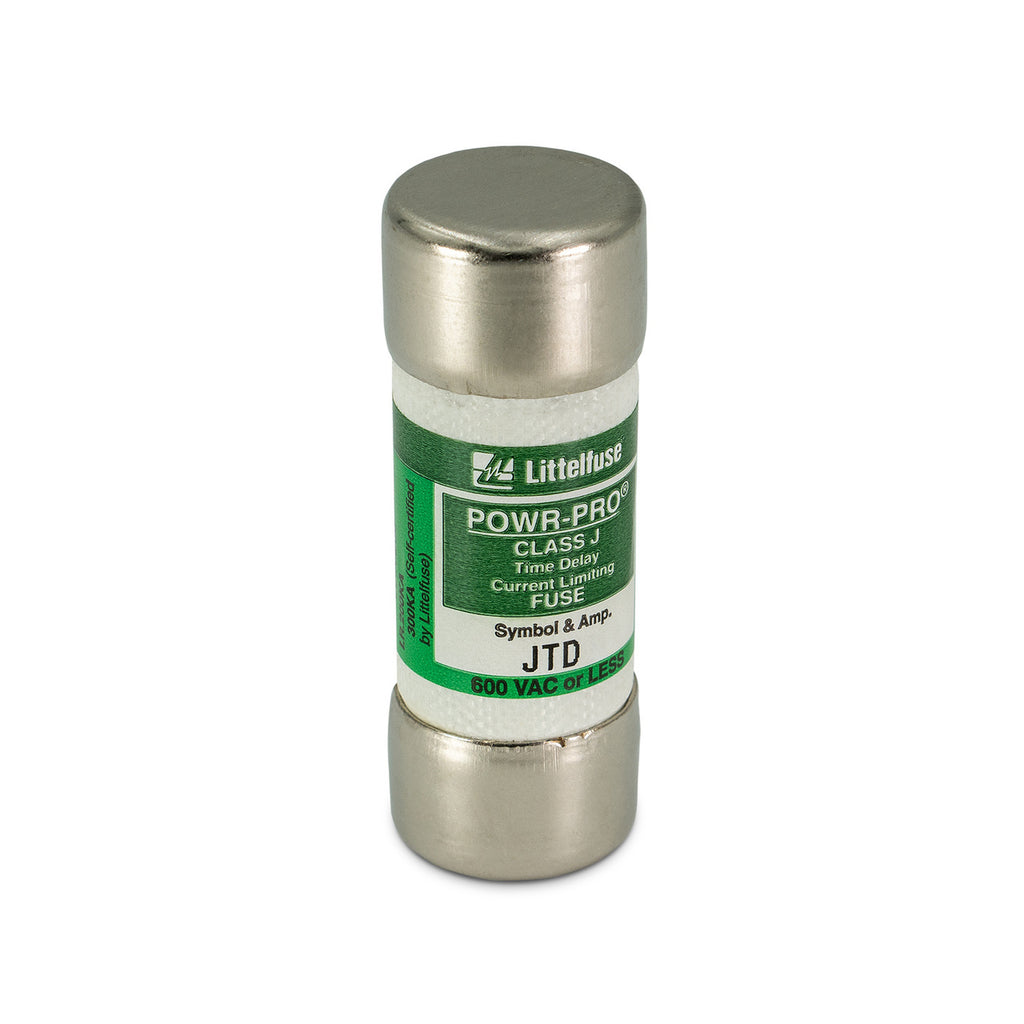

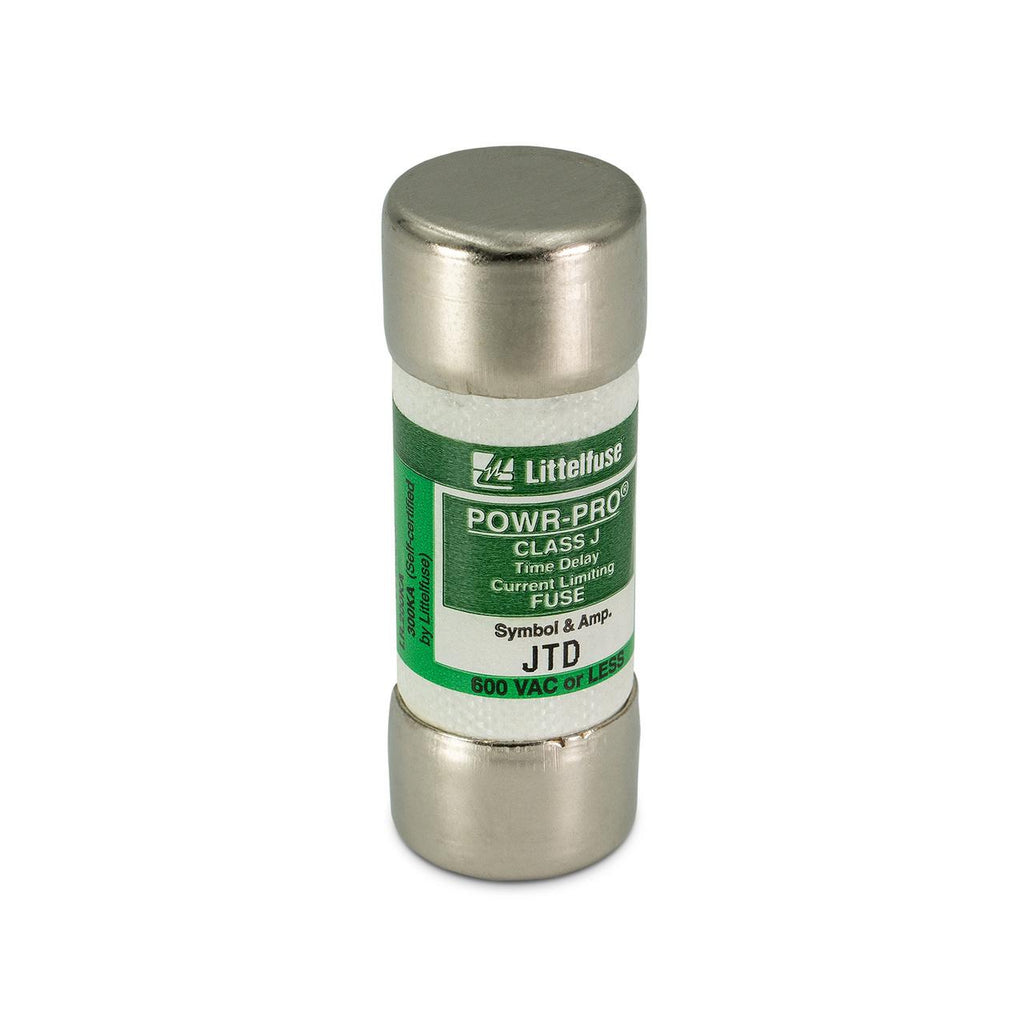

JTD-002 is a Littelfuse Class J fuse rated for 2 amps and 600 volts AC, designed for reliable circuit protection with time-delay capability.The JTD-002 fuse features POWR-PRO advanced technology with dual-element, time-delay construction to handle high inrush currents and reduce nuisance openings. It provides Type 2 "No Damage" protection for motor circuit components, is current-limiting, and self-certified for a 20 kA interrupting rating at 300 VDC. This compact cartridge fuse is ideal for motor control centers, fused combination motor controllers, transformers, and general-purpose circuits.
- Amperage: 2 A
- Voltage Rating: 600 V AC, 300 V DC
- Interrupting Rating: 20 kA @ 300 VDC
- Fuse Type: Class J
- Opening Characteristic: Time-Delay (Slo-Blo)
- Construction: Dual-element, cartridge style
- Technology: POWR-PRO advanced technology
- Protection: Type 2 "No Damage" for NEMA and IEC motor components
- Certifications: UL Listed, CSA Certified
- Mounting: Cartridge fuse holder compatible
Specifications
- Part Number: JTD-002
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 7945802570
- Weight : 25
