Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Trip Units & Programmers
Description

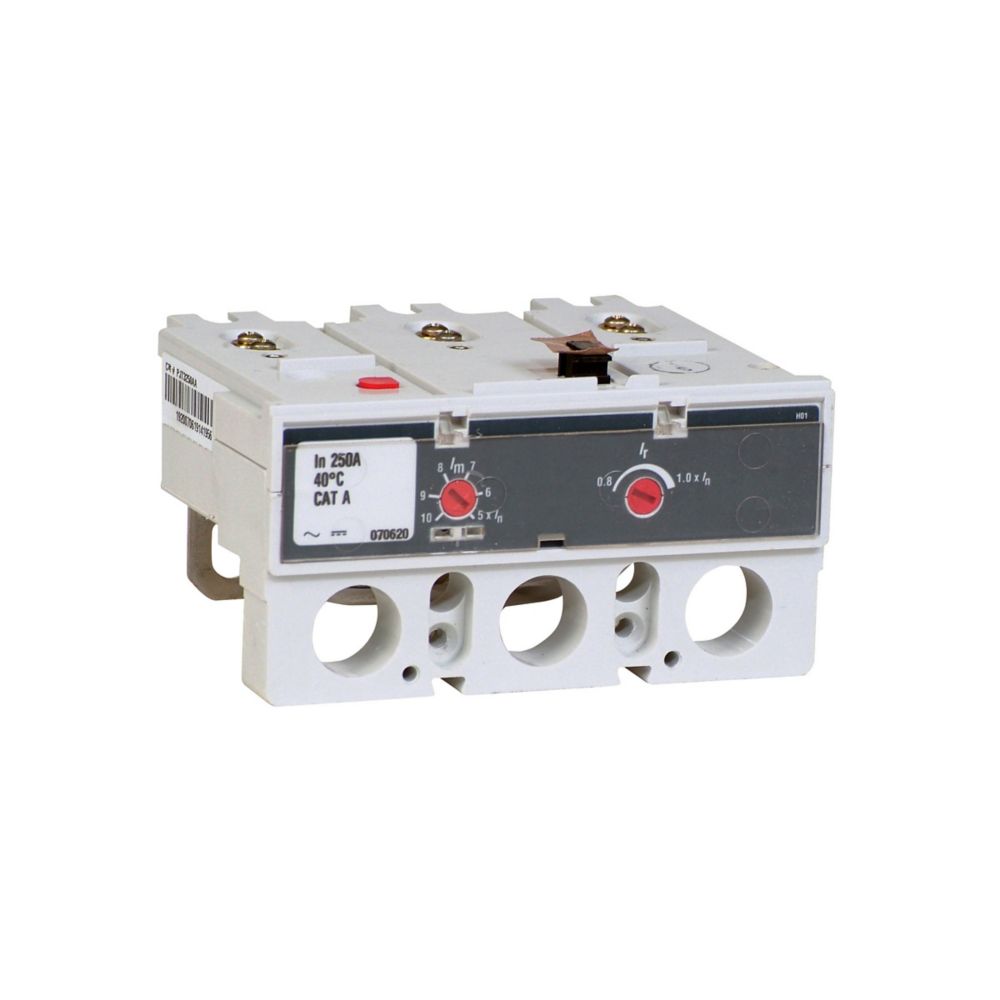

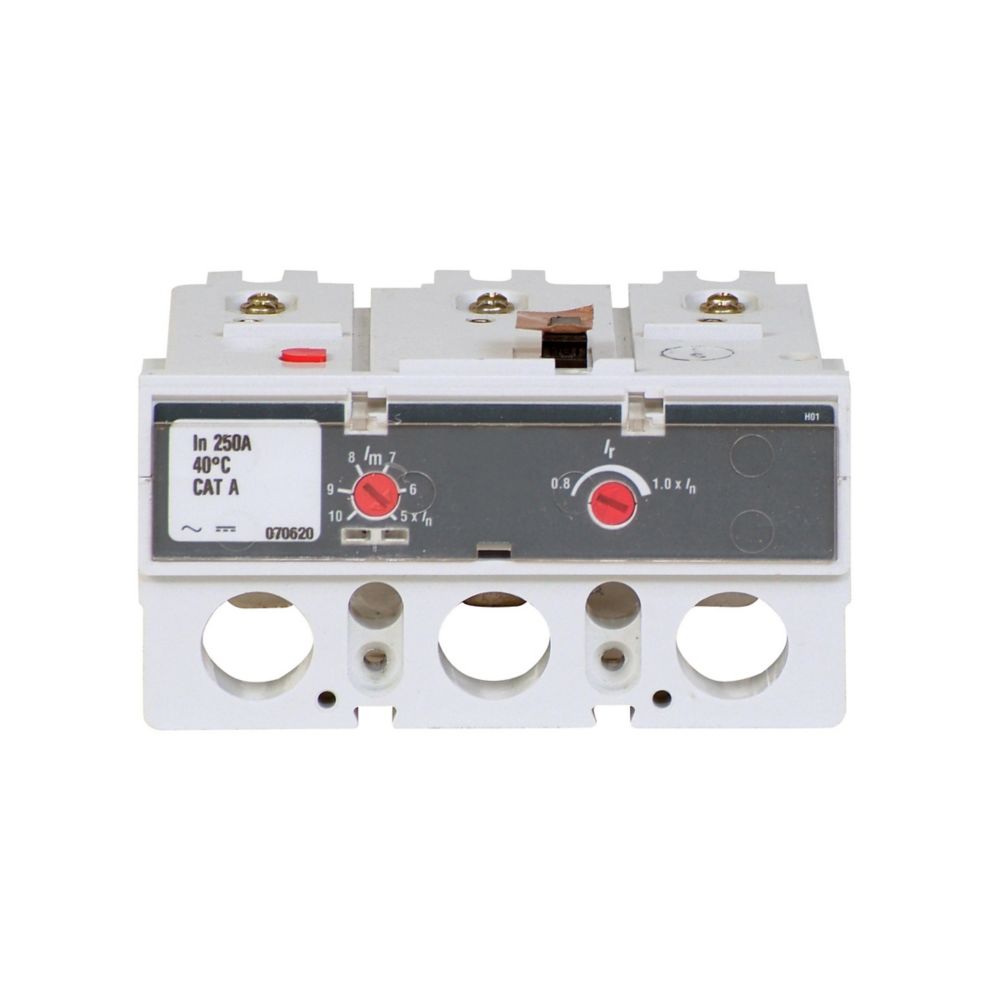

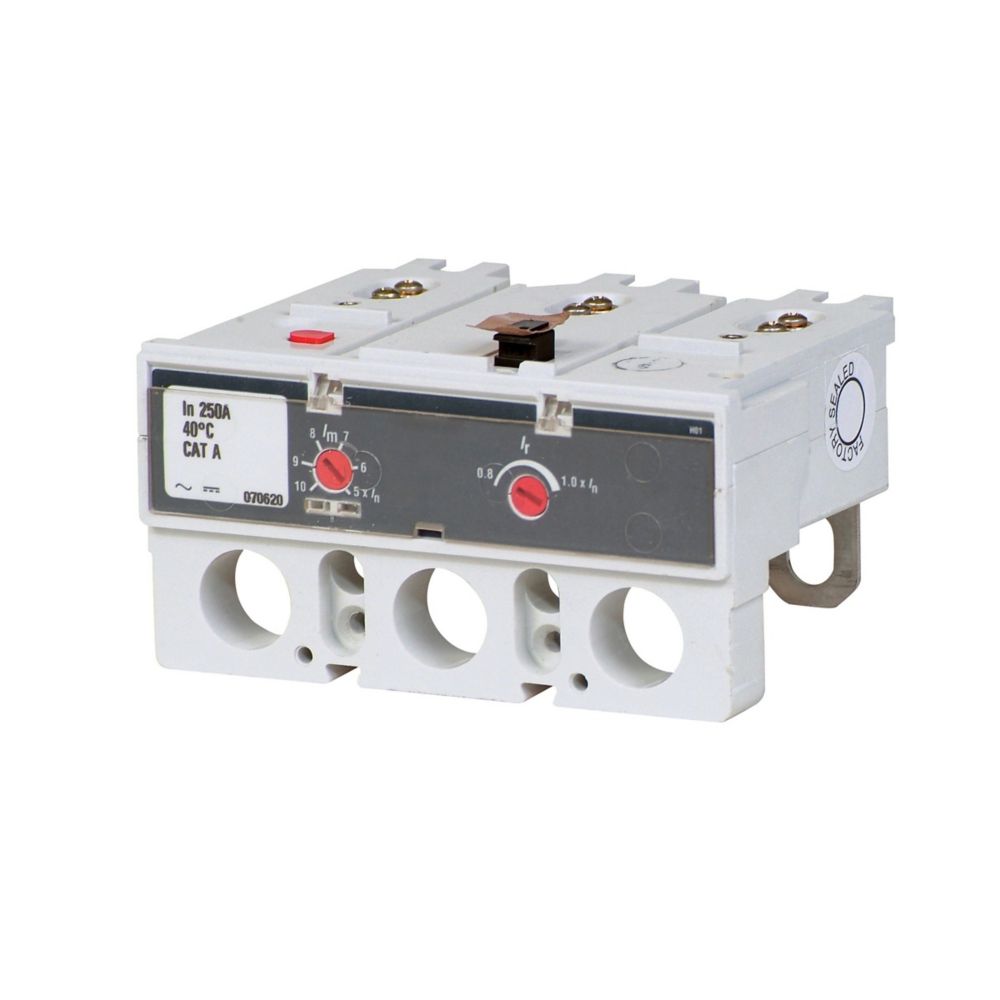

JT3100FA
JT3100FA is a molded case circuit breaker trip unit designed for use with Eaton Series G MCCB systems, providing reliable thermal-magnetic protection for industrial and commercial applications. This accessory trip unit features fixed thermal and adjustable magnetic trip characteristics, enabling precise overcurrent protection and coordination with existing breaker systems. The unit is rated for 100 amperes at 600 volts and accommodates three-pole configurations in Frame J-K size, making it suitable for medium-voltage distribution equipment.
- Amperage Rating: 100A
- Voltage Rating: 600V
- Number of Poles: 3-Pole
- Frame Size: Frame J-K
- Series: Series G
- Trip Type: Fixed Thermal, Adjustable Magnetic
- Circuit Breaker Type: JT
- Certifications: IEC Rated, CE Marked
- Height: 3 inches
- Length: 6 inches
- Width: 3 inches
- Weight: 1 lb
- Country of Origin: US
Specifications
- Part Number: JT3100FA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Series G
- Type : JT
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Amperage Maximum : 100
- Protection : Thermal Magnetic
- Compatible Frames : JG Frame
Product Data
- UPC : 786685175461
- GTIN : 00786685175461
- Country of Origin : Dominican Republic
- Dimensions : 6 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : IEC Rated,UL Listed,CSA Certified,CE Marked
