JT3090FA - Cutler Hammer 90A 3P Fixed Thermal Adjustable Magnetic Trip Unit Series G Frame J-K

JT3090FA

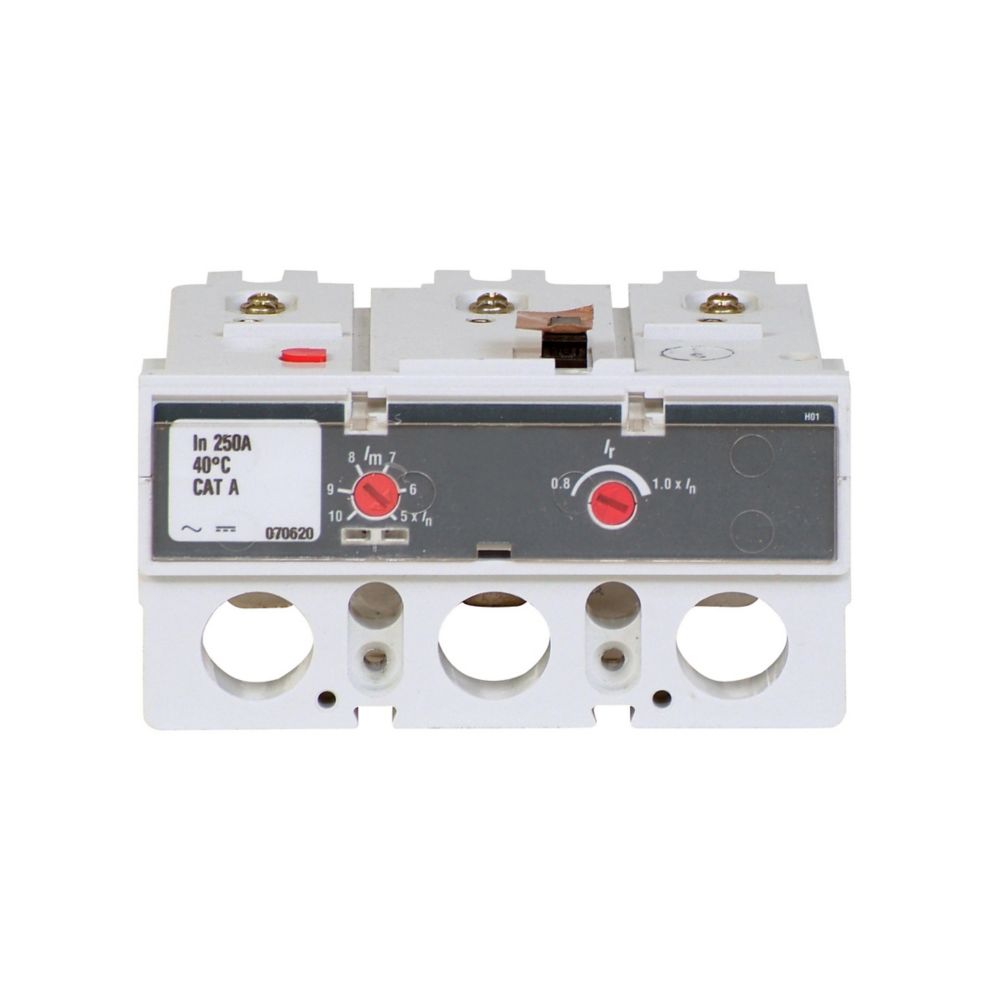

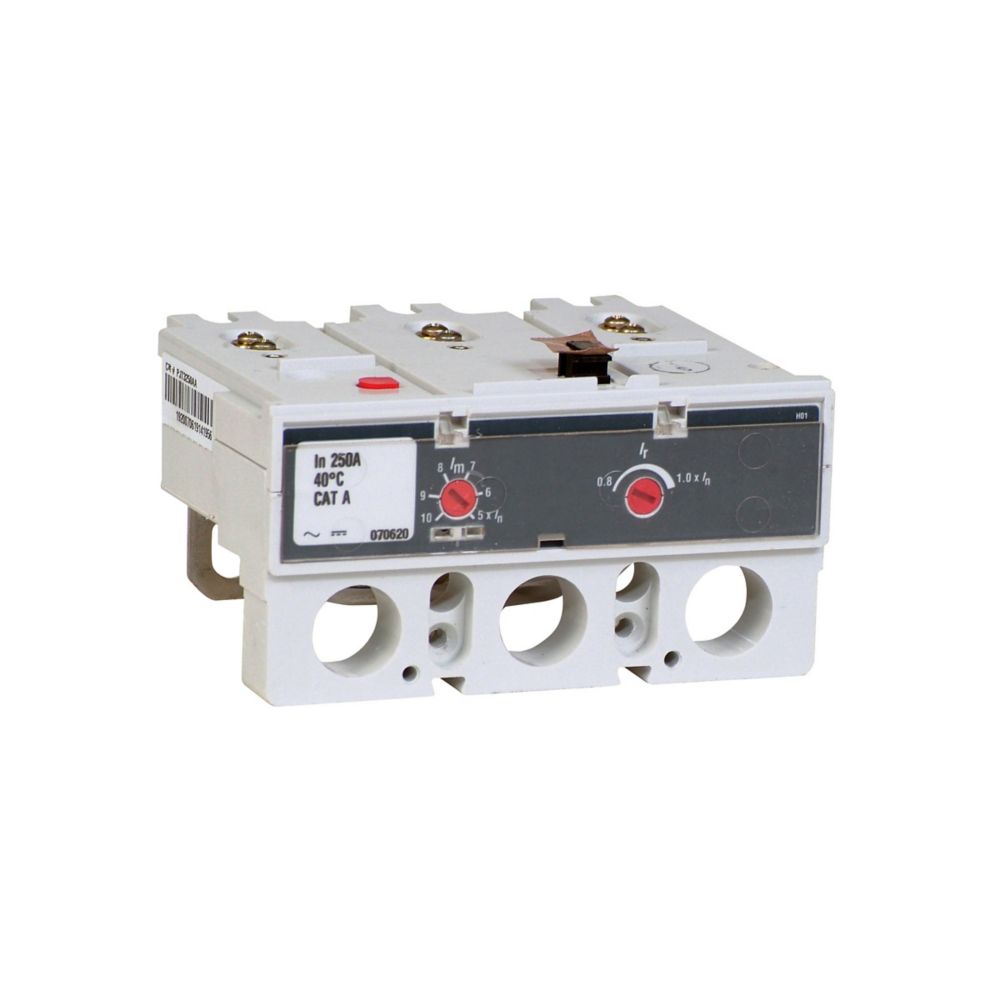

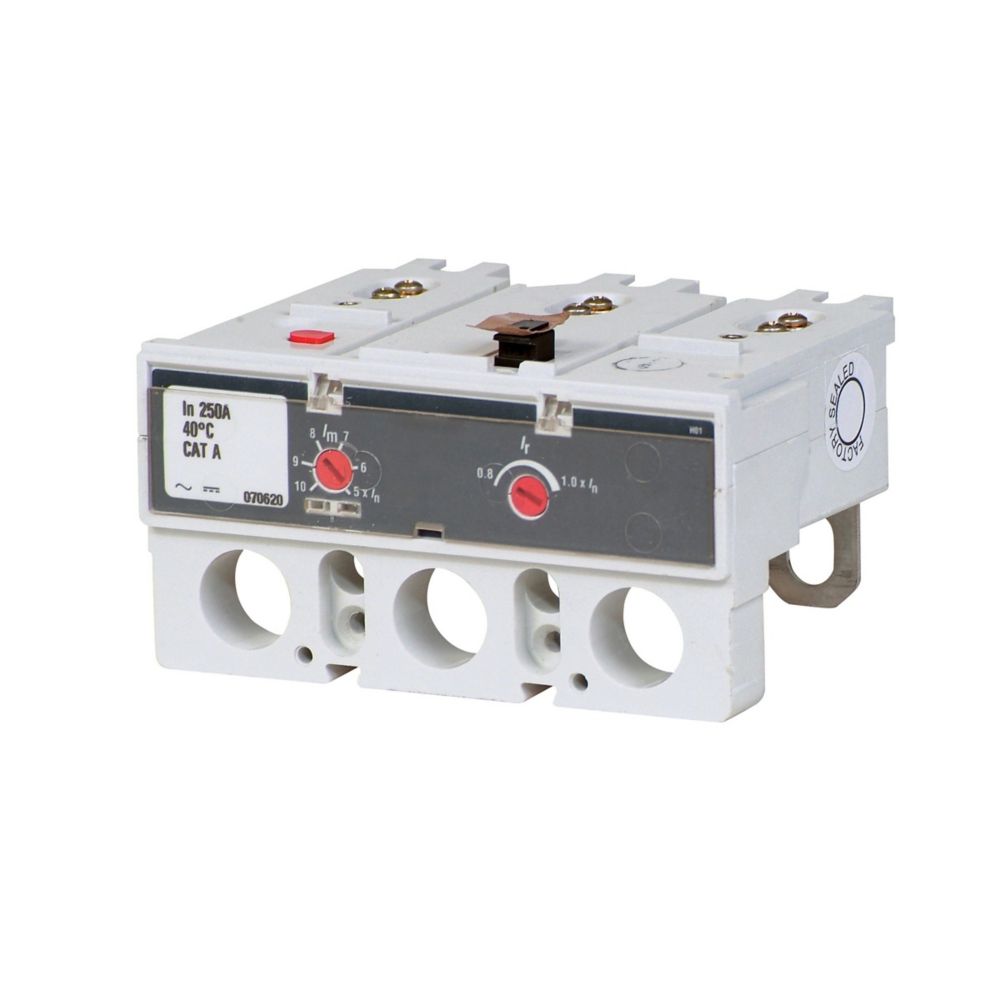

JT3090FA is a molded case circuit breaker accessory trip unit designed for use with Cutler Hammer Series G Frame J-K circuit breakers. This unit provides reliable protection with a fixed thermal and adjustable magnetic trip function for three-pole applications. The JT3090FA trip unit is engineered for durability and precise performance in industrial and commercial power distribution systems. It is compatible with 90A, 600V, 50/60Hz circuits and features a three-pole configuration for effective overload and short-circuit protection. The unit is designed for easy installation and integration into existing systems.

• Amperage Rating: 90 A
• Voltage Rating: 600 V
• Number of Poles: Three-pole
• Operating Frequency: 50/60 Hz
• Frame Size: Frame J-K
• Series: Series G
• Trip Type: Fixed thermal, adjustable magnetic
• Certifications: IEC Rated, CE Marked
• Mounting Type: Accessory trip unit for molded case circuit breakers
• Product Weight: 0.79 lbs
• Product Height: 2.75 in
• Product Length: 5.5 in
• Product Width: 3.25 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JT3090FA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Series G
• Type : JT
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Amperage Maximum : 90
• Protection : Thermal Magnetic
• Compatible Frames : JG Frame

Product Data

• UPC : 786685175454
• GTIN : 00786685175454
• Country of Origin : Dominican Republic
• Dimensions : 5.5 in x 2.75 in x 3.25 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : CSA Certified,UL Listed,IEC Rated,CE Marked
