Product Info
- Manufacturer:Bussmann
Description
JM602003CR

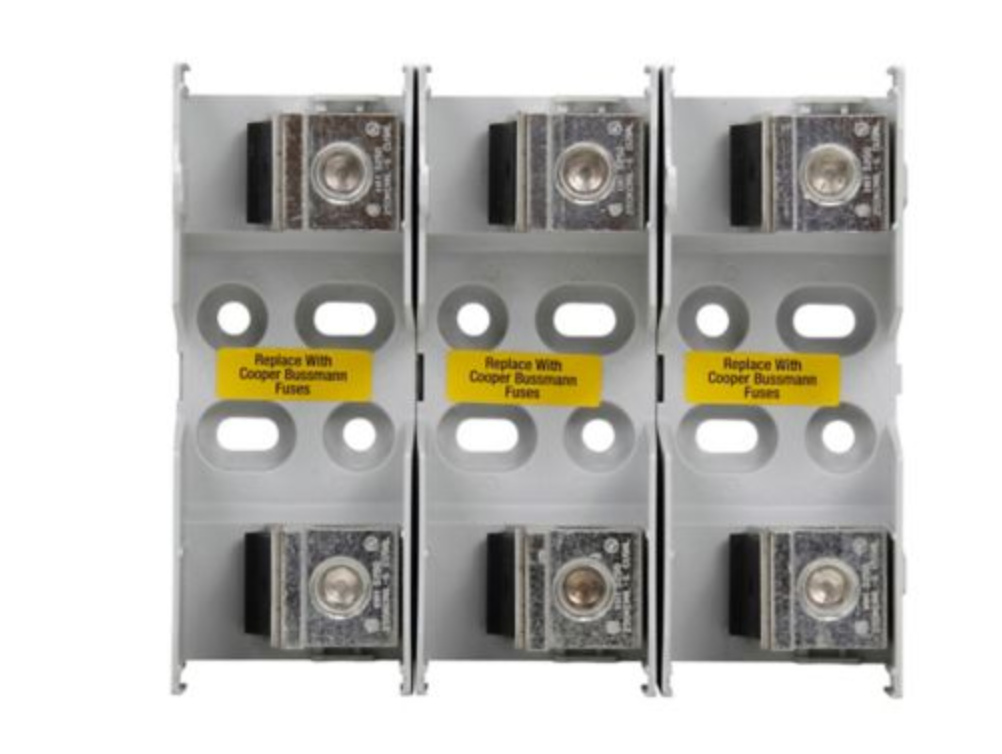

JM60200-3CR is a three-pole Class J modular fuse block rated for 110-200 amperes at 600 volts AC, designed for reliable circuit protection in industrial and commercial power distribution applications. This knife blade fuse block features a barrier-type thermoplastic construction with spring-reinforced terminals and box side clips compatible with aluminum and copper conductors up to 350 kcmil. The unit delivers a 200 kA interrupt rating and 200 kAIC short-circuit rating, meeting UL and CSA certification standards for high-performance electrical systems.
- Amperage Rating: 110-200A
- Voltage Rating: 600V AC
- Poles: 3-Pole
- Fuse Type: Class J Knife Blade
- Interrupt Rating: 200 kA RMS Symmetrical
- Short-Circuit Rating: 200 kAIC
- Mounting Style: Panel Mount with Box Lugs
- Conductor Compatibility: Aluminum and Copper up to 350 kcmil
- Construction: Barrier-Type Thermoplastic
- Certifications: UL Listed, CSA Certified, RoHS Compliant
Specifications
- Part Number: JM602003CR
- Brand : Bussmann
Product Data
- UPC : 05171238741
- GTIN : 00051712387415
- Weight : 0.6
