JM60200-3CR - Eaton 200A 600V 3-Pole Class J Fuse Block JM60 Frame

JM60200-3CR

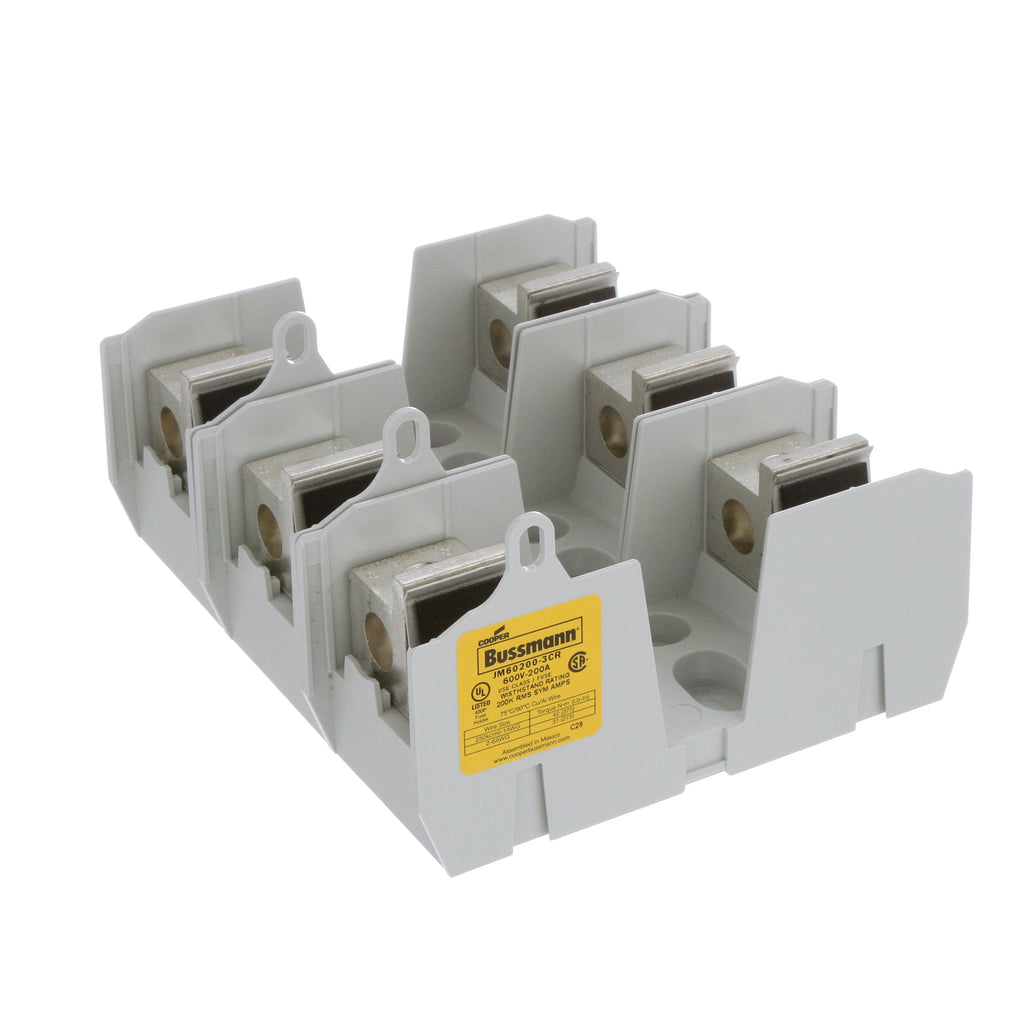

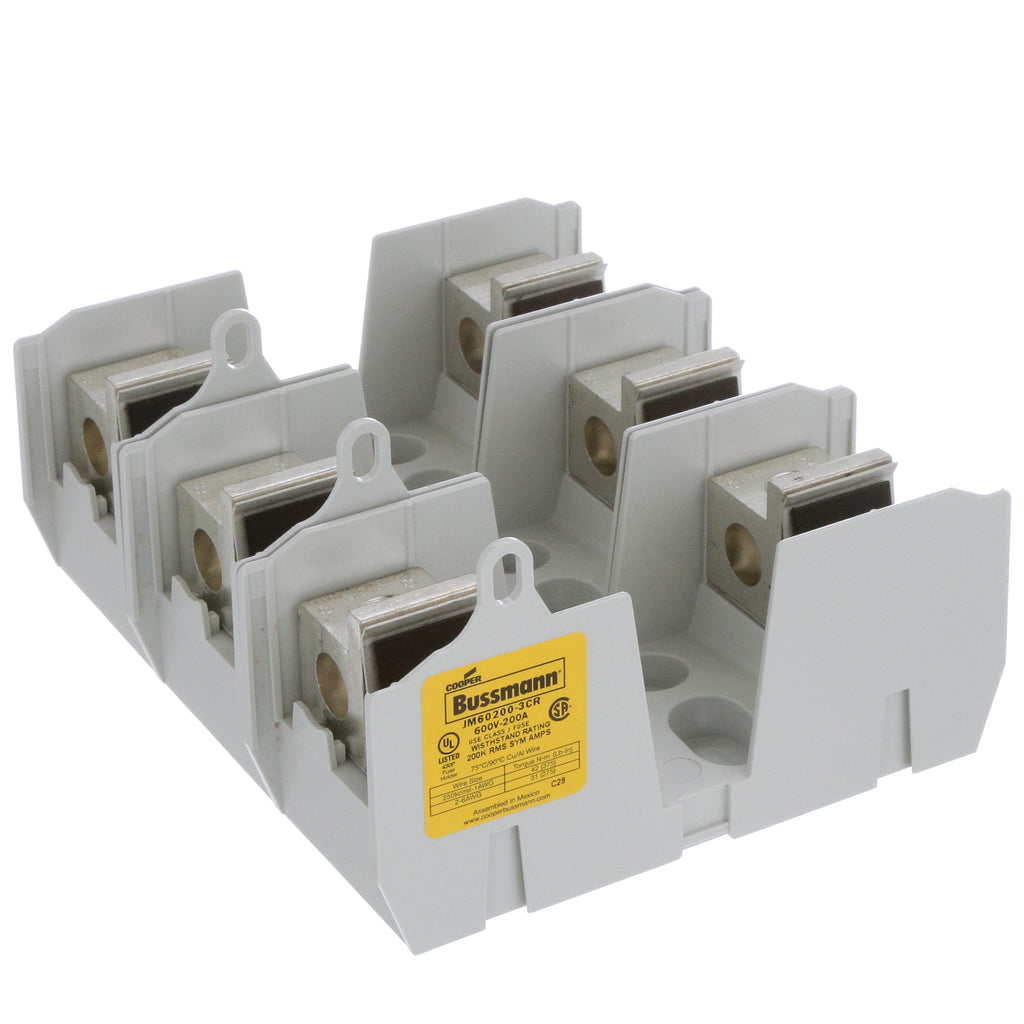

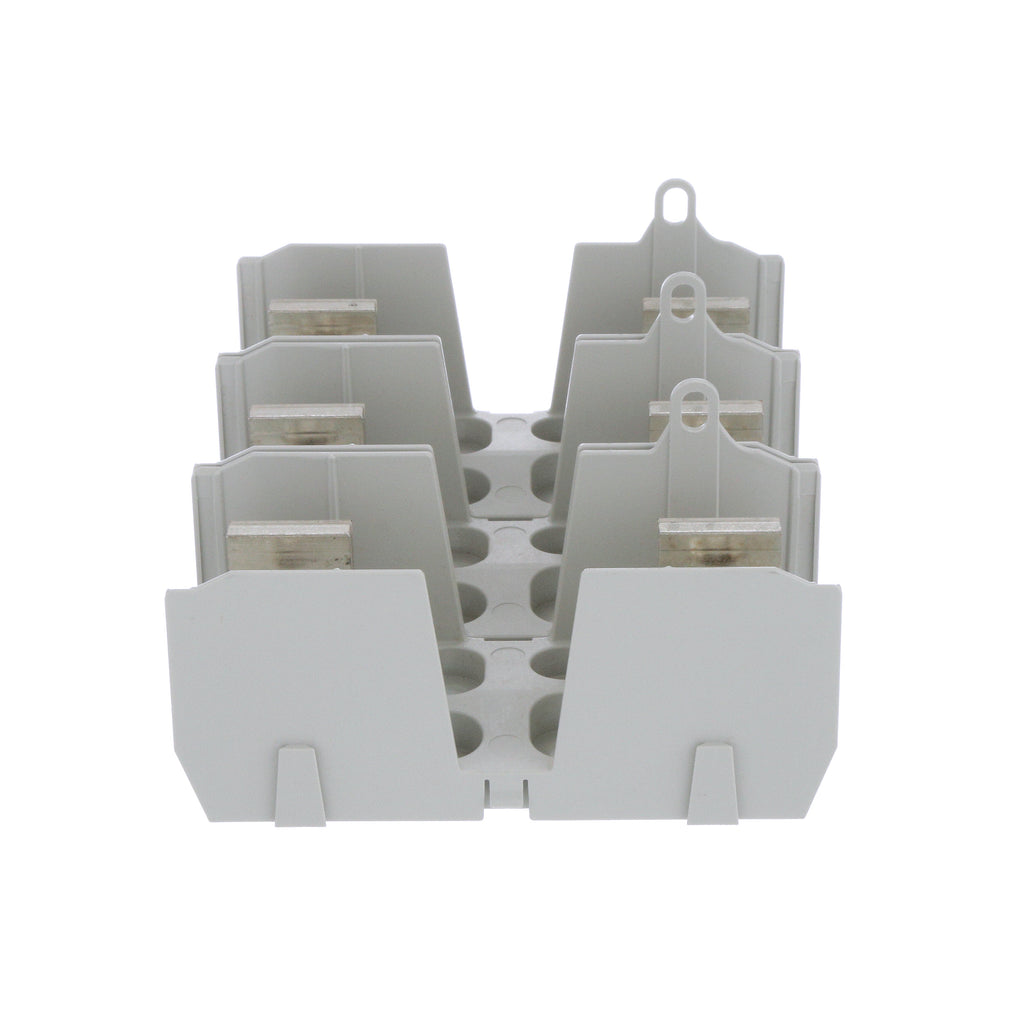

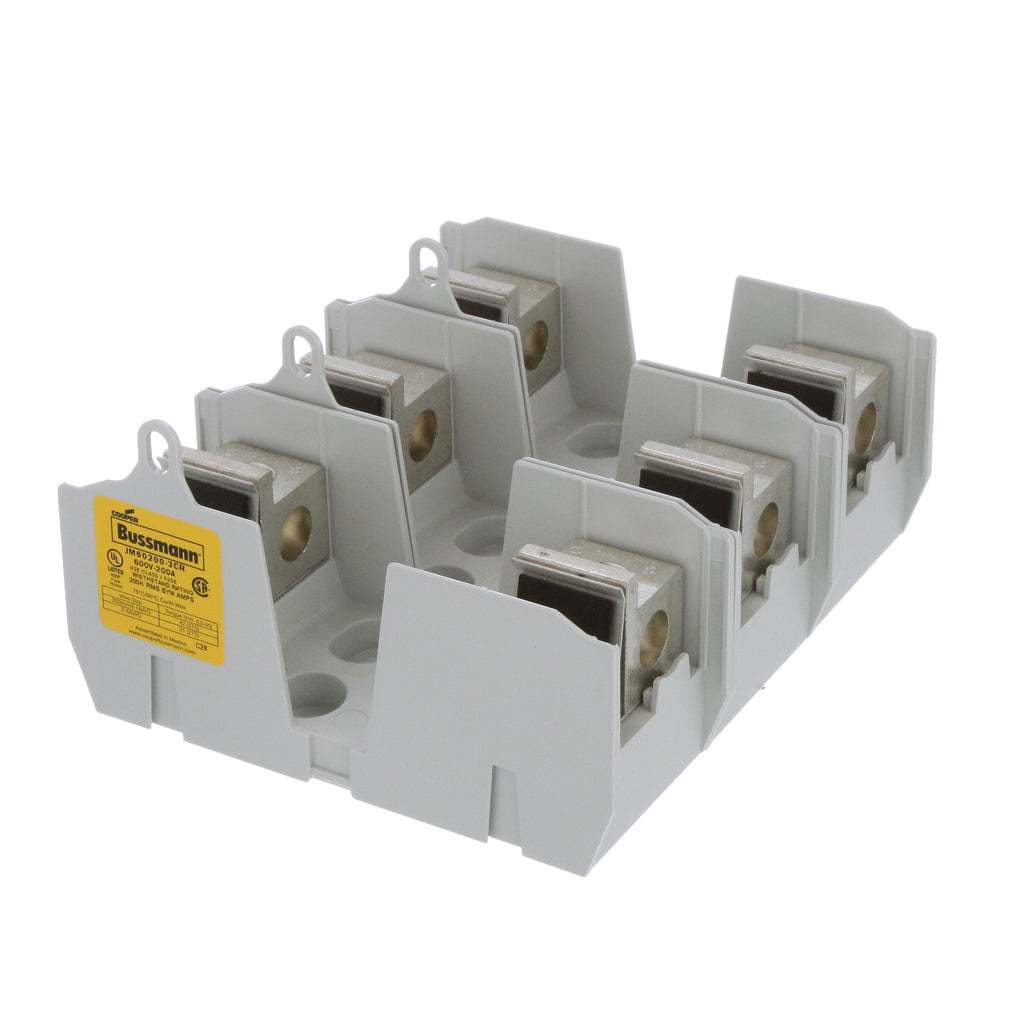

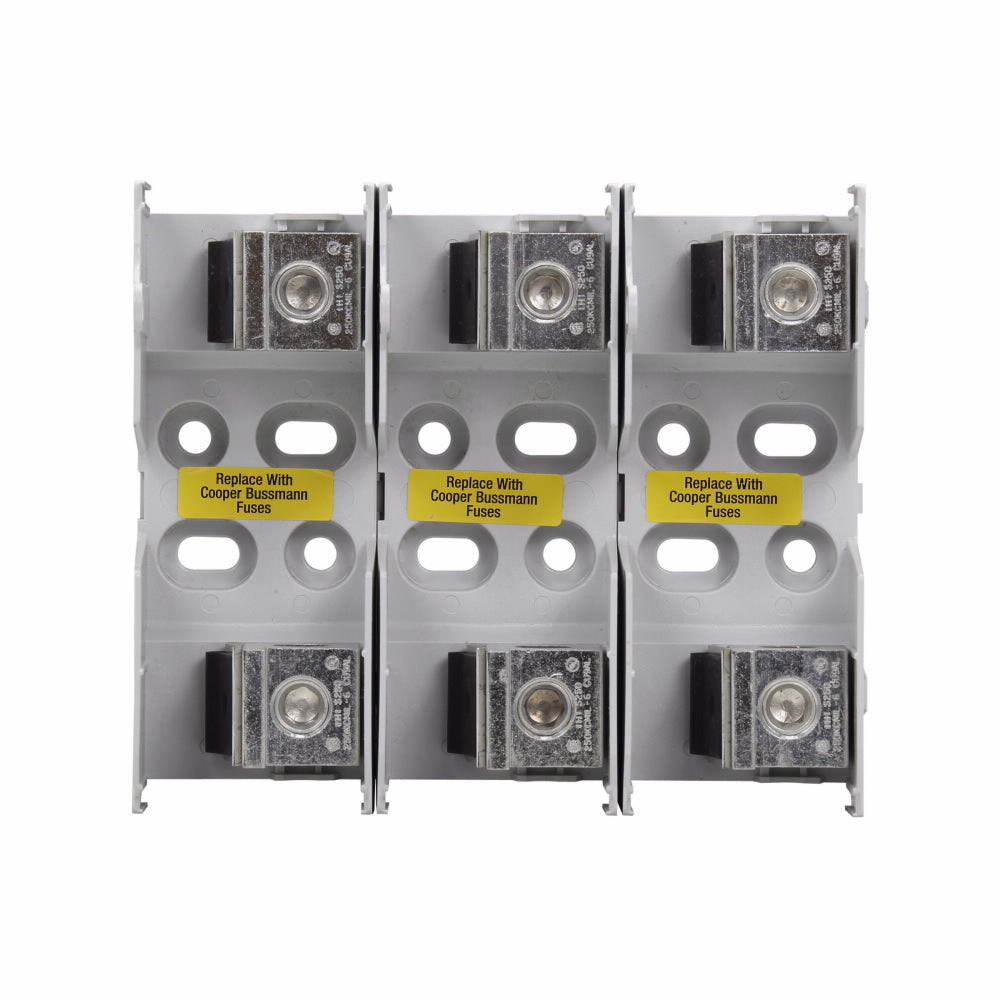

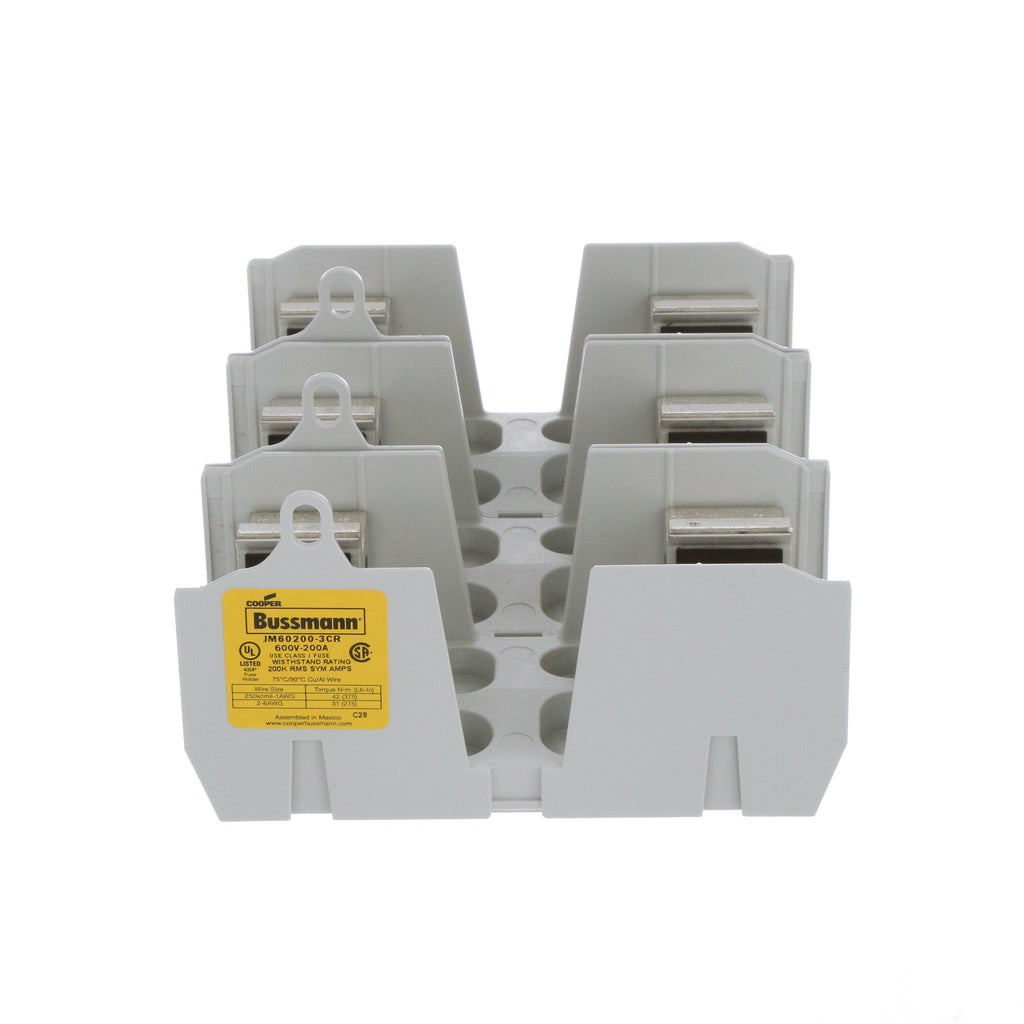

JM60200-3CR is a 3-pole Class J fuse block from Eaton designed for 200 amps and 600 volts with JM60 frame type.JM60200-3CR features knife blade end connections, bolt-down and DIN rail mounting options, and a 200 kA interrupt rating. It is suitable for residential, commercial, and industrial electrical assemblies and panels. The thermoplastic body and aluminum box lug terminals support wire gauges from 6 AWG to 250 MCM. Certified to UL, CSA, and CE standards, this fuse block offers reliable circuit protection with flexible installation.

Key Specifications
• Amperage: 200A
• Voltage: 600V
• Poles: 3
• Mounting Type: Bolt-Down and DIN Rail
• Interrupt Rating: 200 kA
• Frame Type: JM60
• Connection Type: Knife Blade End x Knife Blade End
• Terminal Connection: Aluminum Box Lug
• Wire Gauge Range: 6 AWG to 250 MCM
• Body Material: Thermoplastic
• Certifications: UL, CSA, CE
• Dimensions (LxWxH): 7.25 x 6.25 x 3.76 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JM60200-3CR
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Block
• Amperage : 200

Product Data

• UPC : 051712387415
• GTIN : 00051712387415
• Country of Origin : Mexico
• Dimensions : 7.25 in x 3.76 in x 6.25 in (Length/Depth x Height x Width)
• Weight : 2.42
• Certification : CSA Certified, UL Listed
