Product Info
- Manufacturer:Eaton
Description
JM601003CR

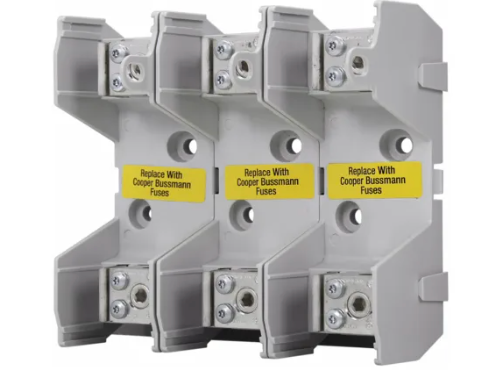

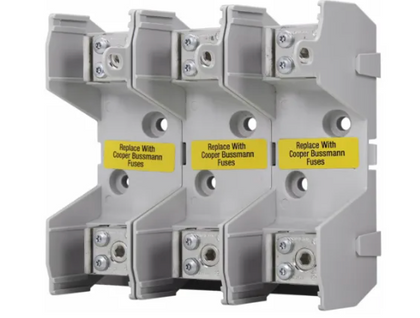

JM60100-3CR is a Eaton Bussmann Series JM modular fuse block designed for 3-pole Class J fuses with a current rating of 70-100 amps and a voltage rating of 600 volts AC.
This fuse block features knife blade end to knife blade end connections and supports both bolt-down and DIN rail mounting types. It has a high interrupting rating of 200 kAIC, suitable for demanding electrical panel and assembly applications. The body is made of thermoplastic material, rated for operation from -40 to 120 degrees Celsius. It is UL listed, CSA certified, CE marked, and RoHS compliant, ensuring safety and environmental standards compliance.
- Amperage Rating: 70-100A
- Voltage Rating: 600 VAC, 300 VDC
- Number of Poles: 3
- Interrupting Rating: 200 kAIC
- Mounting Type: Bolt-Down, DIN Rail
- Connection Type: Knife Blade End x Knife Blade End
- Terminal Connection: Box Lug
- Body Material: Thermoplastic
- Operating Temperature: -40 to 120°C
- Series/Frame: JM60
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JM601003CR
- Manufacturer : Eaton
- Brand : Bussmann
Product Data
- UPC : 051712391269
- GTIN : 00051712391269
- Weight : 5.19
