Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
JM60100-3CR

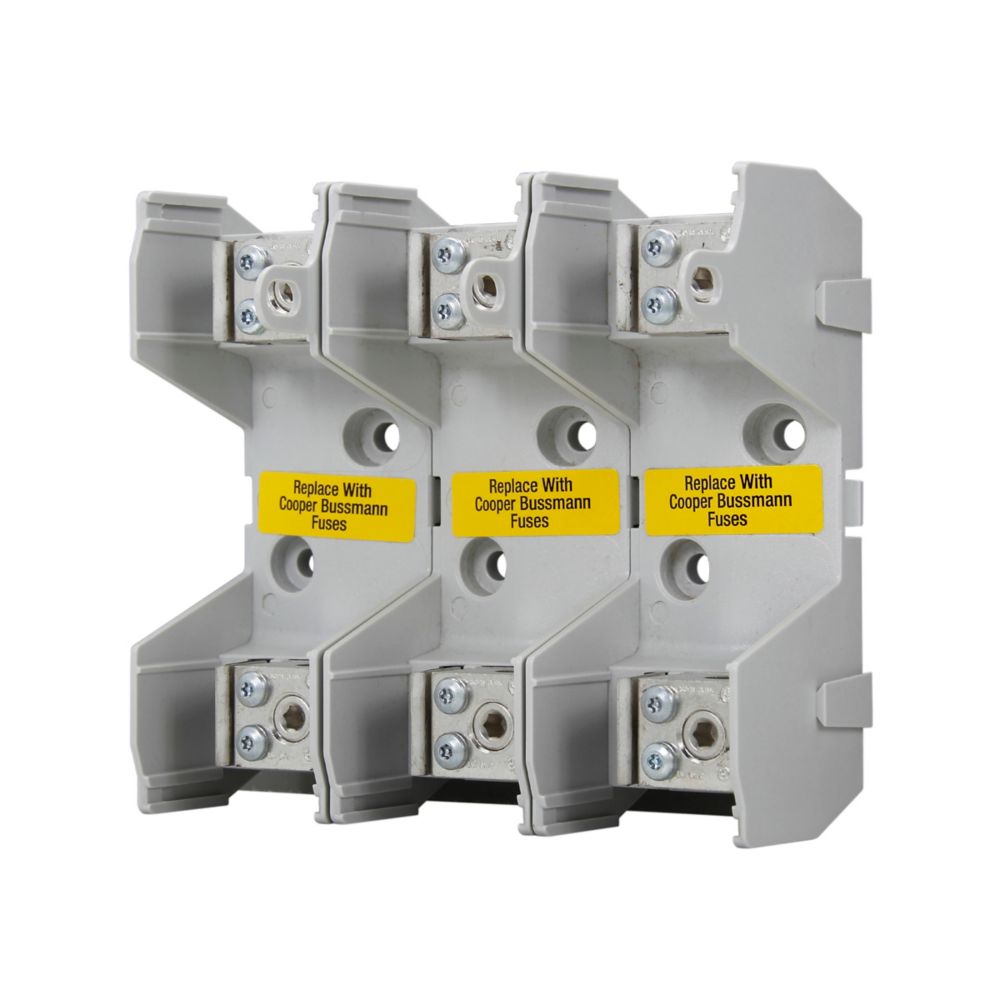

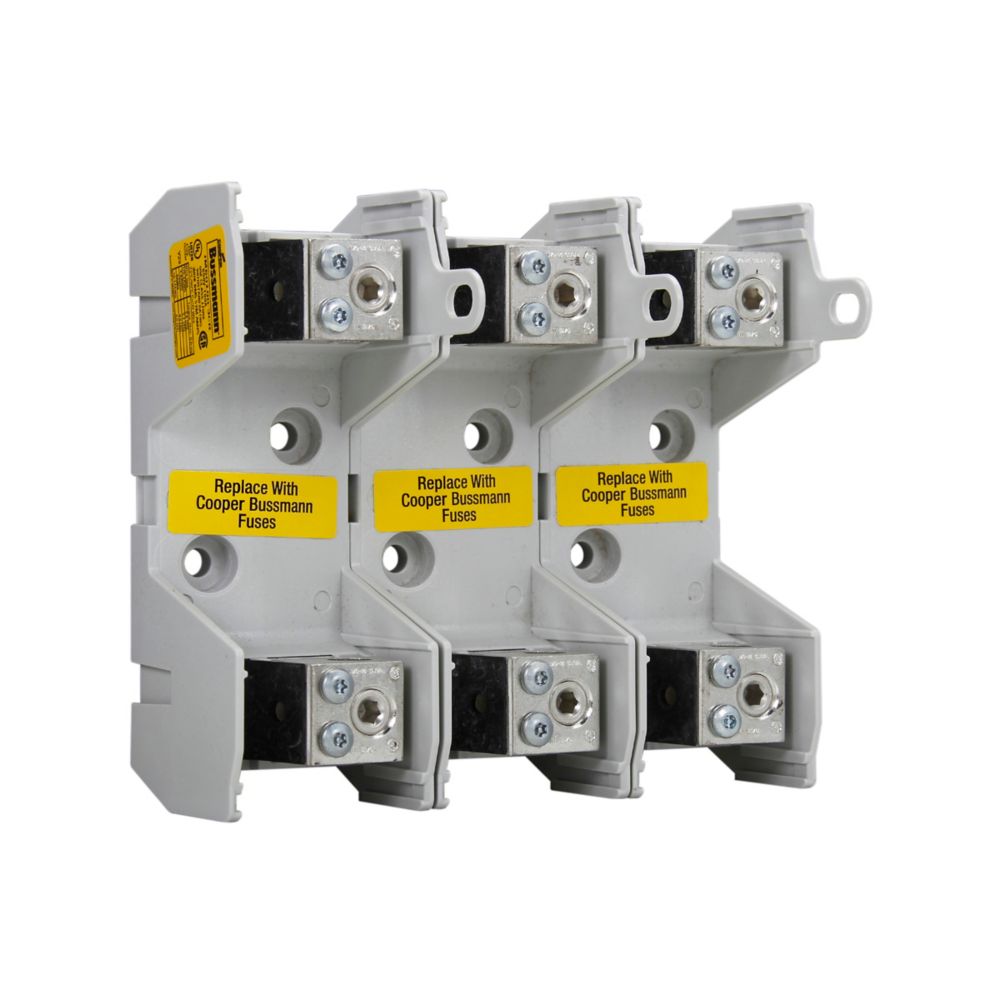

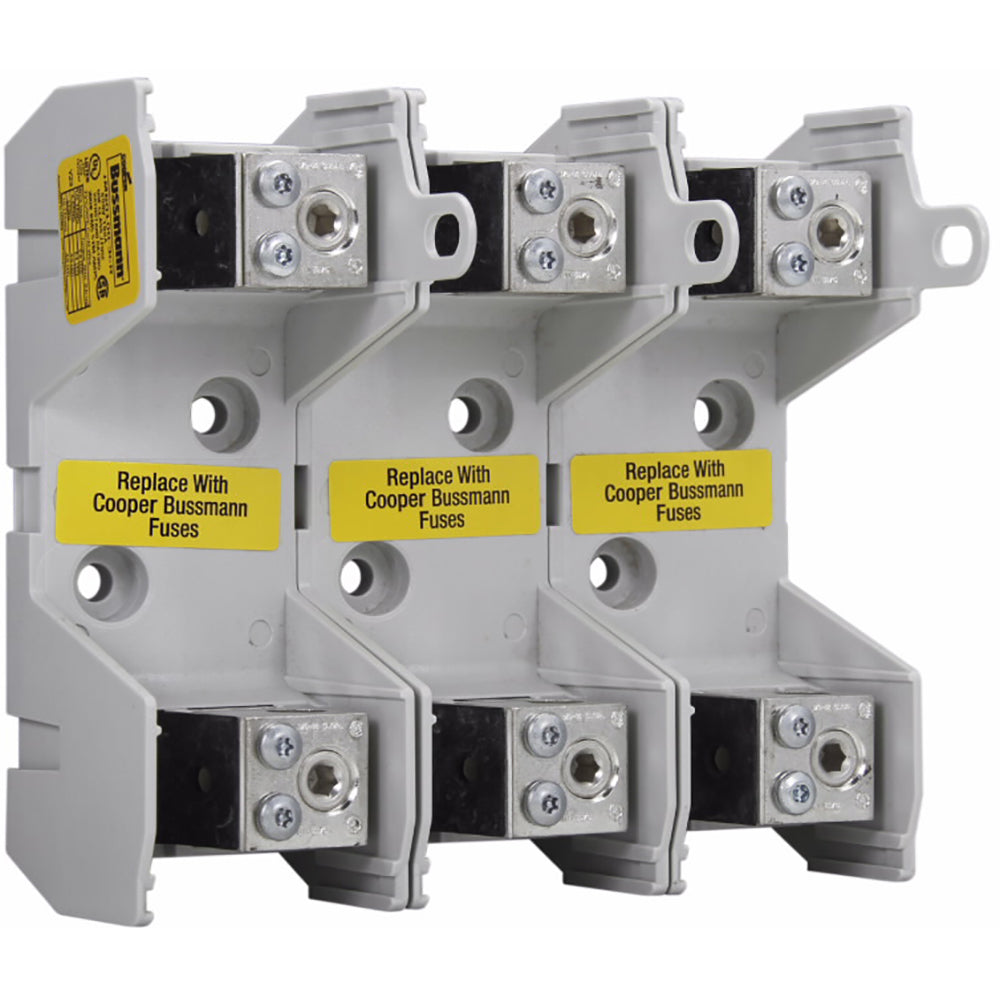

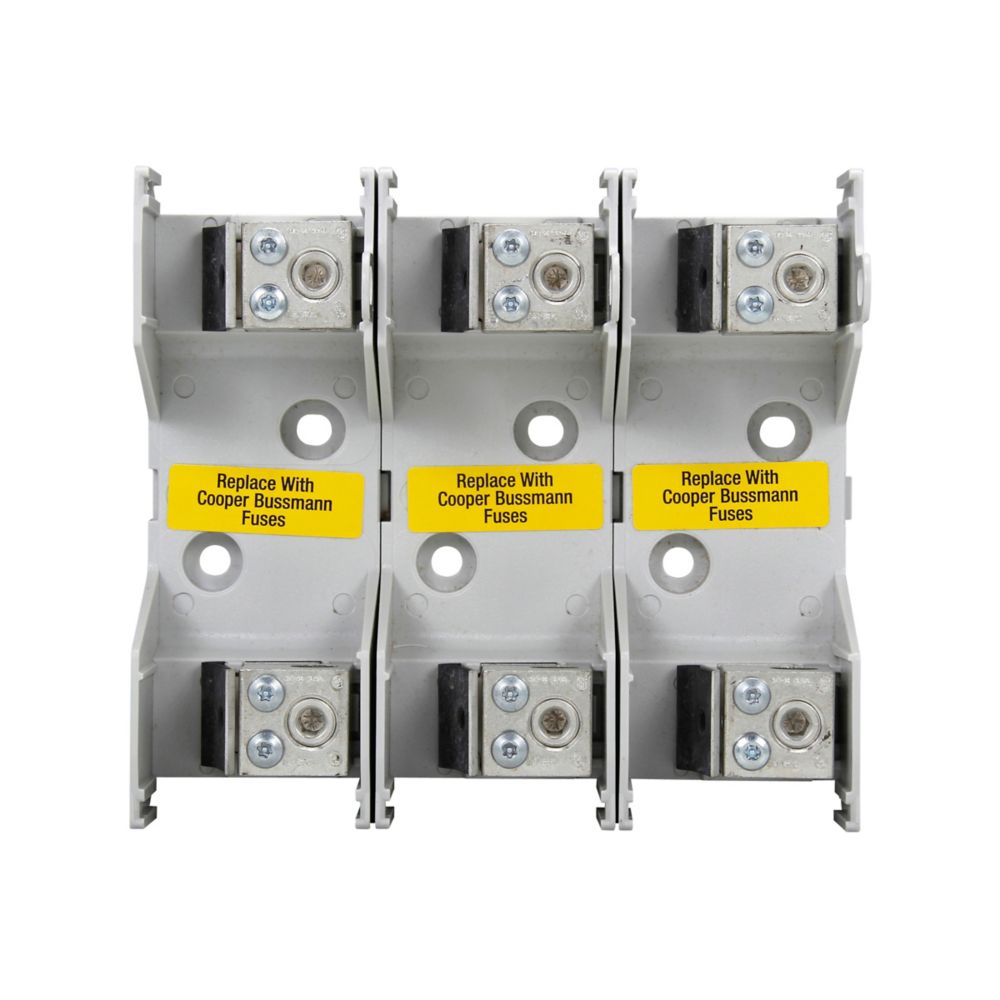

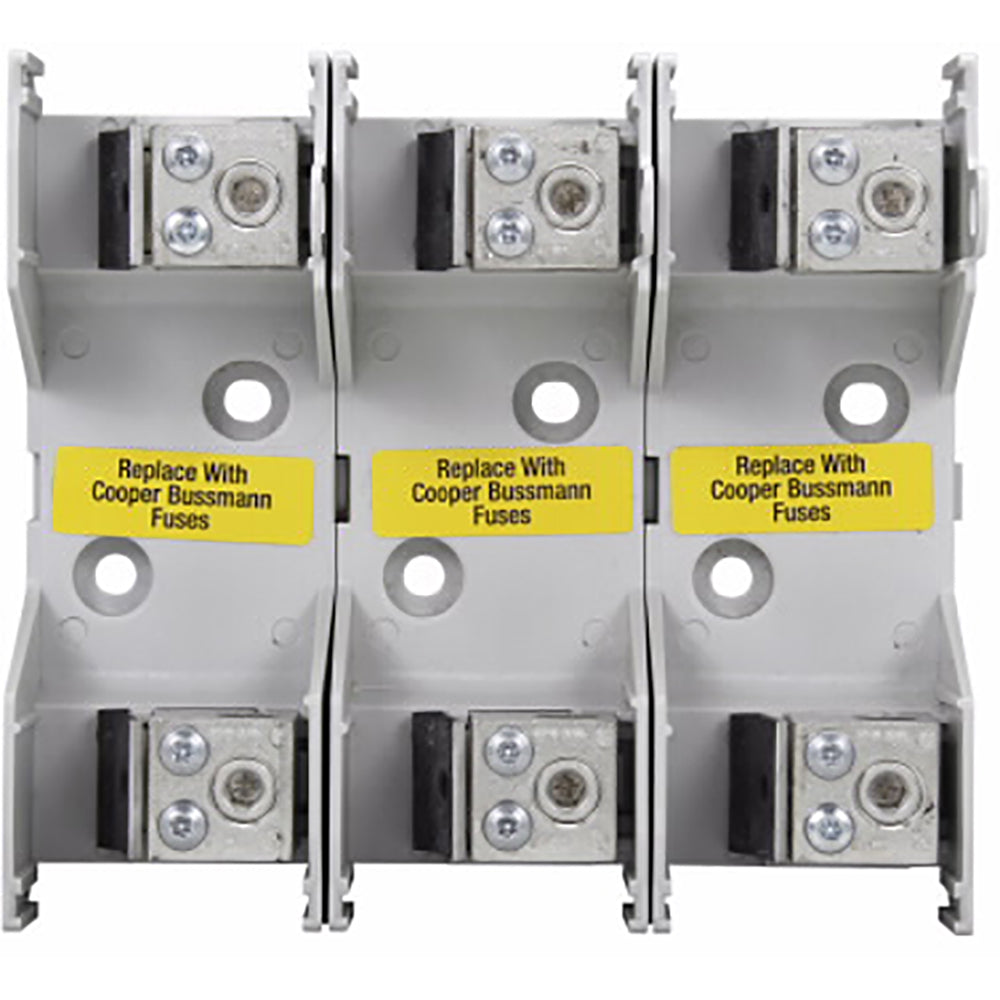

JM60100-3CR is a three-pole, modular fuse block from the Eaton Bussmann Series JM, designed for reliable circuit protection in demanding electrical applications.
This Class J fuse block accommodates 70-100A fuses, features knife blade connections, and is rated for 600V with a 200 kAIC interrupt rating. It is constructed for both DIN rail and panel mounting, offering flexible installation options. The block is UL Listed and CSA Certified, ensuring compliance with industry standards for safety and performance.
-
Key Specifications
- Part Number: JM60100-3CR
- Manufacturer: Eaton Bussmann
- Amperage Rating: 70-100A
- Voltage Rating: 600V
- Number of Poles: 3
- Mounting Type: DIN Rail or Panel Mount
- Interrupt Rating: 200 kAIC
- Series/Frame: JM Modular
- Trip Unit: Not Applicable (Fuse Block)
- Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
- Connection Type: Knife Blade End x Knife Blade End
- Material: Thermoplastic base, tin-plated copper brass terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JM60100-3CR
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Amperage : 100
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
Product Data
- UPC : 051712391269
- GTIN : 00051712391269
- Country of Origin : Mexico
- Dimensions : 5.4 in x 2.95 in x 5.93 in (Length/Depth x Height x Width)
- Weight : 0.95
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
- Certification : CSA Certified, UL Listed
