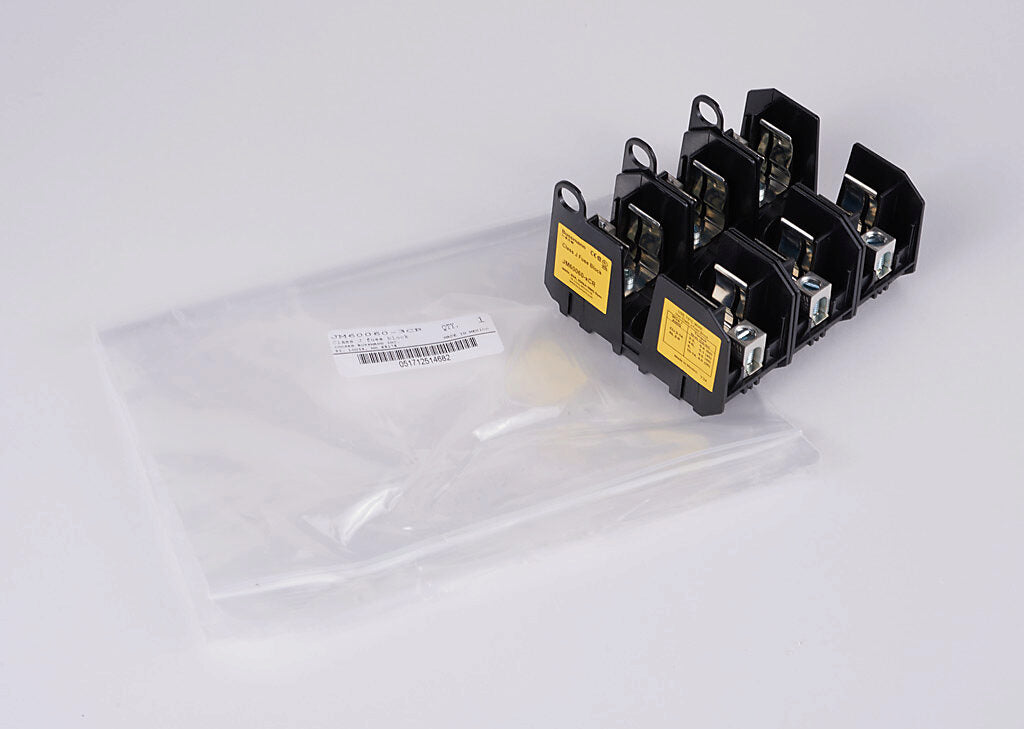

JM60060-3CR - Eaton 3-Pole 35-60A 600V Class J Modular Fuse Block DIN Rail Mount

JM60060-3CR

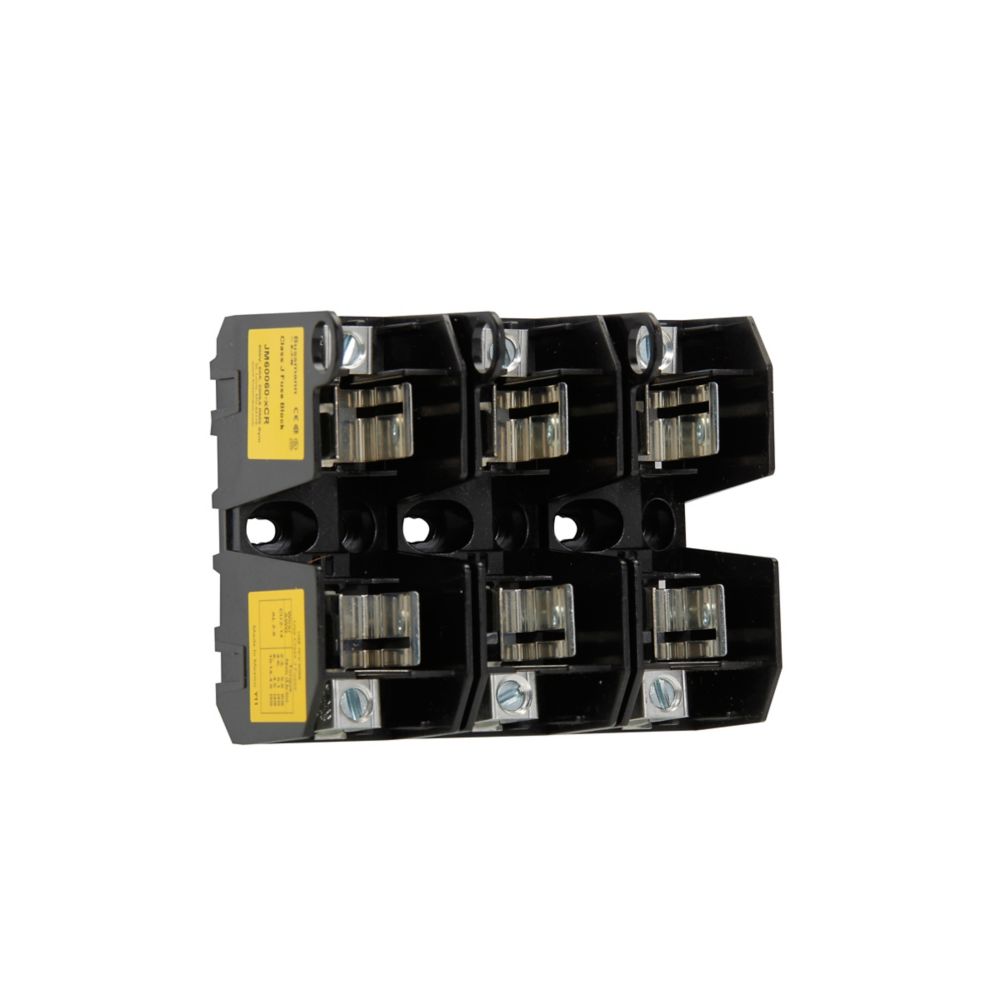

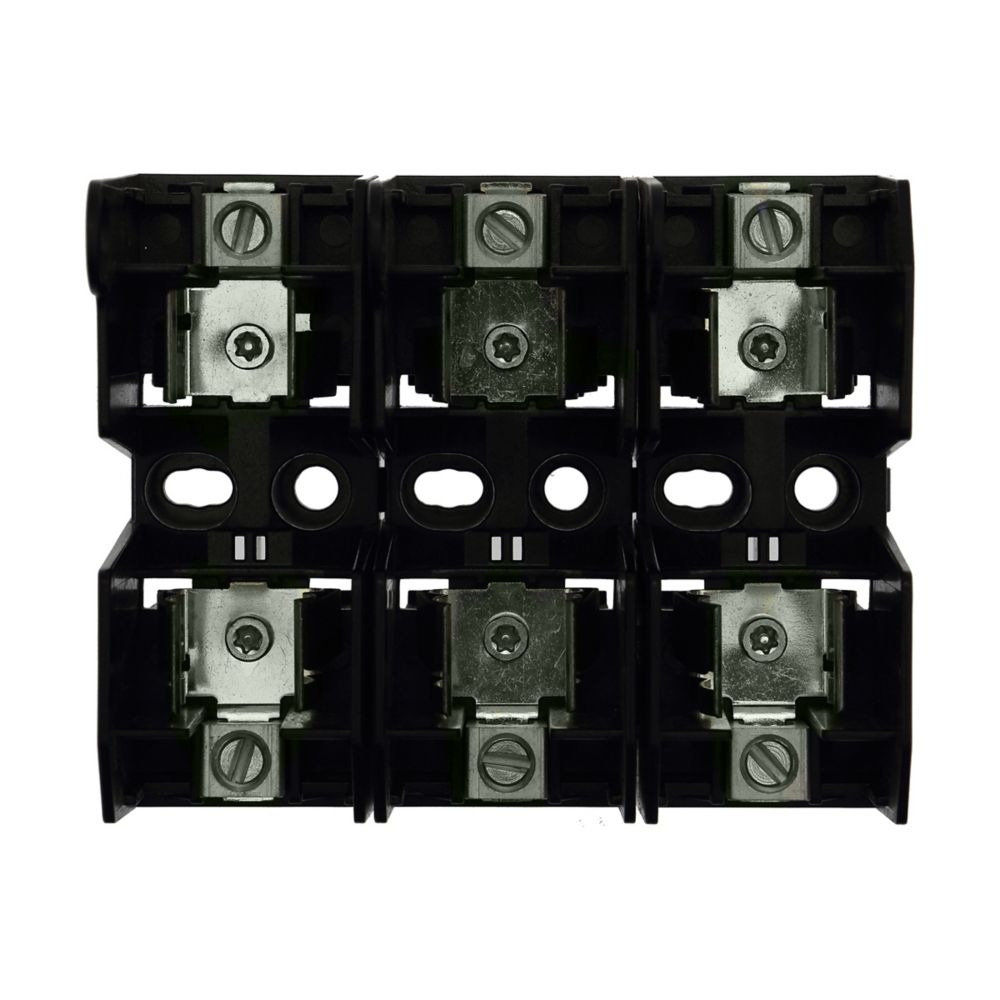

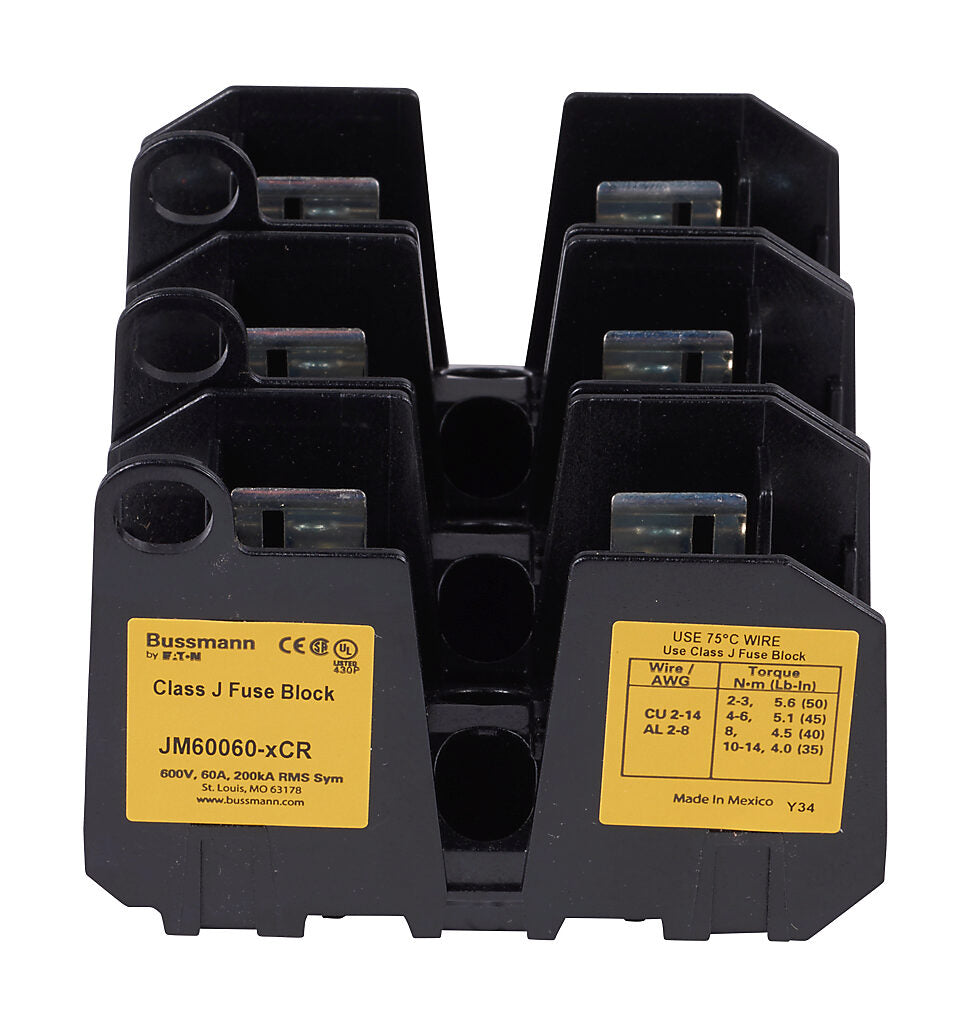

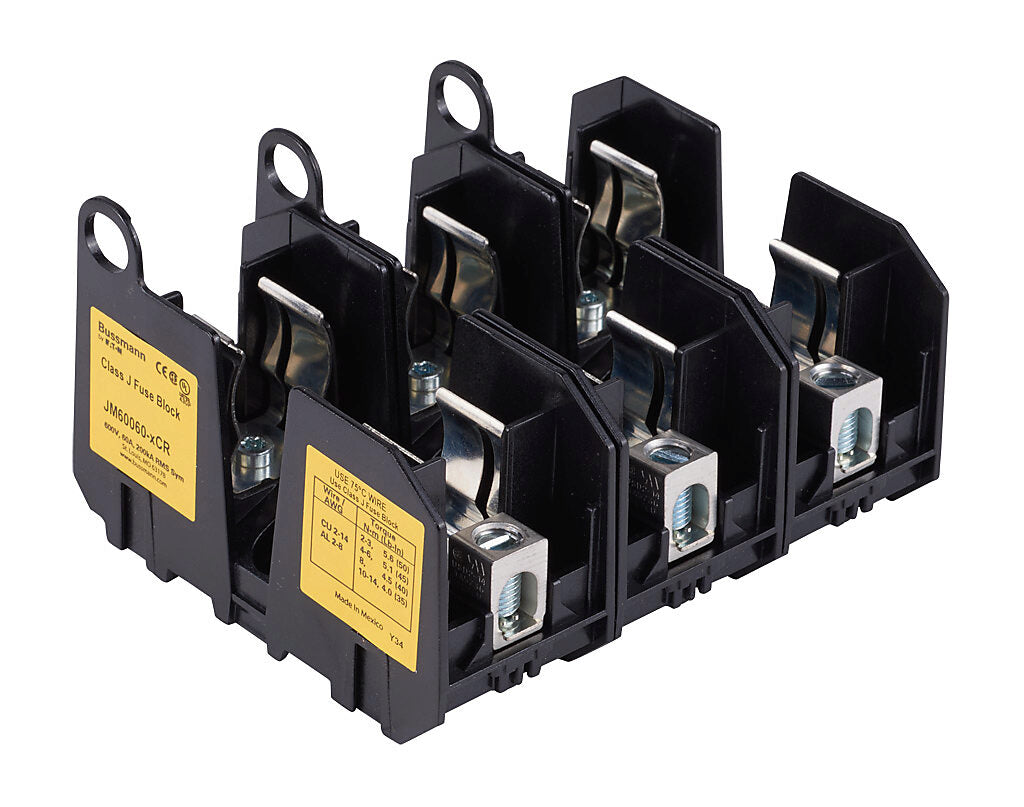

JM60060-3CR is a 3-pole modular fuse block from Eaton designed for Class J fuses with a current rating of 35 to 60 amps and voltage rating of 600 volts.JM60060-3CR features a thermoplastic body with box lug/slot screw connections, suitable for DIN rail or panel mounting. It supports Low-Peak LPJ, Limitron JKS, and DFJ series fuses, offering a 200 kA interrupt rating and compliance with UL, CSA, CE, and RoHS standards.

• Amperage Rating: 35-60 A
• Voltage Rating: 600 V AC / 300 V DC
• Number of Poles: 3

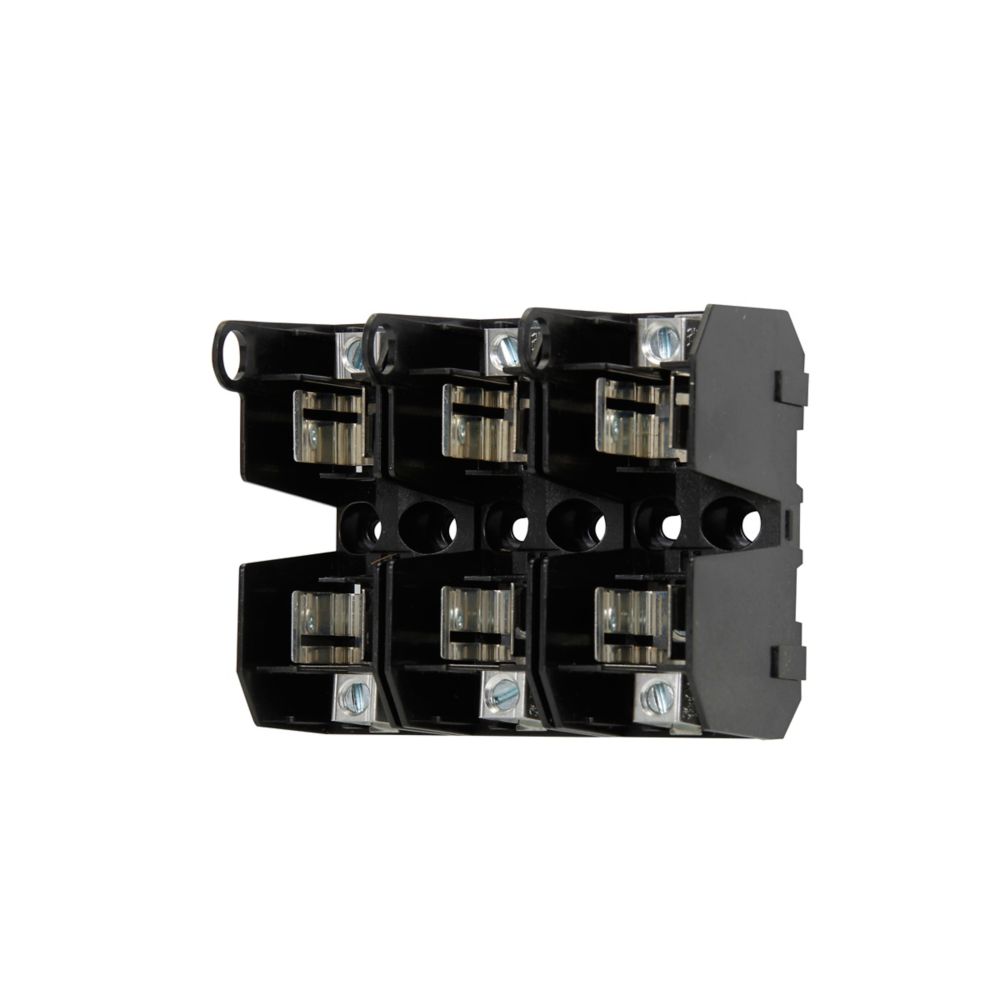

• Mounting Type: DIN Rail or Panel Mount

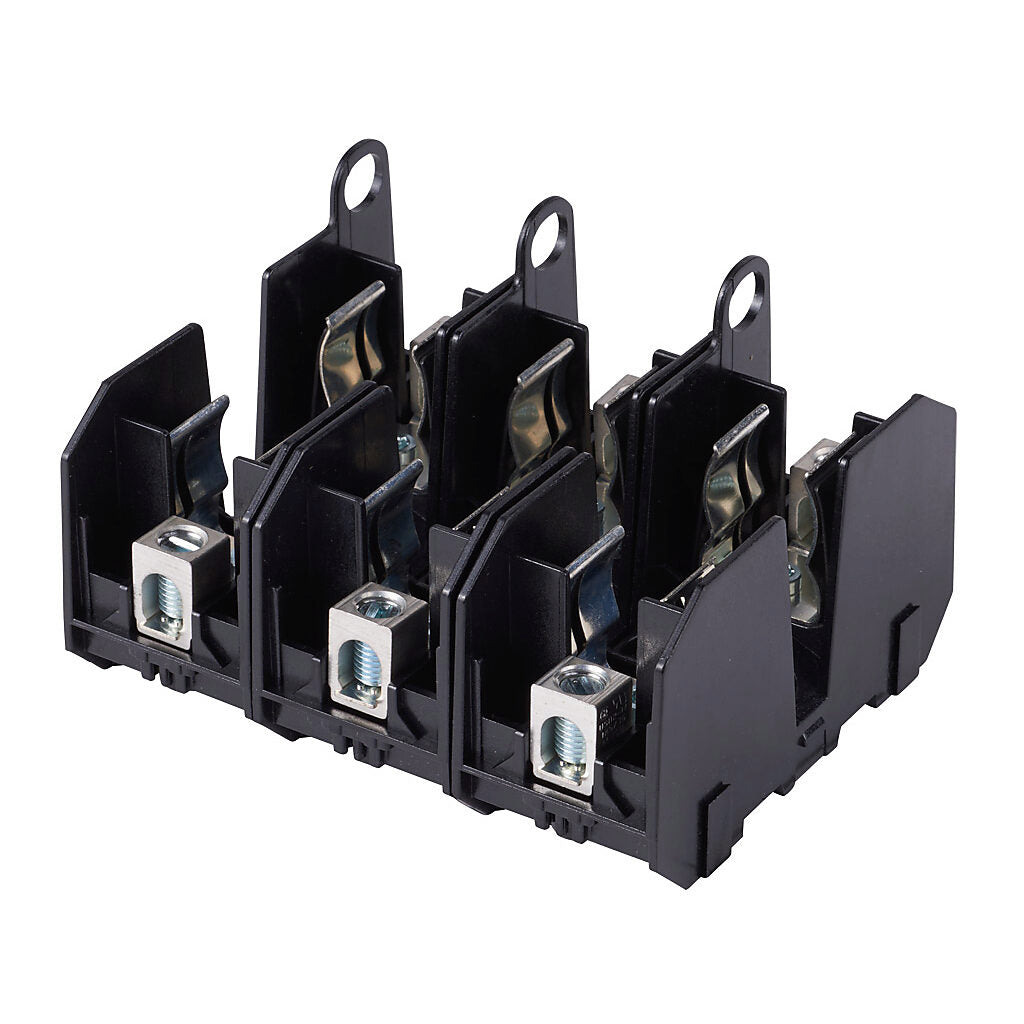

• Connection Type: Box Lug / Slot Screw
• Interrupt Rating: 200 kAIC
• Fuse Class: J (Class J)
• Material: Thermoplastic
• Compatible Fuse Series: Low-Peak LPJ, Limitron JKS, DFJ
• Temperature Rating: -40 to 120 °F
• Certifications: UL Listed, CSA Certified, CE Certified, RoHS Compliant
• Dimensions: 4.7" L x 4.5" W x 2.6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JM60060-3CR
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Diameter : 3
• Class Rating : E
• Barrels : 1

Product Data

• UPC : 051712514682
• Country of Origin : Mexico
• Dimensions : 4-1/2 in x 3.70 in x 2.60 in
• Weight : 0.1
• Certification : CE, CSA Certified, REACH, RoHS, UL Listed
