Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLS250

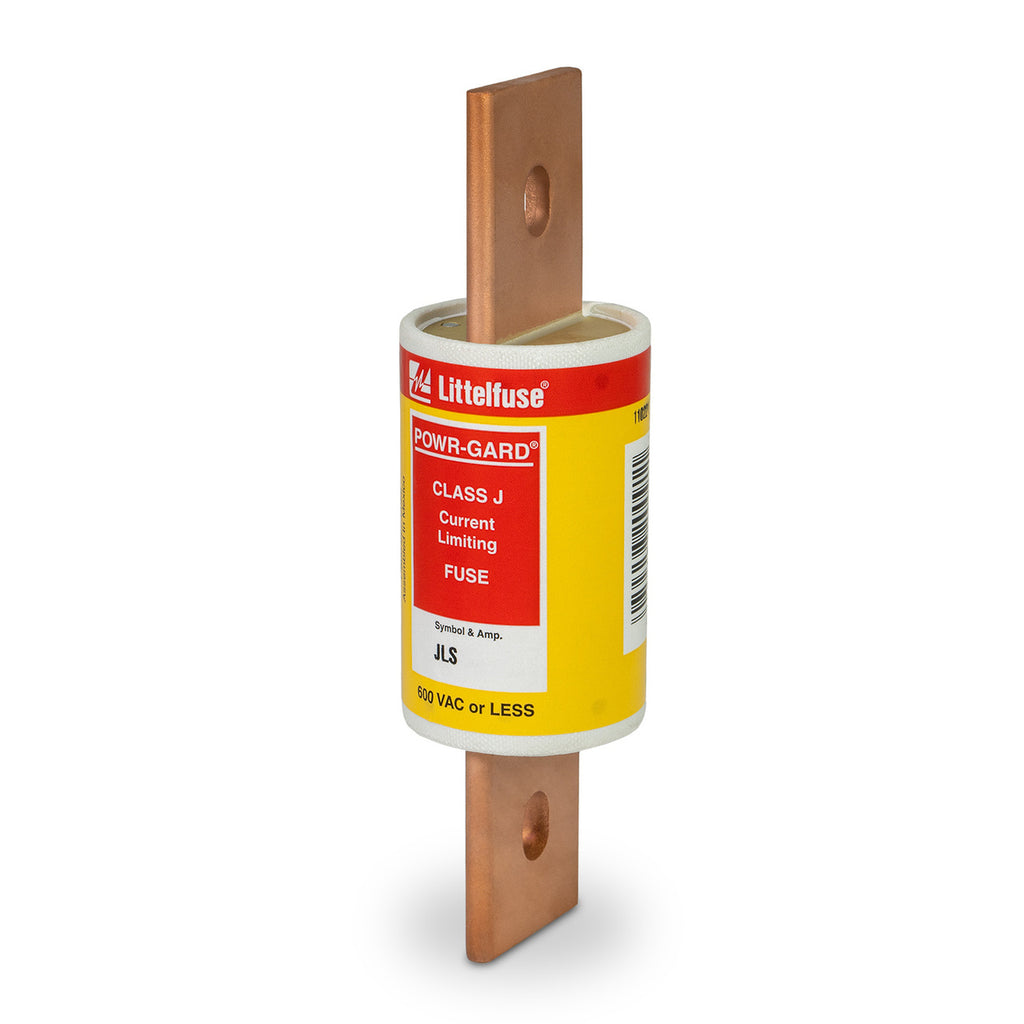

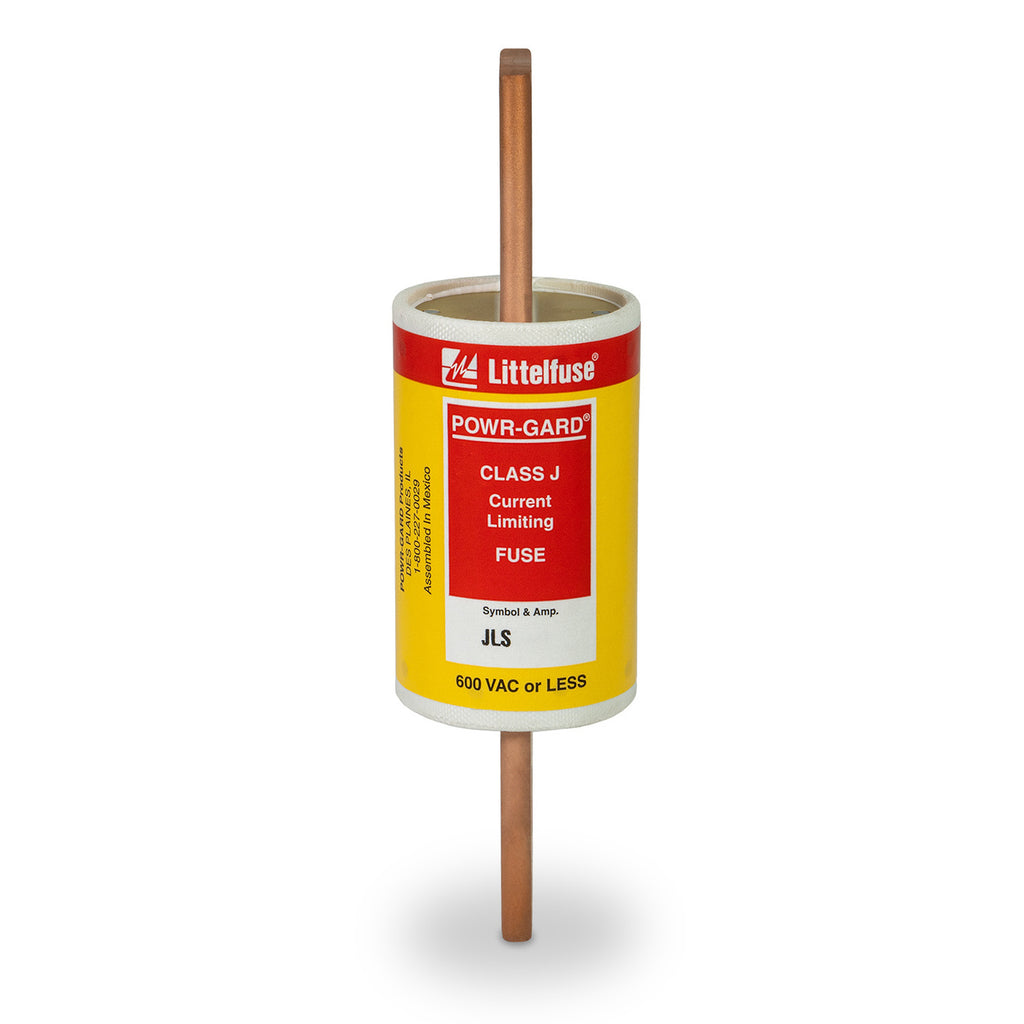

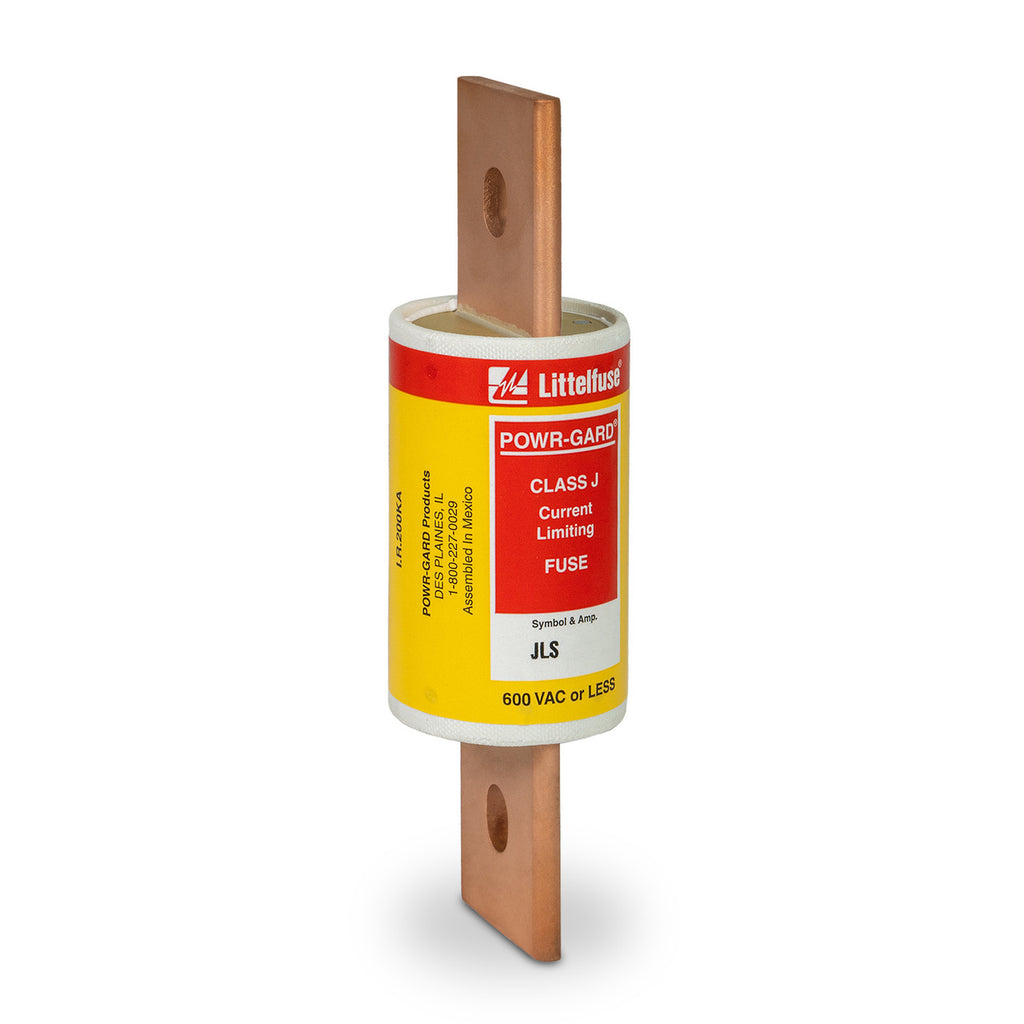

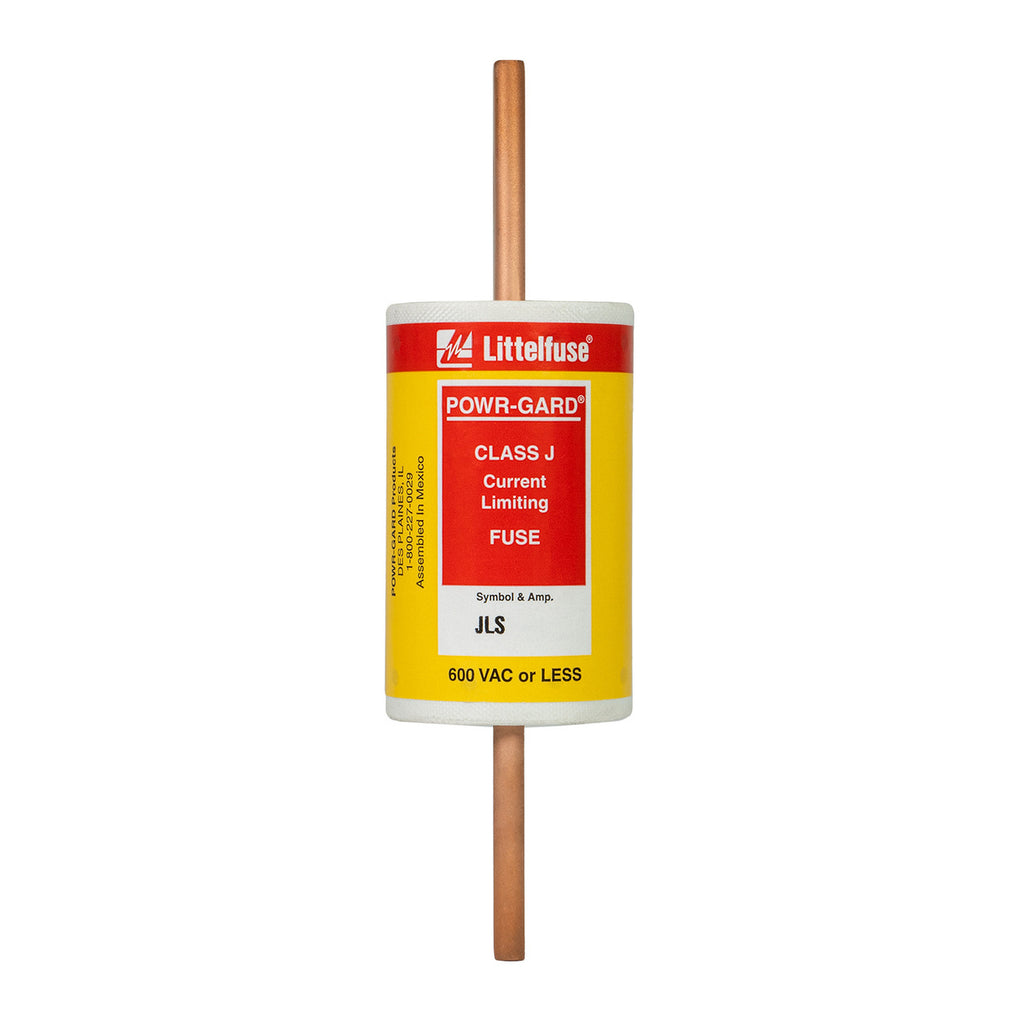

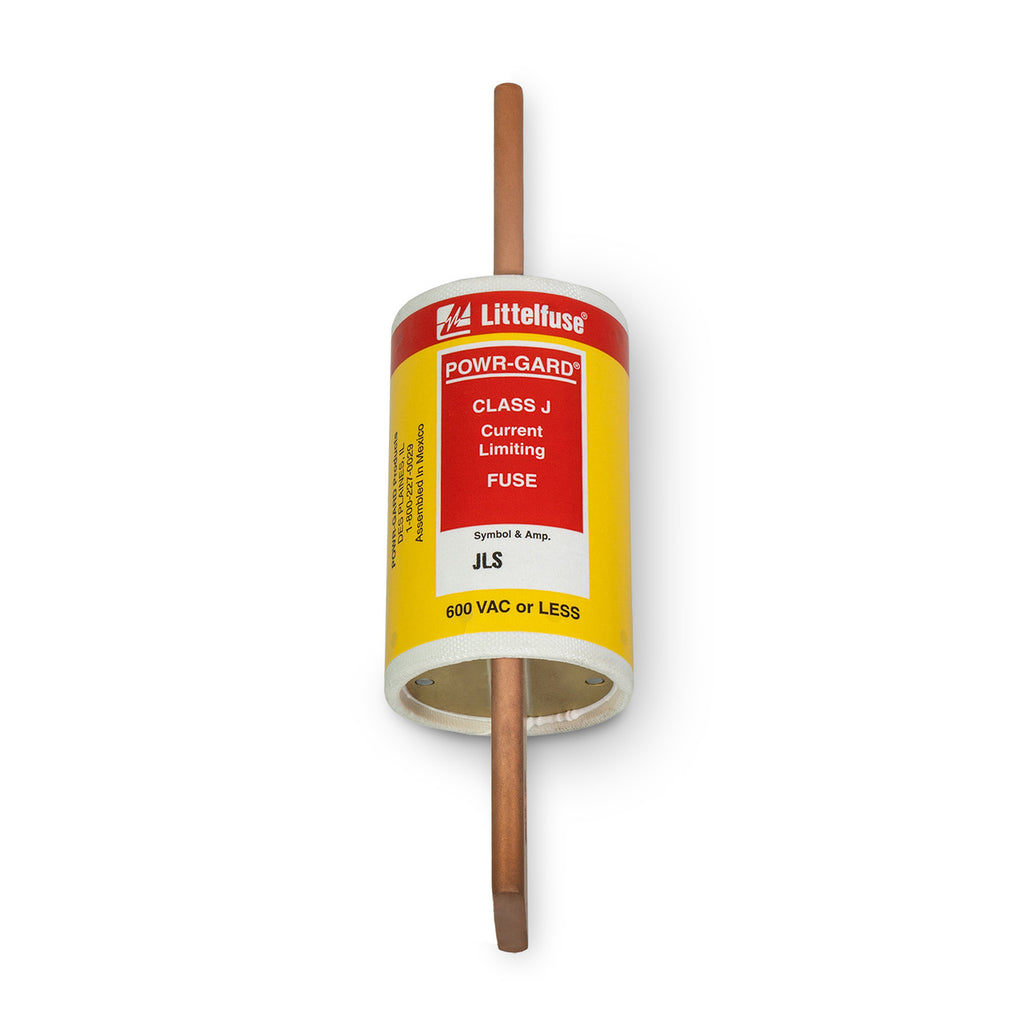

JLS250 is a Littelfuse Class J fuse designed for reliable overload and short-circuit protection in industrial and power applications. This fast-acting, current-limiting fuse is ideal for general purpose circuits with little or no motor load, including resistive loads such as resistance heaters and solid-state devices.Engineered with POWR-GARD® technology, the JLS250 offers compact size and high interrupting capacity, making it suitable for installations where space is limited and dependable protection is critical. The fuse features a bolt-on body for secure mounting and is rated for 600V AC.
- Amperage Rating: 250A
- Voltage Rating: 600V AC
- Interrupting Rating: 200,000A
- Series: JLS
- Mounting Type: Bolt-On
- Response Time: Fast-Acting
- Protection Type: Current-Limiting
- Physical Size: 2" x 7-1/8"
- UL Class J
- UL Listed
- CSA Certified
Specifications
- Part Number: JLS250
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLS Series - UL Class J Fast-Acting Fuses
- Type : JLS Series - UL Class J Fast-Acting Fuses
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458200904
- GTIN : 00079458200904
- Country of Origin : Mexico
- Dimensions : x 3-3/8 in x
- Weight : 1.67
- Certification : CE, CSA Certified, QPL-W-F-1814, UL 248-8 Class J, UL Listed
