Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLS200

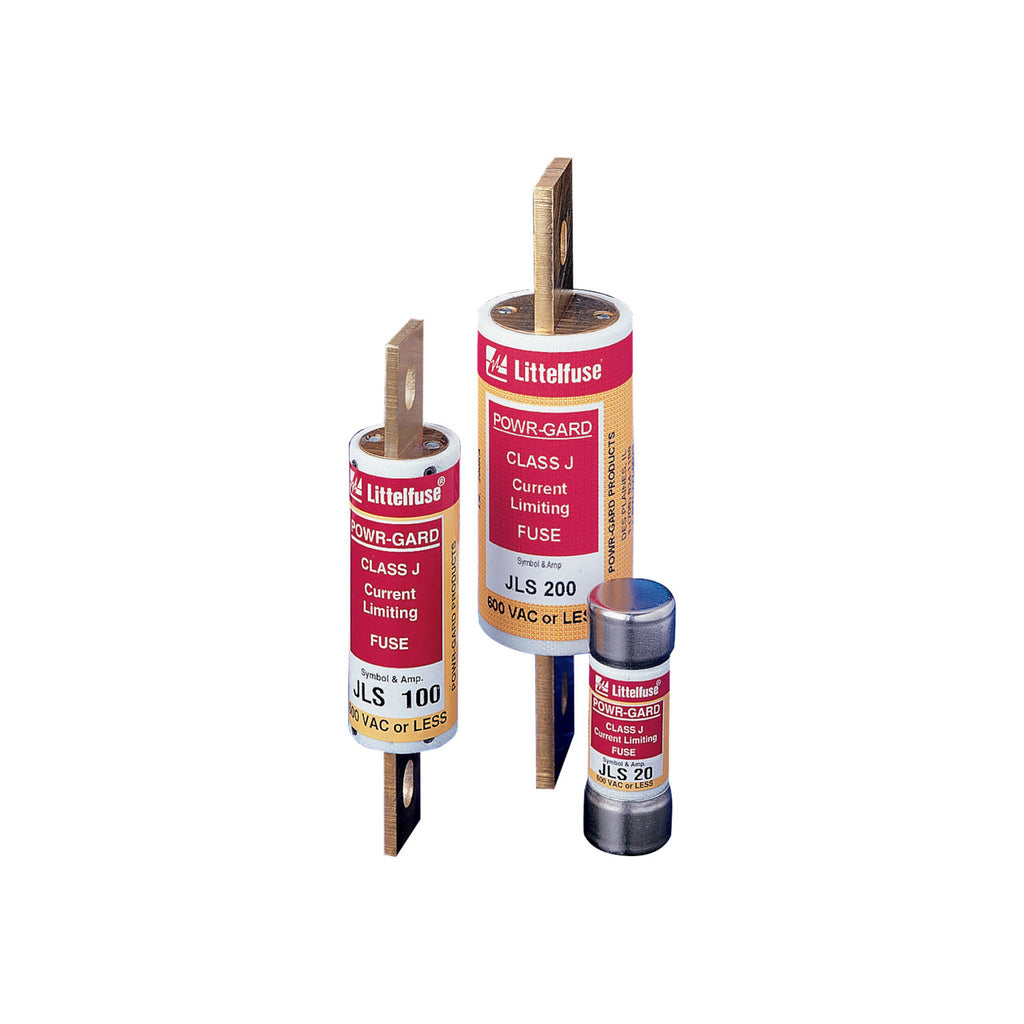

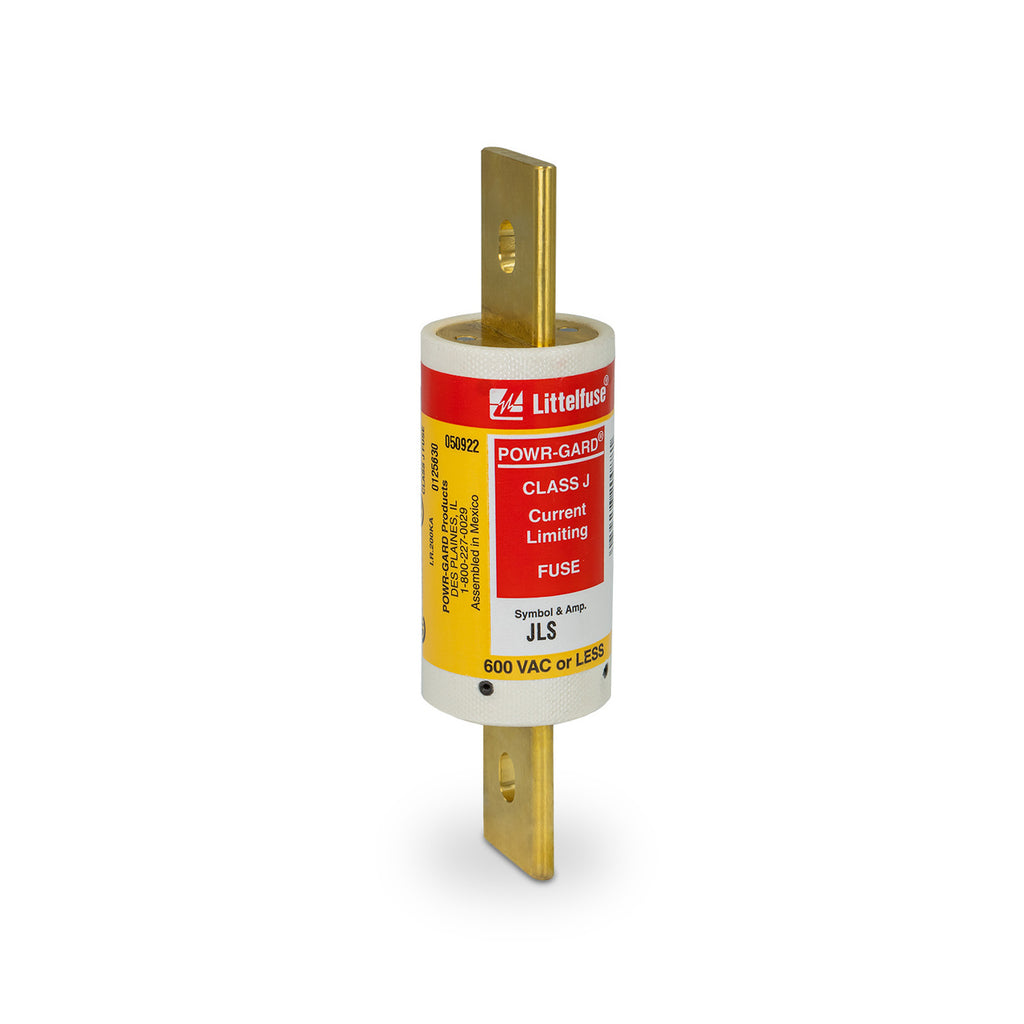

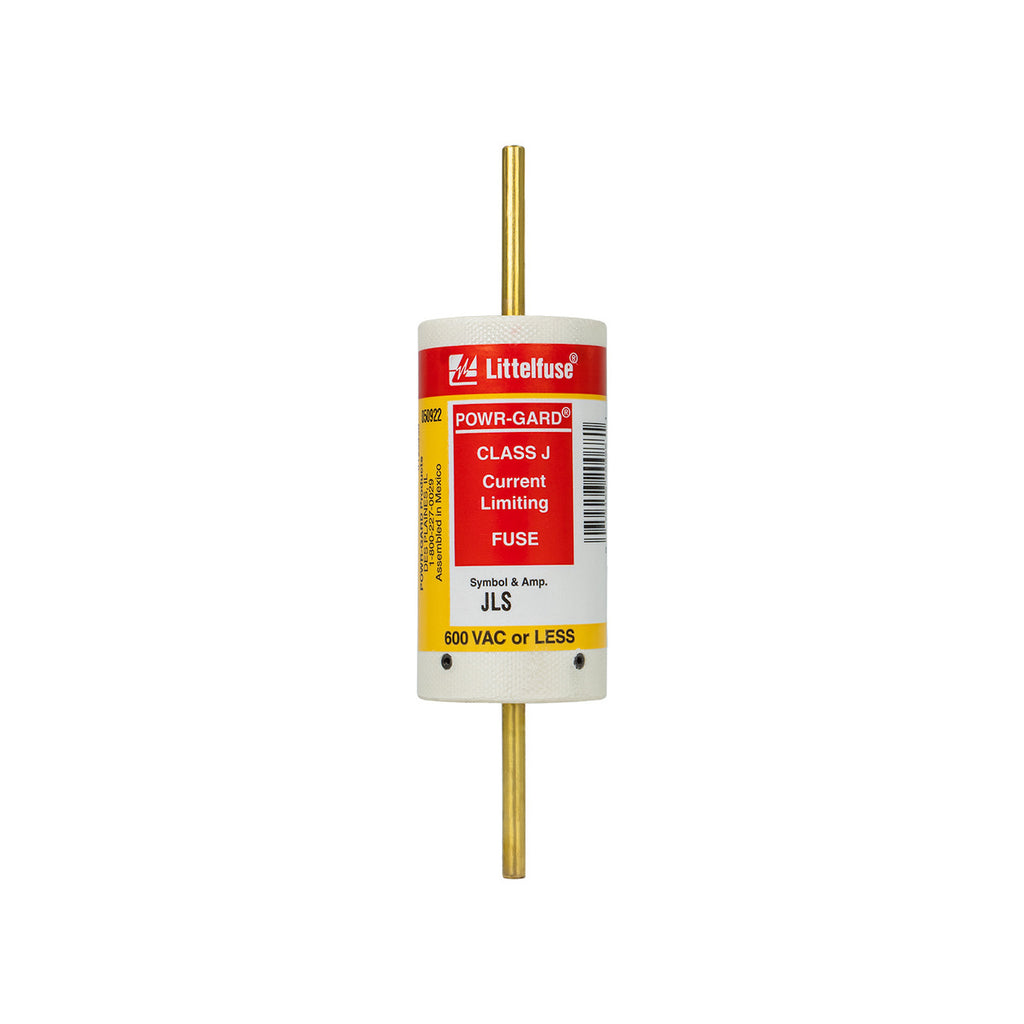

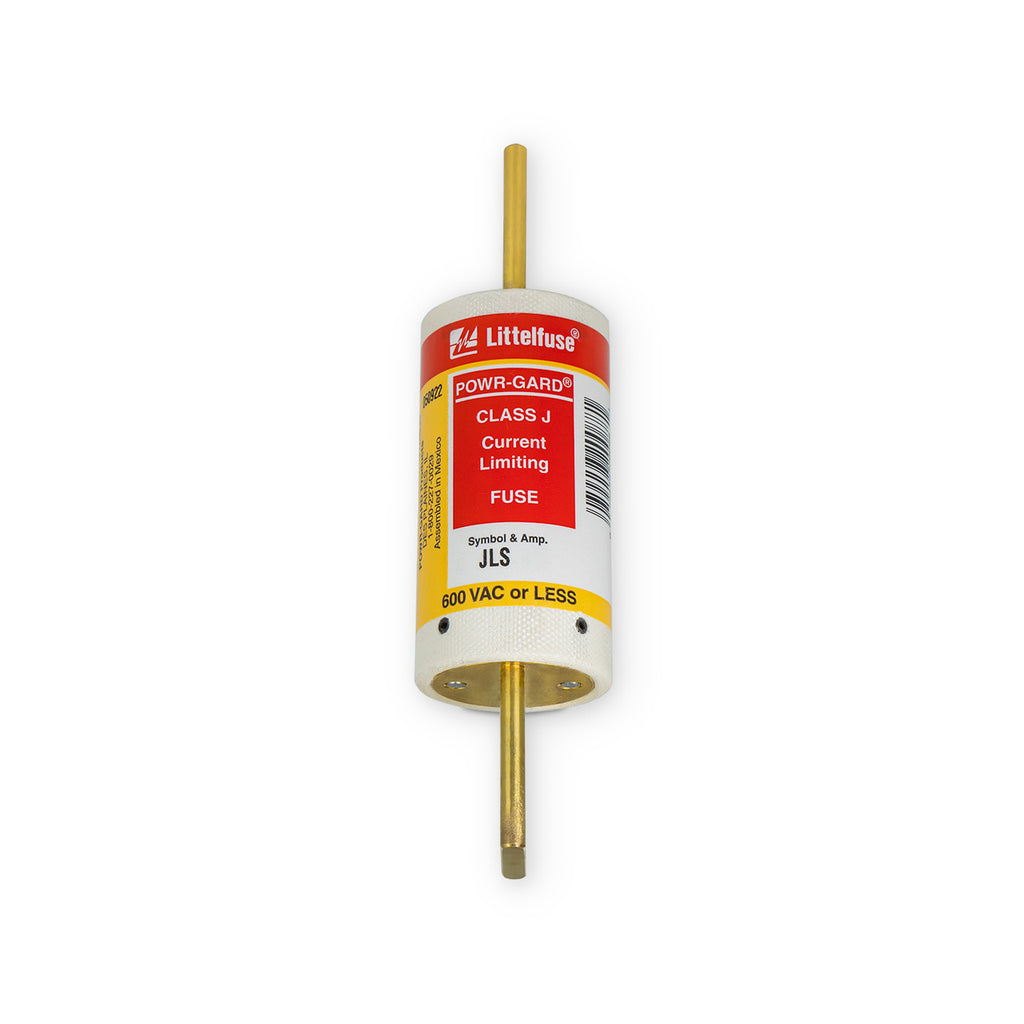

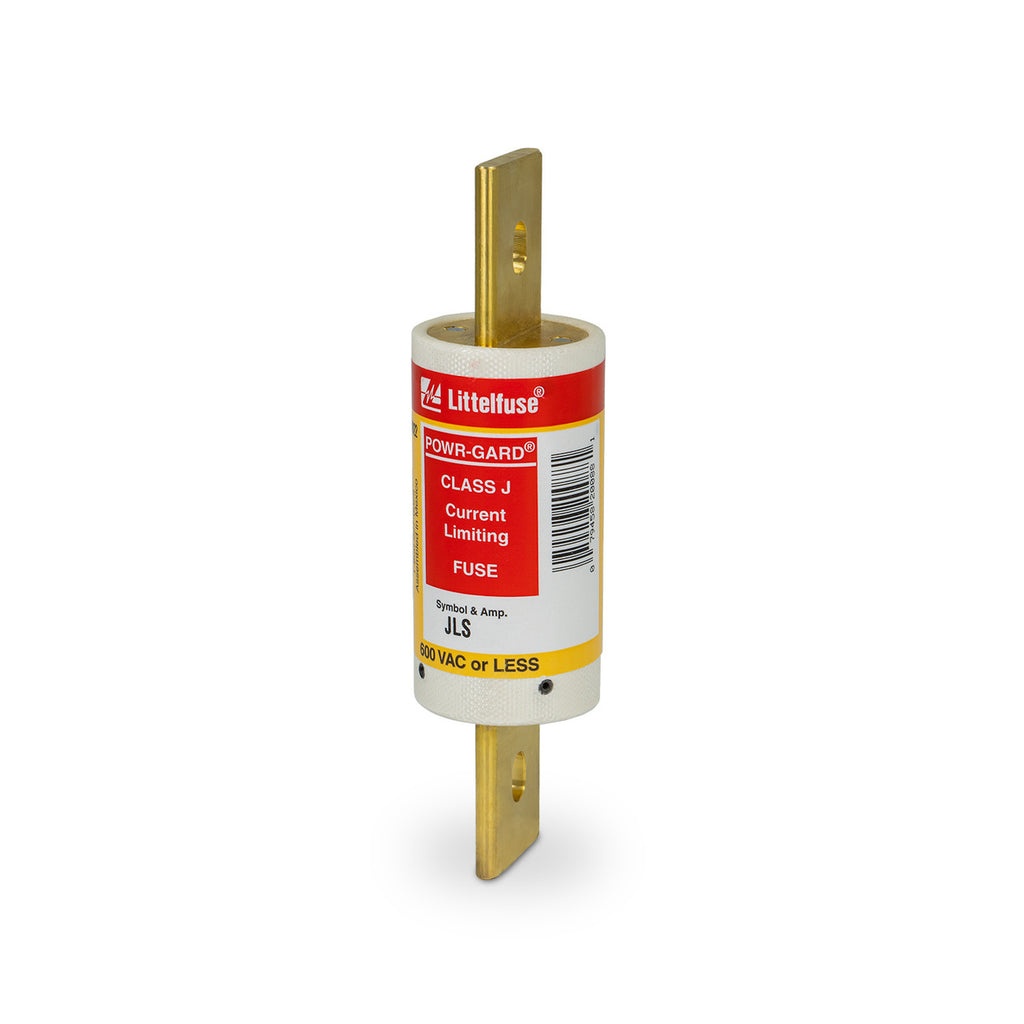

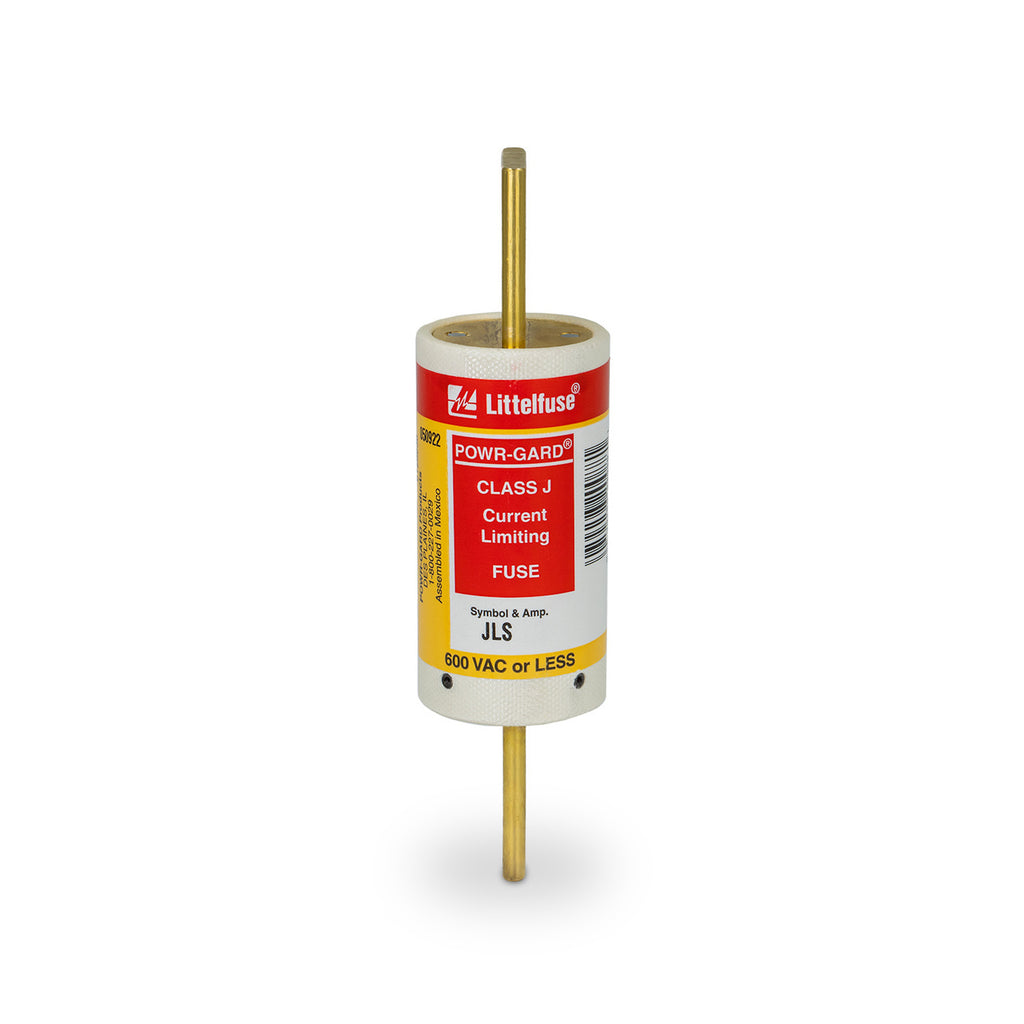

JLS200 is a Littelfuse Class J fast-acting fuse designed for reliable overload and short-circuit protection in industrial and commercial power applications. This fuse features a compact knife-blade construction and is ideal for circuits requiring fast-acting, current-limiting protection. The JLS200 fuse is rated for 200 amps and 600 volts AC, with an interrupting rating of 200,000 amps at 600 volts AC. It is constructed for bolt-on mounting and is suitable for use in general-purpose circuits with little or no motor load, including resistive loads and solid-state devices. The fuse is UL and CSA listed, ensuring compliance with major safety standards.
- Part Number: JLS200
- Manufacturer: Littelfuse
- Amperage: 200A
- Voltage Rating: 600V AC
- Interrupting Rating: 200,000A
- Fuse Class: Class J
- Mounting Type: Bolt-On
- Speed: Fast-Acting
- Construction: Knife-Blade
- Current Limiting: Yes
- Standards: UL 248-8, CSA, CE
- Series: JLS
Specifications
- Part Number: JLS200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLS Series - UL Class J Fast-Acting Fuses
- Type : JLS Series - UL Class J Fast-Acting Fuses
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458200881
- GTIN : 00079458200881
- Country of Origin : Mexico
- Dimensions : x 3 in x
- Weight : 0.85
- Certification : CE, UL 248-8 Class J, UL Listed, CSA Certified, QPL-W-F-1814
