Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLS125

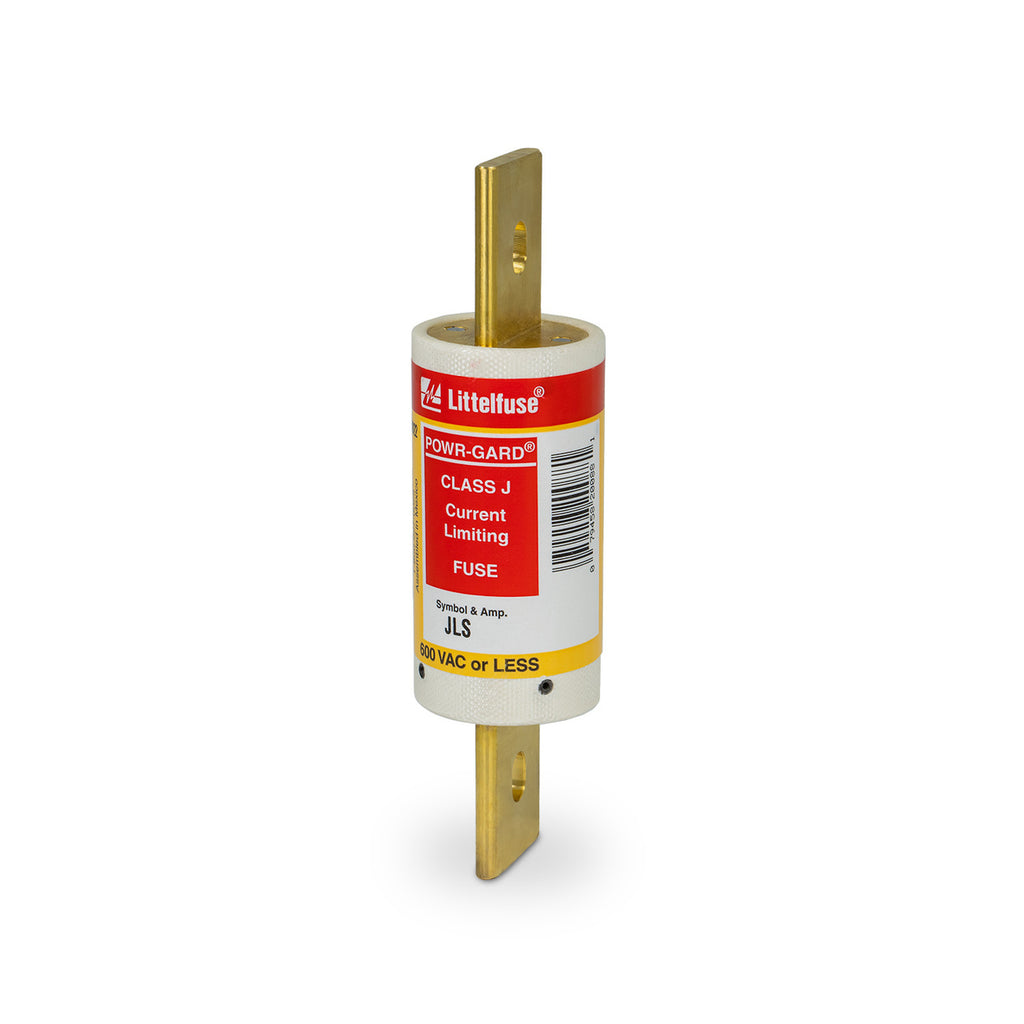

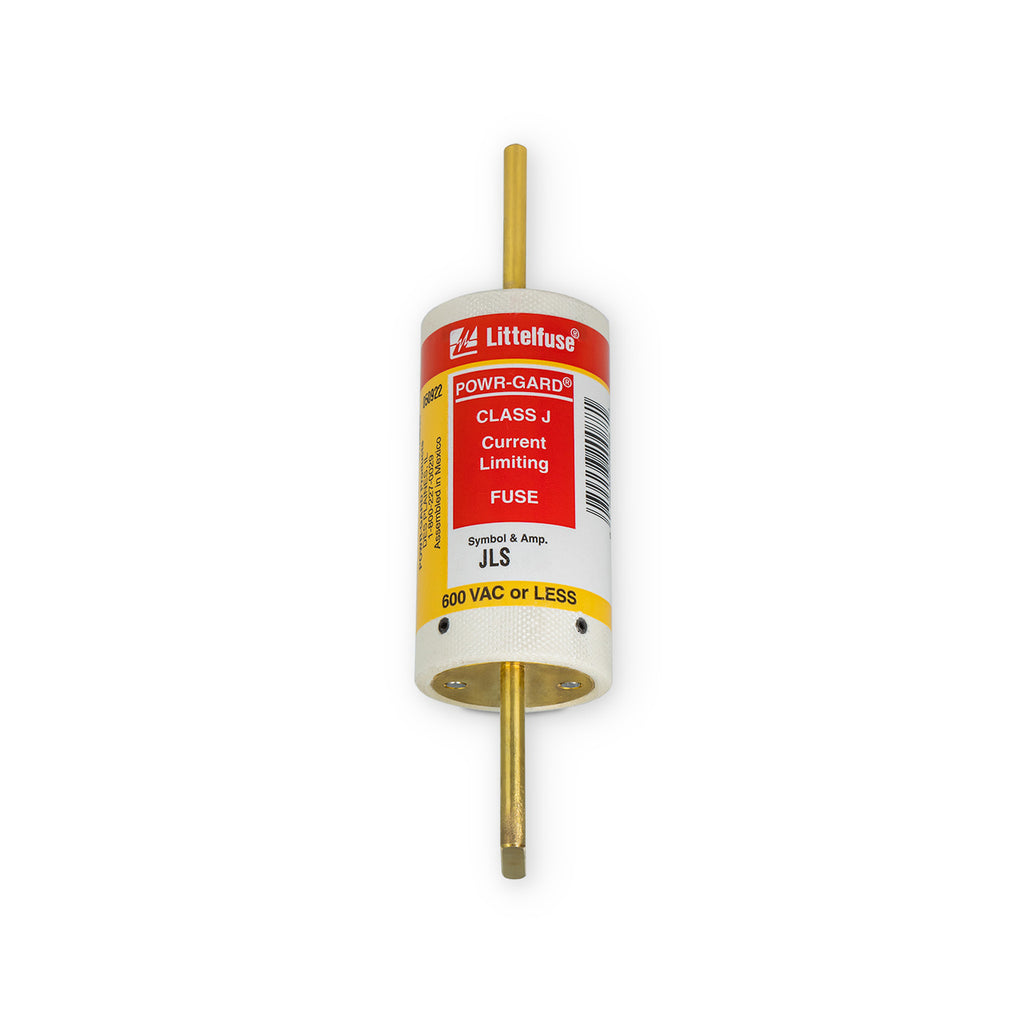

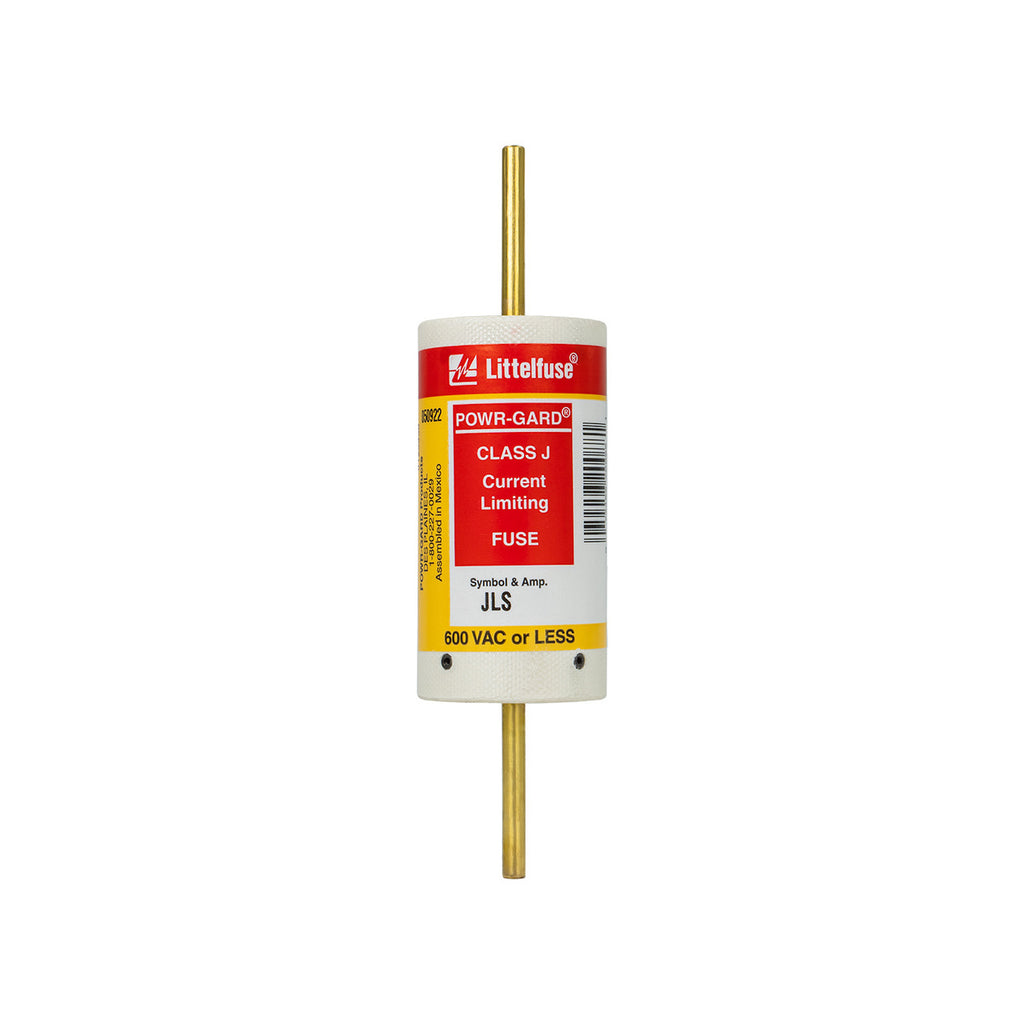

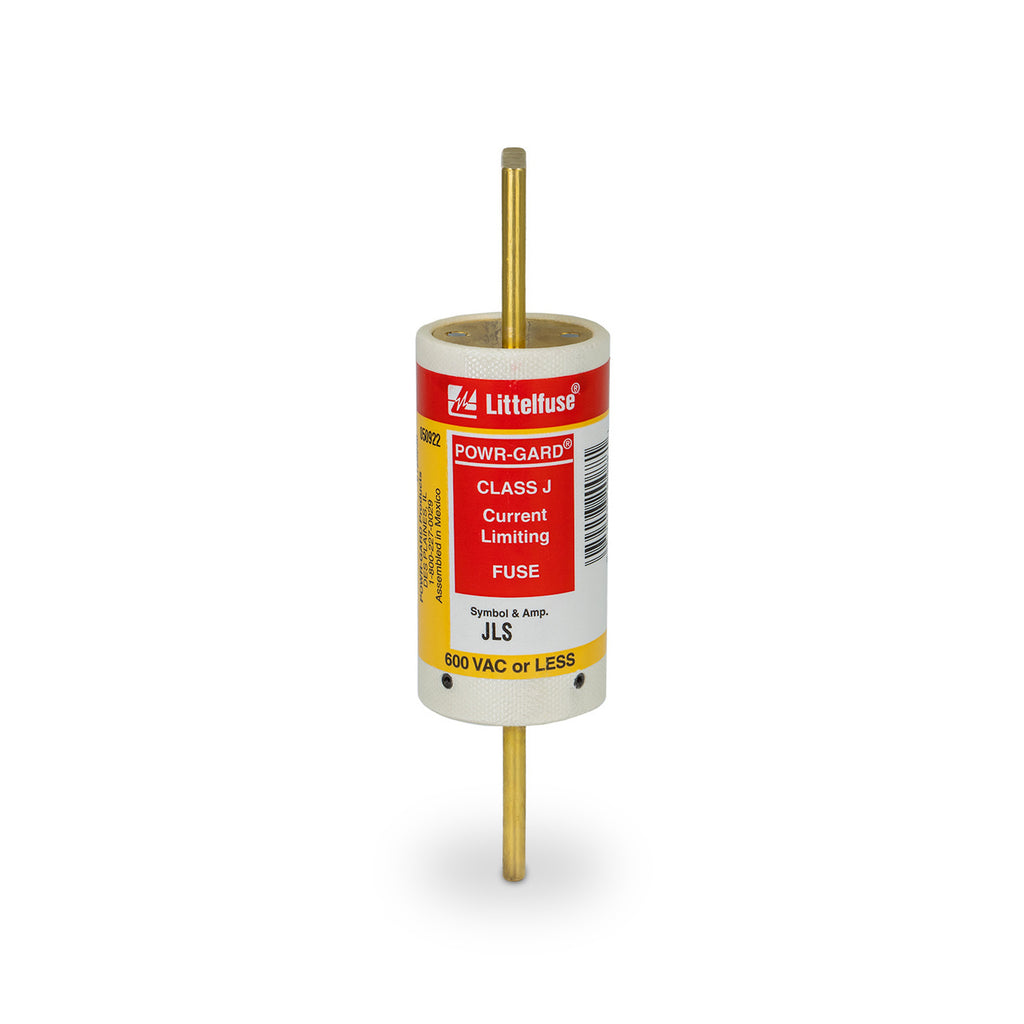

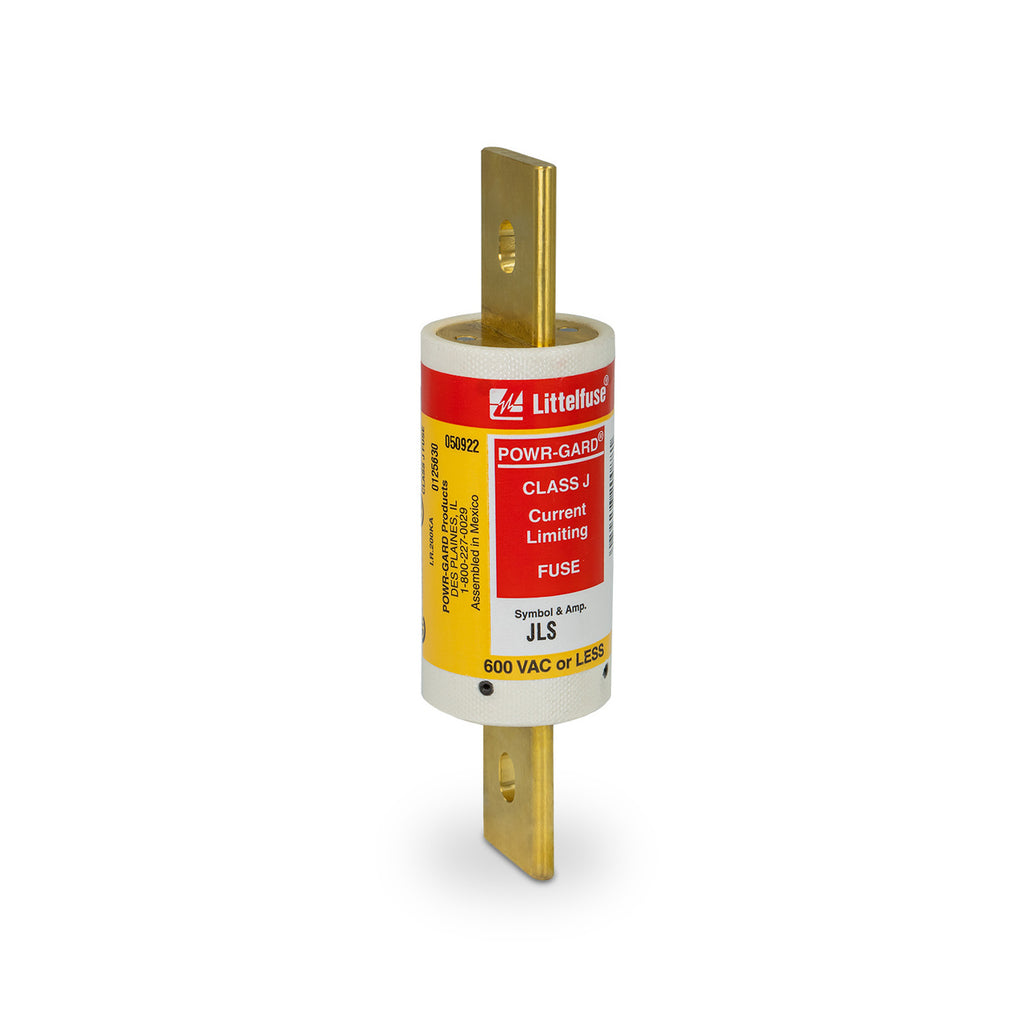

JLS125 is a Littelfuse Class J fast-acting fuse rated for 125 amps and 600 volts AC with a 200,000 amp interrupt rating.JLS125 features a compact cartridge design measuring 1-1/2" x 5-3/4" and is intended for general purpose circuits with little or no motor load, including resistive loads such as resistance electric heat. It incorporates POWR-GARD® technology for current limiting and fast response to overloads.
- Manufacturer: Littelfuse
- Part Number: JLS125
- Fuse Type: Class J
- Amperage Rating: 125 Amps
- Voltage Rating: 600 Volts AC
- Interrupt Rating: 200,000 Amps (200 kA) at 600 VAC
- Fuse Response: Fast-Acting
- Physical Size: 1-1/2" diameter x 5-3/4" length
- Protection Type: General purpose, resistive loads, resistance heaters
- Certifications: UL Listed, CSA Certified
- Technology: POWR-GARD® current limiting
Specifications
- Part Number: JLS125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLS Series - UL Class J Fast-Acting Fuses
- Type : JLS Series - UL Class J Fast-Acting Fuses
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458200843
- GTIN : 00079458200843
- Country of Origin : Mexico
- Dimensions : x 3 in x
- Weight : 0.83
- Certification : CE, CSA Certified, QPL-W-F-1814, UL 248-8 Class J, UL Listed
