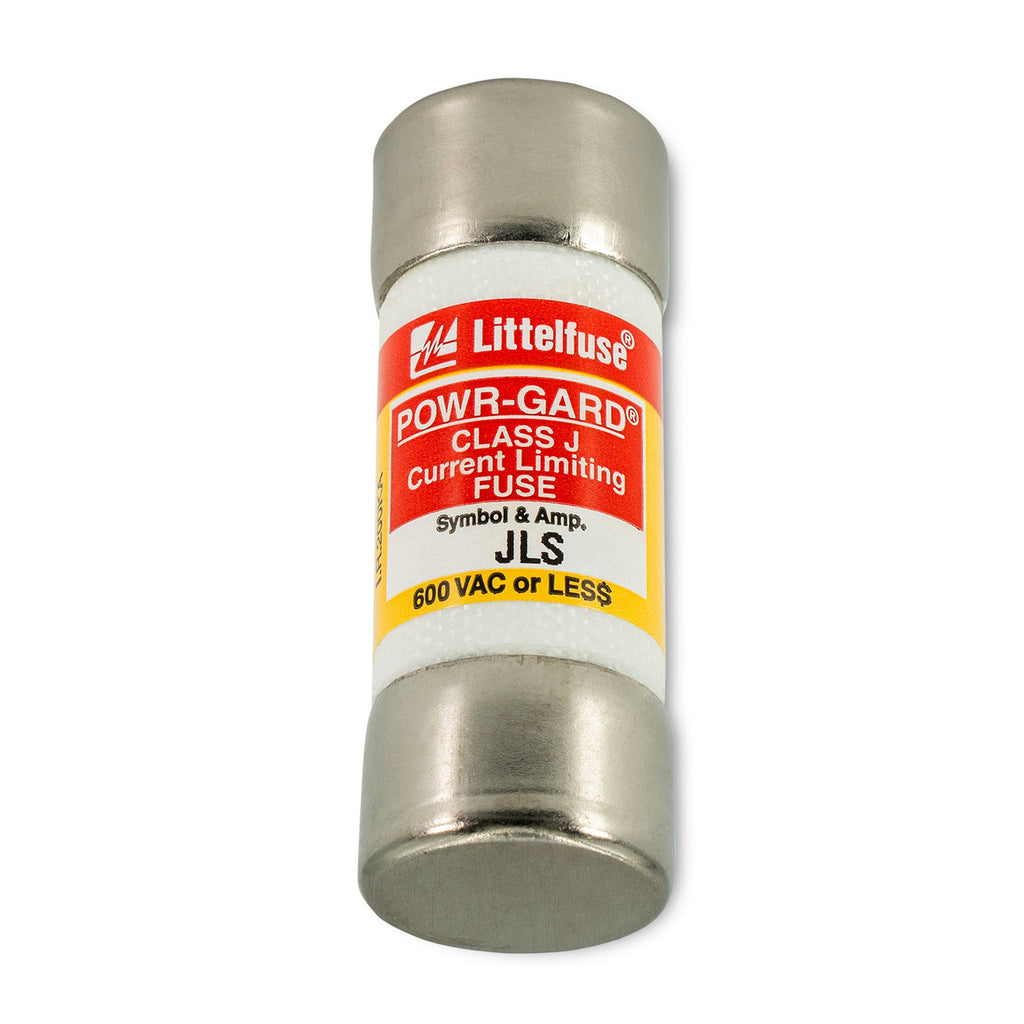

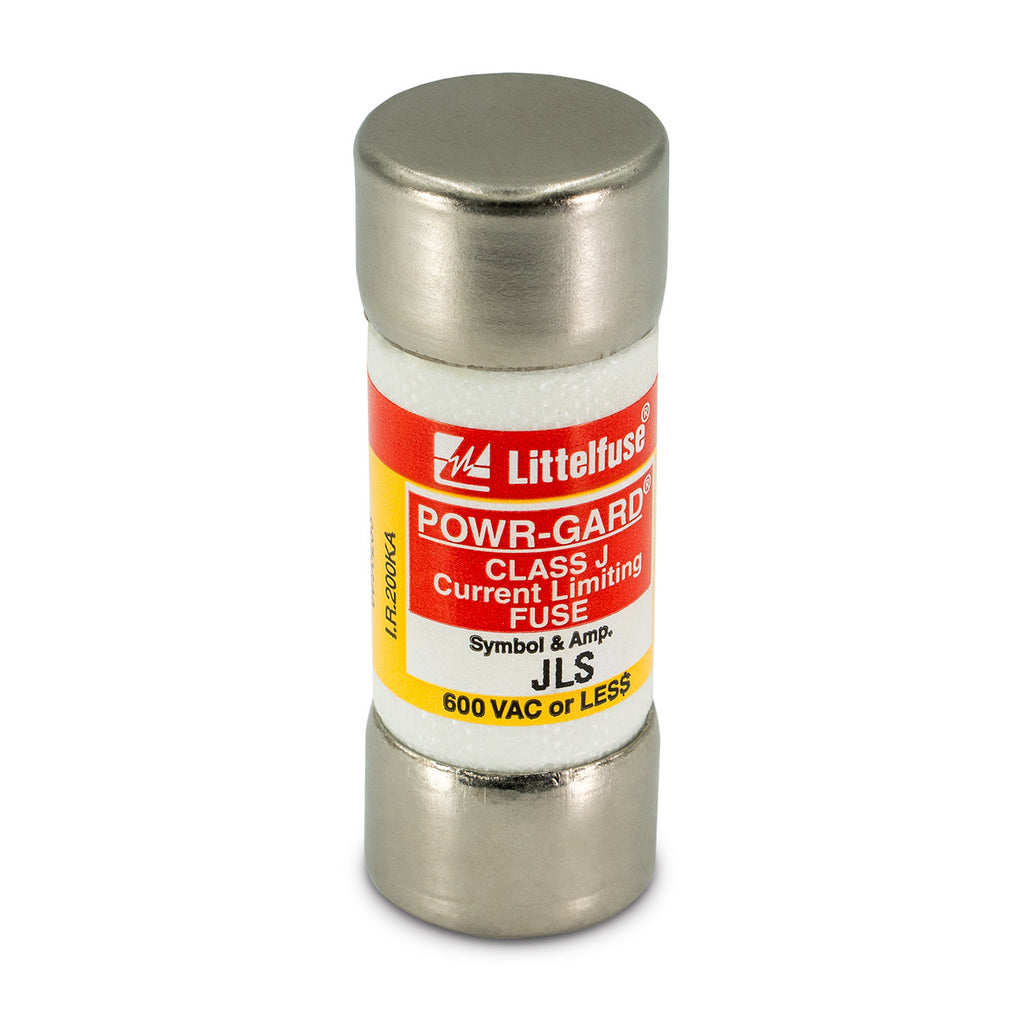

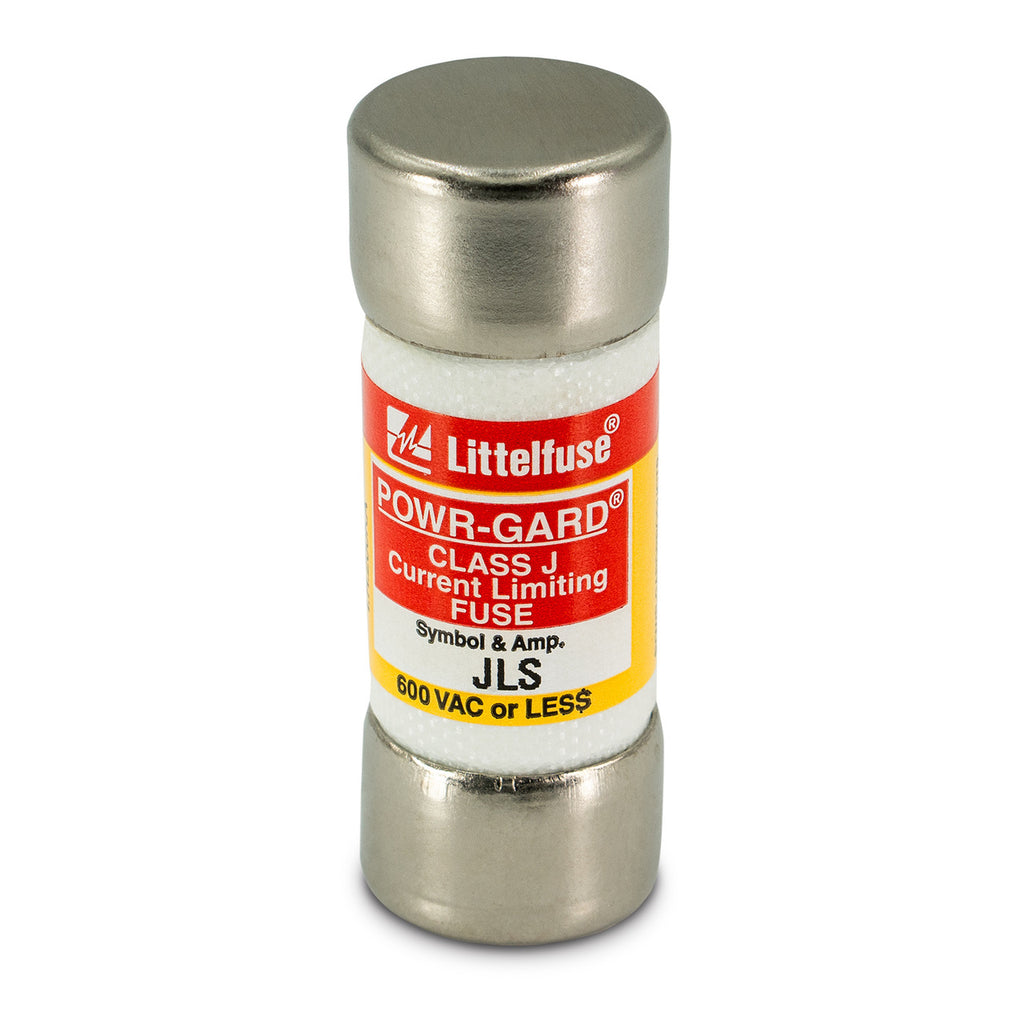

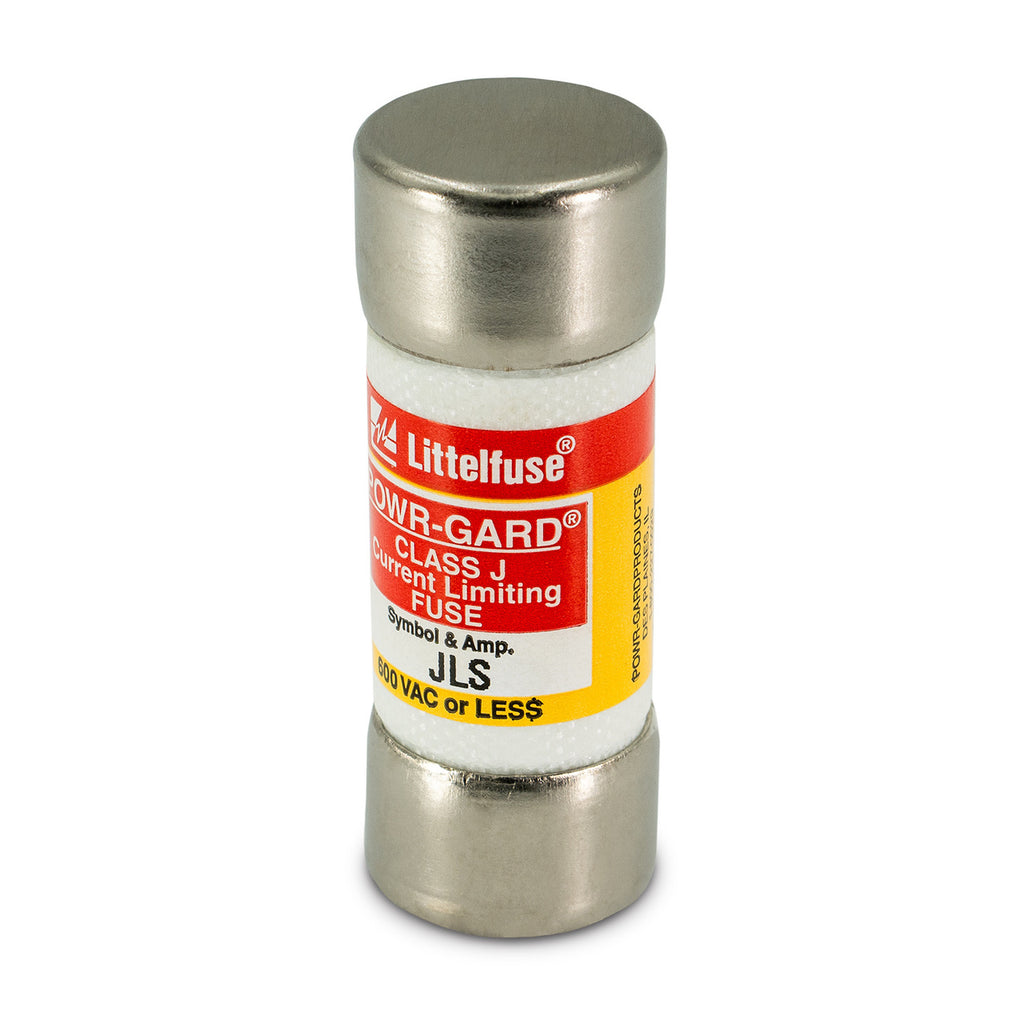

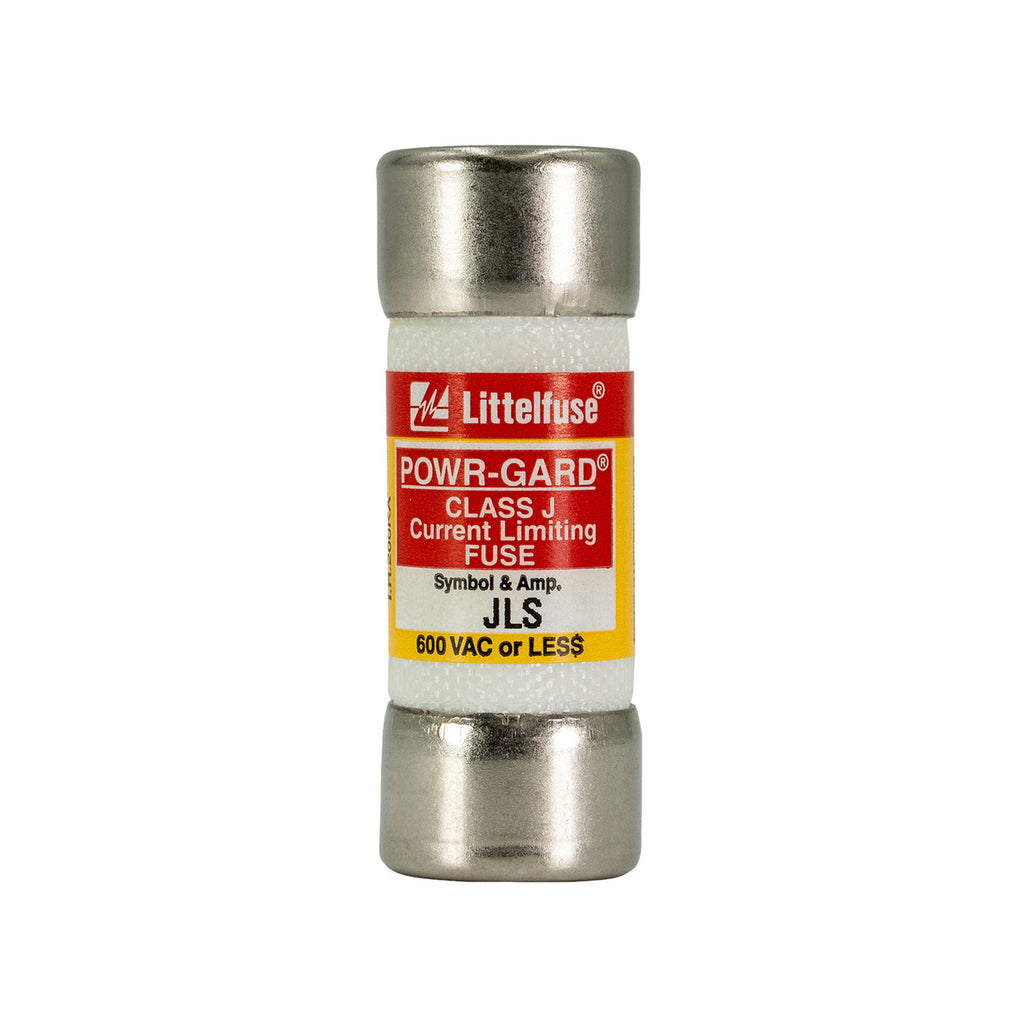

JLS020 - Littelfuse 20 Amp 600 Volt Class J Fast-Acting Fuse

JLS020

JLS020 is a Littelfuse Class J fast-acting fuse rated for 20 amps and 600 volts AC, designed for reliable overcurrent protection in industrial and power applications.This fuse features a compact cartridge-style construction with a 13/16" diameter and 2-1/4" length. It provides fast-acting, current-limiting protection suitable for general purpose circuits with little or no motor load, resistive loads such as resistance heaters, and solid-state devices. The JLS020 fuse has a high interrupting rating of 200,000 amperes at 600 VAC, ensuring safe interruption of short circuits. It is UL listed and CSA certified, incorporating POWR-GARD® technology for enhanced protection.

• Amperage Rating: 20 Amps
• Voltage Rating: 600 Volts AC
• Fuse Class: Class J
• Fuse Type: Fast-Acting
• Interrupting Rating: 200,000 AIC @ 600 VAC
• Size: 13/16" diameter x 2-1/4" length
• Mounting: Fuse Block / Clip / Holder
• Current Limiting
• UL Listed and CSA Certified
• POWR-GARD® Technology
• Application: General Purpose Circuits, Resistive Loads, Solid-State Devices

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLS020
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JLS Series - UL Class J Fast-Acting Fuses
• Type : JLS Series - UL Class J Fast-Acting Fuses
• Voltage : 600
• Amperage : 20
• AIC rating : 200kA@600Vac
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : J
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 079458200713
• GTIN : 00079458200713
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 0.1
• Certification : CE, UL 248-8 Class J, UL Listed, CSA Certified, QPL-W-F-1814
