JLS015 - Littelfuse 15 Amp 600 Volt Class J Fast Acting Cartridge Fuse 200kA Interrupt Rating

JLS015

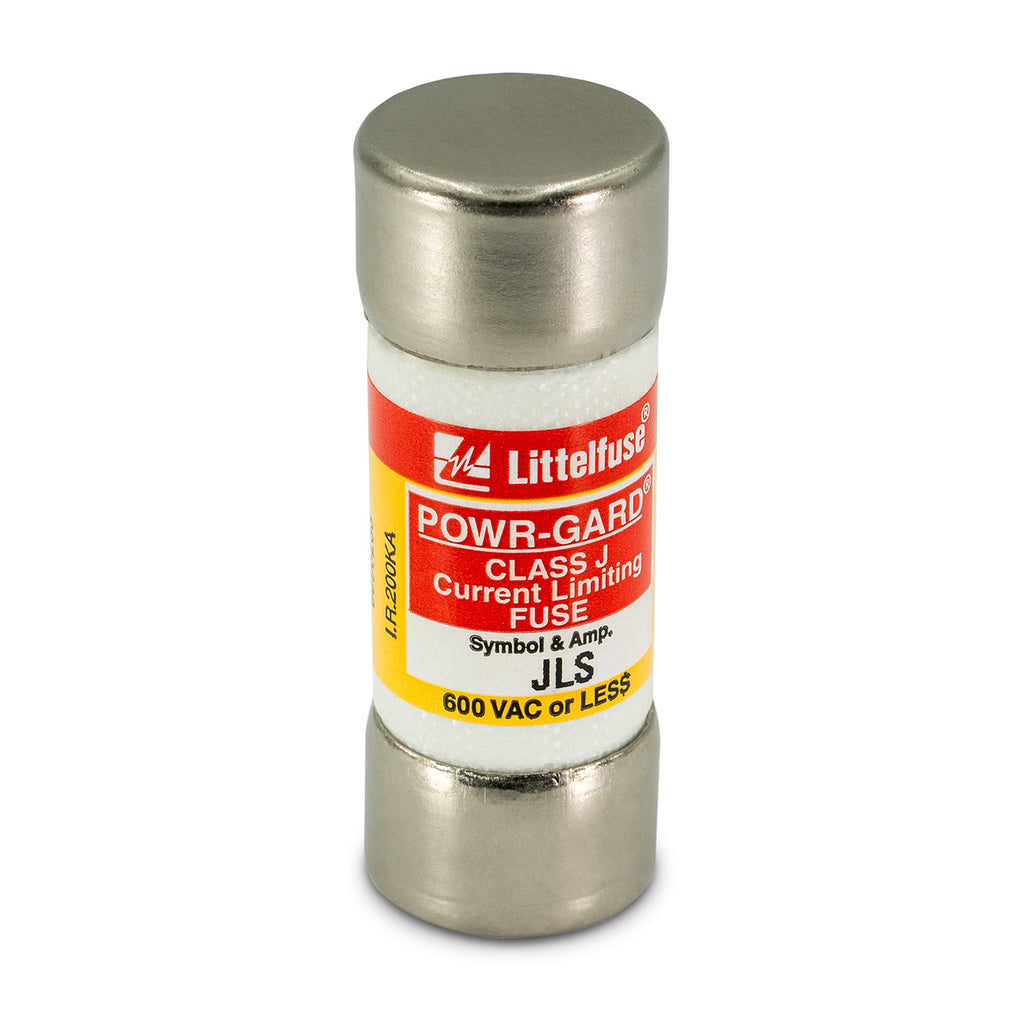

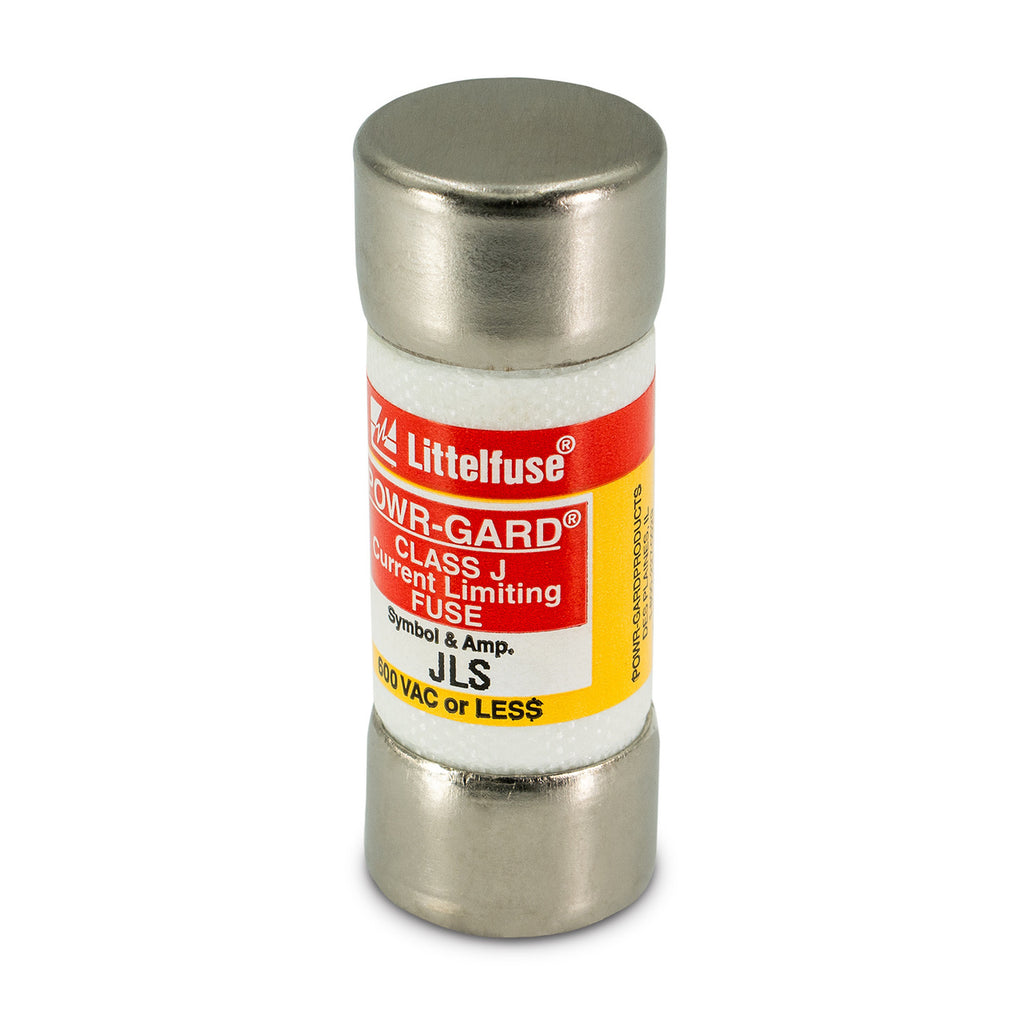

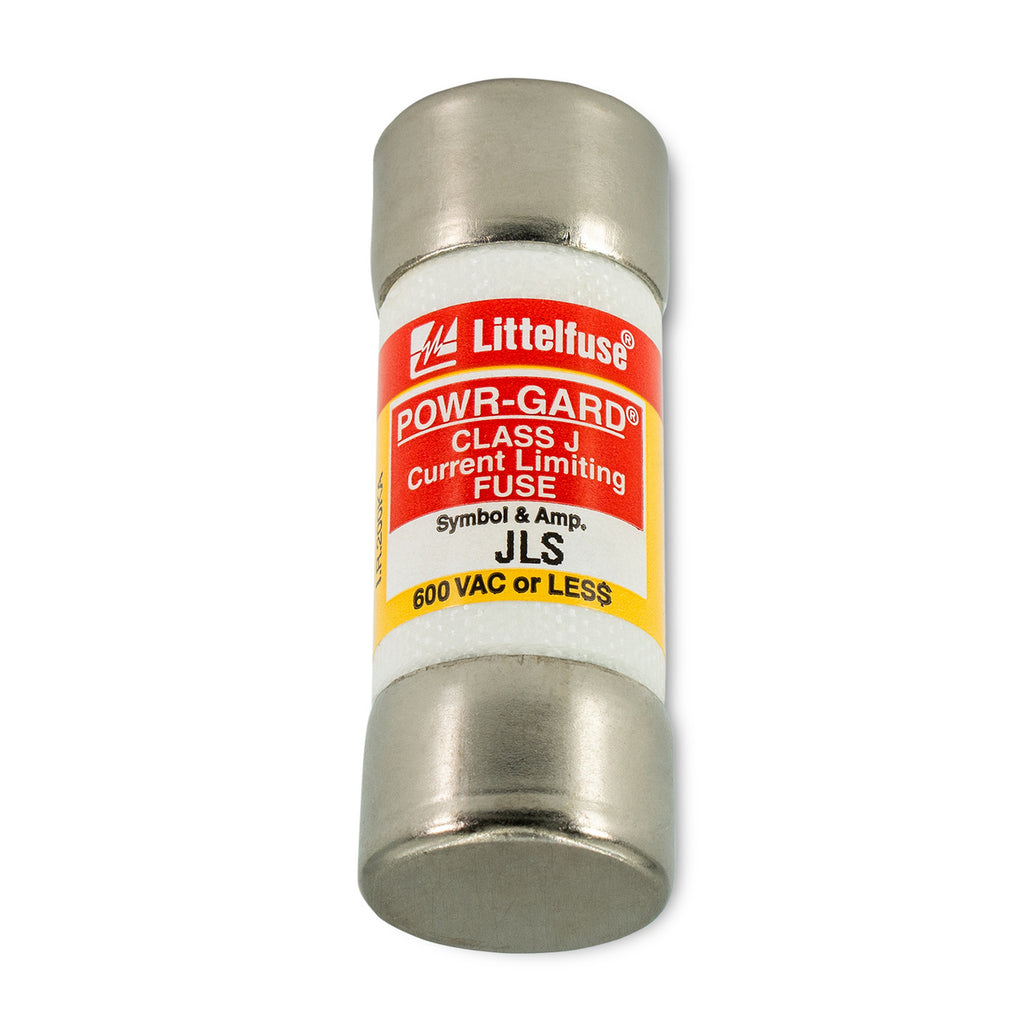

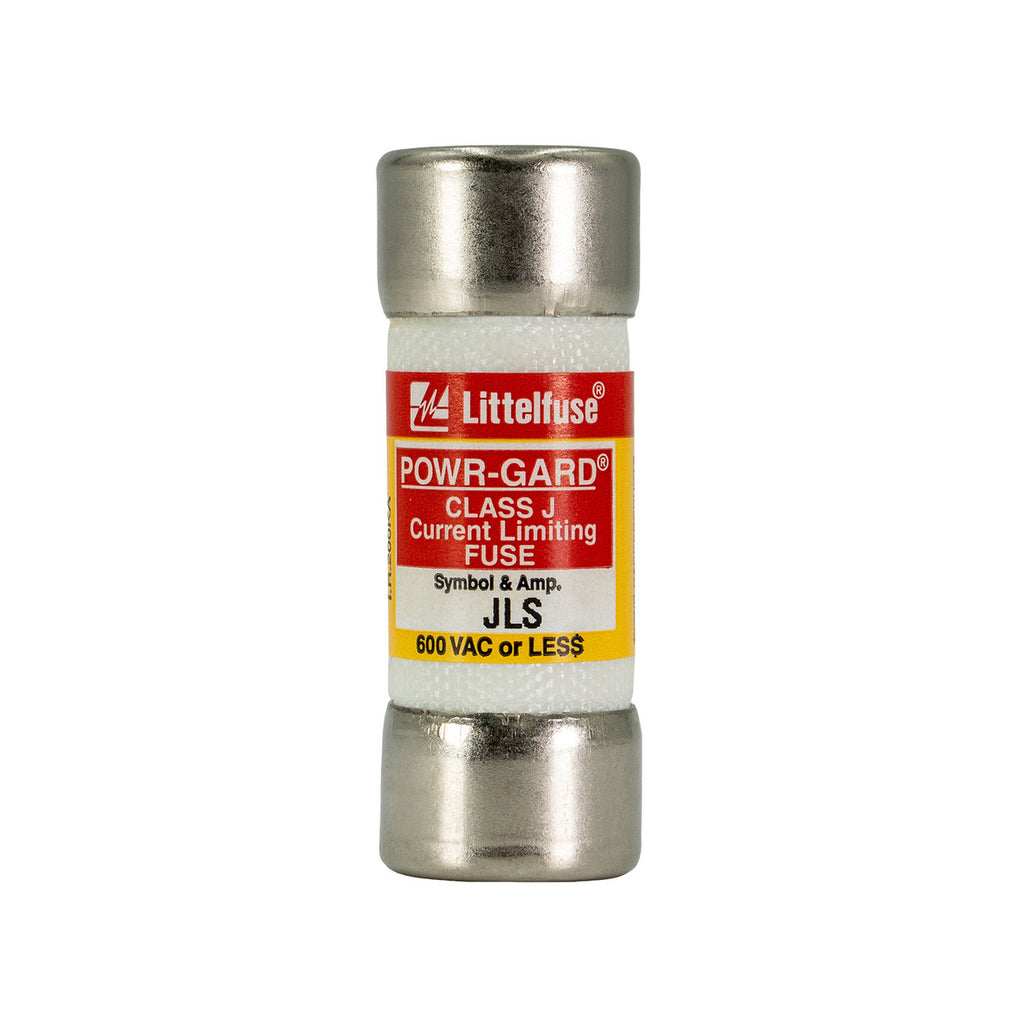

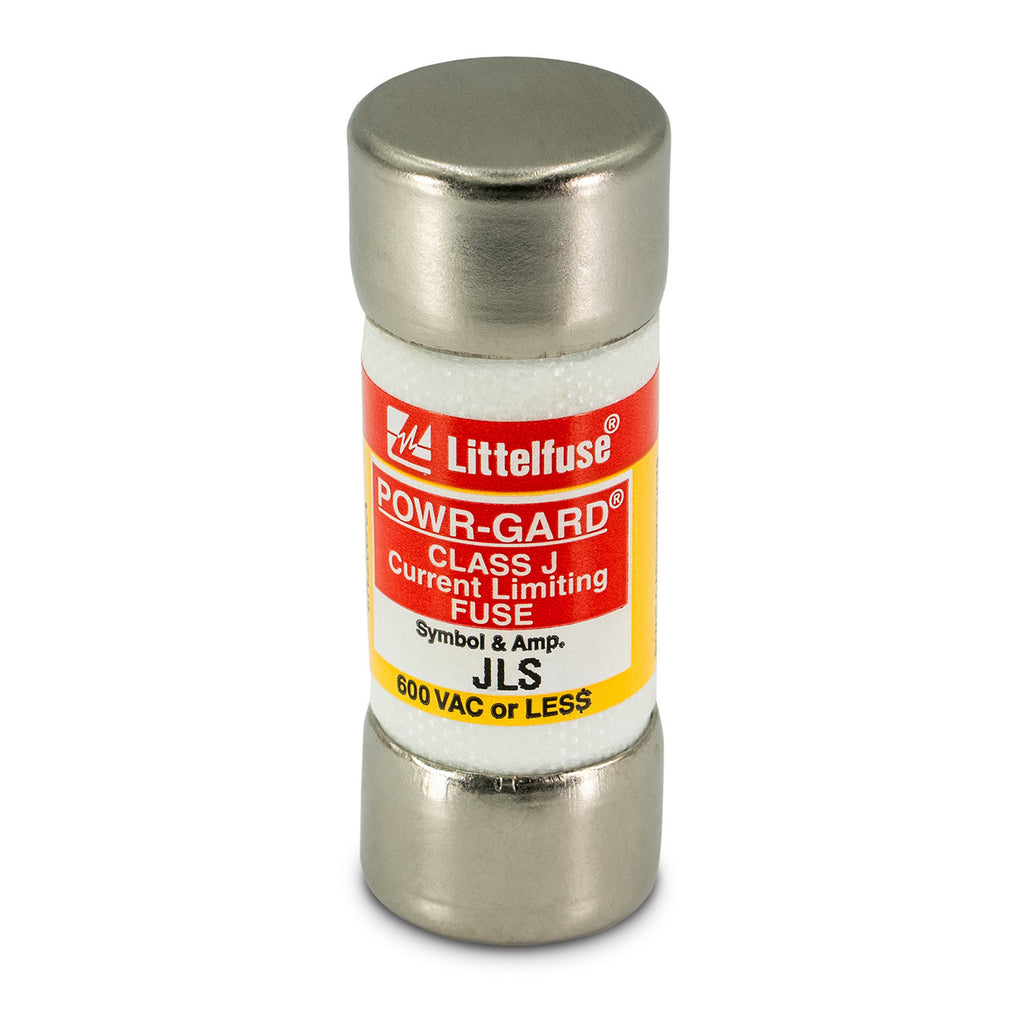

JLS015 is a Littelfuse Class J fast acting cartridge fuse rated for 15 amps and 600 volts AC.

This Class J fuse features a 2-1/4 inch length and 13/16 inch diameter cartridge body designed for industrial applications requiring fast-acting overcurrent protection. It has a high interrupting rating of 200,000 amperes at 600 VAC, making it suitable for general purpose circuits with little or no motor load and resistive loads such as resistance electric heat. The fuse is compatible with fuse blocks and holders and meets UL 248-8, CSA, and CE certifications.

• Current Rating: 15 Amps
• Voltage Rating: 600 VAC
• Interrupting Rating: 200,000 Amperes
• Fuse Class: Class J
• Fuse Type: Fast Acting (F)
• Cartridge Size: 13/16 inch diameter x 2-1/4 inch length
• Mounting Method: Fuse Block / Clip / Holder
• Certifications: UL 248-8, CSA, CE
• Series: JLS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLS015
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JLS Series - UL Class J Fast-Acting Fuses
• Type : JLS Series - UL Class J Fast-Acting Fuses
• Voltage : 600
• Amperage : 15
• AIC rating : 200kA@600Vac
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : J
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 007945820068
• GTIN : 00079458200683
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 0.1
• Certification : CE, UL 248-8 Class J, UL Listed, CSA Certified, QPL-W-F-1814
