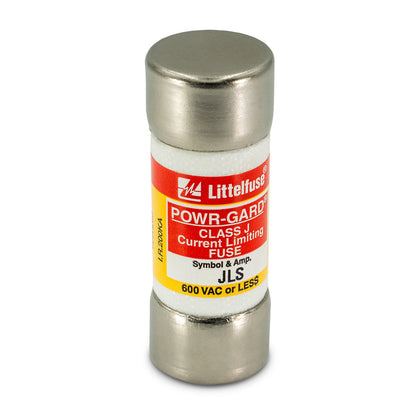

JLS010 - Littelfuse 10 Amp 600 Volt Class J Fast-Acting Fuse

JLS010

JLS010 is a Littelfuse Class J fast-acting fuse rated for 10 amps and 600 volts AC, designed for reliable overcurrent protection in industrial applications.This fuse features a compact cartridge-style construction measuring 13/16" x 2 1/4" and provides fast-acting, current-limiting protection for general purpose circuits with little or no motor load, including resistive loads such as resistance electric heat. It has a high interrupting rating of 200,000 amperes at 600 volts AC, ensuring safe interruption of high fault currents. The JLS010 is UL Listed, CSA Certified, and designed for mounting in fuse blocks, clips, or holders.

• Amperage Rating: 10 Amps
• Voltage Rating: 600 Volts AC
• Fuse Class: Class J
• Fuse Type: Fast-Acting
• Interrupting Rating: 200,000 AIC @ 600 VAC
• Size: 13/16" x 2 1/4" Cartridge
• Mounting Method: Fuse Block / Clip / Holder
• Applications: General Purpose Circuits, Resistive Loads, Electric Heat
• Certifications: UL Listed, CSA Certified
• Current Limiting Technology: POWR-GARD®

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLS010
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JLS Series - UL Class J Fast-Acting Fuses
• Type : JLS Series - UL Class J Fast-Acting Fuses
• Voltage : 600
• Amperage : 10
• AIC rating : 200kA@600Vac
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : J
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 079458200652
• GTIN : 00079458200652
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 7
• Certification : CE, UL 248-8 Class J, UL Listed, CSA Certified, QPL-W-F-1814
