JLS006 - Littelfuse Class J 6 Amp 600V Fast-Acting Fuse

JLS006

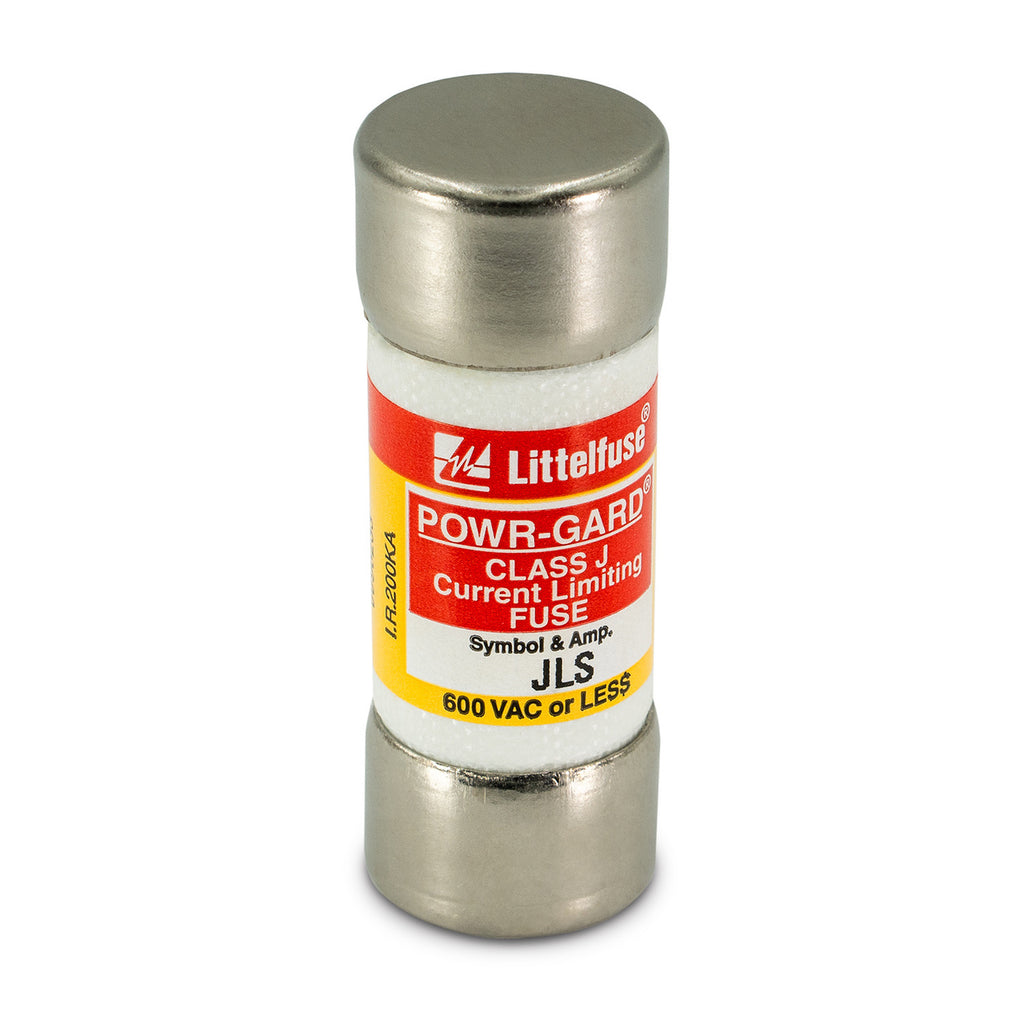

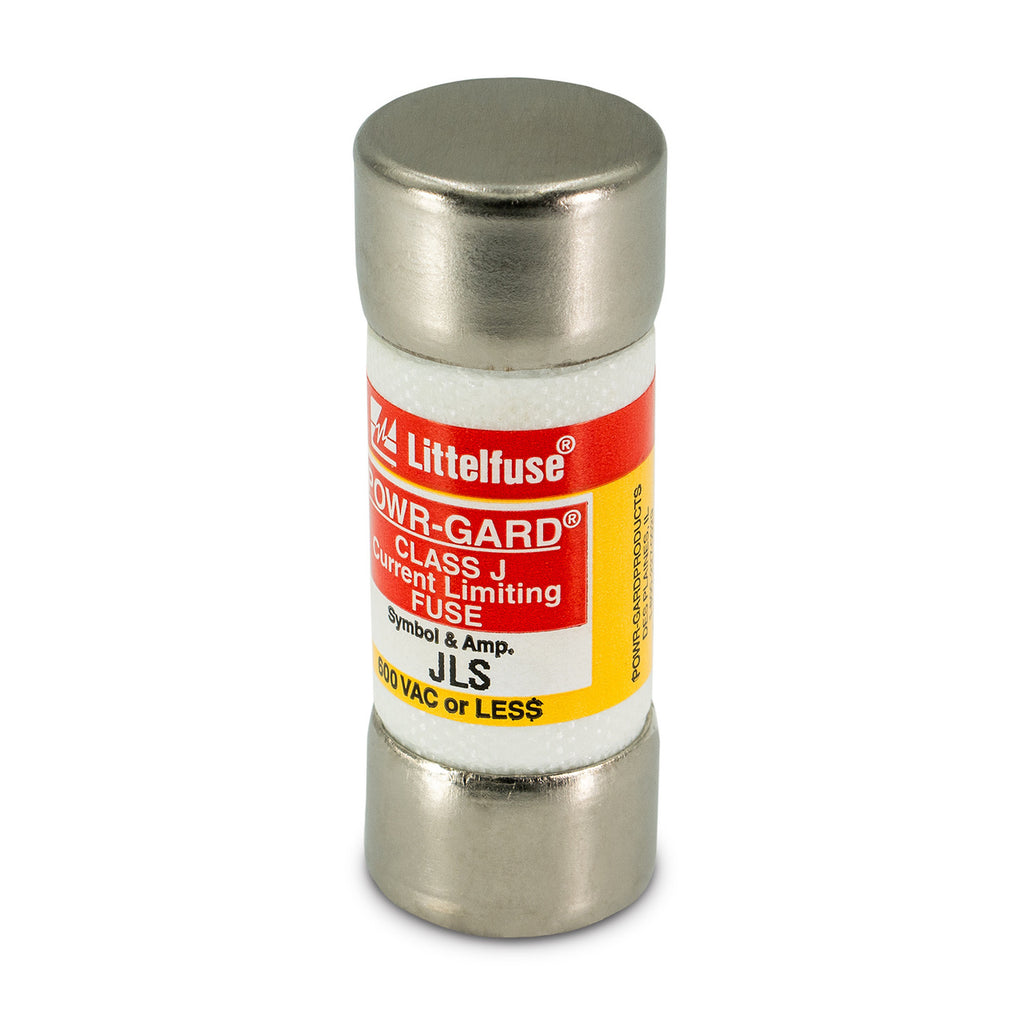

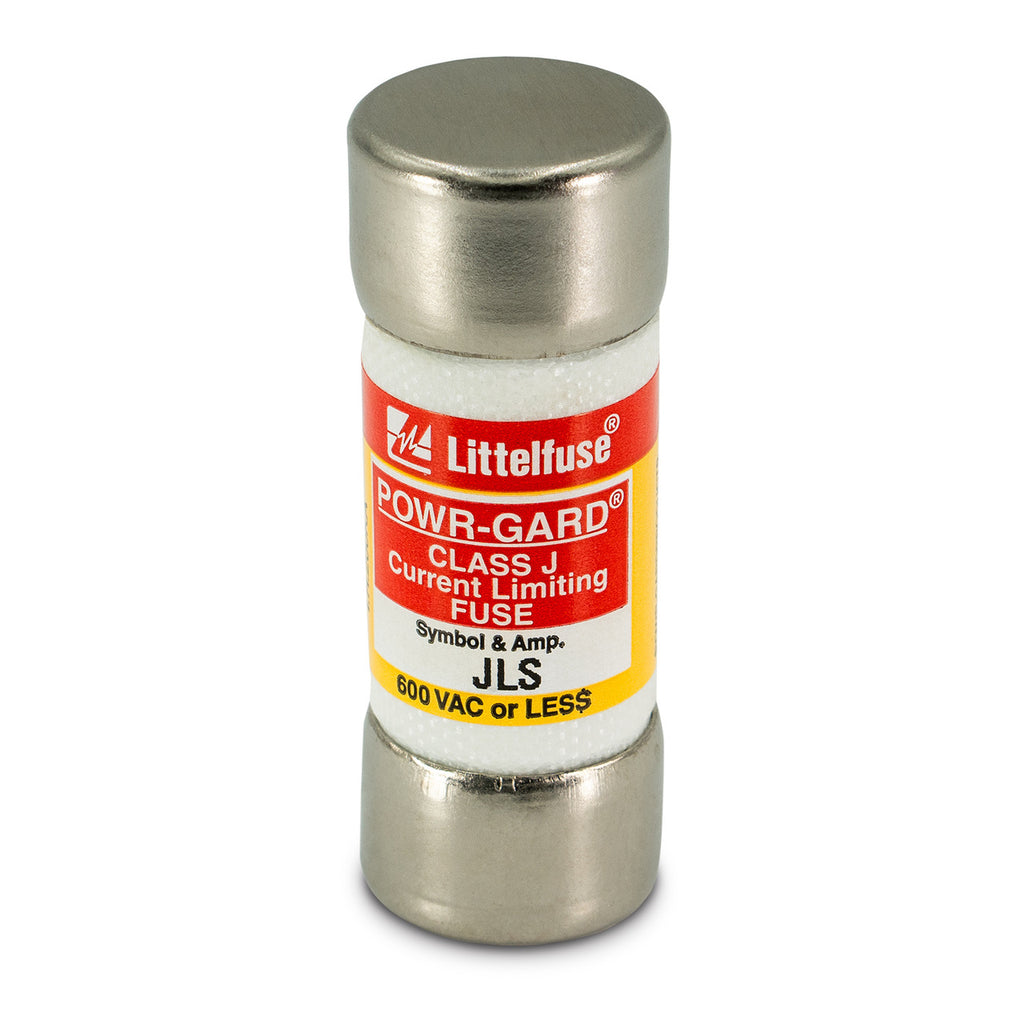

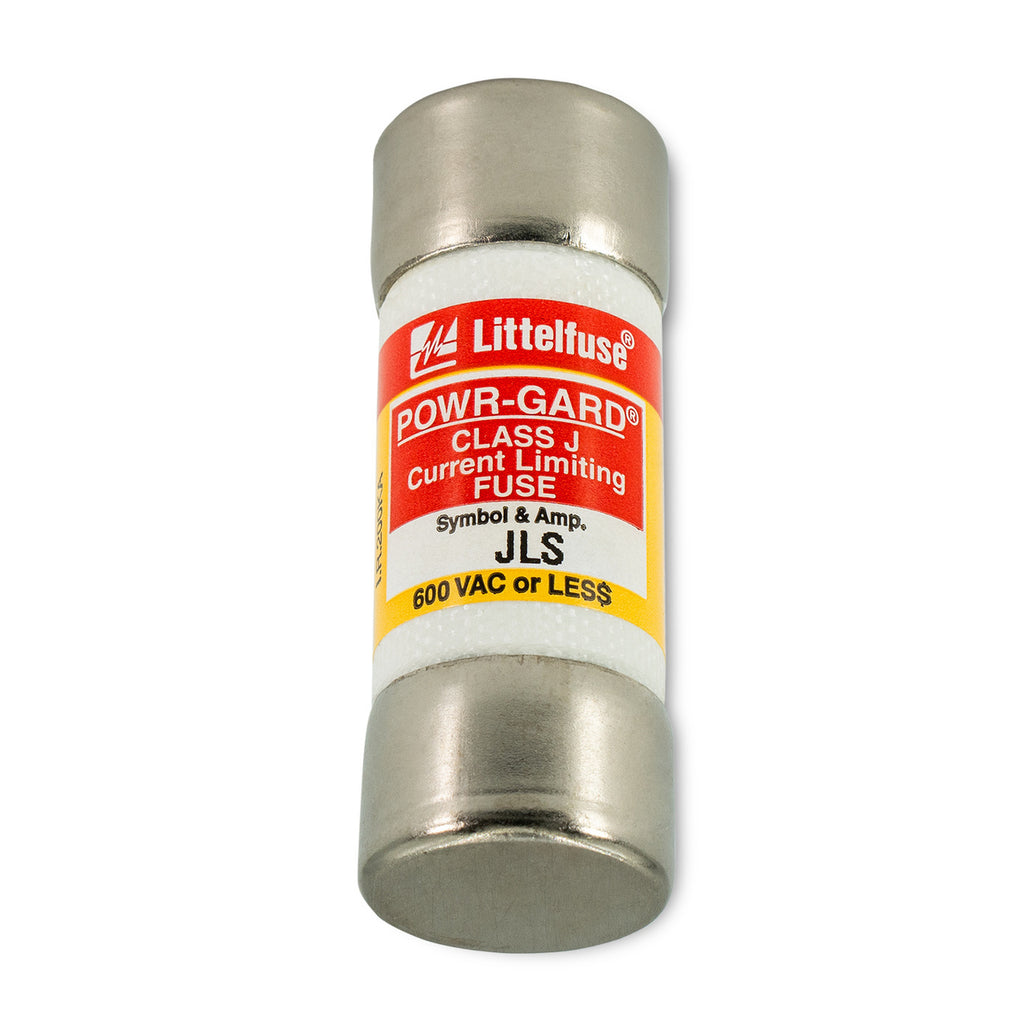

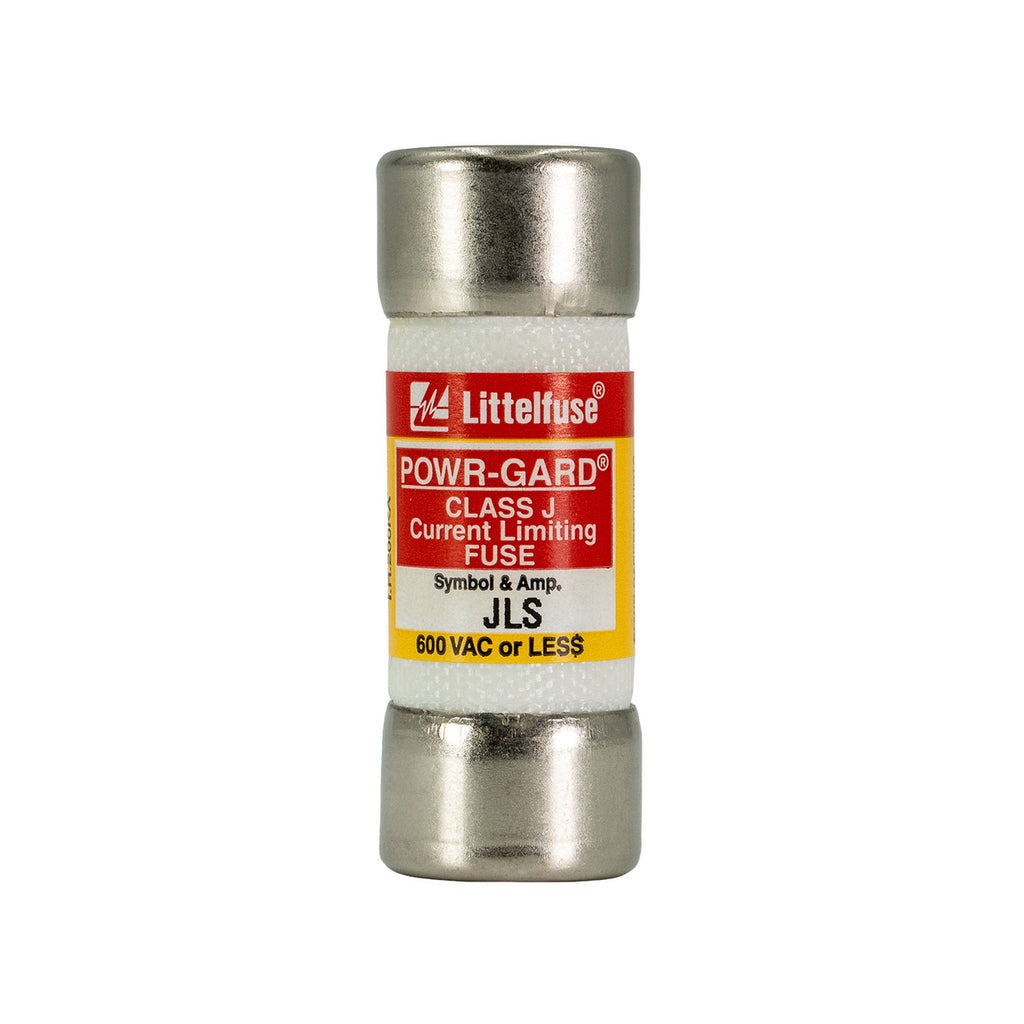

JLS006 is a Littelfuse POWR-GARD Class J fast-acting fuse rated for 6 amperes at 600 volts AC, designed for general purpose circuits with little or no motor load and resistive loads requiring fast overload protection. This current-limiting fuse features a compact cartridge body measuring 13/16 inch diameter by 2-1/4 inch length, with an interrupting rating of 200,000 amperes symmetrical at 600 VAC. The fast-acting response time provides reliable protection for power conversion devices, variable speed drives, rectifiers, and solid-state equipment while minimizing damage from short-circuit currents. Key Specifications

• Amperage Rating: 6 Amp
• Voltage Rating: 600 VAC
• Fuse Type: Class J
• Response Time: Fast-Acting
• Interrupting Rating: 200,000 AIC at 600VAC
• Physical Size: 13/16 inch diameter x 2-1/4 inch length
• Construction: Cartridge body with ferrule terminals
• Current-Limiting: Yes
• UL Listed: UL 248-8 (File No. E81895)
• CSA Certified: File No. LR29862
• Federal Specification: WF-1814
• Series: JLS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLS006
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JLS Series - UL Class J Fast-Acting Fuses
• Type : JLS Series - UL Class J Fast-Acting Fuses
• Voltage : 600
• Amperage : 6
• AIC rating : 200kA@600Vac
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : J
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 079458200584
• GTIN : 00079458200584
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 7
• Certification : CE, UL 248-8 Class J, UL Listed, CSA Certified, QPL-W-F-1814
