Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description

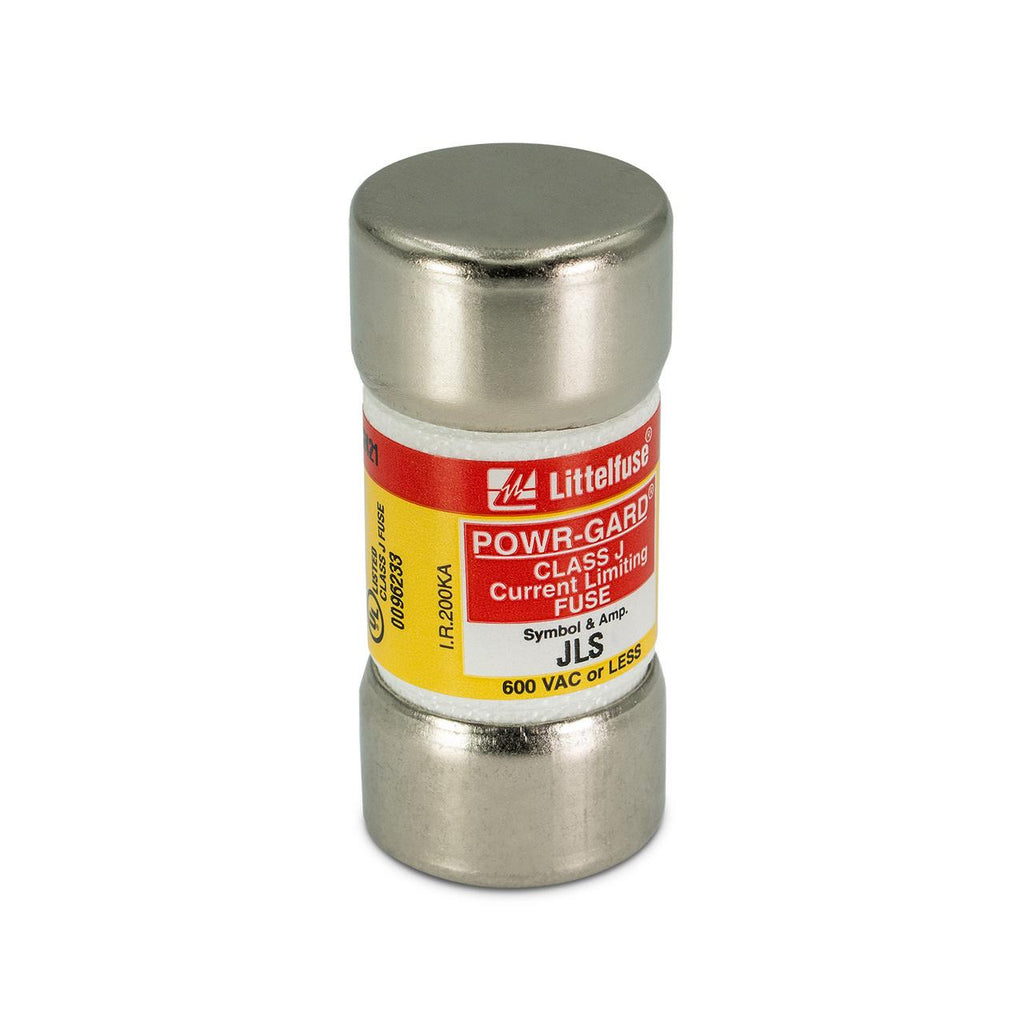

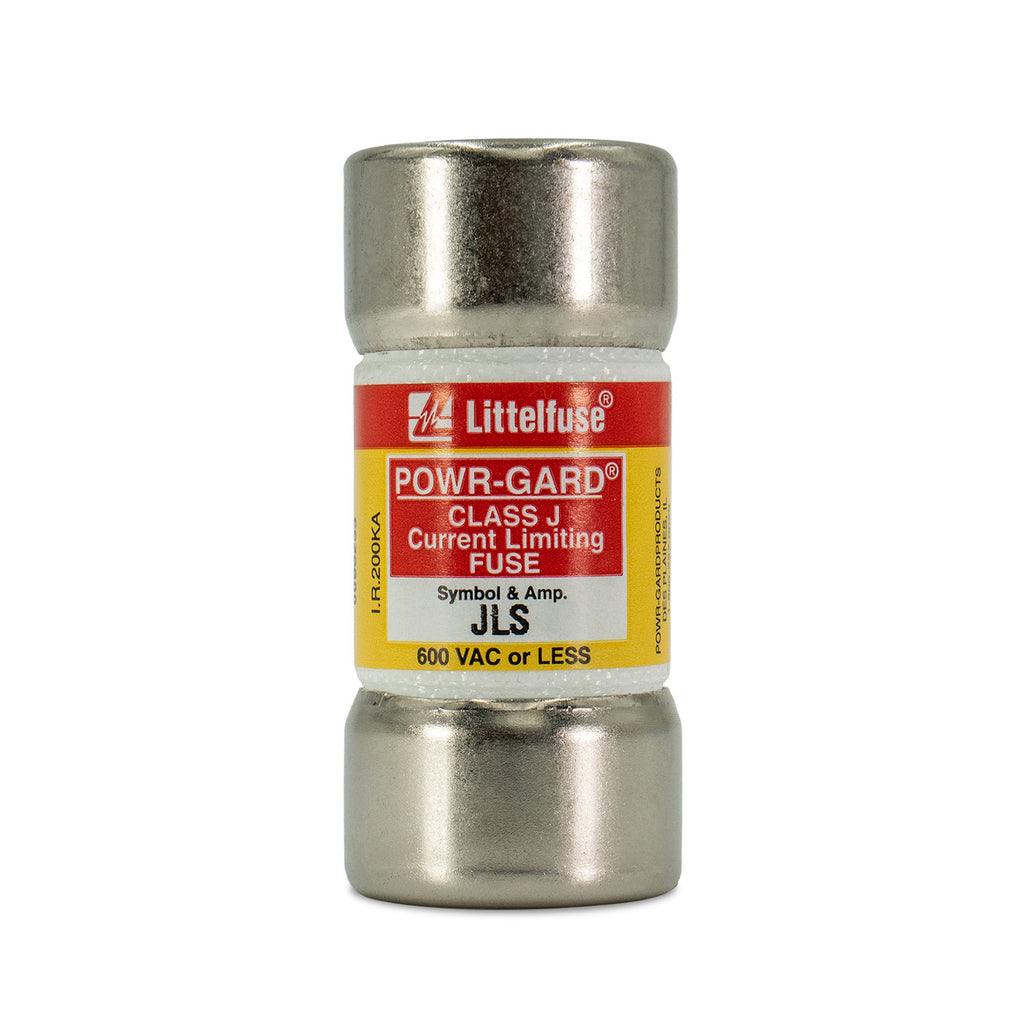

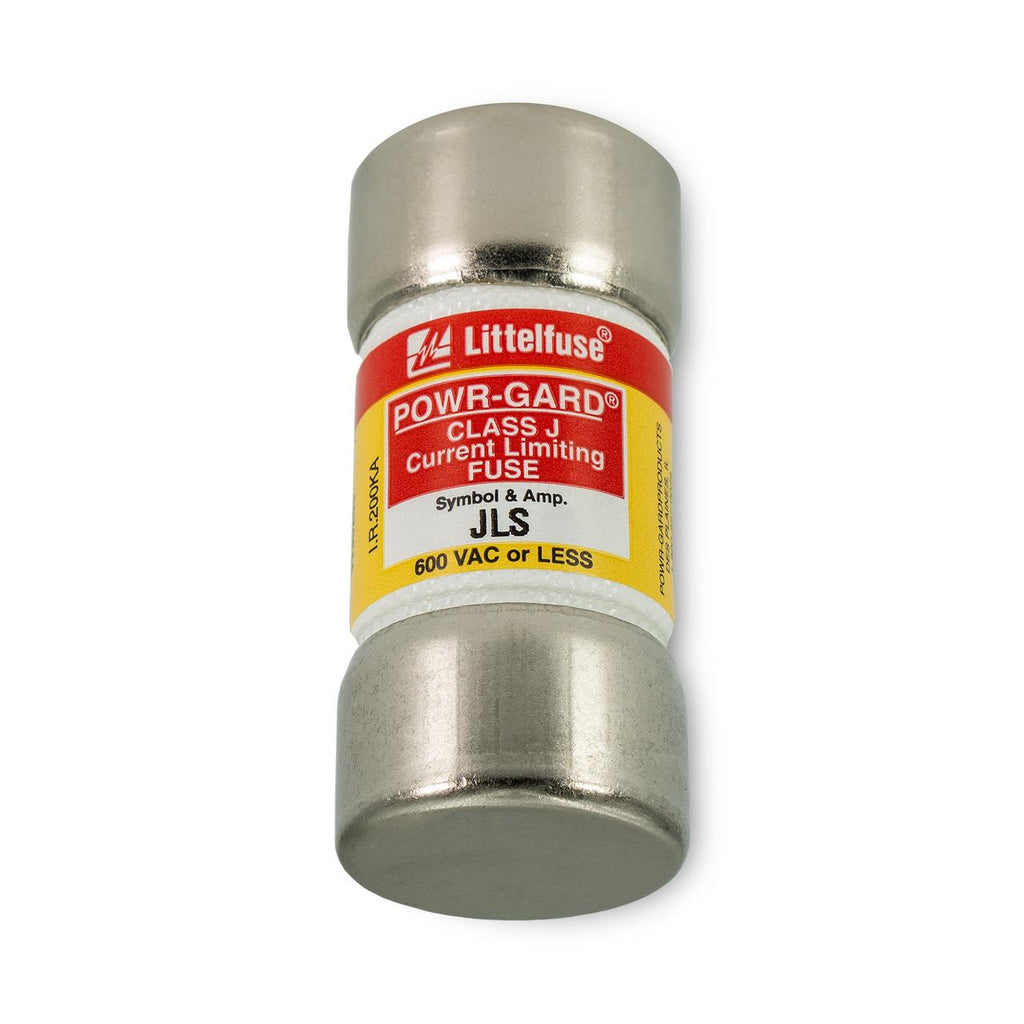

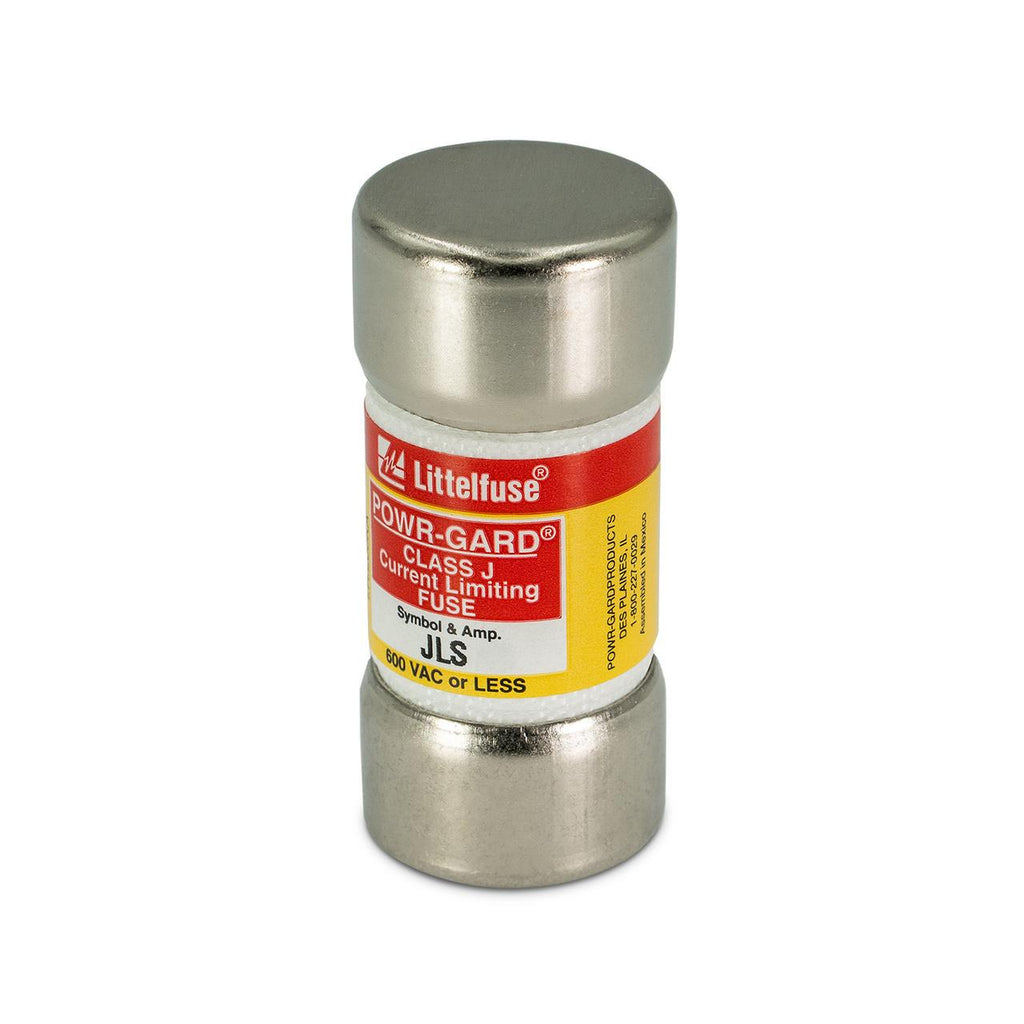

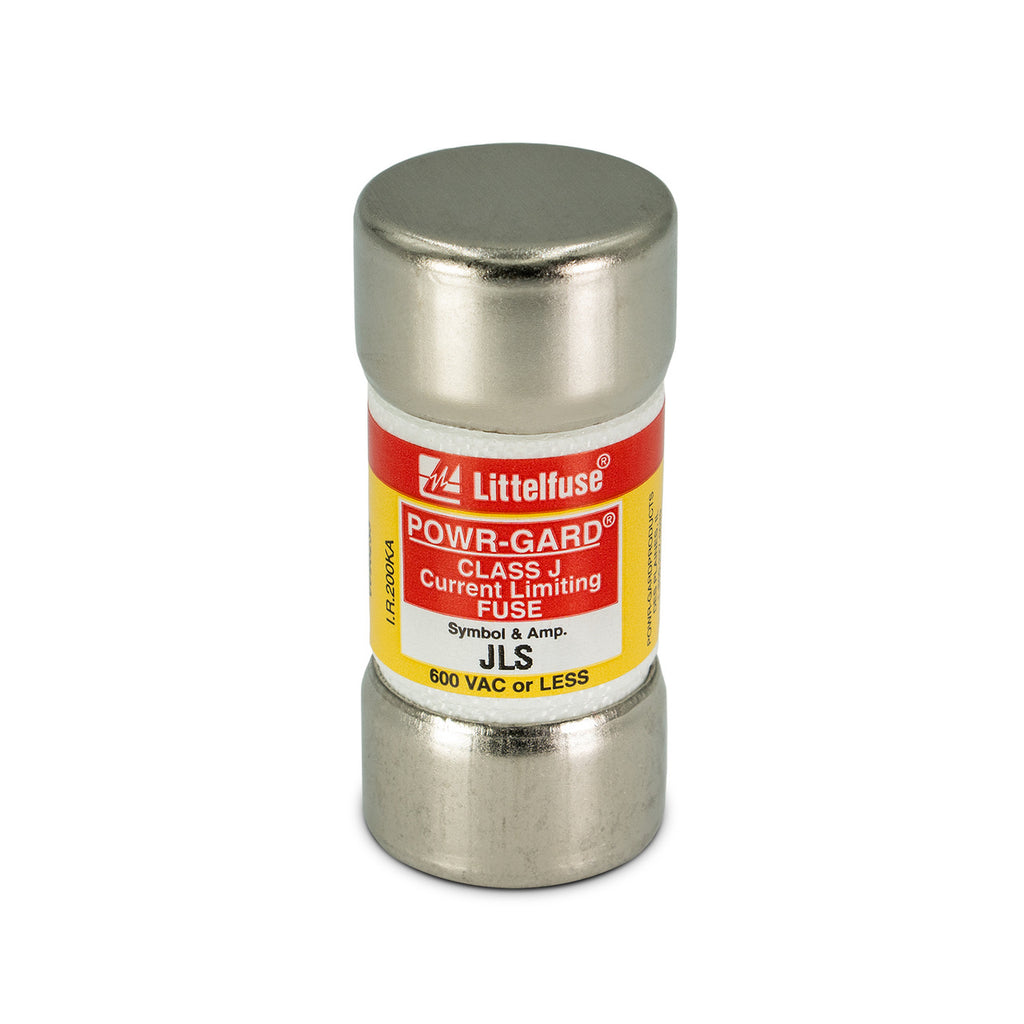

JLS-350
JLS-350 is a Littelfuse Class J fast-acting fuse designed for industrial and power conversion applications.This 350 amp, 600 volt AC fuse provides fast overload and short-circuit protection with a high interrupting rating of 200,000 amps. It features current-limiting technology to reduce damage from short-circuit currents and is compact in size for space-saving installation. The JLS series meets UL 248-8, CSA, and QPL-WF-1814 standards and is suitable for protecting surge-sensitive devices and components.
- Key Specifications
- Amperage: 350 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 200,000 A RMS symmetrical
- Fuse Type: Class J, Fast-Acting
- Mounting Type: Knife-blade style
- Series/Frame: JLS Series
- Standards: UL 248-8, CSA Certified, QPL-WF-1814, CE Approved
- Dimensions: Approximately 2 inch diameter x 7 1/8 inch length
- Current Limiting: Yes
- Applications: Power conversion, variable speed drives, rectifiers, resistive loads
- Part Number: JLS-350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- UPC : 07945820092
- GTIN : 079458200928
- Weight : 5.19
